Overview of MURR 64209396 MPS3-230/24

MURR 64209396 MPS3-230/24 is a 24 V DC switch-mode power supply designed for industrial automation and control applications. The MPS3-230/24 product family is associated with MURR Elektronik power supply technology and is designed to convert an AC input into a regulated DC control voltage for industrial electrical systems.

The power supply accepts a single-phase AC input in the 115/230 V range and provides a 24 V DC output with a nominal output current of 3 A. With a nominal output power of approximately 72 W, the unit is suitable for supplying compatible control circuits and auxiliary devices in industrial cabinets.

The model is designed for DIN-rail installation and includes LED indication for operating status. Its compact industrial format allows the power supply to be installed alongside control equipment, interface devices, relays, sensors, and other automation components.

For identification purposes, 64209396 is also associated with the ABB product reference for the MPS3-230/24 COATED configuration. The ABB product documentation identifies the global commercial alias as MPS3-230/24C and the long description as a 24 V power supply.

MPS3-230/24 Power Supply Design

The MPS3-230/24 uses switch-mode power supply technology to convert the incoming AC voltage into a stable low-voltage DC output. This type of power conversion is widely used in industrial automation because it provides a practical way to supply control electronics from the AC distribution system.

The single-phase input architecture allows the unit to be connected to common industrial AC supplies. The input voltage range includes 115 V and 230 V AC, while the output is designed around the widely used 24 V DC control voltage.

The 24 V DC output is suitable for many industrial automation loads. Depending on the system design, these can include control relays, sensors, interface components, PLC-related equipment, signaling devices, and other compatible low-voltage DC circuits.

When selecting the power supply for a specific application, the total connected load should be calculated carefully. Continuous current demand, startup current, cable voltage drop, and environmental operating conditions should all be considered as part of the system design.

Input Voltage and Frequency

MURR MPS3-230/24 is designed for single-phase AC input operation. Technical references identify an input voltage of 115/230 V AC and an input frequency of 50/60 Hz.

This input arrangement allows the power supply to be integrated into industrial control cabinets supplied from common AC distribution systems. The appropriate input connection should be selected according to the electrical configuration and installation documentation.

Before energizing the unit, the input voltage should be verified against the power supply requirements. Correct line, neutral, and protective-earth connections are important for safe and reliable operation.

The upstream electrical circuit should also include suitable protection according to the cabinet design and applicable electrical requirements. The power supply should be installed as part of a properly designed electrical distribution system rather than connected without appropriate circuit protection.

24 V DC Output and 3 A Rating

The main output of the MPS3-230/24 is 24 V DC with a nominal output current of 3 A. This provides approximately 72 W of nominal DC output power under the specified operating conditions.

24 V DC is one of the most common control voltages used in industrial automation. It can supply many types of low-voltage devices used in machinery and process-control systems.

When several devices share the same 24 V supply, the combined current requirement should remain within the capability of the power supply. Engineers should also consider the difference between normal operating current and temporary startup current. Some electronic equipment and inductive loads can require additional current during energization.

For distributed control circuits, voltage drop should also be considered. Long cable runs can reduce the voltage available at remote loads, particularly when the connected current is relatively high. Appropriate conductor sizing can help maintain the required voltage throughout the control circuit.

DIN Rail Installation

The MPS3-230/24 is intended for DIN-rail installation, which makes it suitable for industrial control cabinets and electrical panels. DIN-rail mounting provides a standardized mechanical arrangement and allows the power supply to be installed together with other modular automation components.

Available technical references specify a compact housing with dimensions of approximately 75 mm in width, 71 mm in height, and 132 mm in depth. These dimensions provide a useful reference when planning cabinet space and component placement.

The installation area should provide adequate clearance around the power supply for ventilation and access to electrical terminals. The cabinet layout should also separate high-power circuits from sensitive control wiring where appropriate.

Proper mechanical installation helps maintain reliable electrical connections and provides suitable conditions for heat dissipation during continuous operation.

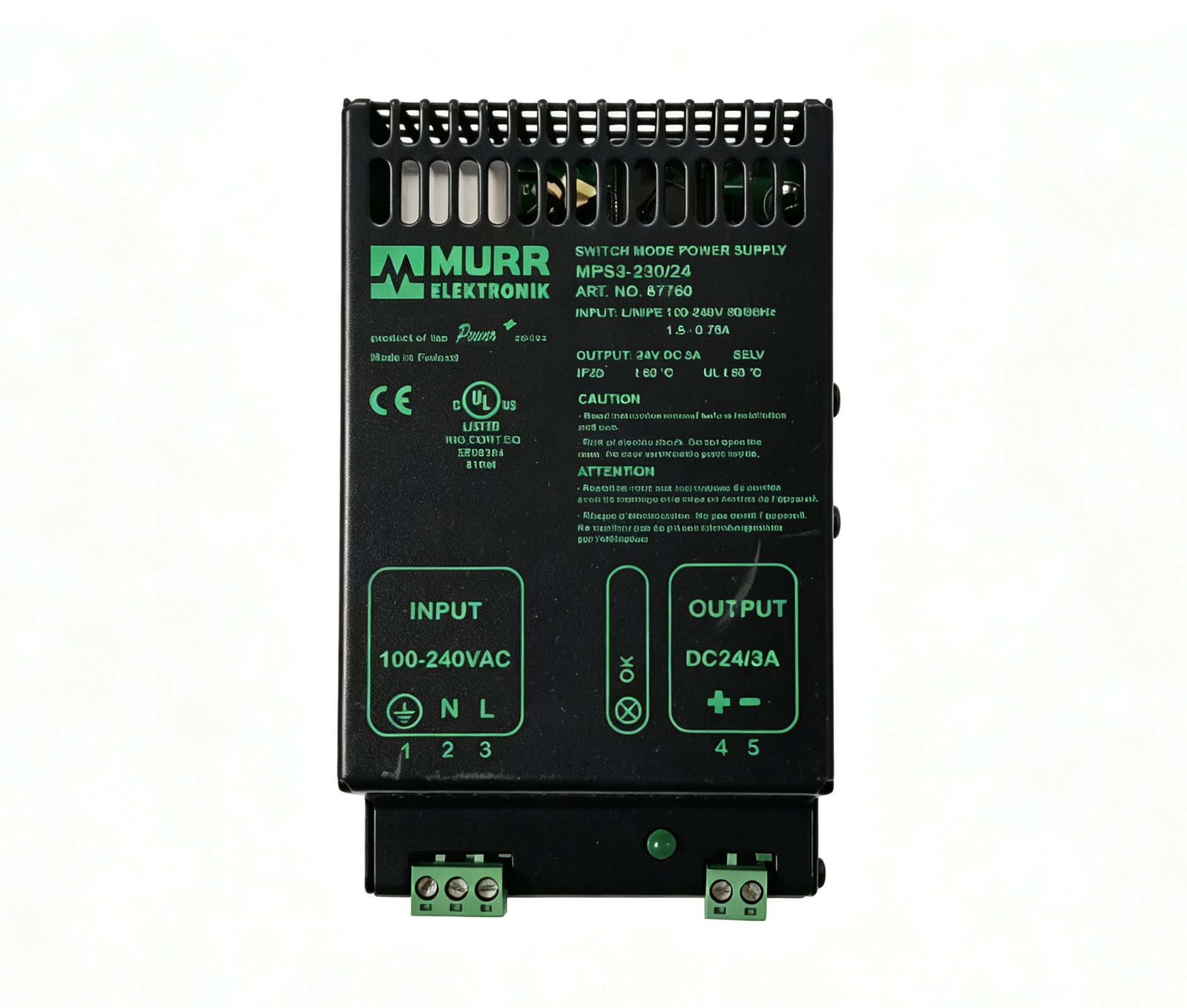

LED Status Indication

The MPS3-230/24 incorporates LED signaling to provide a visual indication of the power supply operating condition. Status indication is useful during commissioning and maintenance because it allows technicians to determine whether the unit is receiving power and operating without immediately using additional diagnostic equipment.

If the expected LED indication is absent, troubleshooting should begin with the AC input circuit, upstream protection, wiring, and input voltage. If the input is correct but the output is abnormal, the connected load and DC distribution circuit should also be checked.

A fault in a downstream 24 V circuit can affect the operation of the power supply. Short circuits, excessive loads, damaged wiring, or defective connected devices should therefore be considered when diagnosing abnormal output conditions.

Industrial Automation Applications

MURR MPS3-230/24 is intended for industrial power supply applications where 24 V DC auxiliary power is required. Typical applications can include machine control cabinets, automation equipment, electrical panels, instrumentation systems, and industrial control assemblies.

A dedicated 24 V DC power supply can provide electrical separation between the AC cabinet supply and the low-voltage control circuit. This architecture allows automation components to operate from a standardized DC voltage while the main equipment may operate at significantly higher AC or DC voltages.

In a machine control cabinet, the power supply can support multiple low-voltage devices. The final configuration depends on the current requirements of the individual devices and the overall electrical design.

The MPS3-230/24 can therefore serve as an auxiliary power component within larger automation systems rather than as a direct motor power source.

Identification of 64209396

The number 64209396 requires particular attention because it appears as an ABB product identification number associated with the MPS3-230/24C configuration. ABB product information identifies product ID 64209396, global commercial alias MPS3-230/24C, and ABB Type Designation MPS3-230/24 COATED.

At the equipment level, the MPS3-230/24 designation identifies the power supply model, while 64209396 provides an additional procurement and system reference. When researching an existing installation, both identifiers can be recorded together.

This is especially useful when comparing older documentation, equipment lists, spare-part records, and manufacturer references. Using both the numerical product ID and the MPS3-230/24 model designation reduces ambiguity during component identification.

Maintenance Considerations

Maintenance involving the MPS3-230/24 should be performed with the associated electrical cabinet in an appropriate safe condition. The AC input should be isolated according to the applicable electrical safety procedures before accessing the power supply terminals.

Technicians can inspect the unit for abnormal heating, damaged terminals, loose connections, contamination, or physical damage. The condition of the connected 24 V DC distribution network should also be checked when investigating an output problem.

If the output voltage is missing, unstable, or lower than expected, troubleshooting should include the AC input, upstream protection, power supply status indication, output wiring, and connected load. A downstream short circuit or excessive load can affect the operation of the power supply.

When replacing the unit, the input voltage, 24 V DC output rating, 3 A current capacity, mounting method, terminal arrangement, and complete model identification should be compared with the existing installation.

Technical Identification Summary

The main identification references for this power supply are MURR MPS3-230/24 and ABB product number 64209396 for the associated coated configuration. ABB identifies the global commercial alias as MPS3-230/24C.

The principal electrical characteristics are single-phase 115/230 V AC input, 50/60 Hz frequency, 24 V DC output, and 3 A nominal output current. The resulting nominal output power is approximately 72 W.

The unit uses DIN-rail mounting and LED status indication. Available technical references specify approximately 75 mm width, 71 mm height, and 132 mm depth, making the device suitable for compact industrial control cabinet installations.

Conclusion

MURR 64209396 MPS3-230/24 is a 24 V DC industrial switch-mode power supply intended for automation and control applications. The unit provides a 24 V DC output at 3 A from a 115/230 V AC single-phase input and is designed for DIN-rail installation.

The MPS3-230/24 designation identifies the power supply model, while 64209396 is the ABB product identification associated with the MPS3-230/24C coated configuration. Keeping both references in technical and procurement records is useful when identifying the component for an existing installation.

With its 24 V DC output, 3 A capacity, compact DIN-rail format, and LED status indication, the MPS3-230/24 is suited to auxiliary power requirements in industrial automation cabinets, machine control systems, and related electrical installations.
