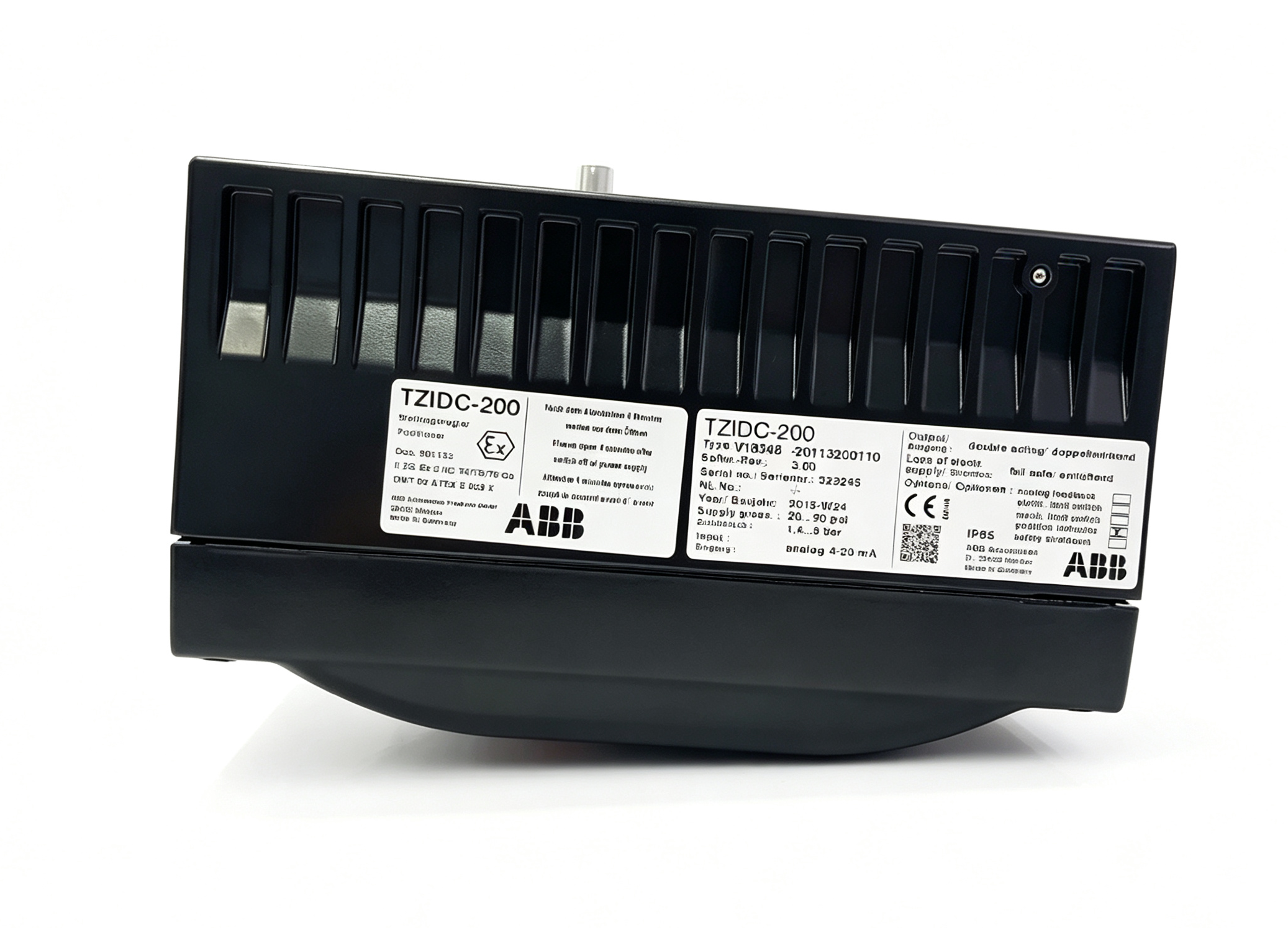

ABB V18348 TZIDC-200 Digital Positioner for Linear and Rotary Actuators

The TZIDC-200 is intended for applications where a control system needs reliable feedback and precise positioning of a valve. It can be mounted to both linear and rotary actuators, allowing the same positioner family to support different types of final control equipment. ABB specifies the TZIDC-200 as a standard-performance digital positioner with a flameproof enclosure and 4–20 mA HART communication. This configuration makes the device suitable for process control installations where pneumatic valve positioning and digital communication are required.

ABB V18348 TZIDC-200 Design

The V18348 TZIDC-200 uses a compact and modular construction. Its design integrates the electronic control section with the pneumatic positioning function so that the device can receive a position command and regulate the actuator accordingly. The positioner continuously evaluates the relationship between the commanded position and the actual valve position, allowing the control output to be adjusted as required.

According to ABB documentation, the TZIDC-200 is available with different housing and mounting configurations. The housing can be configured for mounting to linear actuators according to DIN/IEC 534 and NAMUR requirements or to rotary actuators according to VDI/VDE 3845. Configurations for integral mounting to suitable control valves are also included in the product family. Depending on the selected configuration, a mechanical position indicator can also be incorporated.

4–20 mA HART Communication

One of the principal characteristics of the ABB V18348 TZIDC-200 is its 4–20 mA HART communication interface. The analog signal provides the basic control path between the control system and positioner, while HART communication provides access to digital device information and configuration functions. This combination allows the positioner to be integrated into conventional process control architectures while retaining intelligent field-device capabilities.

HART communication can be used for parameterization, device information, diagnostics and maintenance-related functions. This is particularly useful during commissioning and service because operating parameters can be accessed without relying only on local mechanical adjustment. The communication capability also allows the TZIDC-200 to provide additional information to compatible control or asset-management systems.

Automatic Valve Adaptation

The TZIDC-200 includes an automatic adaptation function that simplifies the relationship between the positioner, actuator and control valve. ABB describes the Autostroke function as a means of automatically adapting the positioner to the valve. During the appropriate commissioning procedure, the positioner can determine important characteristics of the connected final control element and establish suitable control parameters.

Automatic adjustment is important because valve assemblies can differ in actuator size, travel range and mechanical characteristics. Instead of requiring every control parameter to be established manually, the positioner can use its automatic adjustment functions to determine an appropriate operating relationship. This helps simplify commissioning and provides a consistent starting point for further parameterization when application-specific adjustments are required.

Linear and Rotary Actuator Compatibility

The ABB V18348 TZIDC-200 is designed for use with both linear and rotary actuators. For linear valve assemblies, the mounting arrangement can follow the relevant DIN/IEC 534 and NAMUR interface requirements. For rotary actuator applications, the positioner can be configured for mounting according to VDI/VDE 3845. This flexibility allows the TZIDC-200 platform to be applied to different valve geometries without requiring a completely different positioner architecture.

The position feedback system is an important part of this arrangement. The positioner compares the desired position represented by the input signal with the actual mechanical position of the actuator. When a deviation exists, the pneumatic output is adjusted to move the actuator toward the required position. This closed-loop positioning principle enables the TZIDC-200 to maintain accurate valve positioning during changing process conditions.

Diagnostics and Local Operation

The digital architecture of the TZIDC-200 provides functions beyond basic analog valve positioning. HART communication gives access to intelligent device functions, including diagnostic information, parameterization and maintenance-related data. Local operation is also part of the TZIDC platform, allowing configuration and adjustment procedures to be performed at the field device when the applicable installation and operating conditions are satisfied.

Diagnostic information can assist maintenance personnel in identifying deviations between commanded and actual valve positions and in evaluating the operating condition of the positioner. This approach can help make troubleshooting more structured, especially in process plants where a valve positioner is installed as part of a larger automated control loop.

Flameproof Enclosure and Industrial Application

The TZIDC-200 is the flameproof-enclosure version of the standard TZIDC positioner family. ABB documentation provides specific configurations and approvals for applications involving potentially explosive atmospheres. The exact permitted installation area depends on the complete model configuration, certification, environmental conditions and applicable local regulations. Therefore, the detailed model code and nameplate information should always be checked before installation in a hazardous-area application.

ABB documentation also specifies an IP66 enclosure for applicable TZIDC-200 configurations. The enclosure protection is intended to protect the equipment against environmental influences when the positioner is correctly installed and maintained. Installation requirements, grounding, certification conditions and other applicable rules must be considered as part of the complete system installation.

V18348 Model Configuration

V18348 is the base model designation used for the TZIDC-200 digital positioner. The complete ordering code contains additional characters that define the selected configuration. ABB documentation identifies configuration options relating to the housing and assembly arrangement, operating function, output or safety position, optional analog or digital feedback, mechanical digital feedback, parameterization or bus address, design and measuring-point identification.

This configuration structure is important when identifying a specific ABB TZIDC-200 unit. Two positioners may share the V18348 base designation while having different option codes and mounting arrangements. For equipment identification, replacement selection or system documentation, the complete model code should therefore be considered rather than relying only on the general product family name.

Typical Applications

The ABB V18348 TZIDC-200 can be used in industrial process control systems where pneumatic control valves require electronic position feedback and automatic positioning. Typical application areas can include process plants, utility systems, chemical processing, energy facilities and other automated installations using pneumatic final control elements. Its support for linear and rotary actuators makes it suitable for a broad range of valve control configurations.

The combination of 4–20 mA signaling, HART communication, automatic adaptation and configurable mounting options provides a practical interface between the process control system and the pneumatic valve assembly. When correctly selected and installed, the TZIDC-200 can form an important field-level component in an automated control loop.

Technical Considerations

When selecting the ABB V18348 TZIDC-200 for a particular installation, the complete ordering code should be compared with the required actuator type, valve mounting arrangement, communication requirements, output configuration and applicable certification. Environmental conditions and hazardous-area requirements should also be reviewed against the technical documentation for the specific configuration.

The ABB V18348 TZIDC-200 represents a configurable digital positioner architecture focused on accurate pneumatic valve positioning, intelligent communication and simplified commissioning. Its support for linear and rotary actuators, 4–20 mA HART communication, automatic valve adaptation and modular configuration makes it a versatile component for industrial automation and process control systems.
