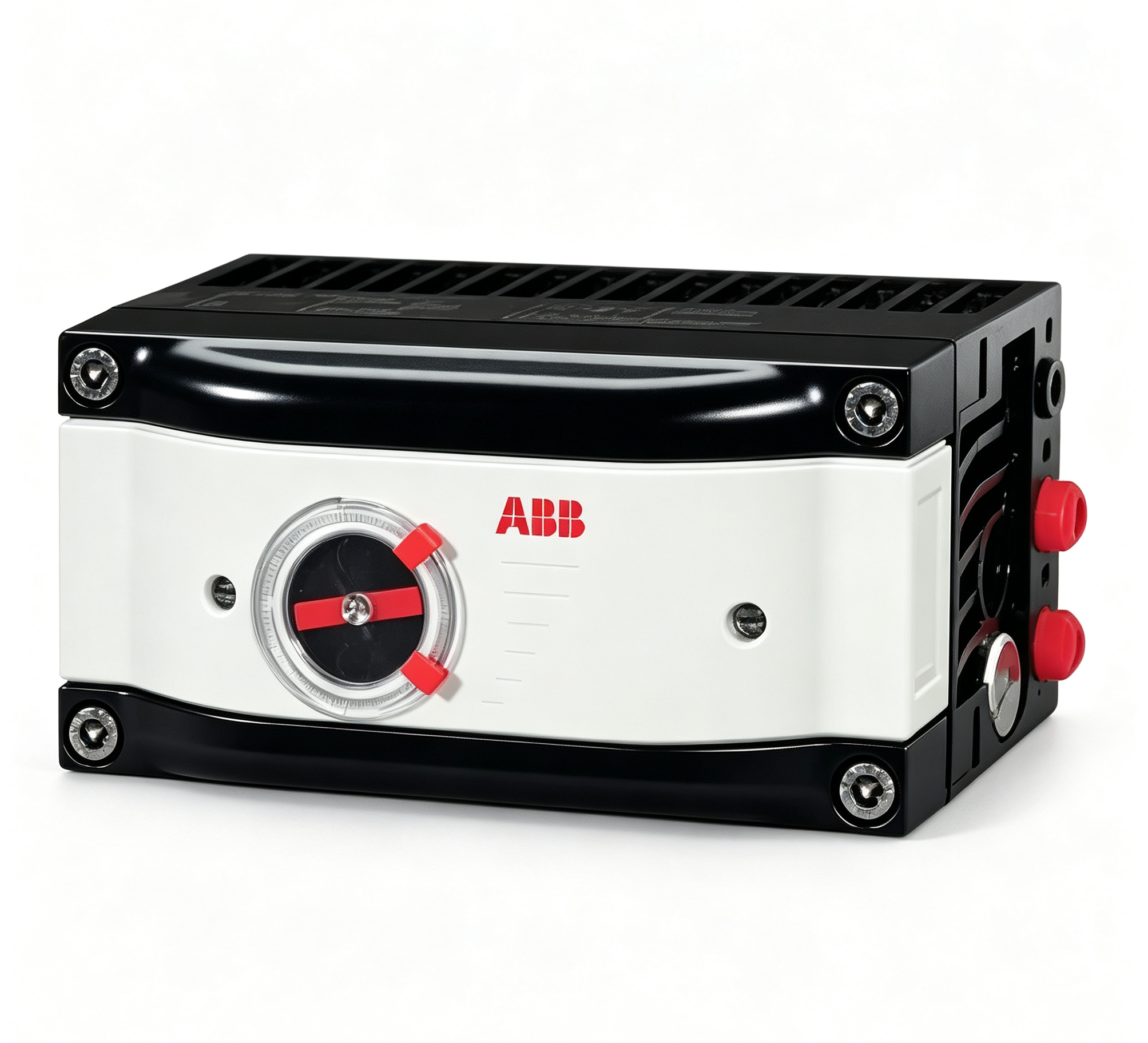

ABB V18348-10114310110 TZIDC-200 Electro-Pneumatic Valve Positioner Overview

The ABB V18348-10114310110, known as the TZIDC-200 electro-pneumatic intelligent valve positioner, is a high-performance control device used in industrial automation systems to precisely regulate the position of control valves. It is designed to convert electrical control signals into pneumatic output pressure, which drives valve actuators with high accuracy. This ensures stable process conditions in industries where flow, pressure, temperature, and level control are critical to operational safety and efficiency.

Role in Industrial Process Control Systems

In industrial process automation, valve positioners play a central role in regulating fluid and gas flow through pipelines and processing equipment. The ABB V18348-10114310110 acts as an interface between the control system and the pneumatic actuator, ensuring that the valve reaches and maintains the exact position required by the control signal.

By continuously comparing the control input signal with the actual valve position, the device adjusts pneumatic output pressure accordingly. This closed-loop control mechanism ensures high precision, reduced deviation, and stable process performance even under varying load conditions.

Working Principle of Electro-Pneumatic Conversion

The TZIDC-200 operates based on electro-pneumatic conversion technology. It receives a standard 4–20 mA electrical signal from a PLC or distributed control system and converts it into a proportional pneumatic output. This output is used to drive the valve actuator, adjusting its position according to process requirements.

An internal microprocessor continuously monitors valve feedback and adjusts control output in real time. This intelligent control loop improves responsiveness and reduces oscillation, ensuring smooth and stable valve operation in dynamic industrial environments.

Intelligent Control and HART Communication

One of the key features of the ABB V18348-10114310110 is its support for HART communication protocol. This allows digital communication between the positioner and control systems, enabling advanced diagnostics, configuration, and monitoring capabilities.

Through HART communication, operators can access real-time data such as valve position, actuator status, and diagnostic information. This improves maintenance efficiency and enables predictive maintenance strategies, reducing unexpected downtime in industrial operations.

Mechanical Design and Installation Flexibility

The TZIDC-200 is designed with a rugged aluminum housing that provides protection against harsh industrial conditions. It is suitable for mounting on both linear and rotary actuators, complying with DIN/IEC and VDI/VDE standards. This universal mounting design makes it highly adaptable across different types of valve systems.

The enclosure is rated for IP65 protection, ensuring resistance to dust and water ingress. This allows reliable operation in outdoor installations and harsh process environments such as chemical plants, refineries, and power generation facilities.

Explosion Protection and Safety Features

The ABB V18348-10114310110 is available with ATEX-certified explosion-proof protection, making it suitable for hazardous areas where flammable gases or vapors may be present. The flameproof enclosure ensures that internal electrical events cannot ignite the surrounding environment.

This safety design is essential in industries such as oil and gas, petrochemical processing, and pharmaceutical production, where strict safety standards must be maintained to protect both personnel and equipment.

Actuator Compatibility and Application Flexibility

The positioner supports both single-acting and double-acting pneumatic actuators, as well as linear and rotary motion systems. This flexibility allows it to be used in a wide range of valve configurations, including globe valves, butterfly valves, and rotary control valves.

Its adaptive control system automatically adjusts to actuator characteristics, reducing commissioning time and improving installation efficiency. This makes it suitable for both new installations and retrofit projects in existing industrial plants.

Performance Stability and Control Accuracy

The ABB TZIDC-200 is designed for high precision control with minimal deviation between commanded and actual valve positions. Its internal feedback system continuously monitors actuator movement and corrects any discrepancies in real time.

This results in improved process stability, reduced energy consumption, and optimized flow control. In applications where precise regulation is critical, such as chemical dosing or steam control, this level of accuracy is essential for safe and efficient operation.

Industrial Application Areas

The ABB V18348-10114310110 is widely used across multiple industries. In oil and gas facilities, it controls pipeline flow and pressure regulation systems. In chemical processing plants, it manages reactor feed control and fluid mixing processes. In power generation systems, it regulates steam and cooling water flow to maintain optimal operating conditions.

It is also used in water treatment facilities, food processing plants, and pharmaceutical production lines where precise valve control is required to maintain product quality and process consistency.

Diagnostics and Maintenance Efficiency

The intelligent design of the TZIDC-200 includes built-in diagnostic functions that monitor system performance and detect potential issues before they lead to failure. This includes monitoring valve travel, response time, and pneumatic pressure behavior.

Maintenance personnel can access diagnostic data through digital communication interfaces, enabling faster troubleshooting and reducing maintenance downtime. This contributes to improved plant reliability and operational efficiency.

Installation and Commissioning Advantages

The ABB V18348-10114310110 is designed for easy installation and commissioning. Its automatic calibration function allows the device to detect actuator characteristics and configure control parameters accordingly. This reduces manual setup requirements and ensures consistent performance across installations.

Standardized mounting interfaces and wiring connections further simplify integration into existing control systems, making it suitable for both new and retrofit applications.

Conclusion

The ABB V18348-10114310110 TZIDC-200 electro-pneumatic intelligent valve positioner is a highly reliable and precise control device for industrial automation systems. With advanced electro-pneumatic conversion technology, HART communication support, robust mechanical design, and broad actuator compatibility, it delivers stable and accurate valve control across demanding industrial environments. Its diagnostic capabilities, safety features, and flexible integration make it an essential component in modern process control and automation systems.
