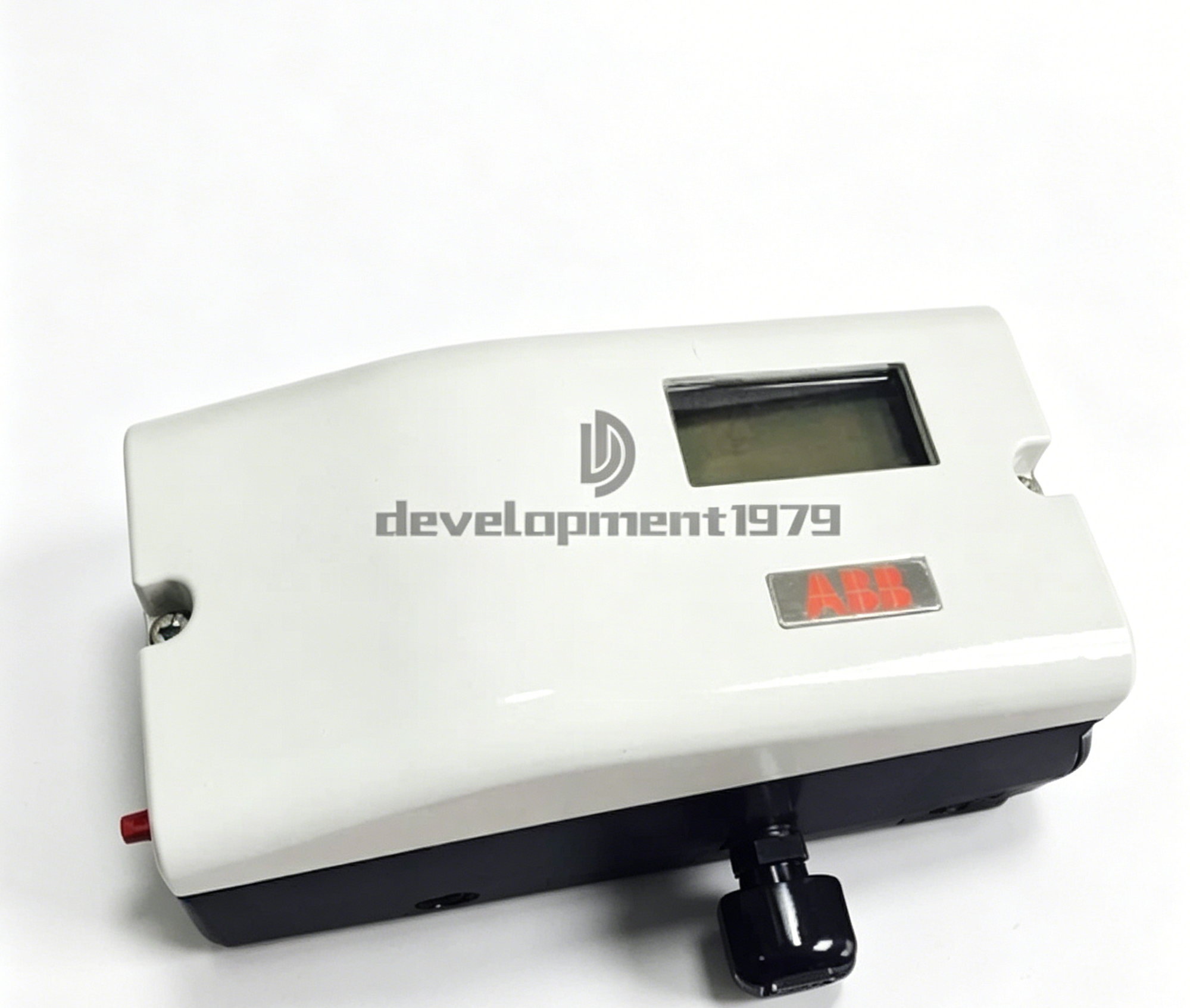

ABB V18345-1010551001 TZIDC Intelligent Electro Pneumatic Valve Positioner

The ABB V18345-1010551001 is an intelligent electro pneumatic valve positioner belonging to the ABB TZIDC family of advanced process control devices. Designed for demanding industrial applications, this positioner provides highly accurate valve movement control while improving process stability, control loop performance and operational efficiency across a wide range of industries.

Modern process plants require precise valve positioning in order to maintain stable flow, pressure, temperature and level control. The TZIDC intelligent positioner addresses these requirements by converting electrical input signals into highly accurate pneumatic output signals that drive control valves with exceptional responsiveness and repeatability.

Advanced Intelligent Positioning Technology

The ABB V18345-1010551001 incorporates advanced microprocessor technology that continuously monitors valve position and automatically adjusts actuator movement to achieve accurate control performance. Unlike conventional pneumatic positioners, the TZIDC platform offers intelligent self-optimization and adaptive control algorithms.

The integrated control system automatically determines actuator parameters during commissioning and optimizes the control loop according to actual operating conditions. This significantly reduces setup time while ensuring excellent dynamic response and positioning accuracy.

4-20mA Two-Wire Communication Interface

The positioner utilizes an industry-standard 4-20mA two-wire input signal, enabling seamless integration with distributed control systems, programmable logic controllers and process automation networks.

Compatibility with existing instrumentation infrastructure allows straightforward replacement of older positioners without requiring major modifications to plant control architecture. The low power consumption characteristics further simplify installation and commissioning.

Double Acting Actuator Support

The ABB V18345-1010551001 is configured for double acting pneumatic actuators and incorporates fail freeze functionality during electrical power interruptions. In the event of power loss, the actuator remains in its current position, preventing sudden valve movement and helping maintain process stability.

This functionality is particularly valuable in critical process applications where unintended valve movement could lead to production disturbances, safety concerns or product quality issues.

Integrated Analog Position Feedback

An integrated analog feedback module provides continuous valve position monitoring through a 4-20mA output signal. This enables operators and control systems to monitor valve travel remotely and verify positioning performance in real time.

Continuous feedback also supports predictive maintenance strategies by allowing early detection of mechanical wear, actuator degradation or abnormal operating conditions before failures occur.

Automatic Commissioning Functions

One of the most significant advantages of the TZIDC platform is its automatic commissioning capability. The positioner can perform automatic stroke detection and parameter configuration without extensive manual adjustments.

Automatic tuning significantly reduces installation time and ensures consistent performance regardless of valve size, actuator type or process conditions. Maintenance personnel can complete commissioning procedures quickly while minimizing human error.

Robust Industrial Construction

The ABB V18345-1010551001 features an aluminum housing with high mechanical strength and excellent environmental resistance. The enclosure provides IP65 and NEMA 4X protection, ensuring reliable operation in harsh industrial environments exposed to dust, moisture and vibration.

The corrosion resistant housing material contributes to long service life in chemical processing plants, offshore installations and outdoor industrial facilities.

Flexible Mounting Options

The positioner supports installation on both linear and rotary actuators according to internationally recognized standards including DIN/IEC 534, NAMUR and VDI/VDE 3845 mounting specifications.

This flexibility allows the device to be integrated into a wide variety of control valve configurations while simplifying spare parts management across multiple production facilities.

Pneumatic Performance

The integrated I/P converter and pneumatic amplifier provide stable and responsive actuator control with optimized air consumption characteristics. The pneumatic output continuously adjusts air flow to maintain precise positioning while minimizing compressed air usage.

When the desired setpoint is reached, the control valve mechanism minimizes unnecessary air consumption, contributing to improved energy efficiency and reduced operating costs.

Diagnostic and Monitoring Capabilities

The intelligent electronics continuously monitor internal operating conditions and actuator performance. Diagnostic information can be used to identify friction increases, valve sticking, air leakage and other process issues before they impact production performance.

These monitoring functions support predictive maintenance programs and contribute to higher plant availability and reduced maintenance expenses.

Typical Applications

• Oil and gas processing facilities
• Chemical manufacturing plants
• Power generation stations
• Petrochemical production systems
• Water treatment facilities
• Pulp and paper processing plants
• Pharmaceutical production lines
• Food and beverage process control systems
• Refinery automation systems
• Industrial utility networks

Technical Specifications

• Product Number: V18345-1010551001
• Series: TZIDC
• Device Type: Intelligent Electro Pneumatic Valve Positioner
• Input Signal: 4-20mA Two Wire Technology
• Output Configuration: Double Acting
• Safety Function: Fail Freeze
• Position Feedback: Analog 4-20mA Feedback Module
• Housing Material: Aluminum
• Protection Rating: IP65 / NEMA 4X
• Pneumatic Connections: 1/4-18 NPT
• Cable Entry: M20 x 1.5
• Supply Pressure Range: 1.4 to 6 bar
• Mounting Standard: NAMUR, DIN/IEC 534, VDI/VDE 3845
• Installation Orientation: Any Orientation
• Weight: Approximately 1.7 kg

Conclusion

The ABB V18345-1010551001 TZIDC intelligent valve positioner combines advanced control algorithms, automatic commissioning, analog feedback functionality and rugged industrial construction in a compact package designed for demanding process automation environments. Its support for double acting actuators, fail freeze protection and high positioning accuracy make it an excellent choice for critical control valve applications requiring long-term reliability and consistent process performance.
