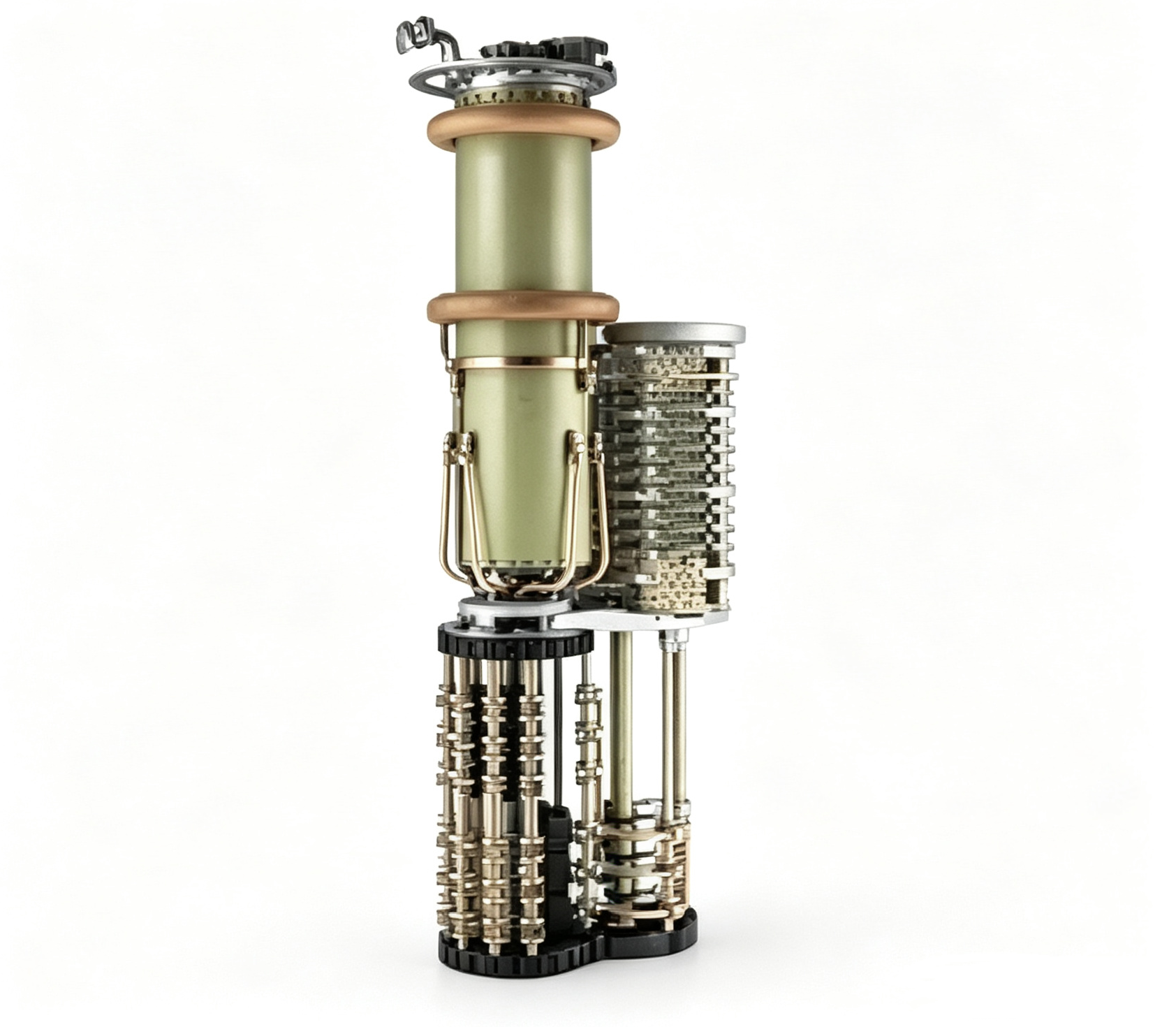

ABB UZERN-250/600 On-Load Tap Changer for Power Transformer Voltage Regulation

An on-load tap changer allows the effective transformer winding ratio to be adjusted while the transformer remains energized and connected to the electrical network. This makes the component suitable for transformer installations where voltage regulation must be performed during normal operating conditions.

Product Identification

• Manufacturer: ABB
• Type Designation: UZERN-250/600
• Product Family: UZER
• Component Type: On-Load Tap Changer
• Abbreviation: OLTC
• Application: Power Transformer
• Primary Function: Transformer Voltage Regulation
• Configuration: UZERN
• Designation: 250/600
• Application Area: Transformer Tap-Changing System

ABB UZERN-250/600 Overview

The ABB UZERN-250/600 is designed for transformer applications requiring controlled adjustment of the winding connection point during energized operation. The tap changer forms part of the transformer electrical system and works with the transformer winding, operating mechanism and voltage-control equipment.

Unlike an off-load tap selector, an on-load tap changer is designed to perform the transition between adjacent tap positions while transformer current is present. The switching process is controlled by the internal tap-changing mechanism.

The complete UZERN-250/600 assembly therefore combines electrical switching components with mechanical operating components to provide controlled transformer ratio adjustment.

On-Load Tap Changer Function

The main purpose of an on-load tap changer is to regulate transformer voltage. A transformer can experience changes in input voltage or load conditions during normal operation. These changes can affect the voltage available on the controlled side of the transformer.

The tap changer compensates for these variations by selecting different connection points on the transformer winding. Changing the active number of winding turns changes the transformation ratio and consequently changes the regulated voltage.

The UZERN-250/600 is therefore an important component in transformer voltage-control systems.

UZER Series Configuration

The UZERN designation identifies the configuration of the tap changer within the ABB UZER family. Different tap changer configurations can be designed for different transformer construction requirements, switching arrangements and electrical characteristics.

When identifying an ABB tap changer, the complete designation should be retained rather than recording only the general UZER family name. The letters and numerical designations provide information used to distinguish the particular equipment configuration.

For inventory and engineering records, UZERN-250/600 should therefore be recorded as the complete type designation.

Transformer Voltage Regulation

Transformer voltage regulation is particularly important in electrical substations and industrial power systems. Network voltage can change as system loading, generation and transmission conditions vary.

An on-load tap changer provides a mechanism for adjusting the transformer ratio to compensate for these variations. The control system can command a tap change according to the required voltage setpoint.

The UZERN tap changer operates as the electromechanical switching element within this voltage-regulation process.

Transformer Winding Tap Selection

A transformer winding can contain multiple tap points. Each tap represents a different effective number of turns. The tap changer selects one of these connection points according to the required operating position.

The change from one tap position to another must be controlled carefully because transformer current may be flowing during the operation. The internal switching arrangement is designed to provide a controlled transition between adjacent positions.

The actual number of available positions depends on the transformer-specific configuration and should be verified from the equipment documentation.

Electrical Switching Principle

An on-load tap changer must maintain electrical continuity during the tap-changing sequence while avoiding uncontrolled short circuits between adjacent winding taps. Its internal switching components therefore operate in a defined sequence.

The switching mechanism coordinates the transition between contacts associated with neighboring tap positions. The design of the switching system depends on the specific tap changer configuration.

For this reason, the UZERN-250/600 should be treated as a precision transformer switching assembly rather than as a conventional mechanical selector.

Mechanical Operating Mechanism

The tap changer is connected to an operating mechanism that moves the internal switching assembly between designated tap positions. Depending on the transformer installation, the operating mechanism can be connected to an electrically driven tap-change control system.

Mechanical synchronization is important because the physical tap position and the electrical position indication must correspond correctly.

During maintenance, the operating mechanism, position indication and mechanical coupling should be inspected according to the applicable equipment documentation.

250/600 Designation

The “250/600” portion of the product designation forms part of the complete identification of the ABB UZERN tap changer. It should be retained when recording the equipment because different UZER configurations can have different electrical and mechanical characteristics.

The exact meaning of each rating within a particular UZERN nameplate should be confirmed against the relevant ABB technical documentation and the transformer nameplate. This is especially important when determining rated current, switching capacity or other electrical parameters.

The complete designation is therefore more useful for technical identification than the UZER family name alone.

Technical Specification Summary

UZERN in Transformer Systems

The UZERN-250/600 is installed as part of a complete transformer tap-changing system. The tap changer interfaces with selected transformer winding taps and an external operating mechanism.

A complete installation can include the tap changer, motor-drive mechanism, position indicator, control equipment, protective functions and transformer winding connections.

The exact arrangement depends on the transformer manufacturer, transformer design and tap-changer configuration.

Voltage Control Operation

In a voltage-regulation application, a control system monitors the relevant transformer voltage and determines whether a tap adjustment is required. The operating mechanism then moves the tap changer to an adjacent position.

The tap changer performs the physical switching operation while maintaining the transformer in service.

Depending on the control strategy, tap changes can be initiated automatically or through an operator-controlled system. The actual control method depends on the transformer installation.

Tap Position Indication

Correct tap position indication is important for transformer operation and maintenance. The indicated position should correspond to the actual electrical connection established by the tap changer.

A mismatch between mechanical position and electrical position can affect voltage regulation and may indicate a mechanical or control-system problem.

Position indication should therefore be checked as part of commissioning and maintenance procedures.

Electrical Connections

The UZERN tap changer is connected to selected points on the transformer winding. These connections must correspond to the transformer design and the specified tap sequence.

The connection arrangement is transformer-specific, and the complete transformer circuit diagram should be consulted before installation or replacement.

Incorrect winding connections can affect transformer ratio, voltage regulation and electrical safety.

Insulation and Transformer Environment

An on-load tap changer operates within the electrical and mechanical environment of a power transformer. Insulation coordination is therefore an important aspect of the installation.

The tap changer, transformer winding, insulating components and associated connections must be compatible with the transformer’s specified insulation system.

The exact insulation characteristics depend on the transformer and tap-changer configuration.

Maintenance Considerations

Maintenance of an ABB UZERN-250/600 should be performed as part of the complete transformer maintenance program. Inspection may include the switching mechanism, electrical contacts, mechanical drive components and position-indication system.

The condition of the transformer insulation system and, where applicable, the insulating medium surrounding the tap changer can also be relevant to maintenance activities.

Maintenance intervals should be established according to the transformer manufacturer’s recommendations and the applicable ABB technical documentation.

Contact and Switching Inspection

The internal contacts of an on-load tap changer experience electrical and mechanical stress during repeated switching operations. Contact condition can therefore be an important maintenance consideration.

Inspection can identify wear, contamination or abnormal contact conditions. The specific inspection procedure depends on the tap changer design and transformer maintenance program.

Any internal inspection should be carried out only after the transformer has been properly isolated and made safe for maintenance.

Mechanical Inspection

The mechanical drive system transfers movement from the external operating mechanism to the internal tap-changing assembly. Mechanical wear or incorrect adjustment can affect tap-position accuracy.

Inspection should include the operating mechanism, coupling, position indicator and associated mechanical components.

The actual inspection requirements depend on the specific UZERN configuration and transformer installation.

Application in Electrical Substations

On-load tap changers are widely used in transformer installations within electrical substations. They allow transformer voltage to be adjusted without interrupting the power supply to connected loads.

This function is useful in transmission and distribution systems where network voltage changes according to load and operating conditions.

The ABB UZERN-250/600 is designed to operate as part of this type of transformer voltage-regulation architecture.

Industrial Transformer Applications

In industrial facilities, transformer voltage can also require adjustment as electrical loads change. An on-load tap changer provides a controlled method of maintaining the desired voltage range.

The UZERN-250/600 can therefore be relevant to industrial transformer systems, utility substations and other high-voltage electrical installations where the corresponding transformer configuration is specified.

Compatibility Considerations

When evaluating ABB UZERN-250/600 for a transformer application, the following information should be checked:

• Complete tap changer designation
• Transformer manufacturer and model
• Transformer rated voltage
• Transformer rated current
• Voltage ratio
• Number of tap positions
• Tap range
• Winding connection arrangement
• Operating mechanism type
• Mechanical mounting dimensions
• Insulation requirements
• Transformer-specific connection diagram

The UZERN-250/600 model number alone may not contain every parameter required for replacement. The complete nameplate and transformer documentation should therefore be used for final compatibility verification.

Replacement Identification

For replacement-part identification, the complete ABB designation should be recorded as UZERN-250/600. Any additional ABB reference number, serial number, manufacturing information or transformer-specific code should also be retained.

Physical appearance alone should not be used to establish interchangeability between different UZER or UZF tap changer configurations.

The mechanical dimensions, electrical ratings and tap-position arrangement should all correspond to the original transformer installation.

Product Identification for Inventory

For industrial inventory records, the recommended product description is ABB UZERN-250/600 On-Load Tap Changer.

Useful secondary identifiers include ABB UZER series, UZERN configuration, OLTC and power transformer voltage-regulation equipment.

If a nameplate provides additional electrical ratings, tap-position information or a transformer-specific part number, these details should be recorded together with the main product designation.

Technical Documentation

Technical identification of an ABB UZERN-250/600 should be based on the complete product designation and the transformer application. ABB UZER tap changer documentation provides information on the UZER family, operating principles, construction and transformer integration.

The specific electrical and mechanical parameters of an installed UZERN-250/600 should be verified from its nameplate and the corresponding transformer documentation rather than inferred solely from the general UZER family.

Product Identification Summary

ABB UZERN-250/600 is an on-load tap changer used in power transformer voltage-regulation systems. The UZERN designation identifies the specific configuration, while 250/600 forms part of the complete equipment designation.

The tap changer changes the active transformer winding connection to adjust the transformation ratio. Its operation allows voltage regulation while the transformer remains connected to the electrical network.

The UZERN-250/600 should be evaluated together with the complete transformer design, including rated voltage, current, tap range, tap positions, mechanical dimensions and operating mechanism.

Conclusion

ABB UZERN-250/600 is a transformer on-load tap changer designed for controlled winding-tap switching and voltage regulation during energized transformer operation. It forms part of the transformer electrical and mechanical system and works together with the transformer winding, operating mechanism and voltage-control equipment.

For technical records, the recommended product name is ABB UZERN-250/600 On-Load Tap Changer. When selecting or replacing this component, the complete product designation and transformer-specific technical information should be verified to ensure the tap changer matches the intended application.
