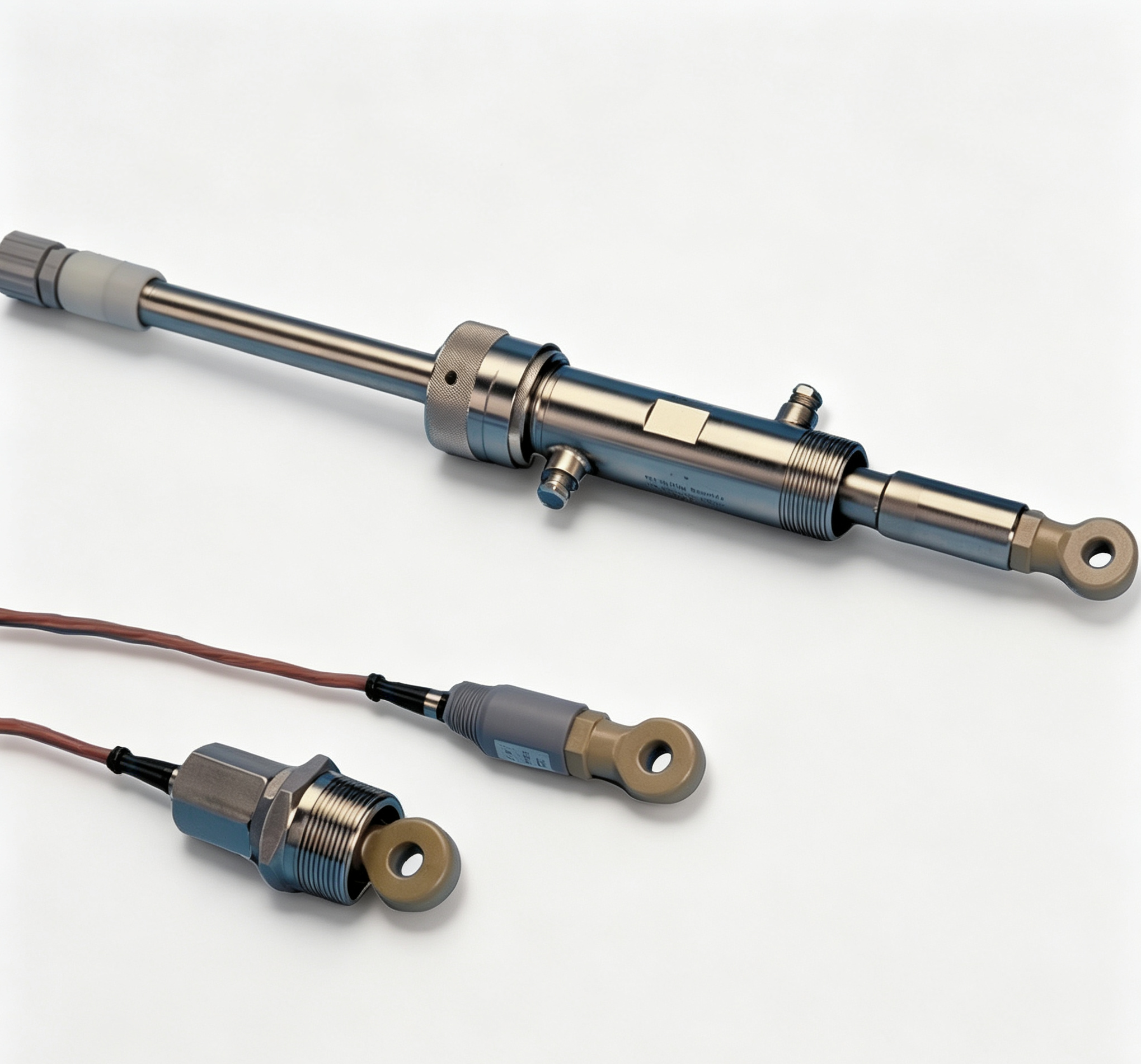

ABB TB404.2.2.3.S3.0.7.0 Thermal Mass Flow Meter

ABB TB404.2.2.3.S3.0.7.0 is a high-performance thermal mass flow meter designed for industrial gas measurement applications. The device belongs to the ABB TB404 series of thermal mass flow instruments developed for accurate, direct measurement of gas mass flow rates. It provides reliable process information for automation systems where precise gas monitoring, energy management and process optimization are required.

Thermal mass flow measurement technology offers important advantages in industrial applications because it measures gas flow directly by mass rather than relying on additional pressure and temperature compensation. This allows process engineers to obtain accurate flow data even when operating conditions change.

ABB TB404 series instruments are designed for demanding measurement environments, combining advanced sensor technology, digital electronics and industrial communication capability. The TB404.2.2.3.S3.0.7.0 configuration provides a flexible solution for applications requiring dependable gas flow measurement and efficient process management. :contentReference[oaicite:1]{index=1}

Product Overview of ABB TB404.2.2.3.S3.0.7.0

The ABB TB404.2.2.3.S3.0.7.0 belongs to the ABB thermal mass flow meter product family developed by ABB Measurement & Analytics. Thermal mass flow meters are widely used for measuring gases in industrial processes because they provide direct mass flow information without requiring separate compensation calculations.

The instrument operates based on thermal dispersion measurement technology. A heated sensor element is placed in the gas stream, and the heat transfer characteristics caused by gas movement are measured electronically. The relationship between heat transfer and gas flow velocity allows the instrument to calculate the mass flow rate.

This measurement principle makes ABB TB404 suitable for applications where accurate gas consumption monitoring, process control and efficiency improvement are important. It can support industrial automation systems by providing continuous flow information for control and monitoring purposes.

The TB404 series is designed according to ABB industrial instrumentation standards, focusing on measurement accuracy, reliability and integration flexibility. :contentReference[oaicite:2]{index=2}

Technical Characteristics of ABB TB404.2.2.3.S3.0.7.0

ABB TB404.2.2.3.S3.0.7.0 includes configuration options designed for industrial flow measurement requirements. The main characteristics include:

• Product type: Thermal Mass Flow Meter.
• Series: ABB TB404.
• Measurement method: Thermal mass flow measurement.
• Application: Gas flow measurement.
• Measurement principle: Thermal dispersion technology.
• Designed for industrial process automation systems.
• Supports accurate mass flow monitoring.
• Suitable for continuous process measurement applications.

The thermal measurement method allows the instrument to provide direct mass flow readings, reducing the need for additional calculations based on gas density, pressure and temperature variations.

The electronic design of the ABB TB404 series supports stable signal processing and reliable communication with industrial control systems. This enables integration into modern automation architectures.

Thermal Mass Flow Measurement Technology

Thermal mass flow measurement is based on the principle that flowing gas removes heat from a heated sensor element. The amount of heat transferred depends on the gas velocity and physical characteristics of the gas.

ABB TB404.2.2.3.S3.0.7.0 uses this relationship to determine the actual mass flow rate. Because the measurement is directly related to mass flow, the instrument is especially suitable for applications where accurate gas quantity monitoring is required.

Compared with traditional volumetric flow measurement methods, thermal mass flow technology provides advantages in applications involving compressed air, nitrogen, natural gas, hydrogen and other industrial gases.

The technology helps simplify system design because external pressure and temperature compensation equipment may not be required for many applications.

Industrial Applications of ABB TB404

ABB TB404.2.2.3.S3.0.7.0 is suitable for various industrial gas measurement applications. Typical application areas include:

• Compressed air monitoring systems.
• Industrial gas distribution networks.
• Energy management systems.
• Process automation equipment.
• Chemical production facilities.
• Power generation systems.
• Manufacturing production lines.

In manufacturing plants, compressed air is often one of the largest energy consumers. Accurate monitoring of air consumption helps companies identify energy losses and improve operational efficiency.

In chemical and process industries, precise gas flow measurement is essential for maintaining correct process conditions. ABB TB404 provides reliable measurement data to support automatic control strategies.

For energy management applications, accurate gas measurement allows operators to analyze consumption patterns and optimize production processes.

Advantages of ABB TB404.2.2.3.S3.0.7.0

One of the major advantages of ABB TB404.2.2.3.S3.0.7.0 is direct mass flow measurement capability. This allows users to obtain accurate gas quantity information without complex compensation systems.

Another advantage is stable performance in industrial environments. ABB designs process instruments for applications where continuous operation, measurement reliability and long-term durability are essential.

The instrument also provides excellent integration capability with industrial automation systems. Measurement data can be used by controllers, monitoring systems and process management platforms.

By providing accurate gas flow information, ABB TB404 helps industries improve production efficiency, reduce energy waste and maintain better process control.

Integration with Industrial Automation Systems

Modern industrial facilities require measurement instruments that can communicate effectively with automation platforms. ABB TB404.2.2.3.S3.0.7.0 is designed to operate as part of integrated process control systems.

The flow meter provides important measurement data that can be used for monitoring, regulation and optimization. Engineers can use this information to control gas supply, analyze consumption and improve production processes.

Integration of accurate flow measurement devices improves transparency within industrial systems. Operators gain better understanding of process conditions and can make informed decisions based on real-time measurement data.

Installation and Maintenance Considerations

Correct installation is important for achieving optimal measurement accuracy. Installation conditions such as pipeline design, flow direction and gas characteristics should be considered during system design.

The sensor should be installed according to ABB technical recommendations to ensure stable measurement performance. Proper installation helps reduce measurement errors caused by unsuitable flow conditions.

Regular inspection of connections, process conditions and instrument parameters helps maintain reliable operation. Preventive maintenance supports long-term measurement accuracy and system availability.

Role in Industrial Process Optimization

Accurate flow measurement is an important part of modern industrial optimization. ABB TB404.2.2.3.S3.0.7.0 provides essential gas flow information that helps companies improve efficiency and reduce operational costs.

By monitoring actual gas consumption, industrial facilities can identify abnormal usage, optimize equipment operation and improve energy management strategies.

Reliable measurement technology supports better automation performance and contributes to more efficient industrial production.

Conclusion

ABB TB404.2.2.3.S3.0.7.0 thermal mass flow meter is an advanced industrial measurement instrument designed for accurate gas flow monitoring applications. With thermal mass measurement technology, reliable operation and strong automation integration capability, it provides an effective solution for industrial process control.

Through accurate measurement, flexible application capability and ABB engineering quality, TB404.2.2.3.S3.0.7.0 supports industries in achieving improved efficiency, optimized processes and reliable automation performance.
