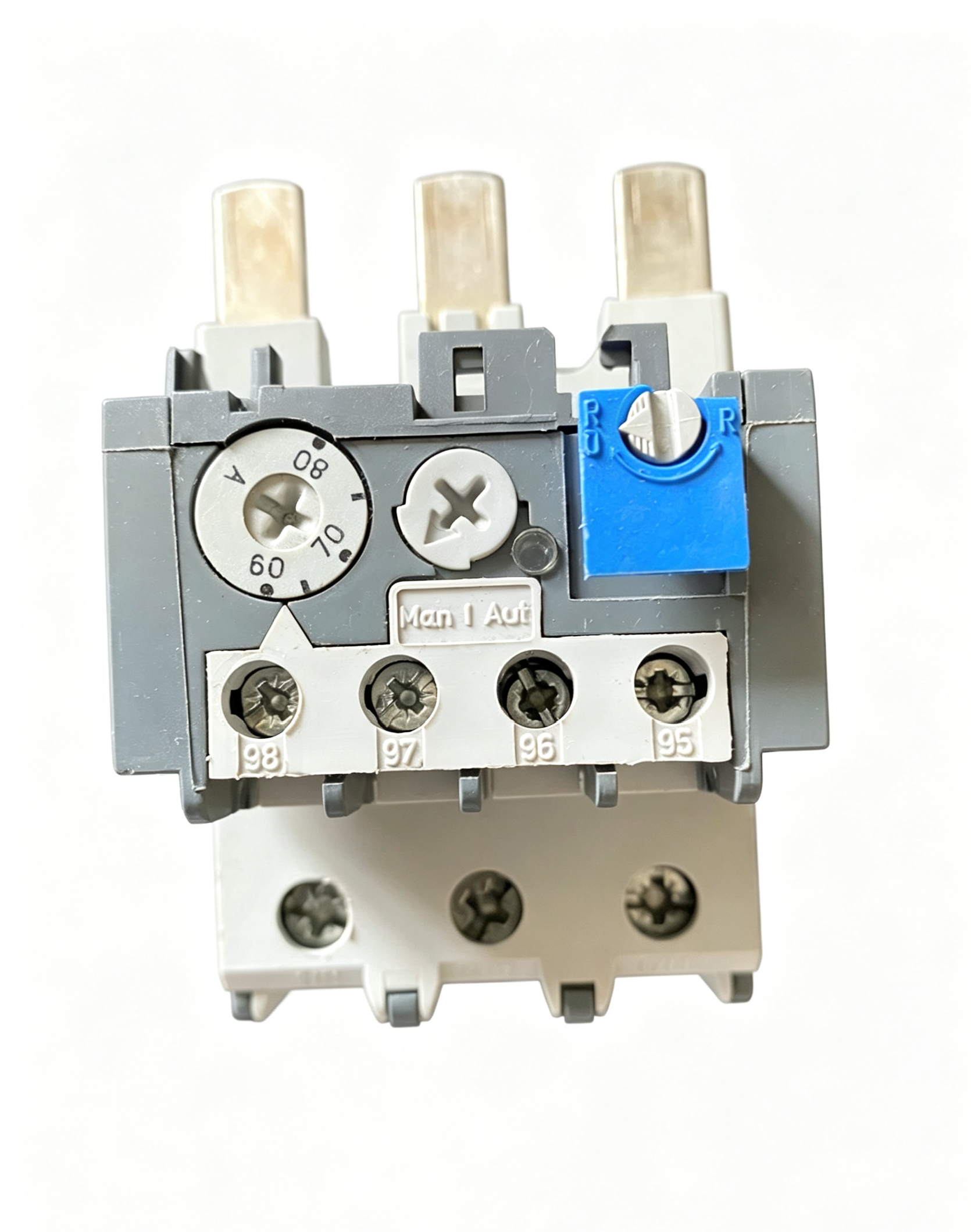

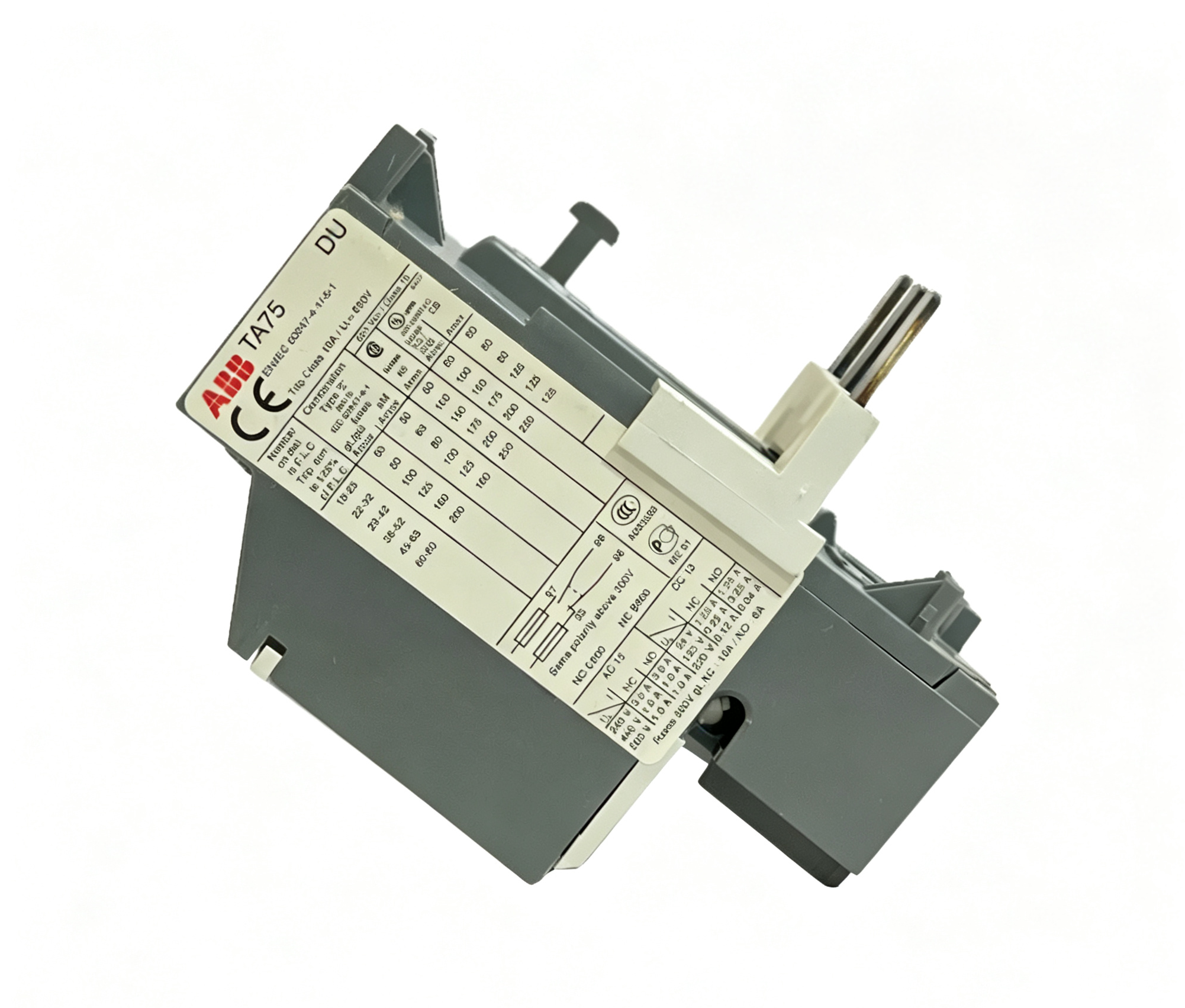

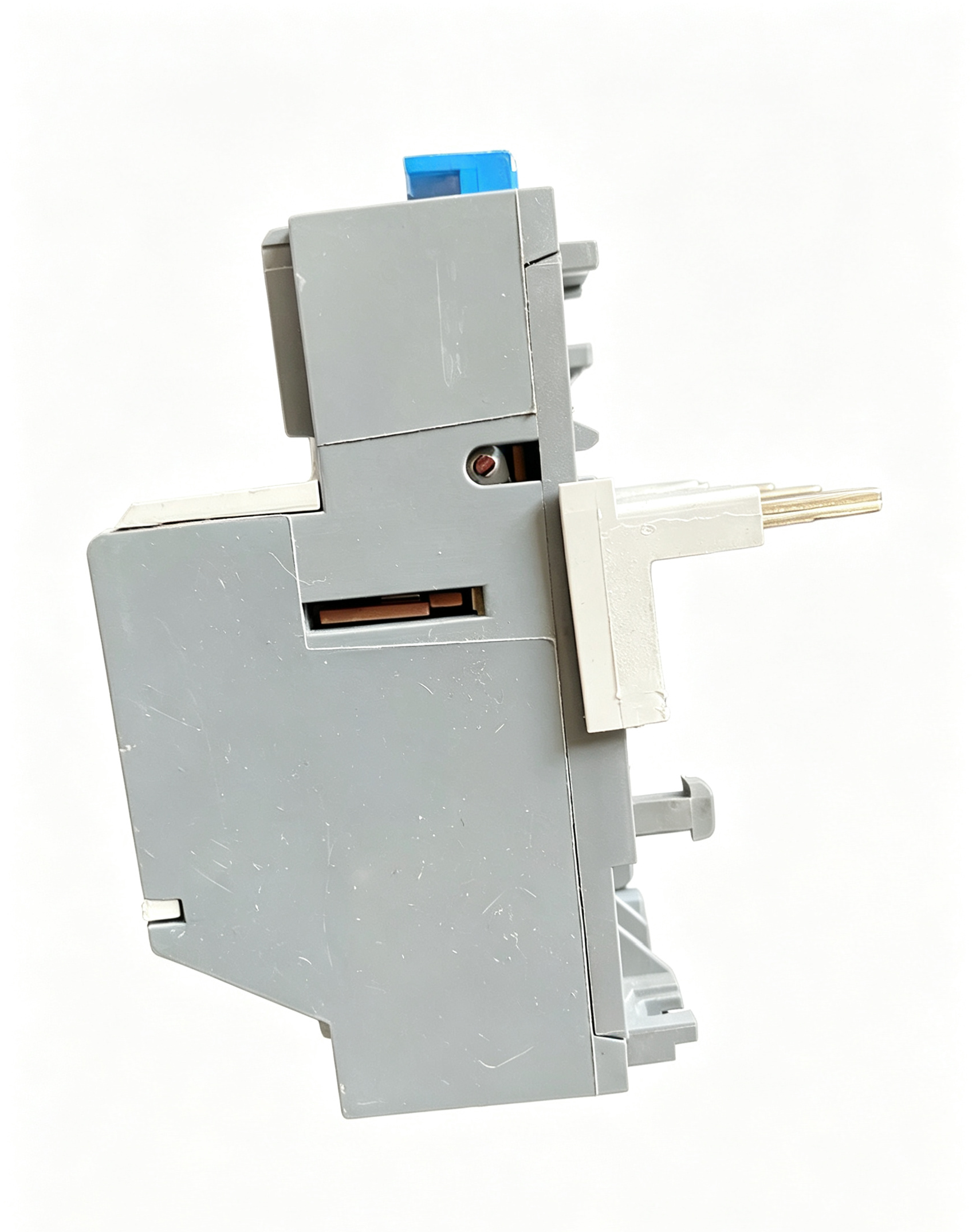

ABB TA75DU25 Thermal Overload Relay

ABB TA75DU25 is an electromechanical thermal overload relay designed for motor protection applications in industrial electrical control systems. It belongs to the ABB TA75DU series and provides reliable protection against motor overload conditions, phase failure and abnormal operating current situations.

The TA75DU25 is designed for use with ABB contactor-based motor starter systems. With an adjustable current setting range from 18 A to 25 A, the device allows engineers to configure motor protection according to the rated operating current of the connected motor. The relay combines overload monitoring, auxiliary signaling functions, temperature compensation and flexible reset options in a compact industrial design. :contentReference[oaicite:1]{index=1}

ABB TA75DU25 is suitable for applications requiring dependable motor protection in automation equipment, manufacturing systems, pumps, fans, compressors and other motor-driven industrial installations.

Product Overview

ABB TA75DU25 is part of the ABB TA75DU thermal overload relay family. The product is designed as a protection component for low-voltage motor control circuits and provides direct mounting compatibility with ABB A-line contactors. It can also be installed separately using suitable mounting accessories for flexible panel configurations. :contentReference[oaicite:2]{index=2}

The main purpose of the relay is to monitor motor current and disconnect the control circuit when the motor operates under overload conditions for an extended period. By preventing continuous excessive current operation, the device helps reduce thermal stress on motor windings and improves overall system reliability.

The ABB TA75DU25 uses a thermal operating principle with adjustable current settings. This allows the protection level to be matched with different motor ratings while maintaining stable performance in industrial environments.

Technical Features

• Product type: Thermal overload relay
• Model: TA75DU25
• Series: ABB TA75DU
• Protection method: Electromechanical thermal protection
• Current adjustment range: 18…25 A
• Trip class: 10A
• Main application: Three-phase motor protection
• Auxiliary contacts: 1 NC trip contact and 1 NO signal contact
• Reset mode: Manual or automatic selectable
• Temperature compensation function
• Test and stop functions
• Direct mounting with ABB contactors

The TA75DU25 provides a combination of protection functions and installation flexibility. The device is designed according to industrial motor starter requirements and supports integration into various electrical control architectures.

Motor Overload Protection Function

The primary function of ABB TA75DU25 is to protect motors from overload conditions. During normal operation, a motor operates within its rated current range. However, situations such as mechanical overload, blocked machinery, excessive friction or process changes can increase motor current.

When the current exceeds the selected protection setting for a certain period, the thermal elements inside the overload relay respond to the increased temperature. The relay then activates the trip mechanism and changes the auxiliary contact status, allowing the contactor control circuit to disconnect the motor.

This protection method allows normal motor starting current while preventing damage caused by prolonged overload operation. It helps improve motor operating reliability and reduces the risk of overheating.

Phase Failure Protection

ABB TA75DU25 provides phase failure protection for three-phase motor applications. Phase loss can cause current imbalance, increased heating and reduced motor efficiency. If this condition continues, serious motor damage may occur.

The overload relay detects abnormal current conditions caused by phase failure and activates the protective mechanism. This function is important for industrial equipment where motors operate continuously and require stable protection performance. :contentReference[oaicite:3]{index=3}

Adjustment and Reset Functions

The adjustable current range of ABB TA75DU25 is from 18 A to 25 A. This adjustment capability allows users to set the overload protection value according to the motor nameplate current and application requirements. :contentReference[oaicite:4]{index=4}

The relay supports both manual and automatic reset modes. Manual reset allows operators to inspect the equipment condition before restarting the motor after a trip event. Automatic reset can be selected for applications where automatic recovery is required after temporary overload conditions.

The device also includes test and stop functions, which allow maintenance personnel to verify the operation of the protection circuit during commissioning and routine inspections.

Design and Installation Characteristics

ABB TA75DU25 features a compact industrial housing designed for integration with ABB contactors. The direct mounting design helps create a coordinated motor starter assembly while reducing additional wiring requirements.

The relay supports installation with ABB A, AE and AF contactor families and can also be used with separate mounting solutions when independent panel installation is required. :contentReference[oaicite:5]{index=5}

The front-access terminal arrangement simplifies wiring and maintenance operations. The compact structure allows efficient use of control cabinet space while maintaining accessibility for adjustment and inspection.

Applications

ABB TA75DU25 is widely used in industrial motor control systems requiring reliable overload protection. Typical applications include:

• Industrial automation equipment
• Motor starter panels
• Pump control systems
• Fan and ventilation systems
• Production machinery
• Material handling equipment
• Process control systems
• Industrial drive applications

The relay is suitable for medium-power motor applications where overload protection, phase monitoring and integration with contactor-based control systems are required.

Integration with Industrial Automation Systems

ABB TA75DU25 can be integrated with PLC systems, relay control circuits and industrial automation platforms. The auxiliary contacts provide feedback signals for fault indication, motor status monitoring and protective shutdown logic.

When combined with ABB contactors and other motor control components, the TA75DU25 forms a complete motor starter solution. This combination provides switching control and motor protection within a coordinated electrical system.

Operational Advantages

The ABB TA75DU series is designed to provide stable protection performance in industrial environments. Features such as temperature compensation, trip-free mechanism, selectable reset mode and clear trip indication improve application flexibility. :contentReference[oaicite:6]{index=6}

The combination of adjustable current settings, compact construction and compatibility with ABB motor control products makes TA75DU25 suitable for engineers designing reliable low-voltage electrical systems.

Conclusion

ABB TA75DU25 Thermal Overload Relay is a reliable motor protection component designed for industrial automation and electrical control applications. With an adjustable 18-25 A current range, trip class 10A protection, phase failure monitoring, auxiliary contacts and flexible mounting options, it provides effective protection for three-phase motors.

The ABB TA75DU25 combines practical adjustment functions with robust protection technology, making it suitable for motor starter systems, industrial machinery and automation equipment requiring dependable overload protection and efficient control system integration.
