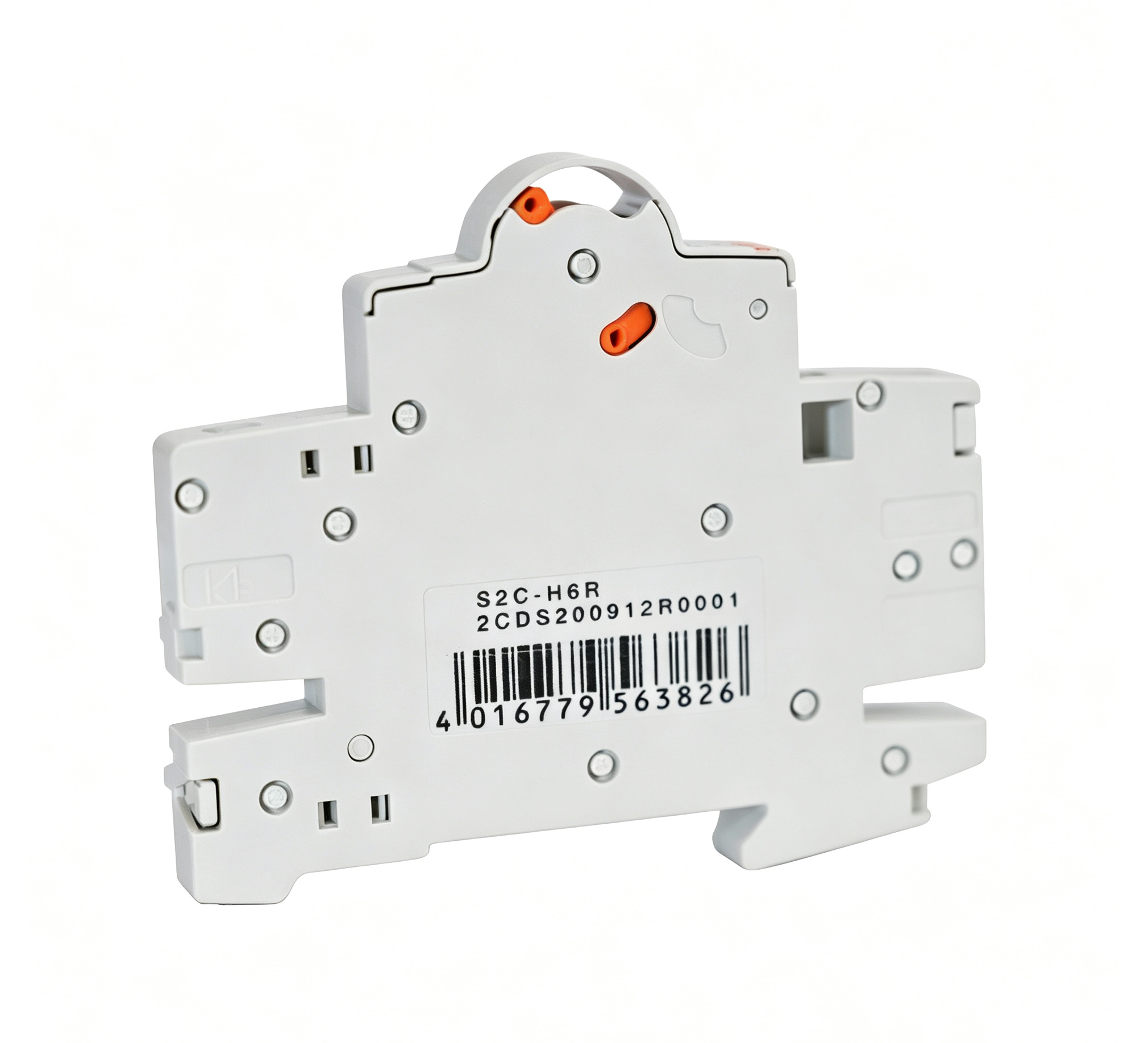

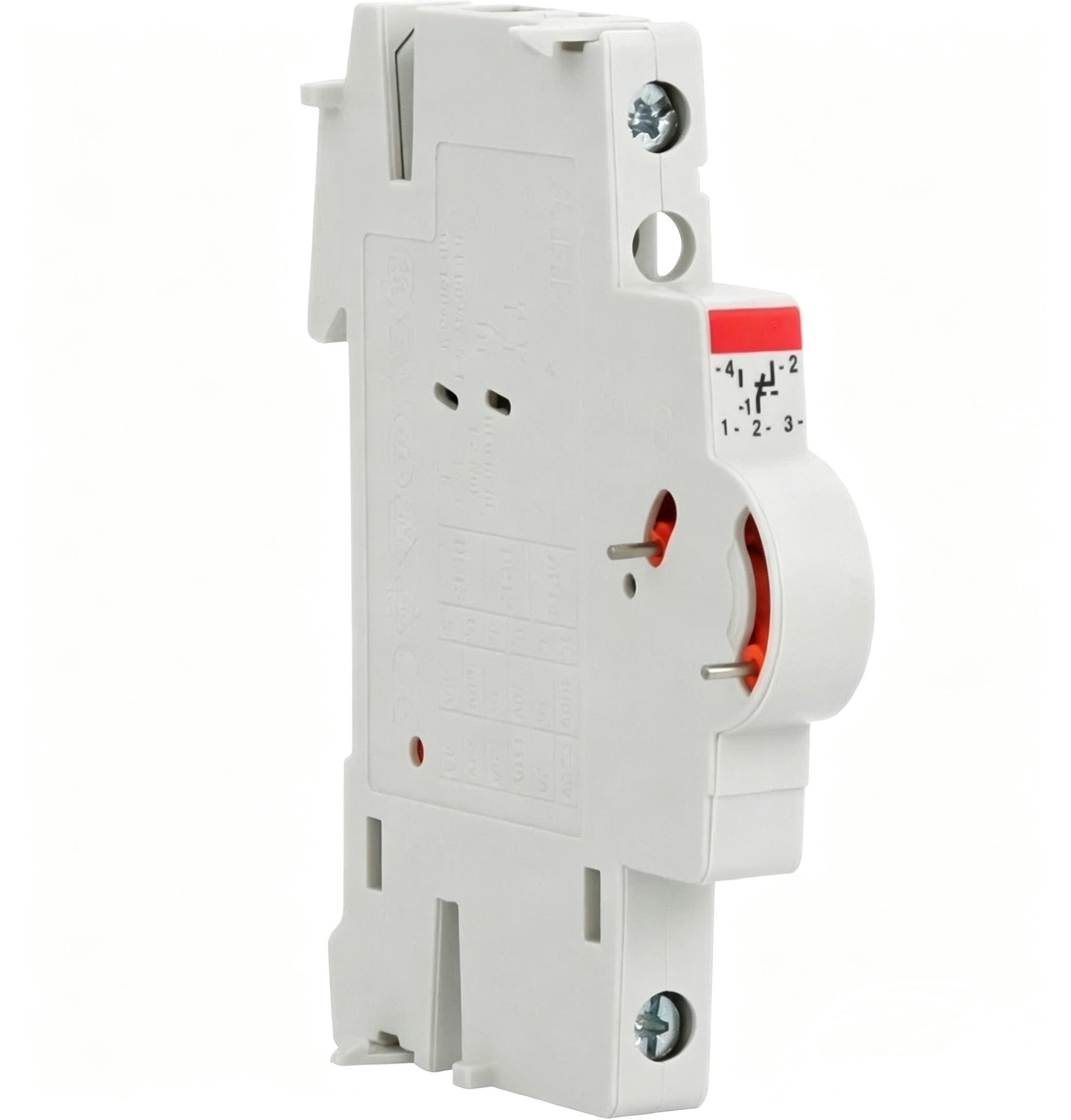

ABB S2C-H6R Auxiliary Contact

The ABB S2C-H6R is an auxiliary contact accessory designed to extend the monitoring capability of ABB low voltage protection devices. As part of the ABB System pro M accessory range, it provides electrical feedback of the circuit breaker contact position and allows protection devices to be integrated into industrial automation and electrical control systems. :contentReference[oaicite:2]{index=2}

Modern electrical systems often require real-time information about the operating status of circuit breakers and protection devices. The ABB S2C-H6R provides an effective solution by adding an auxiliary switching function to compatible devices, allowing operators and control systems to determine whether the protective device contacts are open or closed.

Designed for right-side mounting, the S2C-H6R can be installed on ABB S200 series miniature circuit breakers, RCCBs, RCBOs and other compatible protection devices. Its compact design allows additional functionality without requiring significant changes to the existing electrical installation. :contentReference[oaicite:3]{index=3}

The ABB S2C-H6R is commonly used in industrial control panels, automation cabinets, building electrical systems and distribution equipment where remote status indication and system monitoring are required.

Product Features

• Manufacturer: ABB
• Model: S2C-H6R
• Product Type: Auxiliary Contact
• Contact Configuration: 1CO (Changeover Contact)
• Mounting Position: Right Side Mounted
• Compatible with ABB S200 Series Devices
• Supports Remote Status Monitoring
• Compact Installation Design
• Suitable for Industrial Control Systems
• Part of ABB System pro M Accessories

Technical Specifications

Working Principle

The ABB S2C-H6R operates by mechanically following the switching position of the connected circuit breaker or protection device. When the main device changes state, the auxiliary contact mechanism changes accordingly and provides an electrical signal to external monitoring circuits.

The 1CO contact configuration provides both normally open and normally closed signal options through a changeover contact arrangement. This flexibility allows engineers to use the auxiliary contact for different control logic requirements, including alarms, remote indication and automation feedback.

In industrial applications, the auxiliary contact helps bridge the gap between protective electrical devices and digital control systems. PLCs, monitoring systems and control panels can receive status information and respond according to the actual condition of the protection device.

Application Function in Electrical Systems

The ABB S2C-H6R improves the intelligence level of electrical installations by providing additional monitoring capability. Instead of manually checking the position of circuit breakers, operators can receive electrical status signals remotely through connected control systems.

This function is especially valuable in industrial environments where continuous operation, safety monitoring and quick fault identification are important requirements.

Installation and Configuration

The ABB S2C-H6R auxiliary contact should be installed by qualified electrical technicians who understand ABB low voltage protection systems and modular electrical accessories. Correct installation ensures accurate status feedback, reliable mechanical operation and stable integration with external control circuits.

Before installation, the electrical circuit should be disconnected from the power source to ensure a safe working environment. The compatibility between the S2C-H6R auxiliary contact and the selected ABB protection device should be verified before mounting.

The S2C-H6R is designed for right-side mounting on compatible ABB S200 series miniature circuit breakers and related protection devices. The accessory can be mechanically connected to the main device, allowing the auxiliary contact mechanism to follow the switching movement of the circuit breaker.

During electrical wiring, the auxiliary terminals should be connected according to the requirements of the monitoring or control circuit. The 1CO changeover contact configuration provides flexible wiring options, allowing the signal to be used for status indication, alarms, interlocking functions or automation feedback.

After installation, the complete system should be tested to confirm that the auxiliary contact changes state correctly when the connected circuit breaker operates. Proper commissioning ensures reliable communication between the protection device and the control system.

Industrial Applications

The ABB S2C-H6R auxiliary contact is widely used in industrial and commercial electrical systems where remote monitoring of circuit breaker status is required. It provides an effective method for integrating manual protection devices into automated control environments.

In industrial automation cabinets, the accessory allows PLC systems and monitoring equipment to receive information about the operating condition of miniature circuit breakers. This helps improve fault detection speed and reduces the need for manual inspection of electrical panels.

Manufacturing plants commonly use ABB S200 series accessories in machine control systems, production lines and electrical distribution cabinets. The S2C-H6R enhances the functionality of standard protection devices by adding electrical status feedback capability.

The auxiliary contact is also suitable for building automation systems, energy management applications, data center electrical systems and infrastructure installations where reliable monitoring of protection equipment is important.

Additional applications include motor control panels, industrial power distribution systems, process automation equipment and low voltage switchgear assemblies requiring remote indication and control integration.

Advantages of ABB S2C-H6R

• Provides reliable circuit breaker status feedback.
• Compatible with ABB S200 series protection devices.
• Compact right-side mounting design.
• 1CO changeover contact provides flexible signal options.
• Improves automation system monitoring capability.
• Supports remote indication and alarm functions.
• Easy integration into electrical control systems.
• Reliable mechanical synchronization with protection devices.
• Space-saving modular accessory design.
• Manufactured according to ABB quality standards.

Maintenance and Diagnostics

The ABB S2C-H6R auxiliary contact is designed for long-term reliable operation with minimal maintenance requirements. However, regular inspection of the electrical installation helps ensure continuous and accurate status monitoring.

Maintenance personnel should inspect the mechanical connection between the auxiliary contact and the main protection device. Any loose connection, abnormal movement or mechanical damage may affect the accuracy of status feedback signals.

Electrical terminals should be checked periodically to ensure secure connections. Loose wiring may result in intermittent signals, incorrect status indication or communication problems with connected control systems.

The auxiliary switching function should be tested during scheduled maintenance activities. Technicians should verify that the changeover contact responds correctly when the connected circuit breaker is manually operated or trips under fault conditions.

Maintaining proper documentation of inspection results and system changes helps improve electrical system reliability and supports efficient preventive maintenance procedures.

Frequently Asked Questions

What is ABB S2C-H6R?

ABB S2C-H6R is a right-side mounted auxiliary contact accessory designed for ABB S200 series miniature circuit breakers and compatible low voltage protection devices.

What is the function of ABB S2C-H6R?

The auxiliary contact provides electrical feedback of the circuit breaker status, allowing remote monitoring, alarms and control system integration.

What type of contact configuration does S2C-H6R use?

The ABB S2C-H6R uses a 1CO changeover contact configuration, providing both normally open and normally closed signal options.

Where is ABB S2C-H6R commonly installed?

It is commonly installed in industrial control panels, automation cabinets, electrical distribution systems and building management applications.

Conclusion

The ABB S2C-H6R auxiliary contact is an important accessory for improving the monitoring capability of ABB low voltage protection systems. By providing reliable electrical feedback of circuit breaker status, it enables better integration between protection devices and modern automation systems.

With its compact right-side mounting design, flexible 1CO contact configuration and compatibility with ABB S200 series devices, the S2C-H6R provides a practical solution for industrial control, electrical distribution and automation applications requiring dependable status monitoring.
