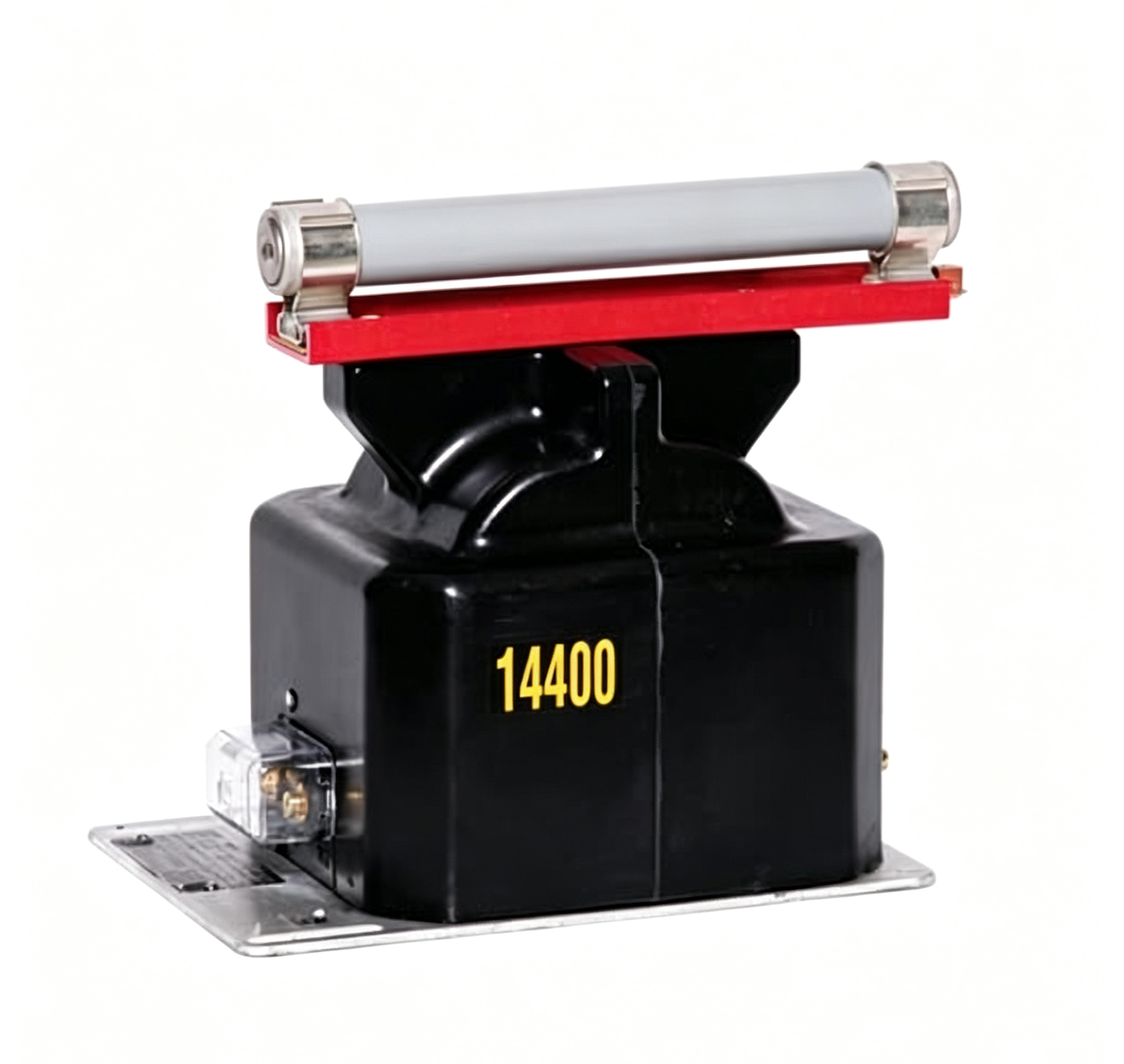

ABB S #.923A116G04 VIZ-12 Indoor Voltage Transformer Overview

The ABB S #.923A116G04 is a medium-voltage indoor instrument voltage transformer belonging to the ABB VIZ-12 product family. It is specifically designed for voltage measurement, electrical isolation, protection relay input, and revenue metering applications within medium-voltage distribution systems. Instrument transformers such as the VIZ-12 series provide accurate voltage scaling while electrically isolating measuring equipment from high-voltage power networks.

According to ABB technical documentation, style number 923A116G04 corresponds to a VIZ-12 indoor voltage transformer with a primary system voltage of 20,000/20,000GY V and a standard secondary output of 120 V. The transformer is intended for indoor switchgear and power distribution equipment where precise voltage measurement and dependable insulation performance are essential. The transformer provides an accuracy class of 0.3Z with a thermal burden suitable for metering and protection applications. :contentReference[oaicite:2]{index=2}

Voltage transformers are fundamental components of modern electrical infrastructure. Rather than supplying power to loads, they provide accurately scaled voltage signals for protective relays, digital meters, supervisory control systems, and power quality monitoring equipment. Their electrical isolation also protects sensitive measuring devices from medium-voltage networks.

The ABB VIZ-12 family has been developed for reliable operation inside switchgear assemblies, substations, industrial facilities, utility distribution networks, and power generation installations where measurement accuracy and long-term operational stability are critical.

Primary Function

The primary function of the ABB S #.923A116G04 is to convert medium-voltage system voltage into a standardized low-voltage output suitable for monitoring and protection equipment.

By maintaining an accurate transformation ratio, the voltage transformer allows meters, protection relays, SCADA systems, and automation controllers to monitor electrical system conditions without being directly exposed to dangerous operating voltages.

Electrical isolation provided by the transformer enhances operator safety while protecting connected electronic devices from high-voltage stress.

Reliable voltage transformation is essential for maintaining stable operation of electrical protection systems and ensuring accurate measurement throughout the life of the installation.

VIZ-12 Instrument Transformer Design

The ABB VIZ-12 series is engineered specifically for indoor medium-voltage installations. Its insulated construction supports dependable performance in switchgear compartments and protected electrical environments.

The transformer utilizes precision winding technology to maintain accurate voltage ratios while minimizing measurement errors across its operating range.

Mechanical rigidity and insulation quality contribute to long service life under continuous operating conditions.

ABB manufactures the VIZ series to satisfy the demanding requirements of industrial utilities, commercial distribution systems, and electrical infrastructure projects.

Voltage Measurement Applications

Accurate voltage measurement is fundamental to electrical system operation. Protection relays require precise voltage information to detect abnormal operating conditions such as overvoltage, undervoltage, phase imbalance, or network disturbances.

The ABB S #.923A116G04 provides a dependable voltage reference for these protective devices, helping maintain safe operation of electrical distribution equipment.

Energy metering systems also depend on instrument transformers to calculate power consumption accurately without exposing measuring equipment to medium-voltage conductors.

Stable voltage measurement contributes to reliable billing, system diagnostics, and power quality analysis.

Application in Medium Voltage Distribution

The ABB S #.923A116G04 is suitable for medium-voltage distribution networks serving industrial plants, manufacturing facilities, utility substations, renewable energy installations, commercial buildings, and infrastructure projects.

Within these installations, the voltage transformer supports protective relays, digital meters, automation controllers, synchronization equipment, and supervisory monitoring systems.

The transformer allows engineers to observe network conditions continuously while maintaining electrical isolation between the primary circuit and secondary instrumentation.

This capability improves operational safety and enhances the overall reliability of electrical distribution systems.

Integration with Protection Relays

Protective relays depend on accurate voltage signals to detect electrical faults and initiate protective actions.

The ABB S #.923A116G04 supplies standardized secondary voltage suitable for modern digital protection relays and conventional electromechanical relay systems.

Stable measurement performance improves relay sensitivity, fault discrimination, and overall protection coordination.

Reliable relay operation helps reduce equipment damage and minimizes system downtime during electrical faults.

Metering Performance

Revenue metering and power monitoring require high measurement accuracy throughout long operating periods.

The transformer maintains a consistent voltage transformation ratio, supporting precise energy calculations and electrical performance analysis.

Industrial users rely on accurate metering data to optimize energy efficiency, monitor equipment performance, and improve operational planning.

Instrument transformers therefore play an essential role in modern energy management systems.

Electrical Insulation and Safety

Medium-voltage equipment requires dependable insulation to ensure safe operation under normal and abnormal electrical conditions.

The ABB VIZ-12 transformer provides insulation between the primary high-voltage circuit and the secondary measurement circuit, significantly improving safety for operators and connected instrumentation.

Proper insulation also contributes to long-term reliability by protecting internal windings from electrical stress and environmental influences.

Routine inspection helps maintain insulation integrity throughout the service life of the transformer.

Maintenance Considerations

Voltage transformers generally require minimal routine maintenance; however, periodic inspection remains important for ensuring reliable long-term performance.

Maintenance activities typically include visual inspection, terminal verification, insulation testing, and evaluation of mounting conditions.

Maintaining clean switchgear environments and secure electrical connections helps preserve measurement accuracy and operational reliability.

Preventive maintenance also supports continued compliance with electrical system safety requirements.

Advantages of ABB Instrument Transformers

ABB instrument transformers are recognized for their measurement accuracy, dependable insulation systems, mechanical durability, and compatibility with modern protection and automation equipment.

The ABB S #.923A116G04 combines precise voltage transformation, reliable electrical isolation, and industrial-grade construction suitable for demanding medium-voltage environments.

Its integration into protection, metering, and monitoring systems helps improve the overall safety, efficiency, and reliability of electrical distribution networks.

Conclusion

The ABB S #.923A116G04 VIZ-12 indoor voltage transformer is a professional instrument transformer designed for medium-voltage measurement and protection applications. By providing accurate voltage transformation, electrical isolation, and dependable long-term performance, it supports modern power distribution, industrial automation, and utility protection systems.

Its role in voltage monitoring, relay protection, energy metering, and electrical system supervision makes the ABB S #.923A116G04 an important component for maintaining safe, efficient, and reliable operation of medium-voltage electrical installations.
