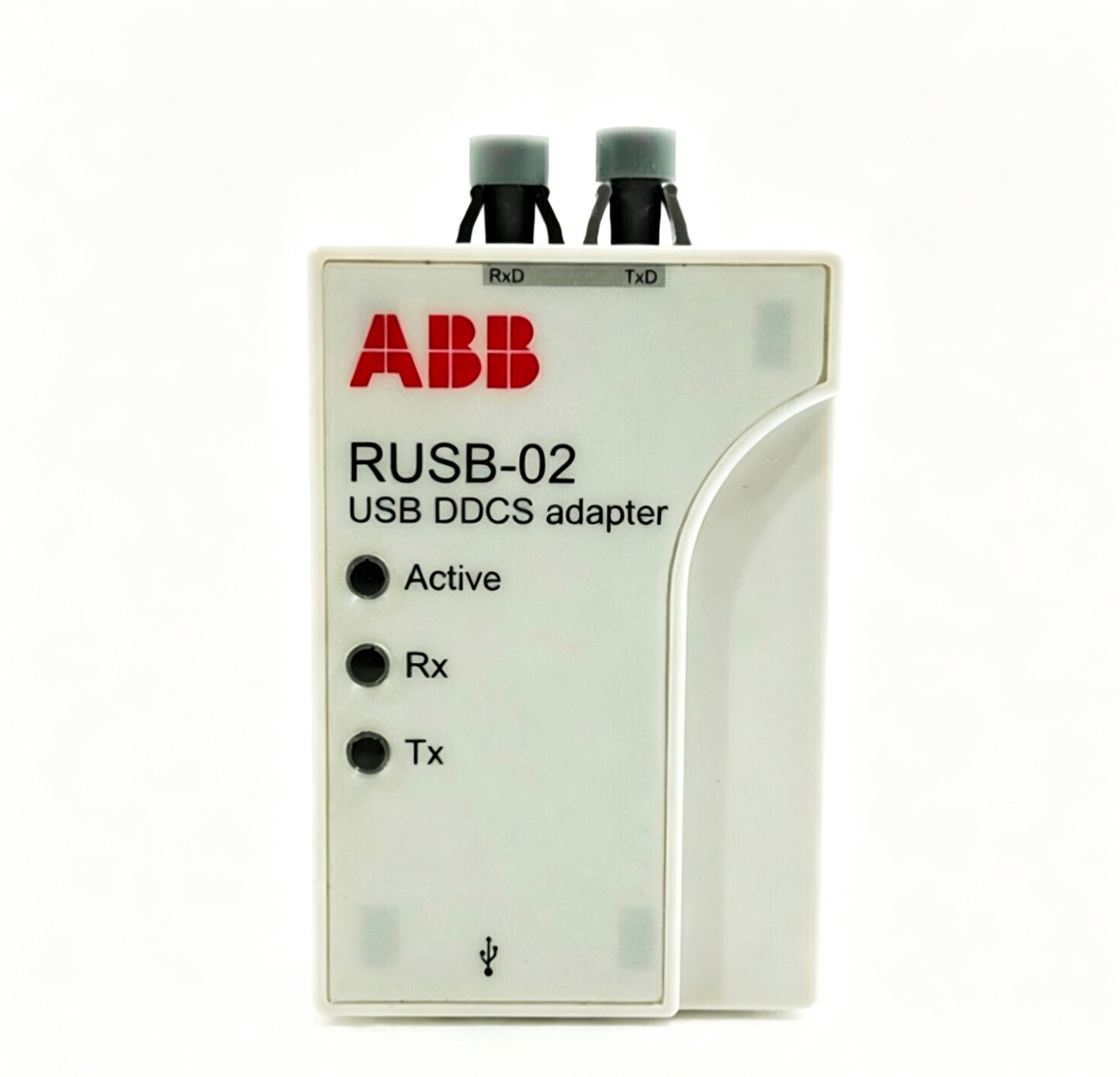

ABB RUSB-02 USB-DDCS Communication Adapter

ABB RUSB-02 is a USB-DDCS communication adapter designed to connect a personal computer with ABB drive systems through the DDCS communication interface. It is used as an interface between a computer running supported ABB PC software and the optical communication network of an ABB drive. ABB documentation identifies the RUSB-02 as a DDCS adapter and describes its use with drive software such as DriveWindow and DriveAP.

Unlike a drive controller, power module or fieldbus adapter, the RUSB-02 performs a communication-interface function. Its purpose is to provide a practical connection between a computer and the drive’s DDCS communication network, allowing supported software to exchange information with the drive.

The RUSB-02 is particularly relevant to ABB drive maintenance and commissioning environments where a service computer needs access to drive parameters, monitored signals, diagnostic information and other software-supported functions.

Product Identification

• Manufacturer: ABB
• Product designation: RUSB-02
• Product type: USB-DDCS communication adapter
• Communication technology: DDCS
• Computer interface: USB
• Optical interface: DDCS fiber optic connection
• PC software applications: DriveWindow and DriveAP
• Associated drive family: ABB ACS800 and compatible ABB drive systems
• Primary function: PC-to-drive communication
• Application area: Drive commissioning, monitoring and maintenance

USB-DDCS Communication Architecture

The ABB RUSB-02 provides a bridge between two different communication environments. On the computer side, the adapter uses a USB connection. On the drive side, it communicates through the DDCS optical interface.

This arrangement is useful because many ABB drive systems use fiber optic DDCS communication internally or for external PC-tool access. A standard computer does not normally provide a native DDCS optical interface, so a dedicated adapter is required when a supported software application needs to communicate with the drive through this network.

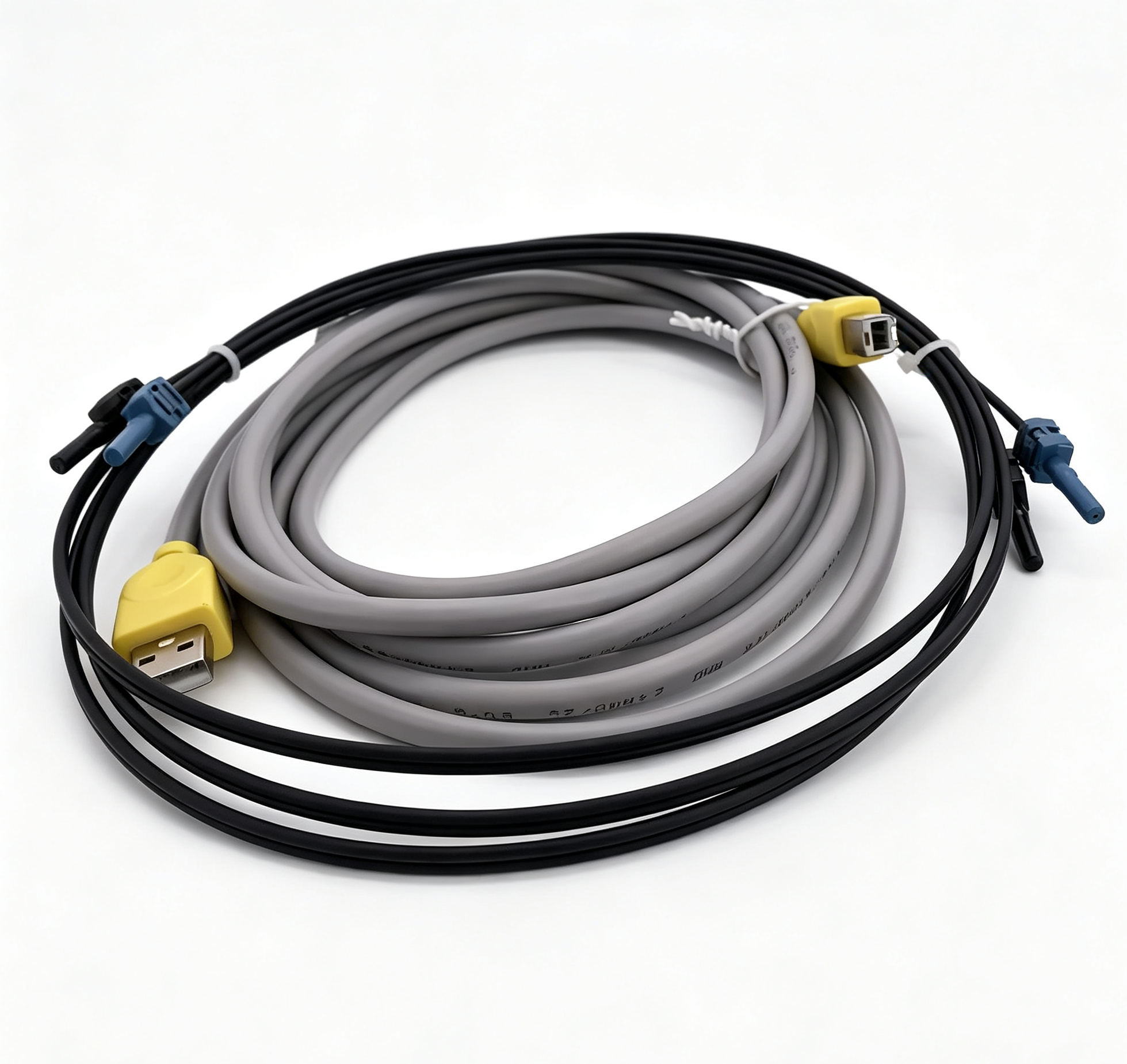

ABB documentation specifically describes connecting the RUSB-02 to a PC using a USB 2.0 Type-A to Type-B cable and connecting the adapter to the drive through optical cables. This establishes the communication path between the computer and the drive system. :contentReference[oaicite:1]{index=1}

DDCS Communication

DDCS is a communication technology used in ABB drive systems for high-speed communication between drive-related equipment and control or monitoring devices. The optical implementation provides electrical isolation and strong immunity to electromagnetic disturbances, characteristics that are useful in industrial drive environments.

ABB ACS800 documentation describes the DDCS network as a high-speed fiber optic communication network. The RUSB-02 provides the computer-side interface for connecting a PC to this network. :contentReference[oaicite:2]{index=2}

The optical connection is therefore an important part of the RUSB-02 architecture. The adapter itself does not replace the optical communication hardware installed in the drive; instead, it provides the interface that allows the PC to participate in the supported communication path.

DriveWindow Compatibility

One of the primary applications of the ABB RUSB-02 is communication with ABB DriveWindow. ABB documentation describes DriveWindow as a PC-based tool capable of monitoring drives, viewing and editing parameters, recording signals and accessing drive diagnostic information.

The ACS800 documentation states that DriveWindow can communicate with drives over the DDCS fiber optic network using the RUSB-02 adapter. This allows a computer equipped with the appropriate software to access supported drive information without requiring a dedicated DDCS interface card inside the computer. :contentReference[oaicite:3]{index=3}

The adapter therefore plays an important role in PC-based service and engineering workflows for compatible ABB drive installations.

DriveAP Communication

ABB DriveAP is another PC software environment that can operate with DDCS communication through the RUSB-02 adapter. ABB’s DriveAP documentation explicitly describes installation and connection of the DDCS RUSB-02 adapter.

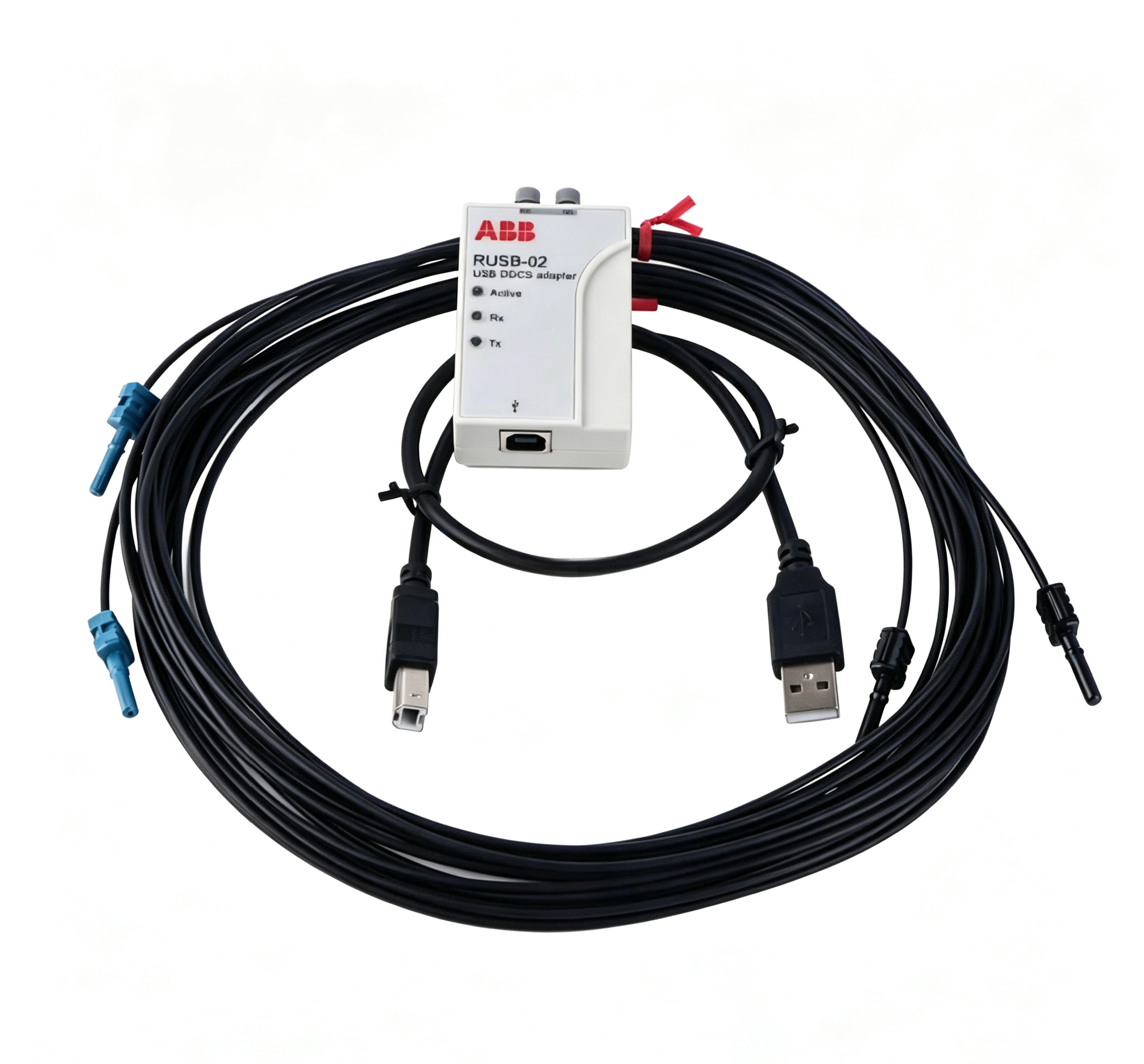

The documented connection procedure includes connecting a USB 2.0 Type-A to Type-B cable between the PC and RUSB-02 and connecting optical cables between the DDCS board and the drive or drives. The documentation also identifies an active green LED on the adapter as part of the connection indication. :contentReference[oaicite:4]{index=4}

This configuration allows supported ABB software to communicate with the drive control environment through the DDCS network.

PC Connection

The computer-side connection uses a USB interface. ABB documentation specifies a USB 2.0 Type-A to Type-B cable for connecting the RUSB-02 to the PC.

The USB connection provides the physical link between the computer operating system and the communication adapter. The appropriate ABB software and driver environment must then recognize the adapter before communication with the drive can be established.

If the PC does not recognize the adapter, troubleshooting should begin with the USB cable, computer connection, driver installation and software configuration before investigating the optical side of the communication network.

Optical DDCS Connection

The drive-side communication path uses optical cables connected to the DDCS interface. Fiber optic communication is particularly suitable for industrial drive systems because it avoids the electrical coupling that can occur with conventional copper communication wiring.

ABB describes the DDCS fiber optic network as highly immune to external disturbances. This characteristic is valuable in environments containing motor drives, switching devices and other sources of electrical interference. :contentReference[oaicite:5]{index=5}

The optical cable arrangement must correspond to the applicable drive and DDCS board configuration. Incorrect fiber connections can prevent the PC software from detecting the drive even when the USB side of the RUSB-02 is operating correctly.

Technical Specification

ACS800 Drive Application

The RUSB-02 is closely associated with ABB ACS800 drive systems. ABB ACS800 documentation lists RUSB-02 as the USB/DDCS adapter used for PC-tool communication over the drive’s DDCS fiber optic network. :contentReference[oaicite:6]{index=6}

ACS800 systems can use PC tools to monitor multiple drives, access parameters, review fault history and support commissioning activities. The RUSB-02 provides the physical communication interface required for a PC to access this environment through the supported DDCS architecture.

The adapter should therefore be regarded as a communication accessory within the broader ACS800 service and engineering system.

Monitoring and Diagnostics

A major benefit of PC-based drive communication is access to diagnostic information. ABB DriveWindow documentation describes functions including monitoring signals, viewing drive status, accessing fault history and working with drive data.

When used with a compatible RUSB-02 communication path, these functions can provide engineers with information that is difficult to obtain from a local control panel alone.

The communication adapter does not independently perform diagnostics. Instead, it provides the communication channel through which the supported ABB software can obtain information from the drive.

Multi-Drive Communication

ABB documentation describes DriveWindow as capable of monitoring several drives through the DDCS communication network. This makes the RUSB-02 relevant not only to single-drive applications but also to systems where several compatible ABB drives are connected through a supported optical network. :contentReference[oaicite:7]{index=7}

In a multi-drive environment, the communication topology and drive addressing must be configured correctly. The adapter provides the PC interface, while the DDCS network and drive configuration determine which devices are accessible through the software.

Commissioning Applications

During drive commissioning, PC-based communication can provide access to parameters and monitored values needed to configure the drive for its intended application. The RUSB-02 supports this workflow by connecting the computer to the DDCS communication environment.

Depending on the ABB drive and software version, available functions can include parameter management, signal monitoring, fault analysis and application-related configuration.

The exact functions available to the user depend on the installed ABB software, drive firmware and supported drive model.

Troubleshooting the Communication Path

If an ABB RUSB-02 system does not establish communication, troubleshooting should be performed systematically. The first stage is to confirm that the PC recognizes the USB adapter and that the required software environment is installed correctly.

The next stage is to inspect the optical DDCS connection. The optical cables should be correctly connected to the applicable DDCS interface, and the adapter’s status indication should be checked.

If the USB connection is recognized but the drive remains unavailable, the optical connection, DDCS board, drive communication configuration and software settings should be evaluated.

Driver and Software Environment

The RUSB-02 operates as part of a complete PC-tool communication environment rather than as a standalone USB peripheral. The computer requires the appropriate ABB software and compatible communication support.

ABB documentation for DriveAP specifically describes the RUSB-02 installation process and USB connection. This indicates that the adapter is intended to operate together with ABB drive PC tools rather than as a general-purpose USB-to-fiber converter. :contentReference[oaicite:8]{index=8}

Using the software environment specified for the target ABB drive is therefore important when establishing communication.

Engineering Documentation

For engineering databases, a suitable identification format is “ABB RUSB-02 — USB-DDCS Communication Adapter.”

Additional documentation fields can include the associated drive model, DDCS board, PC software, software version, communication topology and installation location.

Keeping these details together helps distinguish the RUSB-02 from ABB fieldbus adapters and other communication modules that perform different functions.

Difference from Fieldbus Adapter Modules

The ABB RUSB-02 should not be confused with fieldbus adapter modules such as PROFIBUS, DeviceNet, Modbus or Ethernet-based communication options. Those modules provide interfaces between a drive and an industrial network protocol.

RUSB-02 instead provides a PC-to-DDCS communication interface. Its primary purpose is to connect supported ABB PC software with a drive through the DDCS optical communication network.

This distinction is important when creating spare-part records or determining the correct communication hardware for a specific ABB drive application.

Maintenance Considerations

When using the RUSB-02 in an industrial drive environment, the communication equipment should be handled according to the safety procedures applicable to the connected drive. The adapter itself is a communication interface, but it can be connected to equipment containing hazardous electrical energy.

Before connecting or disconnecting cables, the applicable ABB instructions for the drive and communication system should be followed. Optical connections should be kept clean and correctly oriented to maintain reliable communication.

The PC, USB cable, RUSB-02 adapter, optical cables, DDCS board and drive software should be considered as one complete communication chain during troubleshooting.

Product Identification Summary

ABB RUSB-02 is a USB-DDCS communication adapter for ABB drive PC-tool applications. ABB documentation confirms its use with DriveAP and describes the connection of the adapter to a PC through USB 2.0 and to ABB drives through DDCS optical cables. :contentReference[oaicite:9]{index=9}

ABB ACS800 documentation also identifies RUSB-02 as the USB/DDCS connection method for DriveWindow communication. The DDCS network provides a high-speed fiber optic communication path between the PC interface and compatible ABB drives. :contentReference[oaicite:10]{index=10}

Conclusion

ABB RUSB-02 is a dedicated USB-DDCS communication adapter used to connect a computer with compatible ABB drive systems. It provides a bridge between the PC’s USB interface and the drive’s DDCS fiber optic communication network.

The adapter is particularly relevant to ABB ACS800 applications and supported PC tools such as DriveWindow and DriveAP. Through this communication path, engineers can access supported functions for drive monitoring, parameter management, commissioning and diagnostics. ABB documentation specifically describes the USB 2.0 Type-A to Type-B connection between the PC and RUSB-02 and the optical DDCS connection between the adapter and drive system. :contentReference[oaicite:11]{index=11}

For technical identification, ABB RUSB-02 should be recorded as a USB-DDCS communication adapter rather than a general USB converter or fieldbus module. Correct identification of the associated ABB drive, DDCS interface, PC software and communication topology is important when configuring or troubleshooting the complete system.
