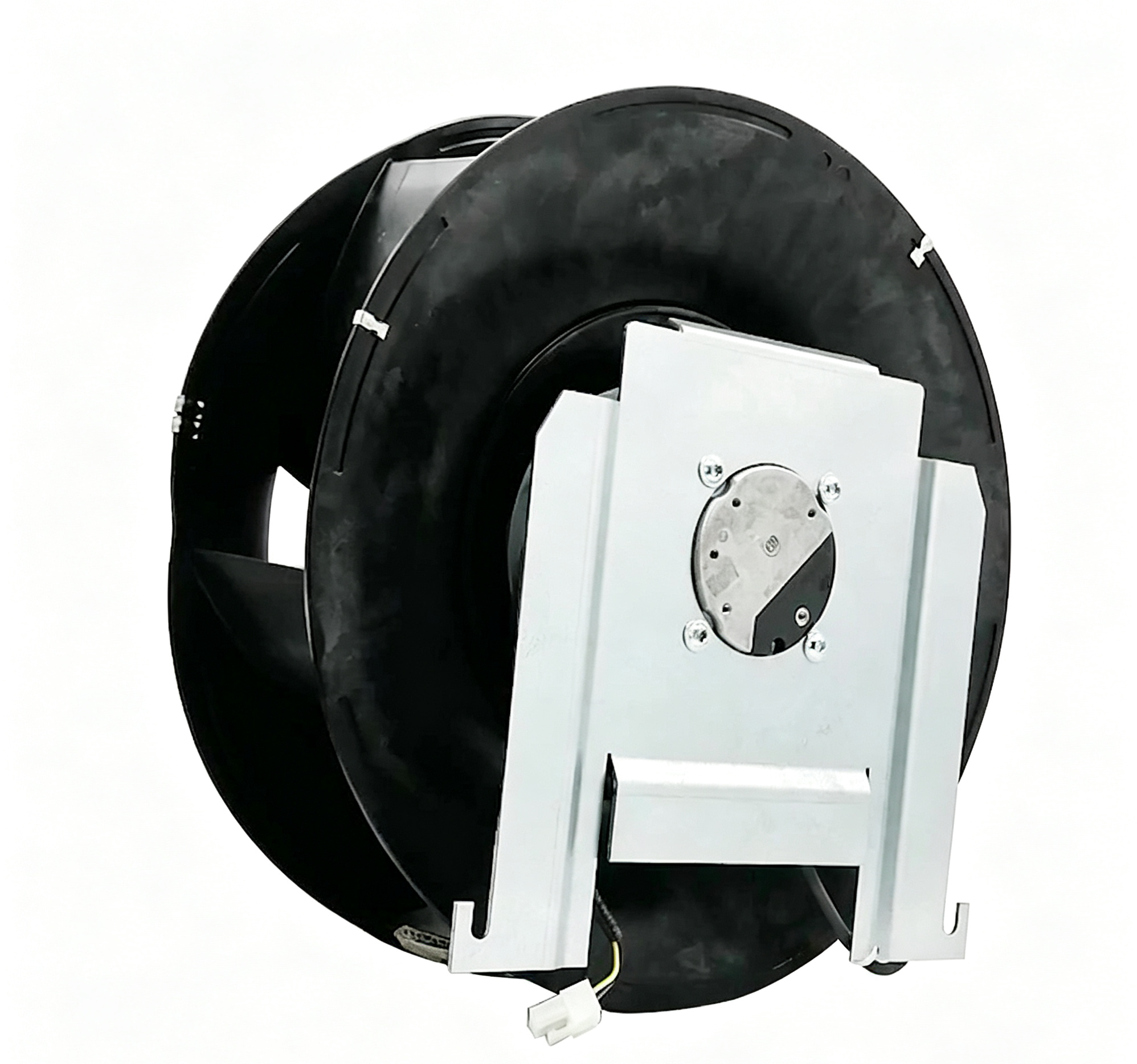

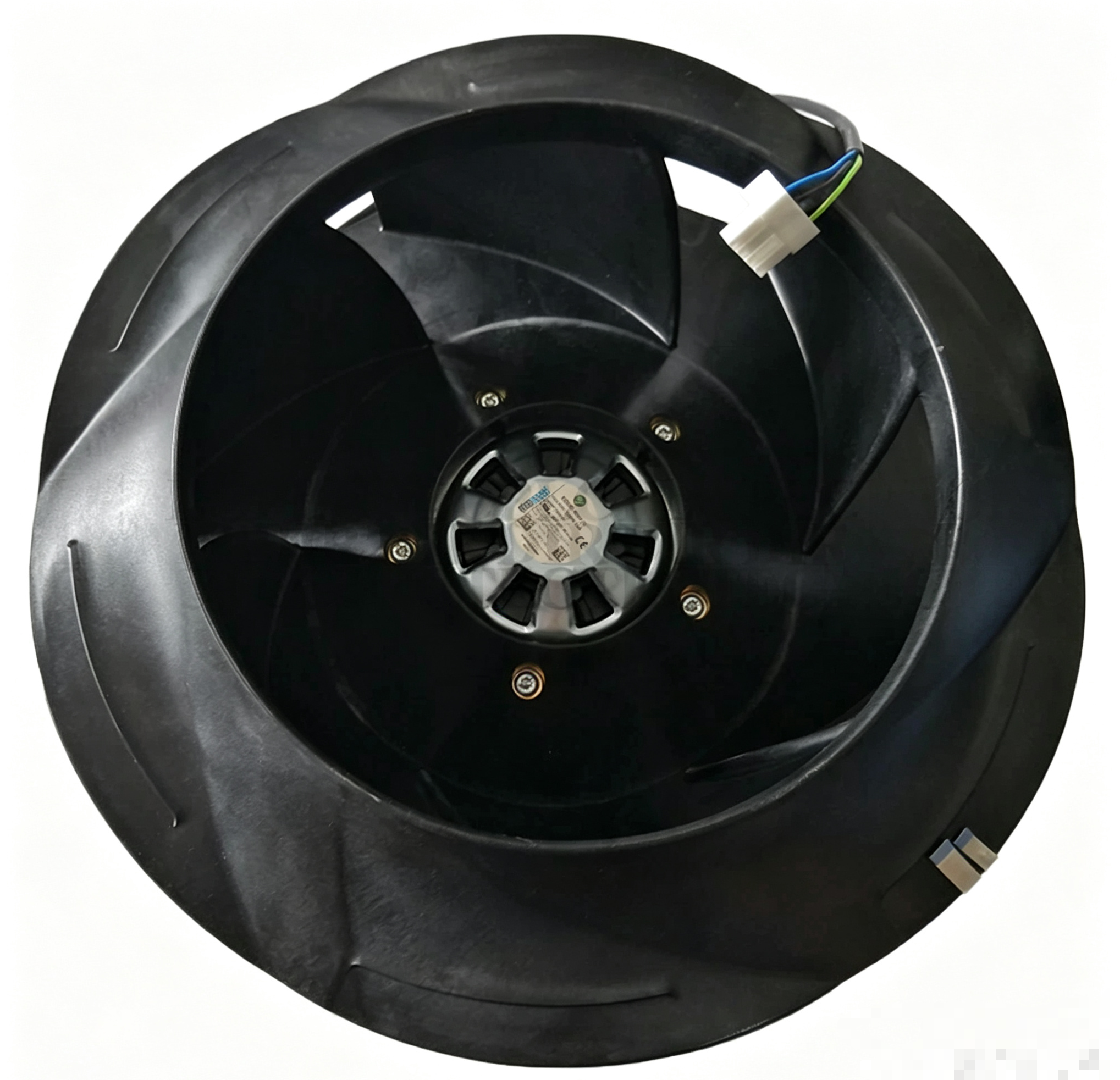

ABB R3G355-RB03-10 Long Life Radial Fan Kit Overview

The ABB R3G355-RB03-10 is an industrial long-life radial fan kit designed for thermal management applications in ABB variable frequency drive systems and industrial power electronic equipment. As an important cooling component, it provides continuous airflow to maintain stable operating temperatures inside high-performance drive assemblies.

Modern industrial drives contain advanced power semiconductor components that generate significant heat during operation. Effective cooling is essential to maintain electrical performance, prevent thermal stress, and ensure long-term system reliability. The ABB R3G355-RB03-10 provides a reliable airflow solution designed specifically for demanding industrial environments.

This fan assembly is identified by ABB as a long-life fan, radial kit, with product identification 3AXD50000179343 and ABB type designation R3G355-RB03-10. It is used as a cooling spare component for ABB drive platforms and is designed as a replacement solution for previous fan types such as R4E355-RM03-05. :contentReference[oaicite:2]{index=2}

Cooling Function in Industrial Drive Systems

The main function of the ABB R3G355-RB03-10 is to provide forced air cooling for industrial drive systems. During operation, frequency converters and power electronics generate heat due to switching losses and electrical conversion processes. Without sufficient airflow, excessive temperature increase can reduce component lifetime and cause system performance issues.

The radial fan design creates a controlled airflow path through the drive cooling structure. By continuously removing heat from internal components, the fan helps maintain suitable operating temperatures for power modules, control electronics, and other sensitive components.

Stable thermal conditions are particularly important in industrial automation systems where drives may operate continuously for long periods under variable load conditions.

Application in ABB ACS Drive Platforms

The ABB R3G355-RB03-10 is commonly applied in ABB industrial drive systems, including ACS800 and ACS850 drive platforms. These drives are widely used in industrial motor control applications requiring accurate speed regulation, energy efficiency, and reliable operation.

Within these systems, the cooling fan works as a critical thermal management component. It supports the drive by maintaining proper ventilation and preventing overheating during continuous operation.

The fan assembly is especially important for large frame drive systems where higher power levels require effective heat dissipation solutions. :contentReference[oaicite:3]{index=3}

Technical Characteristics and Design Features

The ABB R3G355-RB03-10 adopts a centrifugal fan design with backward-curved blades. This structure provides efficient airflow generation and stable pressure characteristics, making it suitable for industrial cooling applications.

The fan uses an electronically commutated motor design and operates with a single-phase power supply. Technical information indicates a nominal voltage range of 200–240 VAC, frequency operation at 50/60 Hz, speed around 1350 rpm, power consumption approximately 205 W, and current consumption around 2.0 A. :contentReference[oaicite:4]{index=4}

The combination of efficient motor technology and optimized impeller design allows the fan to provide reliable airflow while maintaining energy efficiency.

Long Life Operation and Reliability

Industrial cooling components must provide dependable performance because fan failure can directly affect the operation of the entire drive system. The ABB R3G355-RB03-10 is designed as a long-life fan solution with an extended maintenance interval.

ABB technical information indicates that this fan provides a maintenance interval of approximately nine years under appropriate operating conditions. The design also eliminates the need for a separate run capacitor compared with previous fan types, simplifying system maintenance requirements. :contentReference[oaicite:5]{index=5}

This long-life design reduces maintenance frequency and helps improve the availability of industrial automation equipment.

Role in Thermal Protection and System Stability

Temperature control is one of the most important factors affecting industrial electronic equipment reliability. Excessive heat can accelerate component aging, reduce efficiency, and trigger protective shutdown functions.

The ABB R3G355-RB03-10 supports thermal protection strategies by ensuring continuous airflow through the cooling system. Stable ventilation helps maintain consistent operating conditions and improves the overall reliability of the drive system.

For applications such as pumps, fans, conveyors, compressors, and production machinery, reliable cooling contributes directly to uninterrupted operation.

Industrial Application Areas

The ABB R3G355-RB03-10 is suitable for a wide range of industrial applications where ABB drive systems are installed. Typical industries include manufacturing, energy, water treatment, mining, metallurgy, and process automation.

In manufacturing plants, it supports motor drive systems used for automated production equipment. In water treatment facilities, it helps maintain cooling performance for pump control systems. In heavy industries, it contributes to reliable operation of high-power motor applications.

Its industrial design allows it to operate in environments where continuous equipment availability and thermal reliability are required.

Mechanical Structure and Installation

The ABB R3G355-RB03-10 is designed as a modular fan kit for integration into compatible ABB drive cooling assemblies. Its structure allows efficient installation within drive cabinets while maintaining correct airflow direction and cooling performance.

The compact assembly design supports easier maintenance and replacement procedures. When installed correctly, the fan provides stable airflow and supports the original thermal design of the drive system.

Proper installation ensures correct electrical connection, mechanical positioning, and long-term operational stability.

Maintenance Considerations

Although the ABB R3G355-RB03-10 is designed for long service intervals, regular inspection of cooling systems remains important in industrial environments. Dust accumulation, restricted airflow, or mechanical wear may affect cooling performance over time.

Periodic checking of fan operation, airflow condition, and electrical connections helps maintain reliable drive performance and reduces the risk of unexpected downtime.

Importance in Industrial Automation Systems

Variable frequency drives are essential components in modern automation systems, controlling motor speed, torque, and energy consumption. Cooling systems such as the ABB R3G355-RB03-10 ensure that these advanced electronic devices can operate safely and efficiently.

By providing reliable thermal management, the fan supports higher system availability, improved energy efficiency, and stable industrial production processes.

Conclusion

The ABB R3G355-RB03-10 long-life radial fan kit is a critical thermal management component for ABB industrial drive systems. With its efficient centrifugal fan design, long maintenance interval, and compatibility with ABB ACS drive platforms, it provides reliable cooling performance for demanding automation applications.

Through effective heat dissipation and stable airflow management, the ABB R3G355-RB03-10 helps improve the reliability, efficiency, and operational lifespan of industrial power electronic systems.
