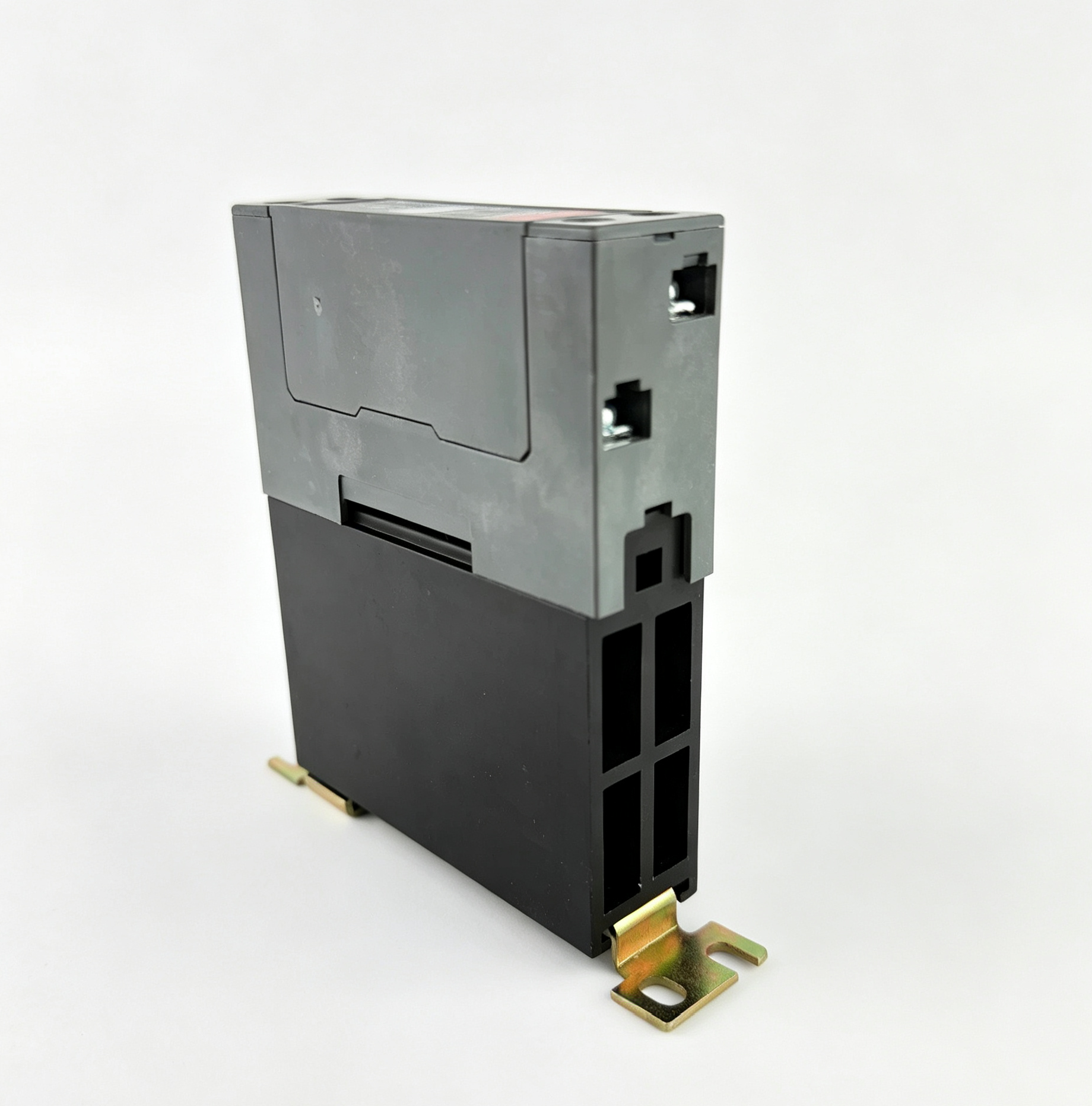

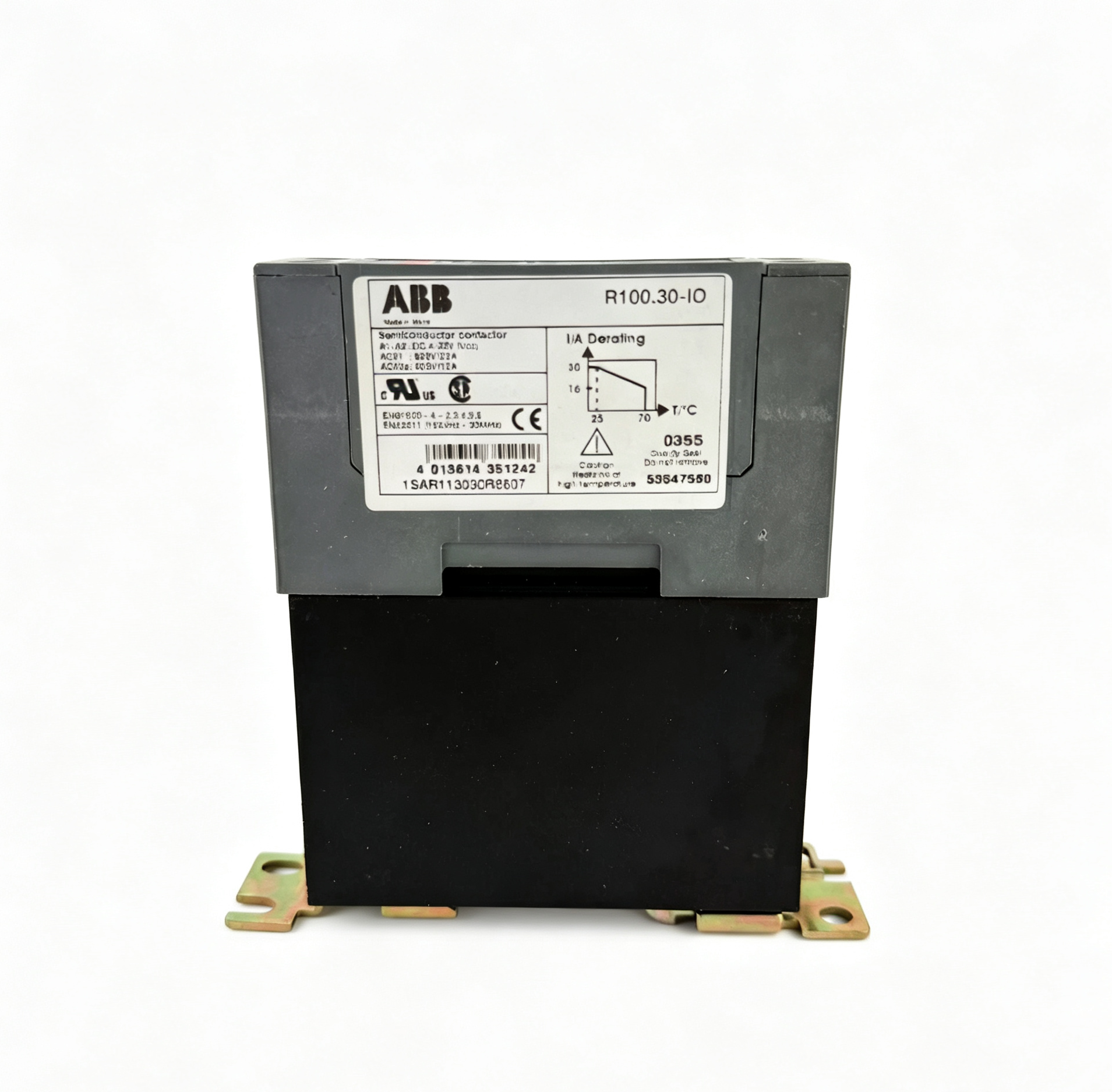

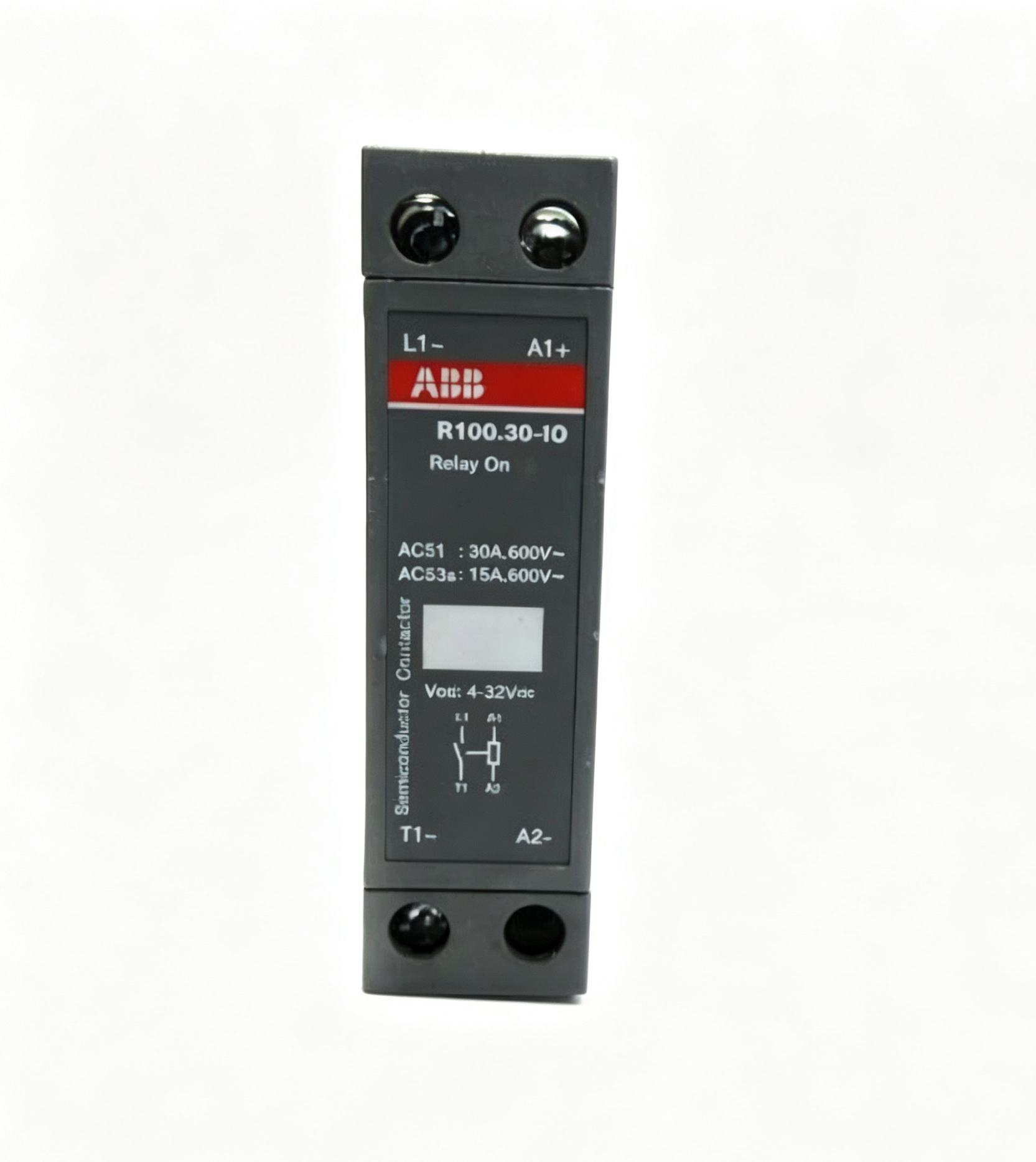

ABB R100.30-10 Solid-state Relay
Product Overview
The ABB R100.30-10 is a solid-state relay designed for industrial switching and automation control applications.
As part of the ABB R100 series, this relay integrates thyristor switching technology to provide efficient and reliable control of AC loads.
The design focuses on fast response, electrical isolation, stable operation and compatibility with industrial control environments.
Solid-state relays are widely used in applications where frequent switching operations, silent operation and long service life are required.
Compared with traditional electromechanical relays, the ABB R100.30-10 uses semiconductor switching components without mechanical moving contacts, reducing mechanical wear and improving switching consistency.
The R100.30-10 model is designed for applications requiring momentary or zero-point switching functions.
Its thyristor-based output stage allows controlled switching of AC loads while maintaining electrical performance under demanding industrial conditions.
Technical Features
The ABB R100.30-10 provides several technical characteristics suitable for industrial automation systems.
The relay incorporates semiconductor switching technology with a robust enclosure design and optimized thermal management structure.
- Thyristor-based solid-state switching technology
- Designed for AC load control applications
- Supports momentary and zero-point tripping operation
- Suitable for industrial automation and electrical control systems
- DIN-rail mounting capability for convenient installation
- High electrical isolation between control and load circuits
- Low mechanical stress due to non-contact switching operation
The semiconductor switching design enables frequent operation cycles while maintaining stable performance.
This makes the R100.30-10 suitable for systems where traditional relay contacts may experience reduced lifespan due to repeated switching actions.
Electrical Specifications
The ABB R100.30-10 is designed for AC switching systems with a rated operating voltage range suitable for industrial electrical applications.
The output circuit uses thyristor technology, providing reliable switching performance for resistive and inductive loads.
| Parameter | Specification |
|---|---|
| Product Series | ABB R100 Series |
| Product Type | Solid-state Relay |
| Switching Element | Thyristor |
| Rated Operating Voltage | 42 to 660 VAC |
| Operating Frequency | 45 to 65 Hz |
| Rated Load Current AC51 | 30 A at 25°C ambient temperature |
| Rated Load Current AC53a | 15 A at 25°C ambient temperature |
| Operating Temperature Range | -30°C to +80°C |
| Storage Temperature Range | -40°C to +100°C |
| Enclosure Material | Self-extinguishing material |
The technical parameters provide flexibility for integration into different industrial control panels.
The relay supports a wide voltage range and is designed for stable operation in various automation environments.
Design and Application
The ABB R100.30-10 is commonly applied in industrial electrical control systems where reliable semiconductor switching is required.
Typical applications include heating control systems, industrial machinery, process automation equipment and electrical load management systems.
Because the relay does not rely on mechanical contacts, it can handle high switching frequency applications more effectively.
The thyristor output structure improves durability and reduces maintenance requirements in systems with continuous operation.
The compact industrial design allows installation inside electrical cabinets and control panels.
The relay can be integrated with programmable controllers, temperature controllers and other automation devices to achieve accurate load switching control.
Thermal Performance and Reliability
Thermal management is an important factor in solid-state relay operation.
The ABB R100.30-10 includes an aluminum heat sink structure to improve heat dissipation during continuous load operation.
Proper installation conditions, including suitable ventilation and correct current selection, help maintain stable operating temperature and extend the service life of the device.
The relay design includes electrical protection characteristics that support reliable operation in industrial environments.
The semiconductor switching element provides consistent performance during repeated switching cycles.
Installation Considerations
When installing the ABB R100.30-10, users should consider load characteristics, ambient temperature, ventilation conditions and current requirements.
Correct wiring and suitable protection components are important for achieving optimal system performance.
The relay supports industrial wiring requirements and can be mounted within standard control cabinet environments.
Engineers should select appropriate external protection according to the application requirements and electrical system design.
Industrial Automation Integration
The ABB R100.30-10 can be integrated into industrial automation systems requiring dependable AC switching control.
Its semiconductor-based structure makes it suitable for applications that require fast switching response and stable long-term operation.
In modern automation systems, solid-state relays play an important role in improving equipment efficiency and reducing downtime.
The R100 series provides a practical solution for controlling electrical loads in manufacturing, processing and industrial equipment.
Conclusion
The ABB R100.30-10 solid-state relay combines thyristor switching technology, compact industrial design and reliable electrical performance.
With support for AC load control, wide operating voltage capability and durable semiconductor switching characteristics, it is suitable for various industrial automation and electrical control applications.
Designed as part of ABB’s R100 series, the R100.30-10 provides engineers with a reliable component for systems requiring frequent switching operations, stable control performance and efficient integration into industrial electrical installations.
