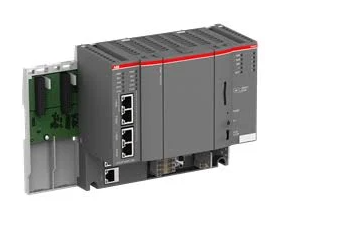

ABB PM595-4ETH-F PLC Processor Module

Product Overview

The ABB PM595-4ETH-F is a top-tier processor module in the ABB AC500 PLC series, designed for high-end industrial automation applications. It features advanced processing capabilities, large memory capacity, and multiple Ethernet communication interfaces.

This module is ideal for complex control systems requiring high-speed data processing, network flexibility, and robust performance.

Core Function

The ABB PM595-4ETH-F acts as the central processing unit (CPU) in automation systems. It executes control programs, processes I/O data, and manages communication between multiple industrial devices and networks.

Its high-performance architecture ensures precise and synchronized control across complex industrial processes.

Memory and Processing Performance

The PM595-4ETH-F is equipped with 16 MB of program memory and 16 MB of data memory, allowing it to handle large-scale and complex automation tasks efficiently. :contentReference[oaicite:1]{index=1}

It delivers high-speed execution with extremely fast processing times, making it suitable for real-time control applications. :contentReference[oaicite:2]{index=2}

Multi-Ethernet Communication

One of the key features of the ABB PM595-4ETH-F is its multiple Ethernet interfaces. It includes:

• Two independent Ethernet interfaces
• Additional Ethernet ports with integrated switch
• Support for industrial protocols such as PROFINET and EtherCAT

This enables flexible network architectures, including redundant systems and segmented networks. :contentReference[oaicite:3]{index=3}

Additional Communication Interfaces

In addition to Ethernet, the PM595-4ETH-F includes two serial communication interfaces (RS232/RS485), supporting integration with legacy systems and various industrial devices.

It also supports external communication modules for extended connectivity. :contentReference[oaicite:4]{index=4}

System Integration

The module integrates seamlessly into the ABB AC500 automation platform. It supports expansion with multiple I/O modules and communication modules, allowing scalable and flexible system configurations.

It can manage complex distributed control systems and multi-network environments efficiently.

Advanced Networking Features

The ABB PM595-4ETH-F supports advanced networking features such as VLAN, QoS, and redundancy protocols. It also includes built-in web server functionality for monitoring and diagnostics.

These features improve network performance, reliability, and system visibility. :contentReference[oaicite:5]{index=5}

Performance and Reliability

Designed for harsh industrial environments, the PM595-4ETH-F offers excellent resistance to electrical interference, temperature variations, and continuous operation conditions.

Its robust design ensures long-term reliability and stable system performance.

Industrial Applications

The ABB PM595-4ETH-F is widely used in high-end industrial applications, including:

• Large-scale manufacturing systems
• Power generation and energy management
• Oil and gas processing plants
• Smart infrastructure and utilities
• Complex distributed control systems (DCS)

It is especially suitable for applications requiring high-speed processing and multi-network communication.

System Benefits

The PM595-4ETH-F improves automation efficiency by combining high processing power, large memory capacity, and advanced networking capabilities.

It enhances system reliability, reduces downtime, and supports complex automation strategies.

Installation and Configuration

The module is designed for DIN rail mounting, allowing easy installation in control cabinets. Configuration and programming are performed using ABB engineering tools.

Its modular design simplifies system integration and future expansion.

Operational Advantages

The ABB PM595-4ETH-F provides fast processing speed, flexible Ethernet networking, and strong system scalability.

It enables efficient management of complex industrial processes and multi-device coordination.

Maintenance and Diagnostics

The module includes advanced diagnostic tools and a built-in web server for real-time monitoring and troubleshooting.

This improves maintenance efficiency and reduces system downtime.

Conclusion

The ABB PM595-4ETH-F PLC processor module is one of the most advanced CPUs in the AC500 series. With its 16MB memory, multiple Ethernet interfaces, and high-performance processing, it is ideal for complex and large-scale industrial automation systems.

Its powerful capabilities and flexible communication options make it a preferred choice for high-end automation projects.
