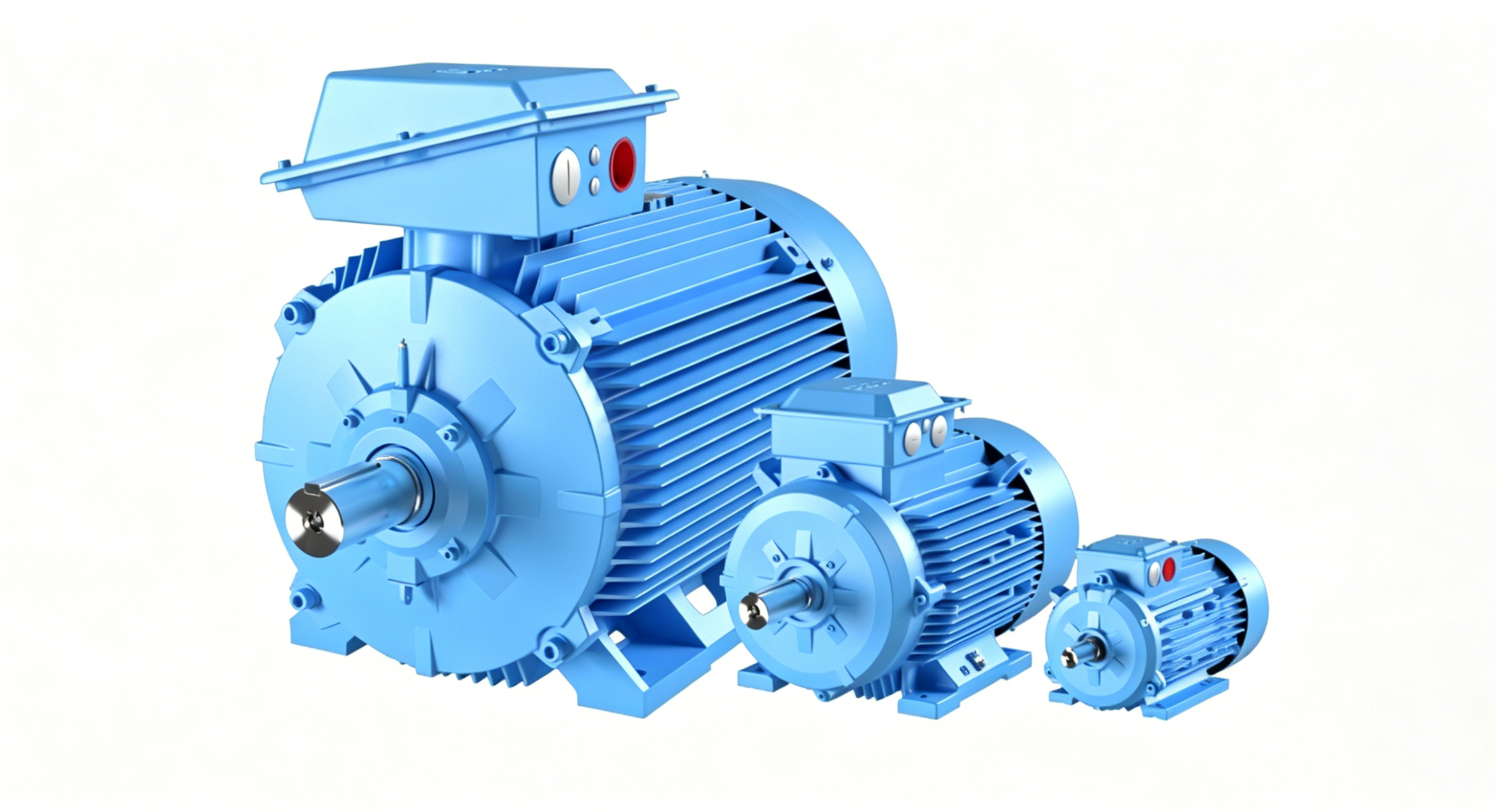

ABB M2BAX 132MA4 7.5kW 3 Phase Industrial Induction Motor

The ABB M2BAX 132MA4 is a three-phase squirrel cage induction motor designed for general industrial applications requiring reliable mechanical power, stable torque output, and energy-efficient operation. With a rated output power of 7.5kW, this motor belongs to ABB’s M2BAX series of general performance motors, which are widely used in industrial automation systems, process machinery, and mechanical drive applications.

Overview of ABB M2BAX 132MA4

The M2BAX 132MA4 is a 4-pole induction motor operating on a 380V three-phase power supply. It is designed with a robust cast iron frame that provides high mechanical strength and excellent vibration resistance. The motor is optimized for continuous duty operation under industrial load conditions, making it suitable for pumps, compressors, conveyors, fans, and various types of production machinery.

This motor is part of ABB’s IE2 efficiency class range, which is designed to balance energy efficiency and cost-effective industrial performance. It complies with international IEC standards for low-voltage electric motors used in industrial environments.

Construction and Mechanical Design

The ABB M2BAX 132MA4 features a durable cast iron housing that enhances structural rigidity and improves heat dissipation during operation. The motor frame size 132 ensures compatibility with standard industrial mounting systems. Its mechanical structure is designed to withstand continuous vibration, mechanical stress, and harsh industrial environments.

The rotor uses a squirrel cage design, which ensures smooth torque generation and reduced maintenance requirements. This design is widely used in industrial motors due to its simplicity, reliability, and long service life. The shaft and bearing system are engineered to support stable rotation and minimize friction losses.

Electrical Performance and Operating Characteristics

The motor operates at 50Hz frequency with a rated speed of approximately 1450–1500 rpm, depending on load conditions. As a 4-pole motor, it provides stable torque output suitable for medium-duty industrial applications. The rated current is optimized for 380V systems, ensuring efficient energy usage and stable electrical performance.

The IE2 efficiency classification ensures reduced energy losses compared to standard efficiency motors. This results in lower operating costs and improved energy utilization in continuous industrial operation environments. The motor maintains stable performance under varying load conditions, making it suitable for dynamic mechanical systems.

Mounting Types and Installation Configuration

The ABB M2BAX 132MA4 supports multiple mounting configurations including IMB35 and IM2001, which combine foot mounting and flange mounting options. This flexibility allows integration into different types of industrial machinery and mechanical systems without requiring major structural modifications.

The IMB35 configuration allows both foot and flange support, providing stable mechanical alignment in applications where precision installation is required. The standardized IEC mounting system ensures compatibility with a wide range of industrial equipment.

Industrial Application Areas

The ABB M2BAX 132MA4 is widely used in industrial sectors such as manufacturing, water treatment, HVAC systems, material handling, and process automation. In pump systems, it provides stable rotational power for fluid movement and pressure control. In conveyor systems, it ensures consistent mechanical transport of materials across production lines.

In HVAC applications, the motor drives fans and air handling units, contributing to efficient air circulation and temperature control. It is also used in compressors, mixers, and general-purpose machinery where continuous and reliable torque is required.

Energy Efficiency and Operational Benefits

The IE2 efficiency class of the ABB M2BAX 132MA4 ensures improved energy performance compared to standard motors. By reducing electrical losses during operation, the motor helps decrease overall energy consumption in industrial systems. This is especially important in facilities that operate continuously or under heavy load conditions.

The motor’s efficient design also reduces heat generation, which contributes to longer insulation life and improved system reliability. Lower energy losses result in reduced operational costs and improved sustainability in industrial operations.

Reliability and Durability

The ABB M2BAX series is designed for long-term industrial use with minimal maintenance requirements. The robust cast iron construction ensures resistance to mechanical stress and environmental factors such as dust, vibration, and temperature variation.

The bearing system is engineered for extended service life under continuous operation. Proper lubrication and maintenance ensure consistent performance over long operational cycles. The motor is designed to maintain stability even under fluctuating load conditions.

Cooling and Thermal Management

The motor uses a self-ventilated cooling system (IC411) that ensures effective heat dissipation during operation. The cooling fan is mounted on the non-drive end of the motor shaft and provides continuous airflow over the frame surface.

This cooling system allows the motor to maintain safe operating temperatures even under continuous duty cycles. Effective thermal management contributes to improved efficiency and extended motor lifespan.

System Integration and Compatibility

The ABB M2BAX 132MA4 is designed for easy integration into industrial electrical systems. It is compatible with standard variable frequency drives (VFDs), motor starters, and control systems. This allows flexible speed control and improved process automation in industrial applications.

Its standardized electrical and mechanical interfaces make it suitable for both new installations and replacement projects in existing industrial systems.

Conclusion

The ABB M2BAX 132MA4 7.5kW industrial induction motor is a reliable and energy-efficient solution for a wide range of industrial applications. With its robust cast iron construction, IE2 efficiency class, and flexible mounting options, it provides stable performance in pumps, fans, conveyors, and general industrial machinery. Its durable design and consistent operation make it a key component in modern industrial automation and mechanical drive systems.
