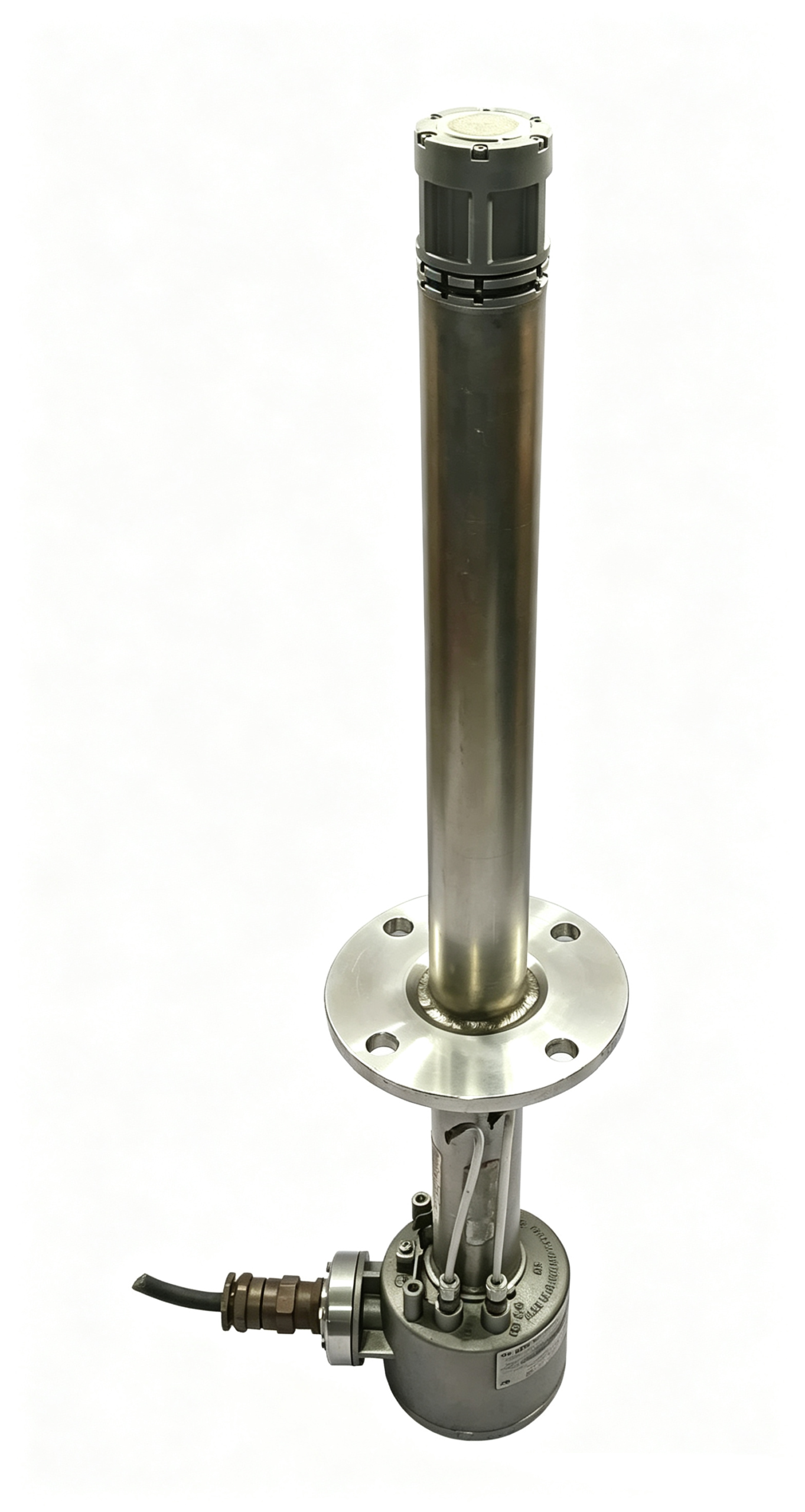

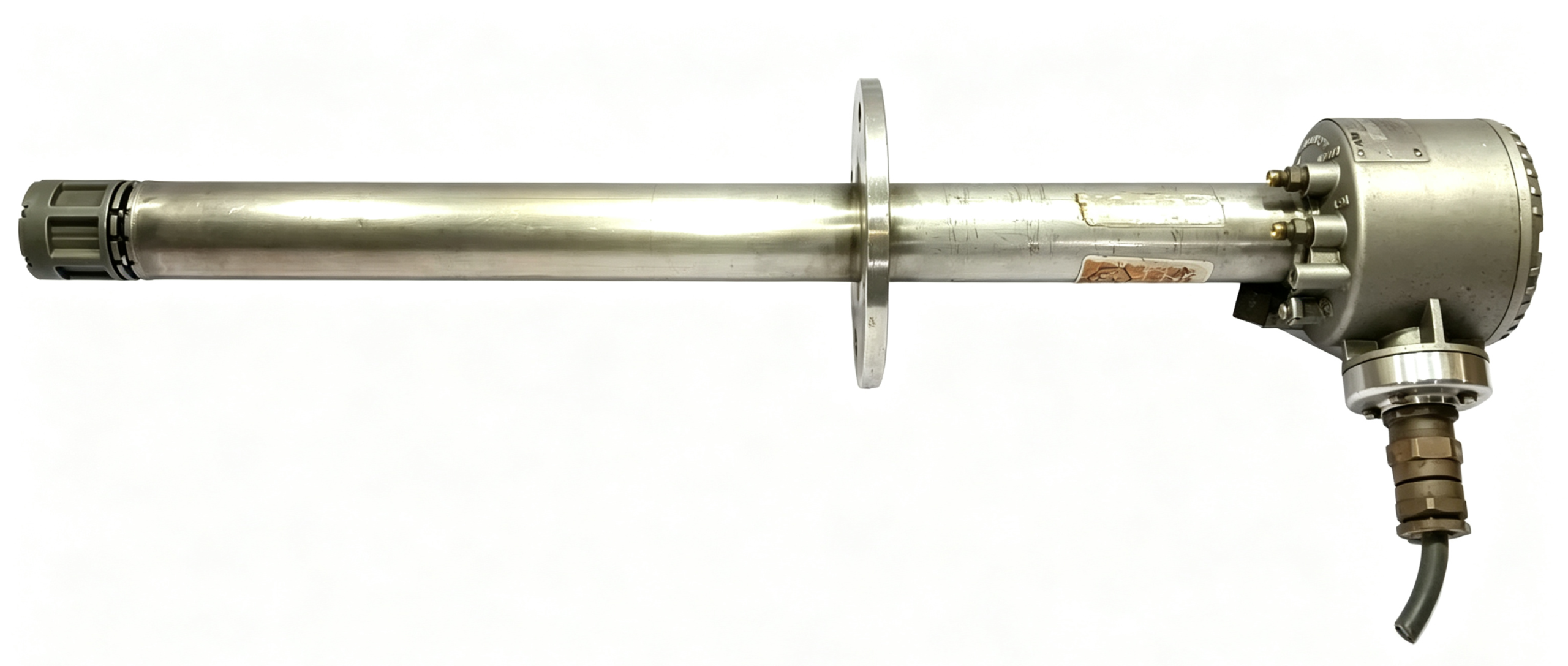

ABB HME0200D AlSCAN Hydrogen Measurement Probe

ABB HME0200D is an immersion probe designed for the ABB AlSCAN hydrogen measurement system. The probe is specifically intended for repetitive immersion in molten wrought aluminum alloys and forms part of the measurement arrangement used to determine dissolved hydrogen in liquid aluminum. ABB identifies HME0200D as one of the dedicated AlSCAN probe models, alongside HME0300D and HME1200D.

The AlSCAN system is designed for direct measurement of hydrogen in liquid aluminum. During measurement, a small volume of carrier gas is brought into contact with the molten metal through an immersed probe. The gas circulates in a closed loop until its hydrogen concentration reaches equilibrium with the hydrogen in the melt. The hydrogen concentration in the gas is then measured and converted into a reading representing the hydrogen concentration in the aluminum.

Product Overview

The ABB HME0200D is an AlSCAN probe for wrought aluminum alloys. It is a specialized consumable measurement component rather than a general-purpose process instrument. Its function is closely connected to the sampling and measurement principle of the AlSCAN hydrogen analyzer.

Aluminum quality can be affected by dissolved hydrogen because hydrogen behavior in molten aluminum differs from its behavior in solid metal. During solidification, hydrogen can contribute to porosity and other material-quality problems. Direct measurement of hydrogen in the melt therefore provides useful process information for aluminum production and processing operations.

The HME0200D provides the physical interface between the AlSCAN measurement system and the molten aluminum. Its construction and intended alloy range are selected for the immersion conditions associated with wrought alloys.

AlSCAN Hydrogen Measurement Principle

The AlSCAN measurement process uses a probe immersed in molten aluminum. A small quantity of carrier gas, typically nitrogen, is circulated through the measurement loop. The gas comes into contact with the melt through the immersed probe and gradually approaches equilibrium with the hydrogen concentration of the liquid aluminum.

Once equilibrium is reached, the hydrogen concentration in the gas loop can be measured. ABB states that the amount of hydrogen in the gas loop is determined using a thermal conductivity sensor. The analyzer processes this measurement and converts the gas concentration into a reading of hydrogen concentration in the metal.

The HME0200D is therefore an important physical component of the measurement path. The probe allows the carrier gas to interact with the molten aluminum while the analyzer performs the measurement and calculation functions.

Application for Wrought Aluminum Alloys

ABB specifies HME0200D for repetitive immersion in wrought alloys. Wrought aluminum alloys are commonly processed into products such as sheet, plate, extrusion products, and other forms that undergo mechanical working after casting.

The alloy range is an important consideration when selecting an AlSCAN probe. ABB specifically states that HME0200D is not suitable for Series 7000 alloys and high-magnesium Series 5000 alloys. These limitations distinguish it from the other AlSCAN probe models.

For foundry alloy applications, ABB provides the HME0300D probe, while HME1200D is intended for long immersion applications and strontium-modified melts. Selecting the correct probe model according to the alloy and measurement application is therefore an important part of using the AlSCAN system.

Probe Construction

ABB product documentation identifies the HME0200D as being made from fused non-ferrous aluminum oxide with amorphous silica. The material selection is associated with the probe’s intended use in direct contact with molten aluminum during measurement.

The probe must operate in a demanding thermal environment because it is repeatedly immersed into molten metal. Its construction is therefore an important part of the AlSCAN measurement arrangement. The probe is designed around the specific requirements of molten aluminum hydrogen measurement rather than general laboratory sampling.

Because the probe is exposed to the melt during operation, its service life is naturally influenced by immersion conditions and usage. ABB provides a typical service-life reference for the HME0200D rather than treating it as a permanent measurement component.

Typical Probe Life

ABB documentation specifies a typical HME0200D life of 10 immersions or 3 hours of continuous immersion, whichever comes first. This specification should be understood as a typical operating reference for the probe rather than an unrestricted service guarantee.

Actual operating conditions can influence the practical condition of an immersion probe. The alloy composition, immersion frequency, immersion duration, operating procedure, and measurement environment can all be relevant when evaluating probe condition.

For this reason, the probe should be used according to the applicable AlSCAN operating instructions. A probe that has reached its specified typical usage limit should be evaluated according to the measurement system’s maintenance and operating procedures.

Integration with the AlSCAN Analyzer

The HME0200D does not operate as an independent hydrogen analyzer. It is part of the wider AlSCAN measurement system, which includes the analyzer and associated gas circulation and measurement components.

The analyzer contains the measurement electronics and processing functions required to determine the hydrogen concentration. ABB describes the analyzer as using a proprietary thermal conductivity sensor to measure the hydrogen concentration in the gas loop. A built-in microprocessor controls analyzer operation and processes the measurement data.

The probe and analyzer therefore perform complementary functions. The HME0200D provides the measurement interface with the molten aluminum, while the analyzer evaluates the hydrogen concentration in the circulating gas.

Probe Selection

Selection of the correct AlSCAN probe depends on the alloy and measurement requirements. ABB identifies three principal probe models for the AlSCAN family: HME0200D for wrought alloys, HME0300D for foundry alloys, and HME1200D for long immersion and strontium-modified melts.

This distinction is important when identifying HME0200D. A visually similar probe from another AlSCAN model should not automatically be considered interchangeable. The intended alloy type and immersion conditions should be checked against ABB documentation before selecting a different probe.

Measurement Applications

Hydrogen measurement with AlSCAN can be used for process monitoring in aluminum production and casting environments. By measuring dissolved hydrogen in molten metal before solidification, operators can obtain information about the condition of the melt and use the measurement as part of their process-control activities.

The direct measurement approach allows hydrogen concentration to be evaluated at the molten-metal stage rather than relying solely on analysis of the final solid product. This makes the measurement relevant to process monitoring where melt quality needs to be evaluated during production.

Maintenance and Handling

Because HME0200D is an immersion probe, proper handling is important. The probe should be installed and operated according to the applicable AlSCAN procedures. Its condition should be considered together with the analyzer, gas circulation system, and measurement sequence.

When replacing a probe, the exact model number should be checked. HME0200D is specifically associated with wrought aluminum alloy applications, while other AlSCAN probe models have different application ranges. Correct model identification helps maintain consistency between the probe and the measurement requirements.

The probe’s typical usage limit should also be considered when planning maintenance. ABB specifies 10 immersions or 3 hours of continuous immersion, whichever occurs first, as the typical life for HME0200D.

Product Identification

The complete ABB product reference is HME0200D. It should be retained when searching for AlSCAN documentation, ordering replacement probes, or maintaining equipment records.

HME0200D should be distinguished from the related HME0300D and HME1200D models. Although all three belong to the AlSCAN probe family, ABB specifies different applications for each model. HME0200D is the probe designated for repetitive immersion in wrought alloys.

Conclusion

ABB HME0200D is an AlSCAN immersion probe designed for repetitive hydrogen measurement in molten wrought aluminum alloys. It forms part of ABB’s AlSCAN hydrogen measurement system, where a carrier gas is brought into contact with the molten metal and the hydrogen concentration is subsequently measured by the analyzer.

The probe is constructed from fused non-ferrous aluminum oxide with amorphous silica and has a typical life of 10 immersions or 3 hours of continuous immersion, whichever comes first. ABB specifies that HME0200D is not suitable for Series 7000 alloys or high-magnesium Series 5000 alloys. For accurate application and replacement, the HME0200D model should be selected according to the alloy type and measurement requirements of the AlSCAN system.
