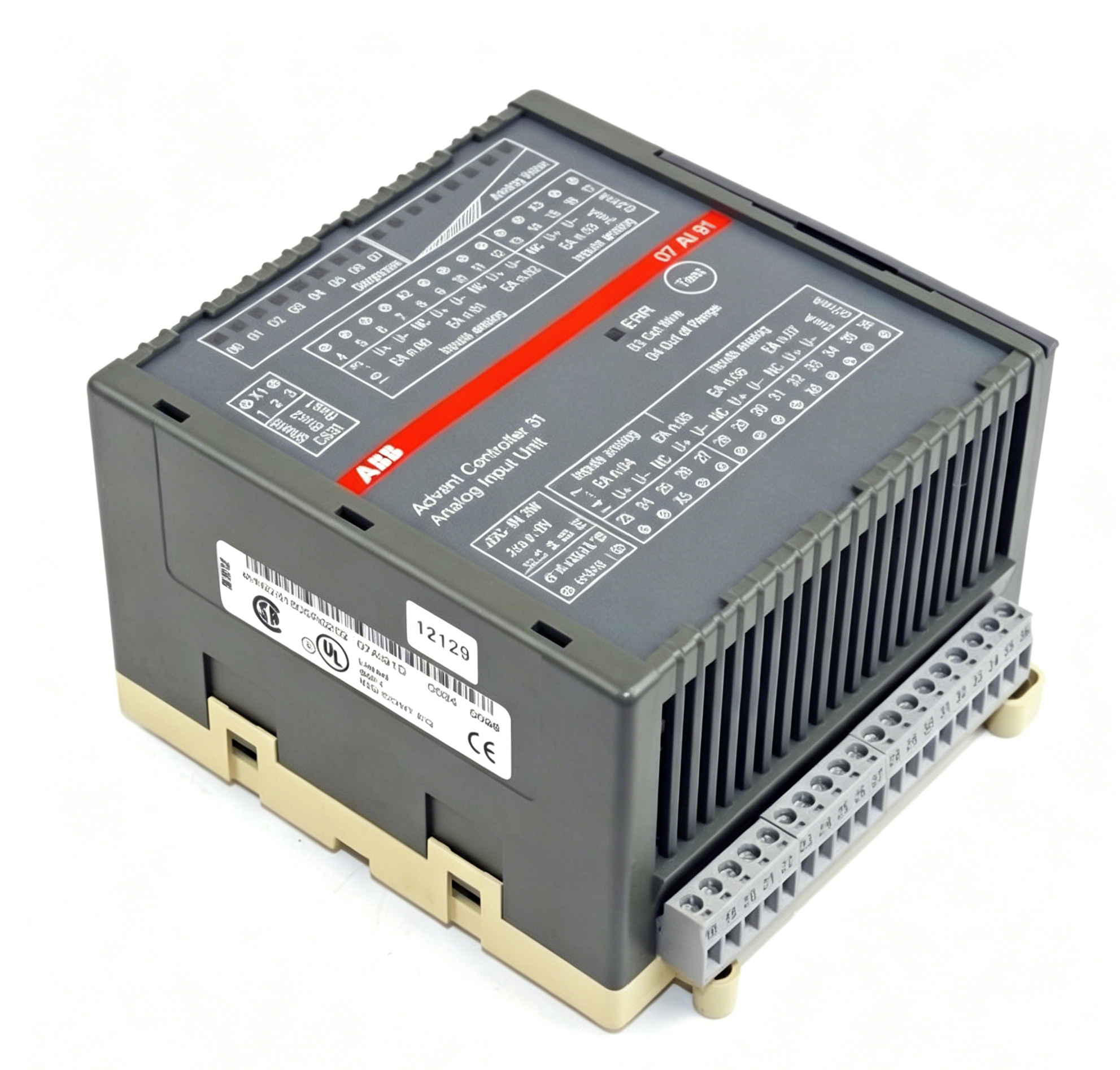

ABB GJR5251600R0202 07AI91 Advant OCS Analog Input Module

The ABB GJR5251600R0202, also known as 07AI91, is an industrial analog input module designed for ABB Advant OCS and CS31 automation systems. It is used to acquire and process analog signals from field devices such as sensors, transmitters, and measuring instruments. These signals are then converted into digital data for use in PLC and DCS control systems, enabling precise monitoring and control of industrial processes.

In industrial automation environments, accurate signal acquisition is essential for maintaining process stability, safety, and efficiency. The ABB 07AI91 module is engineered to handle multiple types of analog inputs with high precision, making it suitable for complex control systems in manufacturing, energy production, chemical processing, and infrastructure automation.

Product Overview

The ABB GJR5251600R0202 is part of the ABB Advant Controller 31 system and communicates via the CS31 bus architecture. It provides 8 configurable analog input channels that support voltage, current, resistance temperature detectors (RTD), and thermocouple sensors.

Each channel is designed with high-resolution analog-to-digital conversion (12-bit + sign), ensuring accurate measurement of industrial signals. The module supports a wide range of input types including ±10 V, ±5 V, ±500 mV, ±50 mV, 0–20 mA, and temperature sensors such as PT100, PT1000, and thermocouples (J, K, S).

The module is designed for DIN rail installation and integrates seamlessly into ABB’s modular automation architecture, allowing flexible configuration and expansion in industrial control systems.

Key Functional Features

• 8-channel configurable analog input module.
• Supports voltage, current, RTD, and thermocouple signals.
• High-resolution 12-bit analog-to-digital conversion with sign.
• Compatible with ABB CS31 communication bus.
• Supports PT100 and PT1000 temperature sensors.
• Thermocouple compatibility (J, K, S types).
• Electrical isolation for improved signal integrity.
• Industrial-grade design for harsh environments.
• LED indicators for channel status and diagnostics.
• Designed for ABB Advant Controller 31 systems.

Signal Processing Capability

The ABB GJR5251600R0202 module is capable of processing a wide range of analog signals from field devices. Each input channel can be configured independently, allowing flexible system design for different industrial applications.

Voltage inputs support ranges from millivolt-level signals to ±10 V, making the module suitable for both low-level sensor signals and standard industrial instrumentation. Current inputs support 0–20 mA signals commonly used in industrial transmitters.

Temperature measurement support includes RTD sensors such as PT100 and PT1000, as well as thermocouples, enabling accurate temperature monitoring in process industries.

Industrial System Integration

The module is fully integrated into ABB’s Advant OCS control system and communicates via the CS31 bus. This allows real-time data exchange between field devices and central controllers, enabling precise process automation.

It is commonly used in distributed control systems (DCS) where multiple modules are connected across industrial plants to monitor and control large-scale processes.

The modular architecture allows easy expansion of input capacity without redesigning the entire control system.

Performance and Reliability

The ABB 07AI91 is designed for high reliability in industrial environments. It includes electrical isolation between channels to reduce interference and ensure stable signal acquisition.

The module is engineered to operate under varying environmental conditions, including temperature fluctuations and electrical noise typical in industrial installations.

Diagnostic functions allow real-time monitoring of channel status, ensuring early detection of faults or signal abnormalities.

Industrial Applications

The ABB GJR5251600R0202 analog input module is widely used in industrial automation applications such as:

• Process control systems in chemical and petrochemical plants.
• Power generation monitoring and control systems.
• Water and wastewater treatment facilities.
• Manufacturing automation and production lines.
• Oil and gas monitoring systems.
• HVAC industrial control systems.
• Energy management and distribution systems.
• General PLC and DCS-based automation systems.

In these environments, accurate analog signal acquisition is critical for ensuring safe, efficient, and stable operation of industrial processes.

Installation and Configuration

The ABB GJR5251600R0202 is designed for easy installation on standard DIN rails. Wiring is simplified through removable terminal blocks, allowing fast maintenance and replacement if required.

Channel configuration can be performed through system software or hardware settings depending on the control system architecture.

Proper shielding and grounding are recommended to ensure optimal signal integrity in electrically noisy environments.

Operational Advantages

The use of ABB analog input modules improves overall system accuracy and reliability by ensuring precise signal conversion and stable data transmission. The 07AI91 module reduces system complexity by integrating multiple signal types into a single hardware unit.

Its modular structure enhances scalability, allowing industrial systems to expand easily as process requirements grow.

Conclusion

The ABB GJR5251600R0202 07AI91 analog input module is a reliable and high-performance solution for industrial signal acquisition in automation systems. With support for multiple input types, high-resolution conversion, and integration into ABB Advant OCS CS31 architecture, it provides accurate and stable data processing for critical industrial applications.

It is widely used in process control, energy systems, manufacturing automation, and infrastructure monitoring where precise analog data acquisition is essential for operational efficiency and safety.
