Product Overview

ABB FSS430Y0C1F080R0D4A1B1H5 is a configured SwirlMaster FSS430 swirl flowmeter designed for industrial process flow measurement. The complete ordering code identifies a specific combination of sensor design, process connection, nominal diameter, pressure rating, measuring-medium temperature range, housing configuration, and output signal. This makes the complete product code an important reference when identifying the exact instrument configuration.

The FSS430 is a swirl flowmeter developed for measurement of liquids, gases, and steam. ABB describes the SwirlMaster FSS430 as a flowmeter for volume flow applications, with measurement capabilities that can also support mass flow calculations under suitable conditions. Its measuring principle uses the rotational movement of the process medium and detects the resulting swirl frequency with a piezoelectric sensor.

The specific configuration FSS430Y0C1F080R0D4A1B1H5 uses an integral single-sensor design, a DN80 process connection, PN40 pressure rating, standard measuring-medium temperature range, aluminium housing with 1/2-inch NPT cable-gland threads, and an H5 output configuration. ABB’s official ordering information provides the individual option codes used to define these characteristics.

SwirlMaster FSS430 Measurement Principle

The FSS430 operates according to the swirl measurement principle. As the process medium enters the meter, the inlet guide body changes the axial movement of the medium into a rotational flow. A vortex core develops inside the measuring section, and the resulting secondary spiral movement produces a characteristic frequency related to the flow rate.

A piezoelectric sensor detects the frequency generated by the swirling flow. The sensor signal is then processed by the transmitter to determine the corresponding flow value. Because the measured frequency is related to the flow velocity, the instrument can provide a stable basis for flow measurement across a broad operating range.

ABB specifies the FSS430 for applications involving gases, liquids, and steam. The design is particularly useful where installation space is limited because the meter requires relatively short straight-pipe sections compared with many conventional flow technologies. ABB documentation specifies a typical inlet section of 3 × DN and an outlet section of 1 × DN.

DN80 Flange Configuration

The F080R0 portion of the ordering code identifies the process connection and nominal diameter. ABB’s ordering table defines F080R0 as a flange connection with a meter size of DN80 and a connection size of DN80, corresponding to a 3-inch nominal pipe size. This makes the DN80 configuration an important part of the physical identification of the instrument.

Nominal diameter selection for a swirl flowmeter is normally based on the required operating flow range. ABB recommends selecting the nominal diameter according to the maximum operating flow and the measuring range requirements of the application. For the FSS430, the published reference flow ranges vary according to the process medium and nominal diameter.

For DN80, ABB’s published data gives a liquid measuring range under the stated reference conditions of approximately 2.3 to 120 m³/h. For gases under the specified reference conditions, the published range is approximately 60 to 1,160 m³/h. Actual flow capacity depends on the process medium, pressure, temperature, density, viscosity, and other operating conditions.

PN40 Pressure Rating

The D4 portion of the ordering code identifies the pressure rating as PN40. This rating is associated with the flanged process connection of the configured FSS430 instrument. Pressure rating is a critical selection parameter because the process connection must be suitable for the pressure conditions of the intended installation.

ABB’s technical documentation lists DIN flange pressure ratings for FSS430 instruments and includes PN10, PN16, PN25, and PN40 configurations within the applicable nominal diameter range. Higher pressure ratings may also be available for selected configurations. The exact pressure rating of the instrument should therefore be identified from the complete ordering code rather than inferred from the general FSS430 series name.

When integrating the meter into a process pipeline, operating pressure, process temperature, flange standard, gasket arrangement, and mechanical installation requirements should all be considered together. The PN40 designation identifies the selected pressure class but does not by itself define every installation condition.

Temperature Range

The A1 portion of the configuration identifies the standard measuring-medium temperature range. ABB specifies the standard FSS430 measuring-medium temperature range as −55 to 280 °C, with a high-temperature option extending the range to −55 to 350 °C.

The standard A1 configuration is therefore suitable for process applications operating within the corresponding temperature limits. Temperature is an important parameter in flow measurement because changes in temperature can affect fluid density, viscosity, pressure, and other characteristics used in determining the operating flow conditions.

The applicable temperature limit must always be evaluated together with the selected sensor construction, gasket material, pressure rating, ambient temperature, and process medium. ABB documentation specifies the operating limits according to the complete instrument configuration.

Integral Single-Sensor Design

The C1 option in the ordering code identifies an integral single-sensor design. In this arrangement, the sensor and transmitter are integrated into the flowmeter assembly rather than being installed as separate remote components.

An integral arrangement can simplify the physical installation because the measurement sensor and transmitter are combined within the same instrument assembly. It is especially useful where the available installation area allows direct mounting and where a remote sensor arrangement is not required.

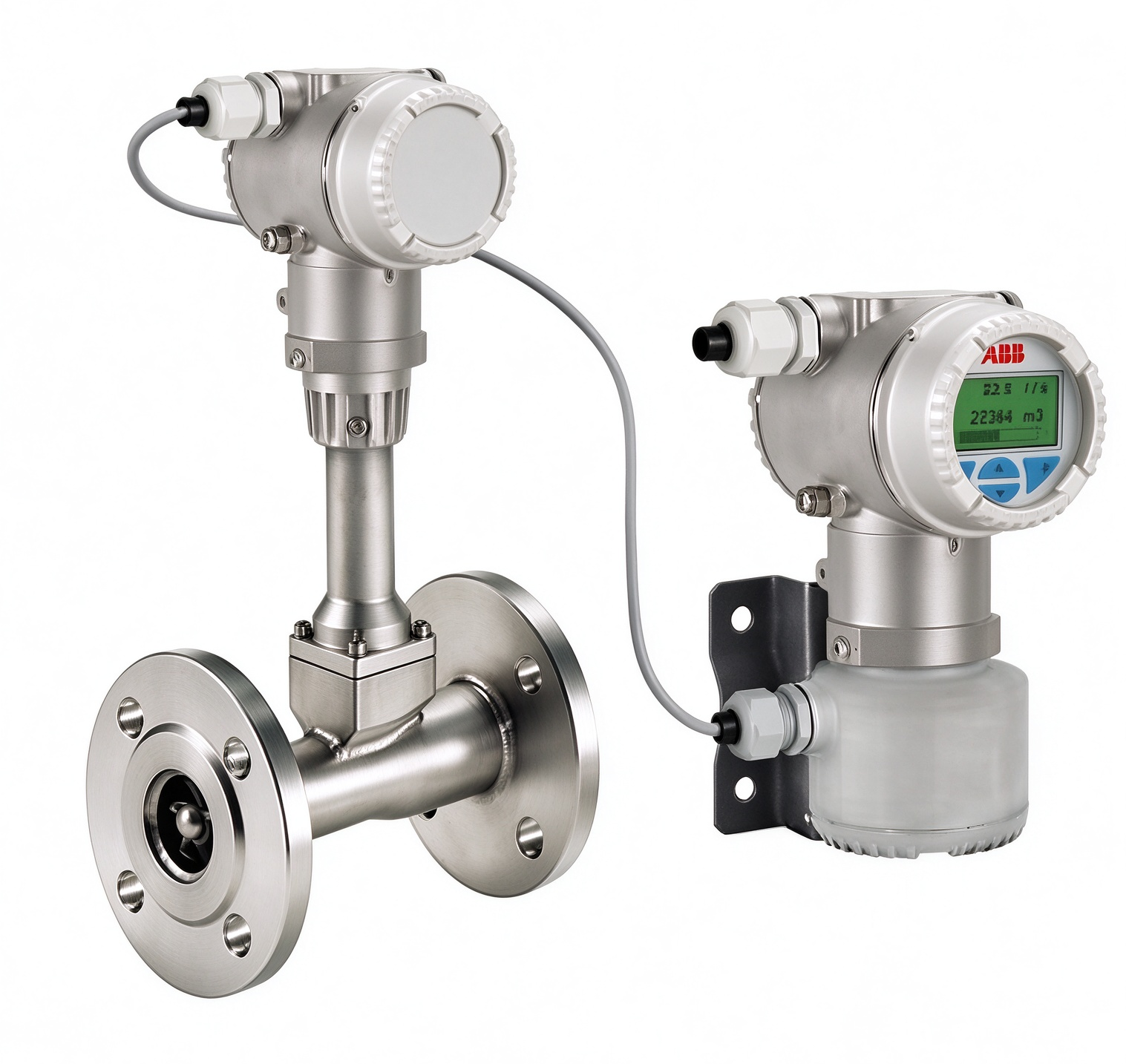

ABB also offers remote-mounted configurations for the FSS430 family. The choice between integral and remote mounting depends on the installation environment, available space, temperature conditions, accessibility, and system design. For FSS430Y0C1F080R0D4A1B1H5, the C1 code identifies the integral single-sensor configuration.

4–20 mA and HART Communication

The H5 portion of the ordering code identifies the output configuration with HART digital communication and a 4–20 mA signal together with a digital contact output. This combination allows the flowmeter to provide an analog process signal while also supporting digital communication for configuration and process information.

The 4–20 mA interface is widely used in industrial automation systems for transmitting measured process variables to control systems, monitoring equipment, and process instrumentation. HART communication adds a digital communication layer that can provide access to additional device information and configuration functions.

The digital contact output can be configured for appropriate functions according to the instrument’s software and application requirements. ABB documentation describes the digital output as configurable for functions such as pulse, frequency, or alarm output depending on the relevant device configuration.

Applications for Liquids, Gases and Steam

The SwirlMaster FSS430 is designed for a broad range of industrial flow applications. ABB specifies the instrument for gases, liquids, and steam, making it suitable for process industries where reliable measurement of volumetric flow is required.

Typical applications can include process gas monitoring, compressed air measurement, water and utility systems, steam distribution, industrial liquid handling, and other process measurement duties. The actual application depends on the process conditions and the selected instrument configuration.

Steam measurement is one area in which the FSS430 can provide additional value. ABB documentation describes operating modes for liquids, gases, and steam, with flow information available in appropriate volume or mass units. With suitable temperature and pressure information, the system can also support calculated process variables for steam applications.

Measurement Performance

ABB specifies the FSS430 with a measuring accuracy of up to ±0.5 percent of the measured value under reference conditions for operating volume flow of liquids, gases, and steam. The exact measurement error varies according to the medium and measurement mode.

For liquid measurement, ABB specifies operating volume flow accuracy of approximately ±0.5 percent under reference conditions. Gas measurement has a corresponding operating-volume-flow accuracy of approximately ±0.50 percent. Steam operating-volume-flow measurement is also specified at approximately ±0.50 percent.

Measurement performance depends on the actual installation and process conditions. Flow profile, pipe arrangement, medium characteristics, temperature, pressure, and vibration can influence the measurement. Correct installation according to the applicable ABB requirements is therefore an important part of achieving the specified performance.

Installation Requirements

The FSS430 is designed to reduce the amount of straight pipe required around the flowmeter. ABB specifies a typical inlet section of 3 × DN and an outlet section of 1 × DN. The compact design can therefore be useful in process installations where conventional long straight pipe sections are difficult to accommodate.

For the DN80 configuration, the nominal diameter of the connected pipe should correspond to the selected F080R0 configuration. The flange standard and pressure class should also match the associated process piping. Mechanical alignment should be maintained to avoid unnecessary pipe offsets that could influence measurement performance.

Electrical installation should include the appropriate power supply, signal wiring, grounding, and communication connections. The H5 configuration provides 4–20 mA/HART communication and a digital contact output, which should be integrated according to the requirements of the control and instrumentation system.

Maintenance and Diagnostics

The FSS430 incorporates diagnostic functions designed to support monitoring of instrument and process conditions. ABB describes real-time self-diagnostics and provides diagnostic information through the transmitter interface. The instrument also supports functions intended to simplify configuration and maintenance activities.

Routine maintenance should include inspection of the process connections, housing, electrical connections, display or local interface where fitted, and general mechanical installation. Changes in flow behavior should be evaluated in relation to process conditions, pipework, pressure, temperature, and possible changes in the measured medium.

ABB also specifies vibration compensation within the FSS430 sensor design. The instrument uses multiple piezoelectric sensing elements for flow measurement and vibration compensation, helping maintain reliable measurement in industrial environments where mechanical vibration may be present.

Technical Specifications

Product Identification

The complete ordering code FSS430Y0C1F080R0D4A1B1H5 should be used when identifying this particular ABB flowmeter. Each section of the code contributes to the final configuration. Y0 identifies the absence of explosion protection certification, C1 identifies the integral single-sensor design, F080R0 identifies the DN80 flange configuration, D4 specifies PN40, A1 specifies the standard temperature range, B1 identifies the aluminium housing with 1/2-inch NPT cable connections, and H5 identifies the 4–20 mA/HART plus digital contact output configuration.

This detailed identification is useful for engineering records, instrumentation databases, maintenance documentation, and equipment replacement. Two FSS430 instruments may share the same general product family while having different process connections, pressure ratings, housing configurations, or signal interfaces.

Conclusion

ABB FSS430Y0C1F080R0D4A1B1H5 is a specifically configured SwirlMaster FSS430 swirl flowmeter for industrial process measurement. Its configuration combines an integral single-sensor design with DN80 flanged process connections, PN40 pressure rating, a standard −55 to 280 °C measuring-medium temperature range, aluminium housing, and 4–20 mA/HART communication with a digital contact output.

The FSS430 measurement principle uses the frequency of the swirling process medium detected by piezoelectric sensors. ABB designs the instrument for measurement of liquids, gases, and steam, while its compact installation requirements make it suitable for process systems where available pipe space is limited.

For accurate identification and system integration, the complete designation ABB FSS430Y0C1F080R0D4A1B1H5 should be retained. Verifying the nominal diameter, flange pressure class, process temperature, housing arrangement, signal interface, and process conditions against the applicable ABB documentation provides the appropriate basis for engineering and maintenance of the flow measurement system.
