ABB FSM4000-SE21W Electromagnetic Flowmeter Sensor

Product Overview

ABB FSM4000-SE21W is an electromagnetic flowmeter sensor designed for industrial process flow measurement. It belongs to the ABB FSM4000 family and uses a stainless steel housing with a wafer-type process connection. The SE21W configuration is intended for applications where conductive liquids must be measured accurately through a compact pipeline-mounted sensor.

The SE21W is available across a range of nominal diameters from DN 3 to DN 100. This allows the sensor to be applied to relatively small process lines as well as larger industrial pipelines. The model is particularly suited to installations where a wafer-style sensor can be mounted between suitable pipe flanges without requiring the fixed-flange construction used by other FSM4000 sensor models.

As a primary flowmeter sensor, the SE21W works together with a compatible ABB FSM4000 transmitter. The sensor generates the electrical measurement signal while the transmitter processes the signal and provides the required flow indication, output and communication functions.

Electromagnetic Flow Measurement Principle

The FSM4000-SE21W operates according to the electromagnetic flow measurement principle. When an electrically conductive liquid moves through the magnetic field generated inside the measuring tube, an electrical voltage is induced in the liquid. Measuring electrodes detect this voltage, and the associated transmitter converts the signal into a flow measurement.

Because electromagnetic flow measurement does not depend on mechanical moving components inside the measuring tube, the technology is suitable for many continuous industrial liquid-flow applications. The method is particularly useful when the process medium has sufficient electrical conductivity and when the installation requires a flowmeter with no internal mechanical obstruction.

Correct application depends on the properties of the measured liquid and the selected sensor configuration. Conductivity, temperature, pressure, flow velocity, liner material, electrode material and installation conditions should all be considered during system design.

SE21W Wafer-Type Construction

One of the defining characteristics of the ABB FSM4000-SE21W is its wafer-type construction. Unlike a traditional flanged sensor with integrated fixed flanges, a wafer-style flowmeter is positioned between the mating flanges of the process pipeline and secured using the appropriate bolts and installation hardware.

The wafer configuration provides a compact mechanical arrangement and can simplify integration into pipelines where the available installation space is limited. The exact mounting dimensions and bolt-hole arrangement depend on the selected nominal diameter and applicable piping standard.

ABB documentation identifies the SE21W as a stainless steel housing, wafer-type sensor covering DN 3 to DN 100. The dimensional configuration differs between the smaller DN 3 to DN 40 range and the DN 50 to DN 100 range, so the actual sensor dimensions should be checked against the selected size before installation.

Nominal Diameter Range

The FSM4000-SE21W is available for nominal diameters from DN 3 through DN 100, corresponding approximately to 1/10 inch through 4 inches. This range covers a variety of industrial process and utility applications.

Sensor sizing should be based on the actual pipeline and required flow conditions rather than simply selecting the same nominal diameter as an existing instrument. Flow velocity is an important consideration because the measuring range of an electromagnetic flowmeter is related to the internal diameter and process flow rate.

ABB documentation provides flow-range information for FSM4000 sensors and indicates that the suitable measuring range depends on nominal size and flow velocity. The selected SE21W size should therefore be evaluated against the minimum and maximum expected process flow.

PFA Liner

The SE21W uses a PFA liner configuration. The liner is the internal material separating the process medium from the sensor body and is an important part of the flowmeter’s wetted construction.

PFA provides a chemically resistant internal surface and is used in applications where compatibility with the process liquid is an important engineering consideration. The suitability of the liner must nevertheless be confirmed against the specific chemical composition, temperature, pressure and concentration of the measured medium.

For process applications involving aggressive or chemically demanding liquids, liner selection should be made together with the electrode material and complete sensor configuration. The complete FSM4000 ordering information should be referenced when determining the exact wetted-material arrangement.

Electrode Materials

Electrodes are responsible for detecting the voltage generated by the conductive liquid as it passes through the magnetic field. ABB provides several electrode material options within the FSM4000 platform, including stainless steel and other materials selected for specific process requirements.

The electrode material should be compatible with the measured medium and operating conditions. Chemical compatibility is especially important when the flowmeter is used in process systems involving corrosive or aggressive liquids.

When identifying an existing SE21W sensor, the complete nameplate and ordering information should be checked rather than assuming the electrode material from the basic SE21W model designation.

Conductivity Requirements

Electromagnetic flowmeters require the measured liquid to have sufficient electrical conductivity. ABB specifies a minimum conductivity of 20 µS/cm for the standard FSM4000 configuration, with lower conductivity options available depending on the selected configuration.

This requirement should be considered during application engineering. Liquids with conductivity below the specified limit may not provide a sufficiently strong measurement signal for the selected sensor and transmitter configuration.

The conductivity of the process medium should therefore be evaluated across the complete operating range, particularly where the composition or concentration of the liquid can change during production.

Measuring Medium Temperature

ABB documentation specifies a measuring-medium temperature range of approximately -40 to 130 °C for the SE21W configuration. The actual permissible temperature depends on the detailed sensor configuration and operating conditions.

Temperature must be considered together with the PFA liner, process pressure and ambient conditions. The flowmeter should not be operated outside the permissible limits defined for the complete ordered configuration.

For process systems with significant temperature variation, the expected minimum and maximum medium temperatures should be compared with the sensor specification before installation. This is particularly important in heating, cooling and chemical process applications.

Protection and Installation

The FSM4000-SE21W can be configured with IP65, IP67 or IP68 protection according to the ordered configuration. The applicable protection level should be verified from the sensor nameplate and technical documentation before installation in an environment exposed to moisture or water.

Correct installation is important for reliable electromagnetic flow measurement. The sensor should be installed in a pipeline arrangement that keeps the measuring tube filled under normal operating conditions. The flow direction, sensor orientation, grounding and upstream and downstream piping arrangement should follow the applicable FSM4000 installation requirements.

For wafer-type installation, the mating pipe flanges must be correctly aligned. The sensor should be positioned concentrically within the pipeline, and the appropriate sealing arrangement should be used. Mechanical stress on the sensor should be minimized during installation.

Grounding Requirements

Grounding is an important part of an electromagnetic flowmeter installation. The sensor and the process medium need a suitable electrical reference so that the measurement signal can be detected correctly.

ABB FSM4000 documentation emphasizes the importance of grounding both for electrical safety and for reliable operation of the electromagnetic measurement system. The grounding method depends on the pipe material, liner arrangement and installation configuration.

When the process pipeline is conductive, the grounding arrangement can differ from installations involving plastic or electrically insulated piping. Grounding plates or other appropriate arrangements may be required depending on the installation.

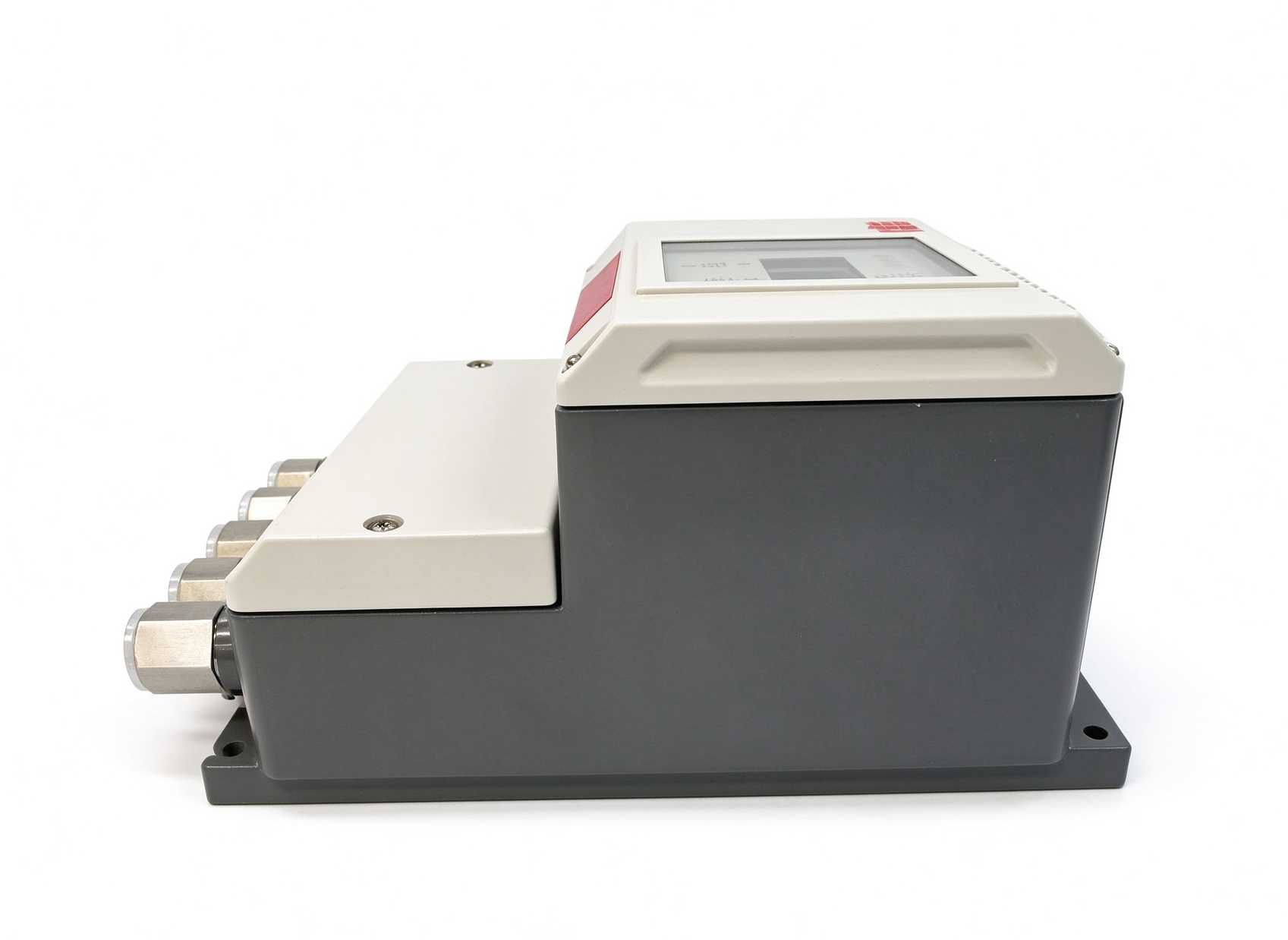

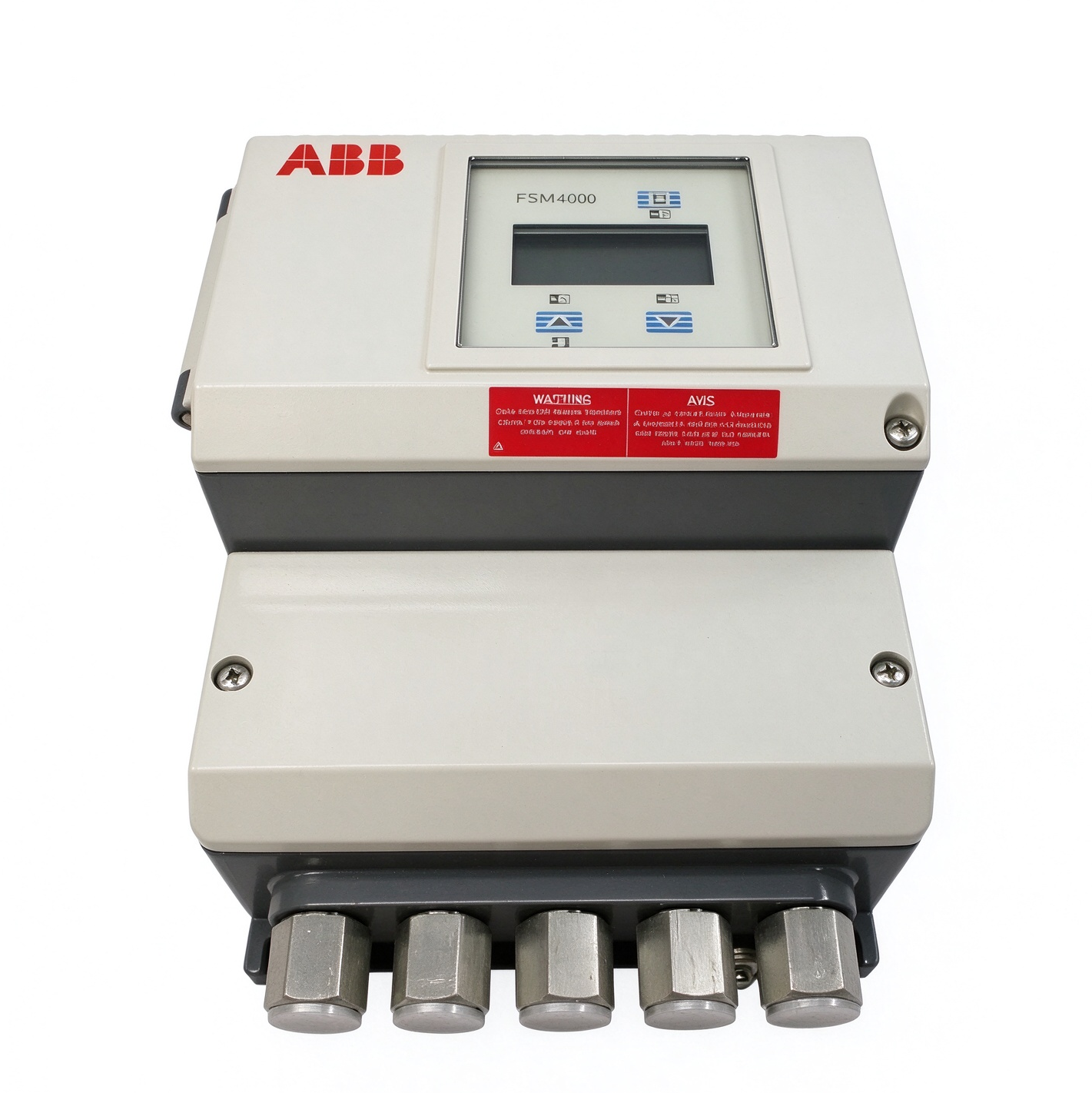

Compatible Transmitter System

The SE21W is a primary sensor and normally forms part of a complete FSM4000 measurement system with a compatible transmitter. The transmitter supplies the sensor excitation and processes the measurement signal generated by the electrodes.

When replacing an SE21W sensor, compatibility with the associated transmitter should be verified. Sensor-specific parameters and calibration information may be required to achieve the expected measurement performance.

The complete sensor ordering code, nameplate information and transmitter configuration should therefore be checked before commissioning. Replacing only the physical sensor without verifying the measurement-system configuration may result in incorrect operation.

Industrial Applications

ABB FSM4000-SE21W can be applied to a variety of industrial process measurement tasks involving conductive liquids. Typical application environments include chemical processing, water-related systems, power generation, pulp and paper production, metals and mining, and general process automation.

The wafer-type construction makes the sensor suitable for compact pipeline arrangements. The available DN 3 to DN 100 range allows engineers to select a suitable measuring size for different process line dimensions.

Application selection should consider the process medium, conductivity, flow rate, temperature, pressure and chemical compatibility. The complete sensor configuration should be selected according to the actual operating conditions rather than the model name alone.

Model Identification and Replacement

FSM4000-SE21W identifies the sensor family and construction type, but additional ordering information is required to determine the exact configuration. Parameters can include nominal diameter, process connection, liner, electrode arrangement, calibration and other configuration characteristics.

When replacing an existing flowmeter sensor, the complete nameplate data should be recorded. The nominal diameter, wafer dimensions, liner, electrodes, protection rating and compatible transmitter should be compared with the existing installation.

Mechanical compatibility alone is not sufficient to confirm interchangeability. The electrical and measurement characteristics of the complete sensor-transmitter system must also correspond to the application.

Technical Summary

ABB FSM4000-SE21W is a stainless steel housing, wafer-type electromagnetic flowmeter sensor designed for conductive liquid flow measurement. ABB documentation specifies nominal sizes from DN 3 to DN 100, a PFA liner, and a measuring-medium temperature range of approximately -40 to 130 °C.

• Manufacturer: ABB
• Product family: FSM4000
• Sensor model: SE21W
• Sensor type: Electromagnetic flowmeter primary sensor
• Housing: Stainless steel
• Process connection: Wafer type
• Nominal diameter: DN 3 to DN 100
• Liner: PFA
• Minimum standard conductivity: 20 µS/cm
• Measuring medium temperature: -40 to 130 °C
• Protection rating: IP65 / IP67 / IP68 depending on configuration
• Application: Conductive liquid flow measurement

For engineering, replacement and commissioning, the complete FSM4000-SE21W configuration should be verified against the sensor nameplate and ABB technical documentation. Nominal size, wafer dimensions, liner, electrode material, process conditions, grounding arrangement and transmitter compatibility should all be checked before integration into the process measurement system.
