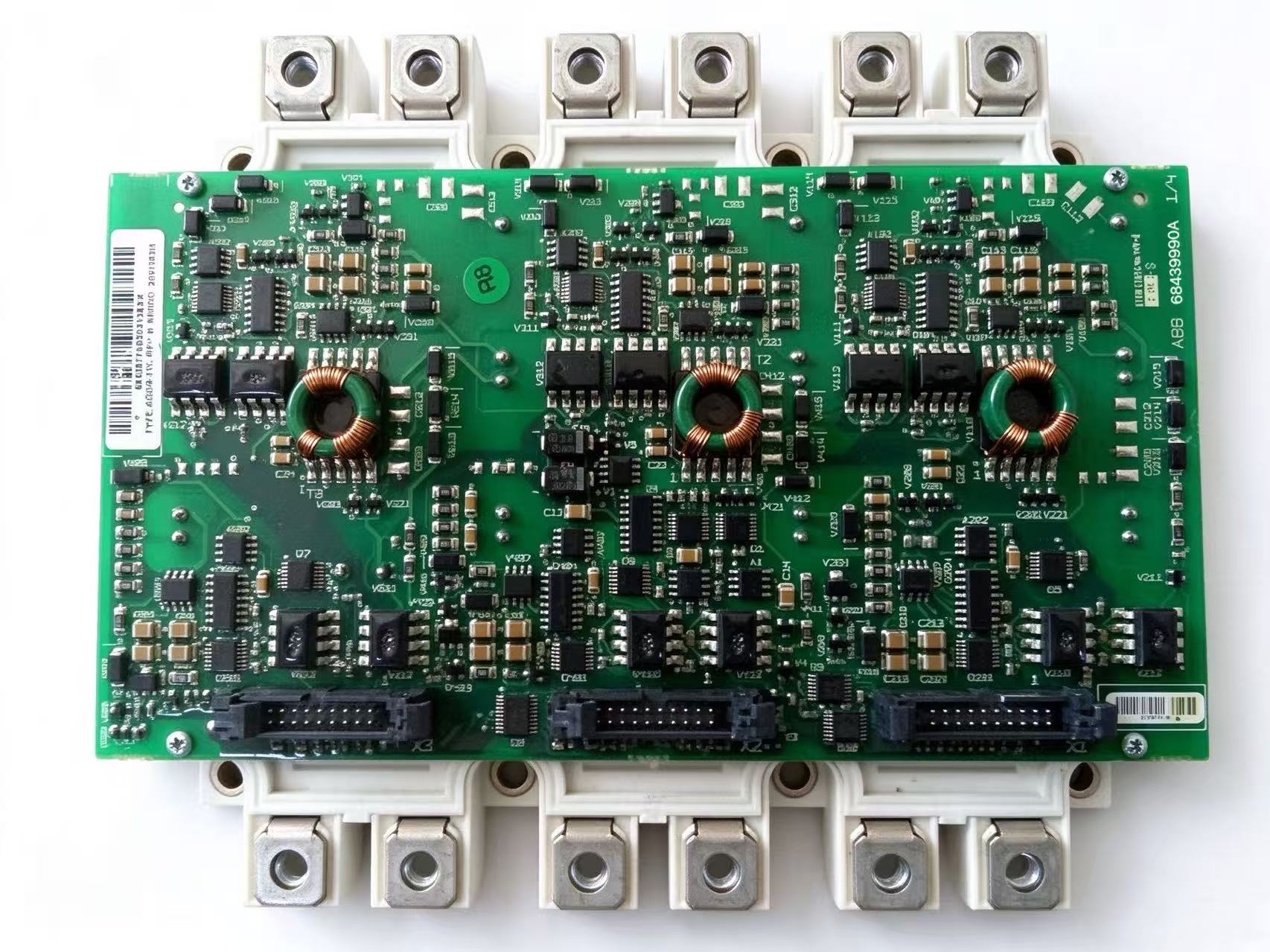

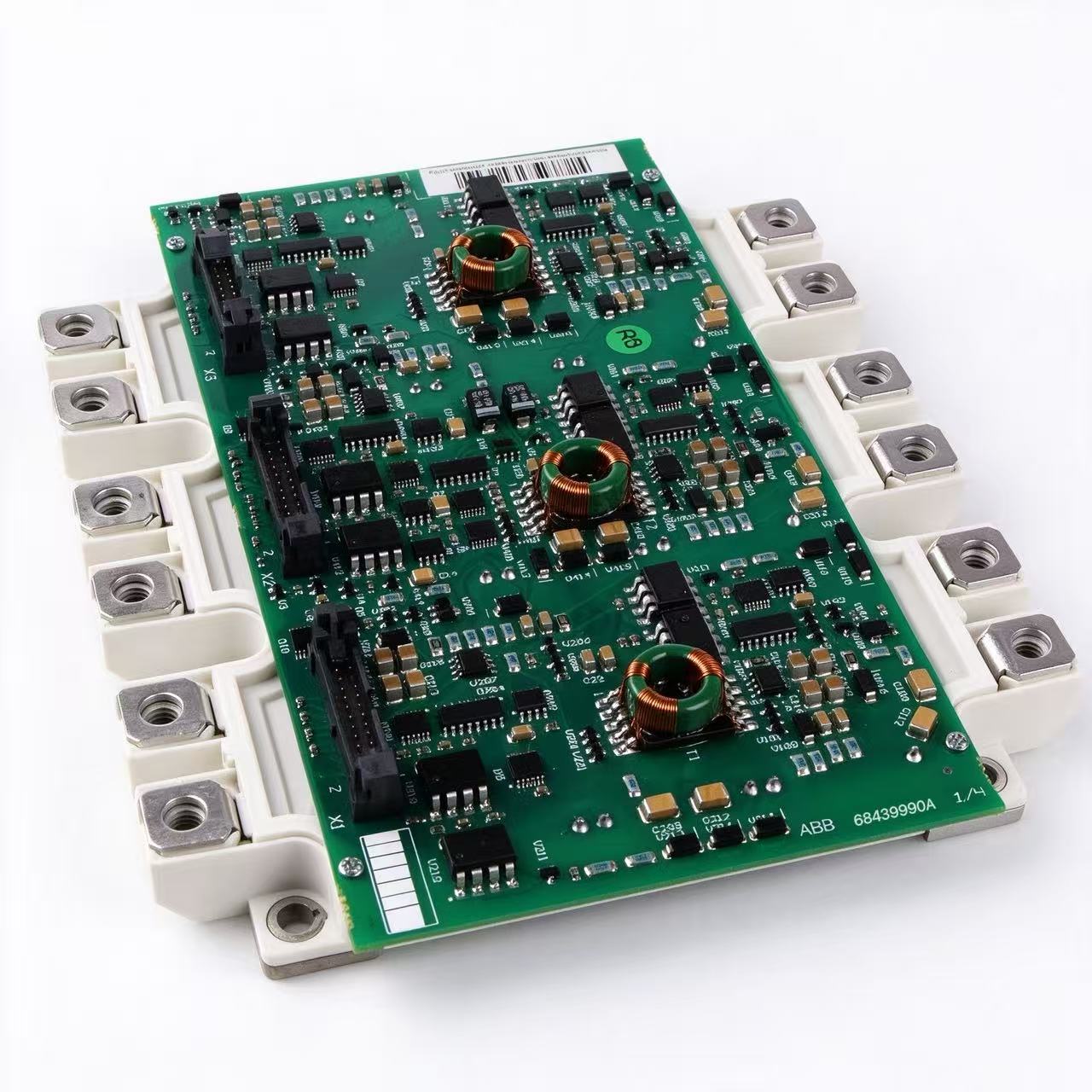

1. Product Overview

The FS300R12KE3/AGDR-62C designation identifies a
combined IGBT power module and driver assembly.
The FS300R12KE3 is the semiconductor power switching
component, while AGDR-62C identifies the associated
gate driver. The combined designation is important
because the electrical characteristics of the power
module and the control requirements of its driver
must be considered together.

Insulated-gate bipolar transistors, commonly known
as IGBTs, are semiconductor devices used to switch
electrical power in converters and motor drives.
They combine voltage-controlled gate operation
with the ability to conduct substantial current
when operated within their specified limits.
In industrial applications, IGBT devices help
regulate the transfer of energy between a DC
link and an electrical load.

The associated driver assembly provides the
control interface required for switching the
power semiconductor. Its function is distinct
from that of the IGBT itself: the semiconductor
carries the power current, while the driver
conditions and delivers the gate-control signals
required by the converter design. The exact
control connections and operating requirements
depend on the applicable ABB hardware
documentation.

2. Product Identification and Technical Data

The complete product designation should be used
when identifying this assembly. Similar IGBT
modules may have different voltage ratings,
current capabilities, gate drivers, or mechanical
arrangements. Matching only the general module
family is therefore insufficient for confirming
interchangeability.

The current and voltage figures identify the
component class and should not be interpreted
as unrestricted operating values under every
condition. Actual permissible current depends
on junction temperature, switching frequency,
cooling performance, electrical duty, and the
manufacturer’s specified operating conditions.
The applicable product documentation should
be consulted before using these values for
circuit design or replacement decisions.

3. IGBT Switching Technology

An IGBT module functions as a controllable
semiconductor switch in a power electronic
circuit. By turning the device on and off in
a controlled sequence, a converter can regulate
the flow of electrical energy. In a variable
frequency drive, coordinated switching of
semiconductor devices allows the converter
to generate an output waveform suitable for
controlling an AC motor.

Switching performance depends on several
electrical and thermal factors. Gate voltage,
switching timing, current, DC-link voltage,
parasitic inductance, and junction temperature
all influence device behavior. The driver and
power module must therefore operate as part
of a coordinated circuit rather than as
independent components selected solely
by their nominal ratings.

Power semiconductor losses generally include
conduction losses and switching losses.
Conduction losses arise while current flows
through an energized device, whereas switching
losses occur during transitions between
conducting and blocking states. These losses
generate heat that must be transferred away
from the semiconductor through the intended
thermal interface and cooling structure.

4. Function of the AGDR-62C Driver Assembly

The gate driver is a critical part of the
control chain between the converter’s control
circuitry and its power semiconductor devices.
It supplies the appropriate gate-control
signals according to the requirements of
the associated power electronics design.
Correct driver operation supports controlled
switching and helps the converter respond
to its intended control commands.

Driver compatibility involves more than
matching the physical dimensions of a circuit
board. Gate requirements, electrical
interfaces, signal assignments, protection
arrangements, and the configuration of the
host converter must all be compatible.
An apparently similar driver board should
not be substituted without confirmation
from the relevant technical documentation.

The AGDR-62C designation should be preserved
when identifying the complete kit. Replacing
only the semiconductor or only the driver
may involve additional compatibility checks,
depending on the maintenance procedure and
the equipment design. The appropriate repair
or replacement scope should be established
from the drive’s approved spare-parts
information.

5. Applications in Industrial Drive Systems

IGBT power assemblies are widely used in
industrial power conversion equipment.
Depending on the host system, they may
participate in motor inverter stages or
other converter circuits that require
controlled switching of substantial
electrical power.

In variable frequency drives, semiconductor
switching enables the conversion of DC-link
energy into controlled AC output. This
supports motor operation under different
speed and load conditions when the complete
drive has been correctly configured for
the application. The power module is only
one element of this process; the converter’s
control electronics, protection circuits,
cooling system, and electrical connections
are equally important.

The FS300R12KE3/AGDR-62C is associated with
ABB drive-related spare-part documentation.
Its suitability for a particular drive
position must nevertheless be confirmed
against the exact converter model and
hardware revision. A general association
with industrial drives does not establish
universal compatibility across every
ABB inverter or converter platform.

6. Thermal Management and Electrical Protection

Thermal management is essential for power
semiconductor assemblies because both
conduction and switching losses produce
heat. The module must be installed using
the specified thermal interface, mounting
arrangement, and cooling provisions.
Incorrect mounting pressure, unsuitable
interface materials, or inadequate cooling
can increase thermal resistance and affect
device reliability.

Electrical protection must also be coordinated
with the converter design. Excessive current,
abnormal DC-link conditions, unsuitable
switching sequences, and certain load faults
can place considerable stress on IGBT devices.
The drive’s specified protection functions
and operating limits should be maintained
when the assembly is replaced or serviced.

Because this component operates within a
power electronic system, installation and
inspection require appropriate electrical
safety procedures. The DC link may retain
hazardous energy after the supply is
disconnected. Qualified personnel should
follow the manufacturer’s isolation,
discharge, verification, and handling
instructions before working on the
converter or its power components.

7. Replacement and Compatibility Verification

Identifying the correct replacement begins
with recording the full designation
FS300R12KE3/AGDR-62C and product ID 64717812.
The identification should be compared with
the installed assembly, the drive’s parts
documentation, and the applicable hardware
revision. Every character in the product
designation matters because other variants
may use different driver types or power
semiconductor ratings.

Before selecting an alternative, verify
the supported converter family, electrical
ratings, gate driver arrangement, mechanical
interface, terminal connections, and
thermal requirements. Any approved
substitution should be supported by
manufacturer documentation or an
authoritative engineering assessment.
Similar nominal current ratings alone
do not prove that two assemblies are
interchangeable.

Maintenance personnel should also review
the equipment’s fault history and relevant
diagnostic information when investigating
a failed power assembly. Problems involving
cooling, gate signals, external connections,
or the DC-link circuit may need to be
addressed as part of the wider repair.
Otherwise, replacing the power module
without identifying the underlying cause
may leave the original fault unresolved.

8. Documentation and Maintenance Records

Accurate technical records help maintain
consistency across industrial drive
installations. Useful records include
the full module designation, ABB product
ID, host drive identification, hardware
revision, and the applicable maintenance
instructions. Photographs of the assembly
label and its installed position can also
assist with identification.

When technical clarification is required,
provide the exact product designation
and the model of the associated drive.
Include relevant fault codes and a
description of the operating symptoms
where applicable. This information helps
distinguish a component identification
question from a wider converter
configuration or electrical fault.

9. Conclusion

The ABB FS300R12KE3/AGDR-62C, product ID
64717812, is an IGBT module kit combining
the FS300R12KE3 power semiconductor with
the AGDR-62C driver assembly. Its
1200 V voltage class and 300 A nominal
collector-current class provide useful
identification references, but actual
operating limits depend on the specified
electrical and thermal conditions.

Correct identification, driver compatibility,
thermal management, and adherence to
approved service procedures are central
to maintaining power conversion equipment.
Confirming the exact drive configuration
and consulting the applicable ABB
documentation helps ensure that the
FS300R12KE3/AGDR-62C is evaluated
appropriately for its intended
industrial application.
