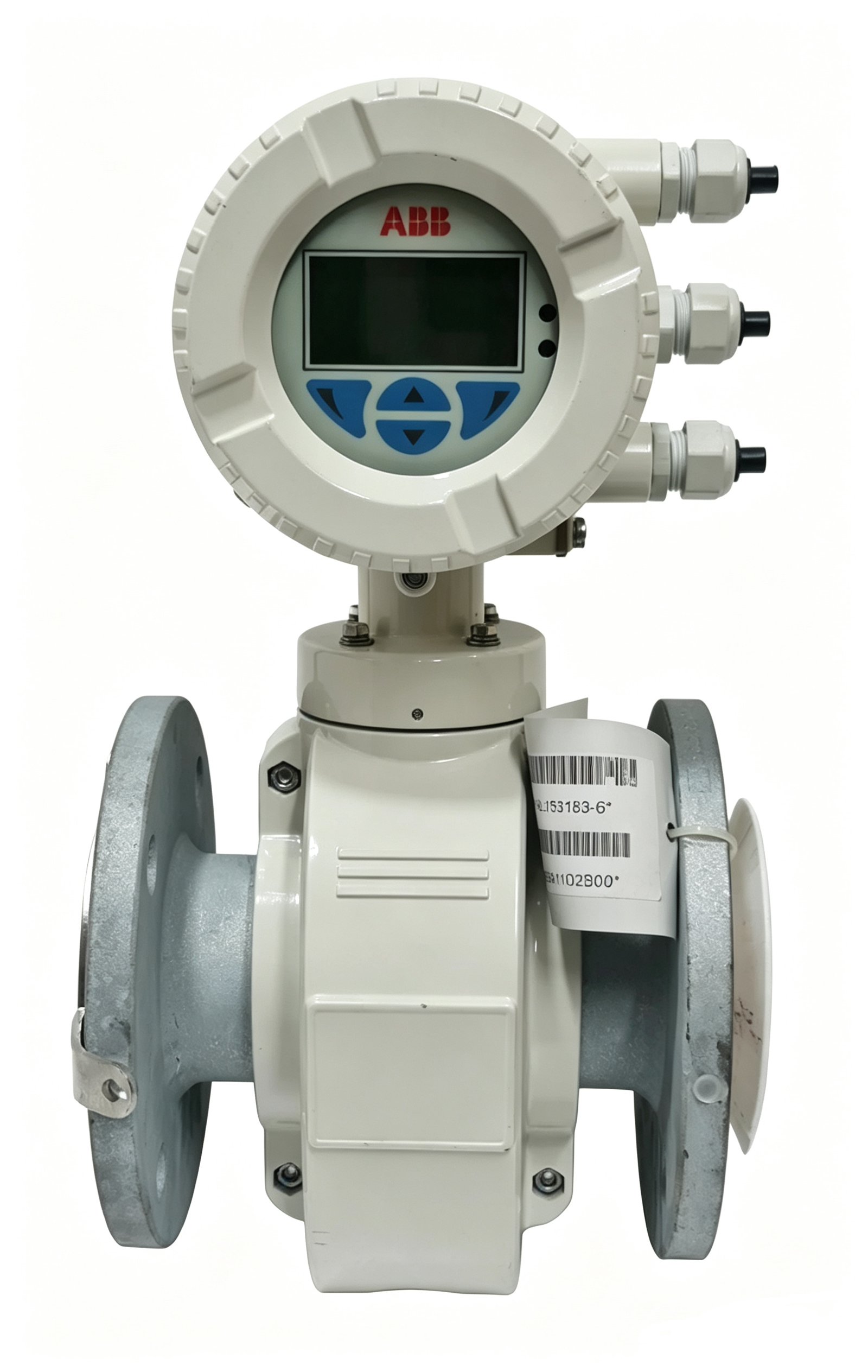

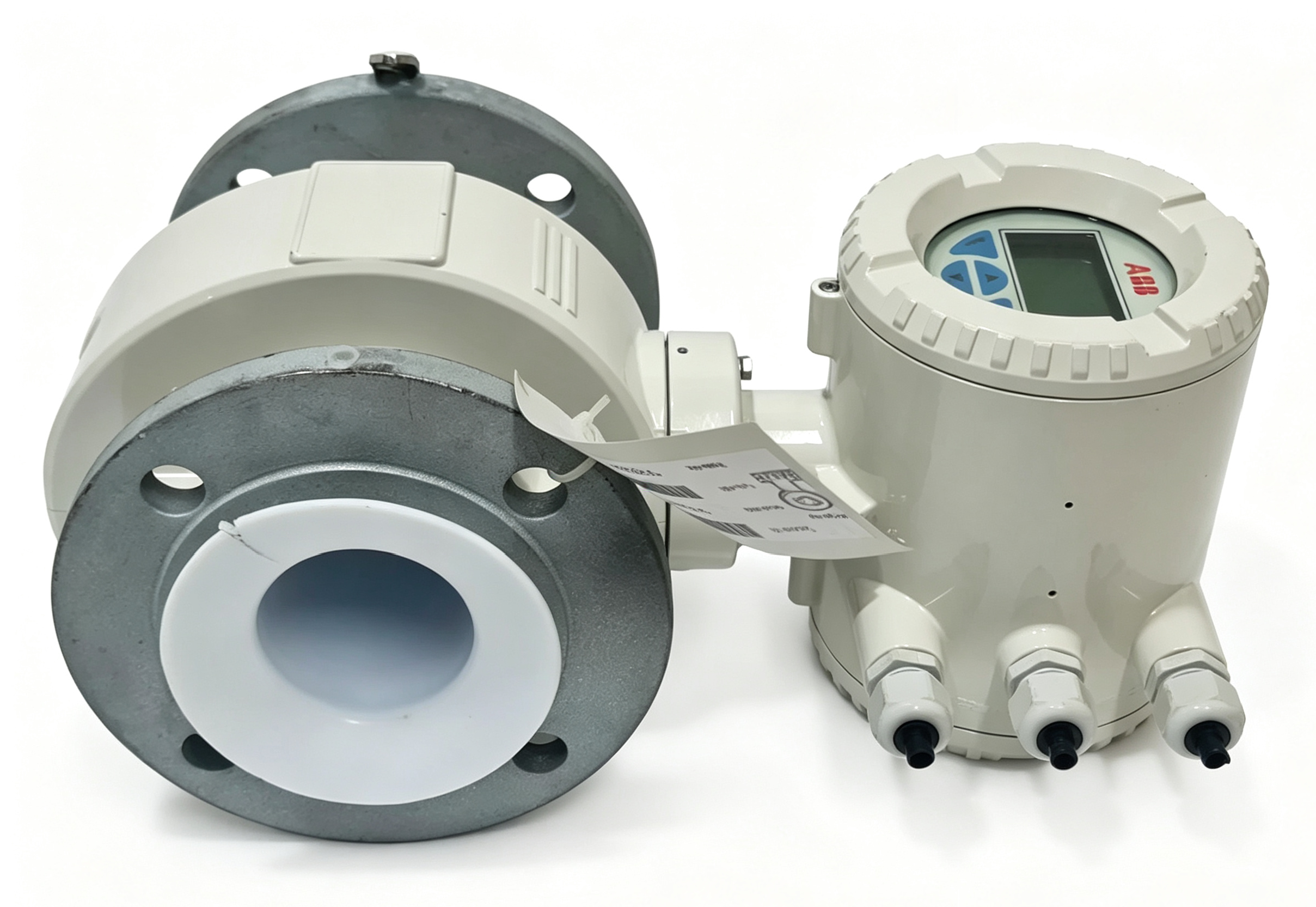

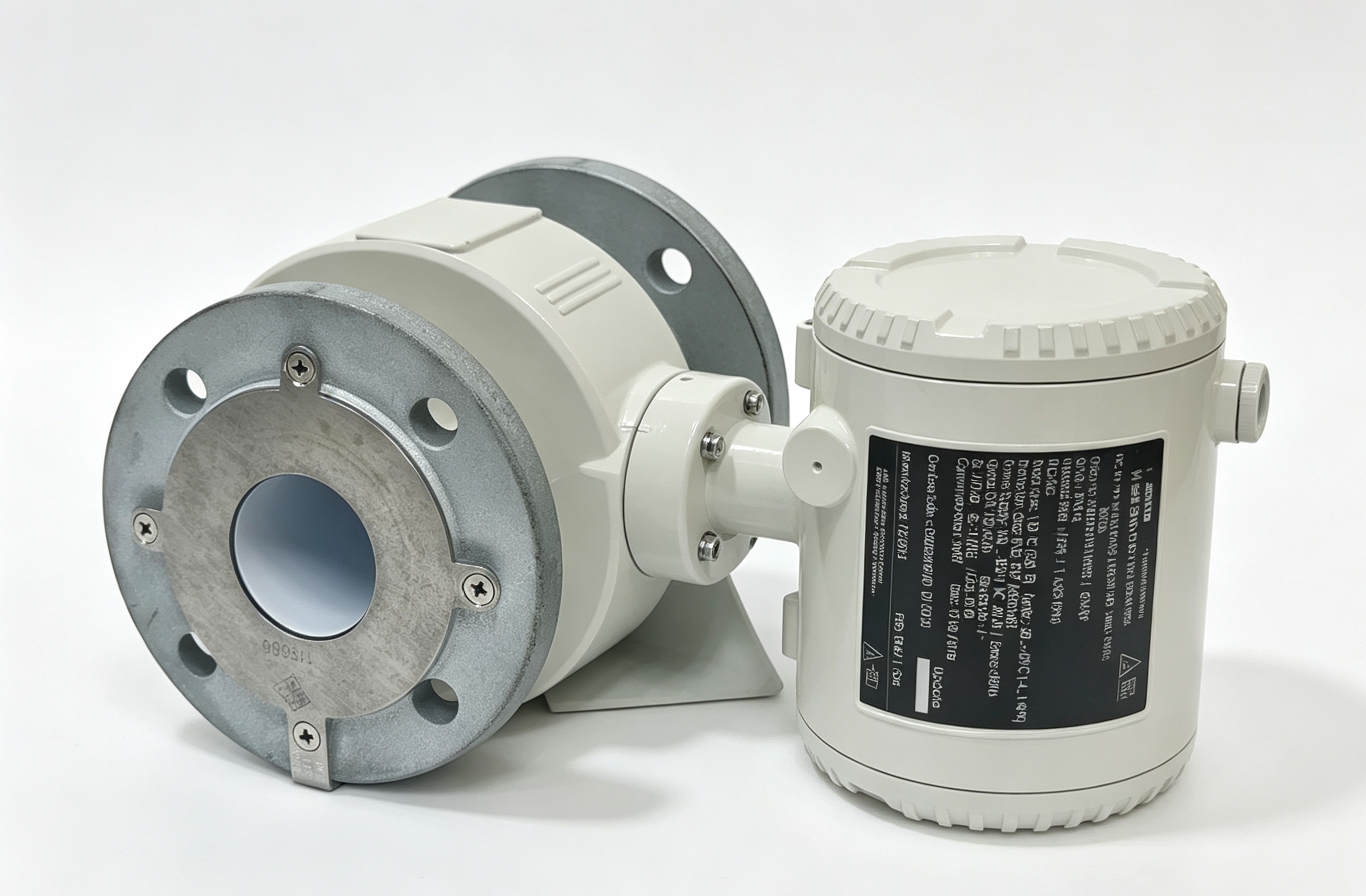

ABB FEP311 DN50 PN40 ProcessMaster Electromagnetic Flowmeter for Industrial Flow Measurement

The FEP311 is identified by ABB as the standard-temperature, non-explosion-protected compact version within the FEP300 family. The ProcessMaster platform provides electromagnetic measurement technology together with electronic signal processing, diagnostics and configurable communication functions. The exact measurement characteristics depend on the complete instrument configuration, including the selected liner, electrode material, flange specification and other ordering options.

ABB FEP311 Product Design

The FEP311 uses an integral construction in which the measuring sensor and converter are combined into one device. This compact arrangement differs from remote flowmeter configurations in which the sensor and converter are installed separately and connected by a signal cable. An integral design can simplify the physical arrangement of a measurement point when the process connection and environmental conditions are suitable for mounting the complete instrument at the pipeline location.

The ProcessMaster FEP300 family is designed for industrial process applications where reliable measurement of liquid flow is required. The FEP311 provides the measurement hardware and electronic processing necessary to convert the electromagnetic signal generated by the flowing medium into a usable flow measurement.

Electromagnetic Flow Measurement Principle

The ABB FEP311 operates according to the electromagnetic flow measurement principle. When an electrically conductive liquid passes through the magnetic field generated inside the measuring tube, an electrical voltage is induced across the measuring electrodes. The magnitude of this induced voltage is proportional to the velocity of the liquid through the magnetic field.

The electronic converter processes the electrode signal and calculates the corresponding volumetric flow. Because the measurement principle does not require a rotating mechanical element inside the flow path, electromagnetic flow measurement can be applied to many conductive liquids used in industrial processes.

The electrical conductivity of the process medium is an important consideration when selecting an electromagnetic flowmeter. The exact minimum conductivity requirement depends on the selected instrument configuration and application conditions. The process medium, temperature, pressure and material compatibility should therefore be evaluated when specifying the FEP311.

DN50 Nominal Diameter

DN50 identifies the nominal diameter of the FEP311 flowmeter. A DN50 meter corresponds to a nominal 50 mm process size and is commonly associated with a 2-inch nominal pipeline size. Selecting the correct meter diameter is important because the measuring tube size influences the relationship between liquid velocity and volumetric flow.

The appropriate diameter should be selected according to the expected operating flow range, process pipe dimensions and required measurement performance. Extremely low or high flow velocity can influence the suitability of a particular meter size, so the complete process conditions should be considered rather than selecting the instrument based only on the nominal pipe diameter.

PN40 Process Connection

The PN40 designation identifies the nominal pressure class associated with the specified process connection. ABB FEP300 documentation provides flanged process connections and lists nominal pressure classes extending from PN10 through PN100 depending on the applicable configuration. The FEP311 DN50 PN40 therefore represents a configuration using a DN50 nominal size with a PN40 pressure-class connection.

PN40 should be understood as a nominal pressure classification rather than a universal maximum operating pressure under every temperature and material condition. The actual permissible process pressure depends on factors such as the selected lining, flange material and process temperature. These parameters must be checked against the applicable ABB pressure-temperature information for the exact instrument configuration.

ProcessMaster FEP300 Platform

The FEP311 is part of the ABB ProcessMaster FEP300 electromagnetic flowmeter family. ABB positions the ProcessMaster platform for industrial process applications across areas such as chemical processing, power generation, oil and gas, pulp and paper, metals and mining.

The FEP300 family supports different nominal diameters, process connections, pressure classes and lining materials. This configuration flexibility allows the flowmeter to be selected according to the properties of the measured medium and the mechanical requirements of the pipeline. The exact options available for an individual FEP311 must be confirmed from its complete ordering information.

Flowmeter Lining Options

The measuring tube lining is an important part of an electromagnetic flowmeter because it separates the process medium from the internal structure of the sensor and must be compatible with the fluid. ABB documentation for the FEP300 family identifies lining options including hard rubber, soft rubber, PTFE, PFA, ETFE and Linatex for applicable configurations.

The correct lining depends on the chemical properties, temperature and operating conditions of the process medium. A specific FEP311 unit should not be assigned a particular liner unless the complete ordering code or nameplate confirms the selected material. This is particularly important when identifying an existing instrument for process replacement or technical documentation.

Measurement Accuracy and Diagnostics

ABB documentation specifies standard measurement accuracy for the ProcessMaster FEP300 family at approximately 0.4 percent of rate, with an optional higher-performance configuration available depending on the selected model and ordering options. The actual accuracy of an individual FEP311 configuration should be confirmed from the complete technical specification.

The FEP300 platform also provides diagnostic functions intended to support process measurement and troubleshooting. ABB documentation identifies functions such as empty-pipe detection and partially filled-pipe detection. These functions can provide useful information when the measuring conditions deviate from the normal requirements of electromagnetic flow measurement.

Communication and Signal Processing

The electronic converter of the ProcessMaster FEP300 processes the measurement signal and provides communication capabilities according to the selected configuration. ABB documentation lists communication options including HART, PROFIBUS PA and FOUNDATION Fieldbus for applicable FEP300 configurations.

Communication functions allow the flowmeter to become part of a larger process instrumentation architecture. Depending on the selected communication method, measurement information and device parameters can be exchanged with compatible control and asset-management systems. The available communication interface should always be confirmed against the complete FEP311 configuration.

Installation of the FEP311

Correct installation is important for electromagnetic flowmeter performance. The FEP311 DN50 PN40 must be installed using a process connection that matches the specified flange configuration. Pipeline alignment, gasket selection, bolt installation and mechanical support should comply with the applicable installation requirements.

The measuring tube should remain appropriately filled with the process medium during normal operation. Installation conditions can affect measurement stability, particularly when the pipeline contains gas, experiences partial filling or has significant disturbances in the flow profile. The applicable ABB installation instructions should therefore be considered during system design and commissioning.

Industrial Applications

The ABB FEP311 can be used in industrial systems where conductive liquid flow needs to be measured continuously. Potential application areas include chemical processing, power plants, water-related process systems, pulp and paper production, metals and mining operations and other industrial facilities.

The specific application suitability depends on the characteristics of the process medium and the selected flowmeter configuration. Parameters such as conductivity, temperature, pressure, flow range and chemical compatibility should be compared with the technical characteristics of the instrument before installation.

Model Identification

Correct identification of an ABB FEP311 is important because the FEP300 family includes numerous configurations. The FEP311 designation identifies the compact non-explosion-protected version, while additional ordering information defines the nominal diameter, process connection, pressure class, lining, electrodes, flange material, converter configuration and other characteristics.

For the configuration described as FEP311 DN50 PN40, the key identification parameters are the FEP311 compact flowmeter designation, DN50 nominal diameter and PN40 nominal pressure class. Additional technical characteristics should be confirmed from the complete model code or instrument nameplate rather than inferred from these three parameters alone.

Role in Industrial Process Control

Flow measurement is an important process variable in industrial automation. A flowmeter can provide information used for process monitoring, control, material accounting and system supervision. The ABB FEP311 integrates measurement and electronic processing in a compact configuration, allowing it to operate as a field-level measurement device within a larger automation system.

When connected to a suitable process-control architecture, the measured flow information can be used together with other variables such as pressure, temperature and level. This allows engineers to build a more complete representation of the process and coordinate control actions according to actual operating conditions.

ABB FEP311 DN50 PN40 Summary

The ABB FEP311 DN50 PN40 is a compact ProcessMaster FEP300 electromagnetic flowmeter configuration for conductive-liquid flow measurement. FEP311 identifies the compact, non-explosion-protected version, while DN50 specifies the nominal meter diameter and PN40 identifies the nominal pressure class of the flanged process connection.

The instrument uses electromagnetic measurement technology and can be configured with different lining, electrode, flange and communication options within the FEP300 platform. Its integral sensor and converter arrangement provides a compact solution for industrial flow measurement points.

For accurate selection and system integration, the complete FEP311 ordering code should be reviewed together with the process medium, flow range, temperature, pressure, conductivity and mechanical connection requirements. This ensures that the selected configuration corresponds to the actual conditions of the industrial process.
