ABB FEN-31 HTL Encoder Interface

Product Overview

The ABB FEN-31 is an HTL encoder interface module designed for ABB industrial drive systems requiring accurate motor speed and position feedback. It provides an interface between the drive control board and HTL encoder devices, allowing ABB drives to receive precise feedback signals for advanced motor control applications.

Encoder feedback is an important function in modern industrial automation systems. By collecting speed and position information from motors, drives can achieve improved control accuracy, dynamic response, and stable operation. The ABB FEN-31 provides a reliable connection solution for HTL encoder technologies used in industrial motion control applications.

The FEN-31 module is part of ABB’s drive option module family and is designed to extend the functionality of compatible ABB frequency converters and drive systems. It supports various HTL encoder types and provides additional signal processing functions required for demanding automation environments. :contentReference[oaicite:1]{index=1}

With ABB’s experience in motor control and industrial automation, the FEN-31 offers dependable feedback integration for applications where precise speed regulation and position monitoring are required. It is widely applied in machinery, production lines, material handling systems, and industrial process equipment.

Technical Characteristics

The ABB FEN-31 HTL encoder interface is designed to support different types of HTL encoders, including differential push-pull HTL encoders, single-ended push-pull HTL encoders, open collector HTL encoders, and open emitter HTL encoders. This flexibility allows engineers to select suitable feedback devices according to application requirements. :contentReference[oaicite:2]{index=2}

The module supports encoder channels A, B, and Z, enabling accurate speed measurement and position feedback. The HTL encoder input can detect signal frequencies up to 300 kHz, providing sufficient performance for many industrial motion control applications. :contentReference[oaicite:3]{index=3}

The ABB FEN-31 also provides TTL encoder emulation output according to RS-422 standards. This function allows the module to convert HTL encoder signals into TTL-compatible incremental encoder signals for connection with other control devices or monitoring systems. :contentReference[oaicite:4]{index=4}

The module includes two digital latch inputs, which can be used for position capture applications. These inputs provide additional flexibility for systems requiring accurate position synchronization and measurement functions.

Design and Construction

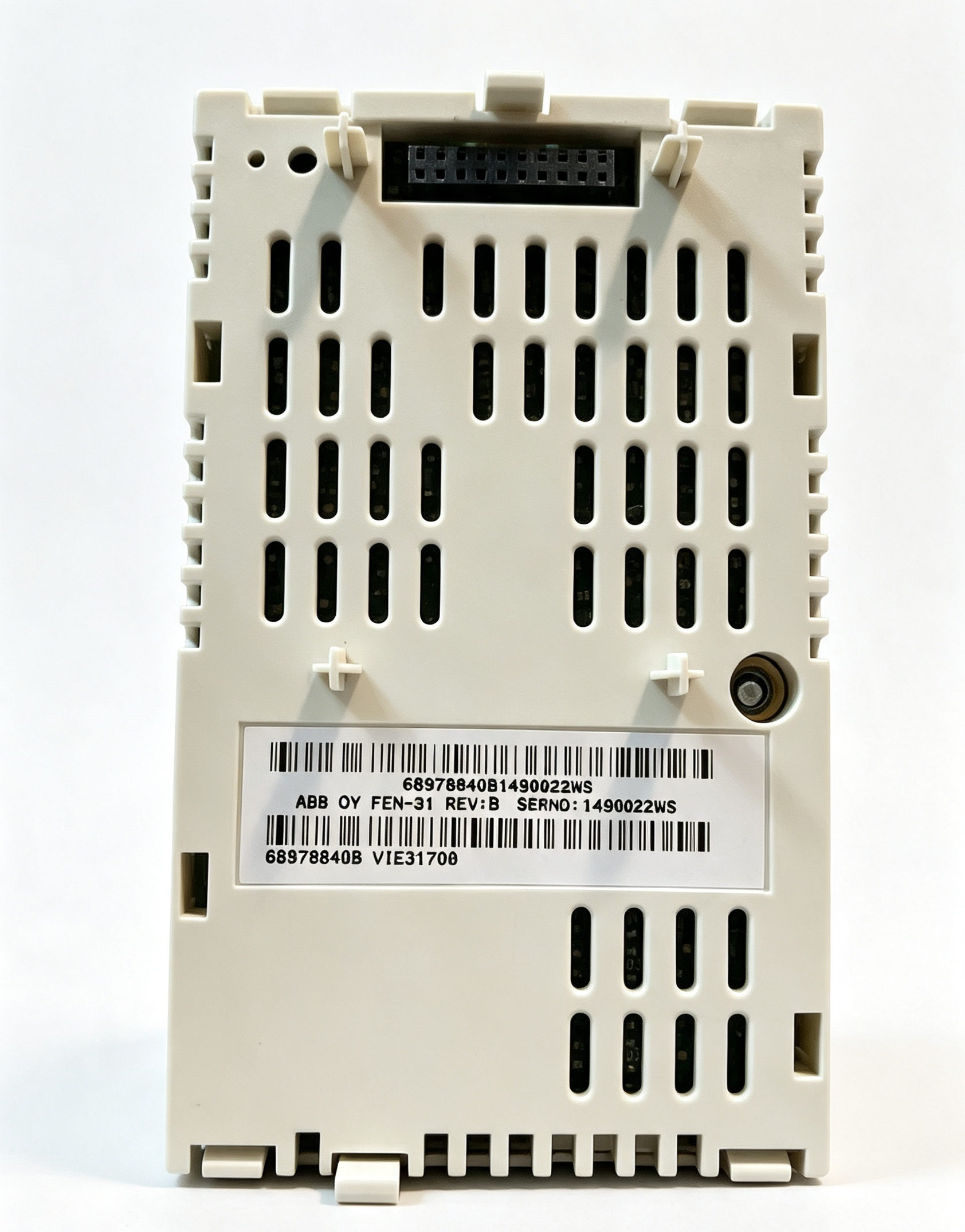

The ABB FEN-31 features a compact modular design optimized for installation inside ABB drive systems. Its structure allows convenient integration with compatible drive control platforms while maintaining reliable electrical connections.

The module dimensions are approximately 31 mm × 106 mm × 63 mm, with an IP20 protection rating. The compact size allows efficient installation within drive cabinets and control environments where space optimization is important. :contentReference[oaicite:5]{index=5}

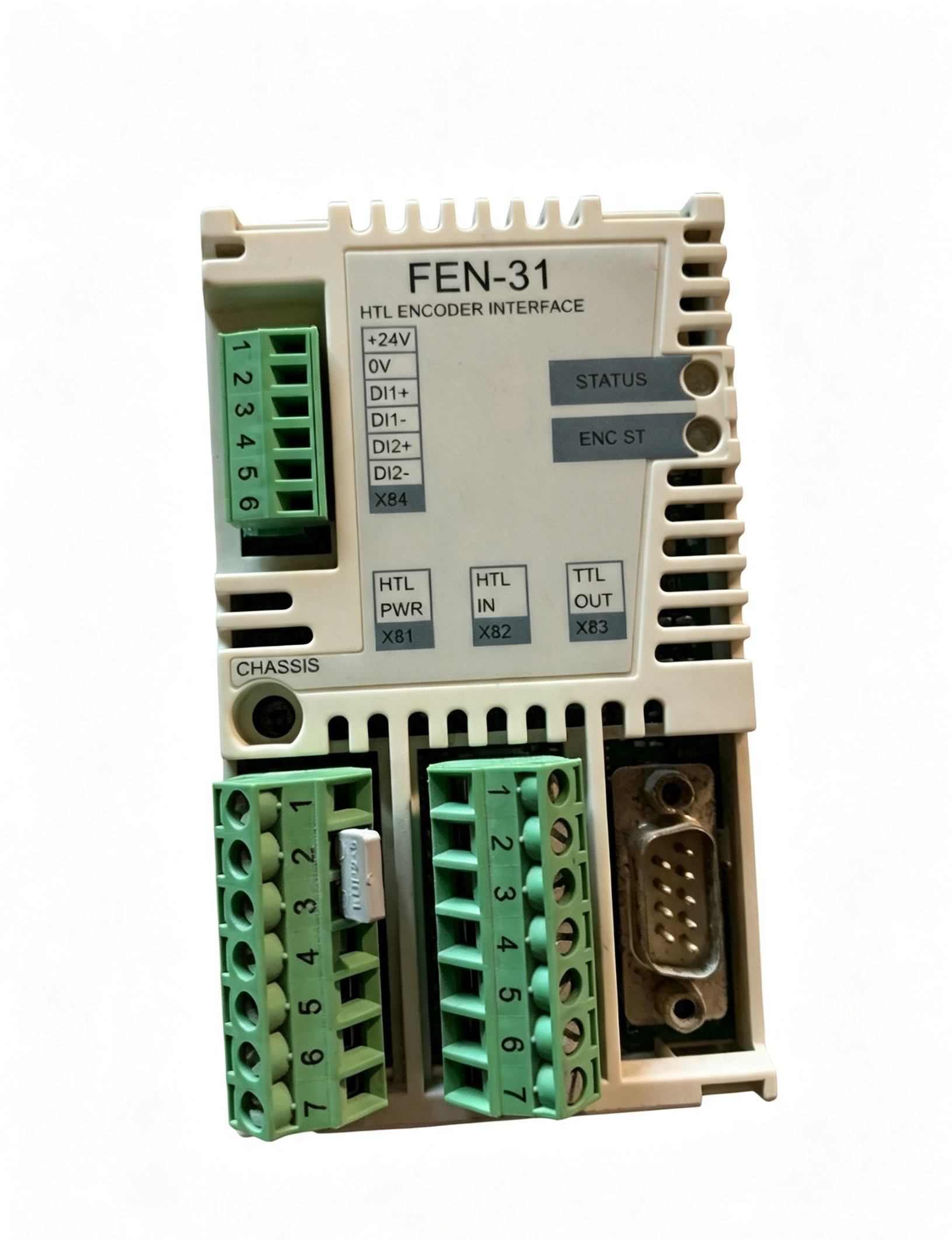

The FEN-31 includes dedicated connectors for encoder signals, supply voltage, digital inputs, and communication interfaces. The design provides organized wiring and helps simplify installation during system configuration and maintenance.

ABB engineers industrial modules with attention to electrical reliability and long-term operational stability. The FEN-31 construction supports continuous operation in professional automation environments where accurate feedback signals are essential.

Encoder Feedback Function

In industrial drive systems, encoder feedback plays a critical role in maintaining accurate motor control. The ABB FEN-31 receives signals from HTL encoders and transfers this information to the drive control system for processing.

By using encoder feedback, ABB drives can improve speed regulation, torque control, and positioning performance. This is especially important in applications requiring precise movement control, synchronized operation, or constant speed management.

The FEN-31 supports encoder cable fault diagnostics for certain HTL encoder types. This function helps identify signal connection problems and improves system maintenance efficiency by providing additional diagnostic information. :contentReference[oaicite:6]{index=6}

The module also supports long-distance encoder connections depending on encoder type. Differential push-pull HTL encoders can support cable lengths up to 300 meters under suitable conditions, making the FEN-31 suitable for larger industrial installations. :contentReference[oaicite:7]{index=7}

Industrial Applications

The ABB FEN-31 HTL encoder interface is widely used in industrial automation systems where precise motor feedback is required. Typical applications include manufacturing machinery, conveyor systems, cranes, elevators, winding equipment, and process automation systems.

In production equipment, accurate encoder feedback helps maintain stable machine operation and improves product quality. The FEN-31 enables ABB drives to receive reliable motion information and adjust motor performance according to system requirements.

For material handling systems, speed and position accuracy are important for safe and efficient operation. The ABB FEN-31 supports these requirements by providing reliable communication between encoders and drive controllers.

The module is also suitable for industrial retrofit projects where existing ABB drive systems require encoder feedback expansion. Its compatibility with ABB drive platforms makes it a practical choice for system upgrades and performance improvements.

Performance Advantages

One of the main advantages of the ABB FEN-31 is its ability to improve drive control performance through accurate feedback processing. Encoder signals allow the drive system to achieve better speed control and improved dynamic response.

Another advantage is its flexible encoder compatibility. Supporting multiple HTL encoder types reduces system design limitations and allows engineers to select suitable feedback devices for different applications.

The compact modular design makes installation easier while reducing the space required inside electrical cabinets. This is beneficial for modern automation systems where control cabinet optimization is increasingly important.

ABB’s extensive experience in drive technology ensures that the FEN-31 provides reliable operation as part of professional motion control systems. Its stable performance supports industrial applications requiring accurate and continuous motor control.

Integration with ABB Drive Systems

The ABB FEN-31 is designed to integrate with compatible ABB drives as an optional feedback interface module. When installed correctly, it expands drive functionality by enabling connection with HTL encoder feedback devices.

The module works together with ABB drive control systems to process encoder information and support advanced motor control functions. This integration helps improve automation performance and provides engineers with greater control flexibility.

For industrial system designers, the ABB FEN-31 provides a reliable method to connect encoder technology with ABB drive solutions. Its combination of flexible compatibility, diagnostic capability, and compact construction makes it suitable for a wide range of industrial applications.

Conclusion

The ABB FEN-31 HTL Encoder Interface is an important drive accessory designed to provide reliable encoder feedback integration for ABB motion control systems. With support for various HTL encoder types, TTL encoder emulation output, digital latch inputs, and advanced feedback functions, it enhances the performance of industrial drive applications. :contentReference[oaicite:8]{index=8}

Through ABB’s proven engineering technology, the FEN-31 delivers stable and accurate feedback processing for automation equipment, production machinery, and industrial motion systems. Its flexible design and reliable operation make it a valuable component for modern ABB drive-based control solutions.
