ABB Emax E3S 1600 PR121/P-LSI 1600A Three-Pole Withdrawable Air Circuit Breaker

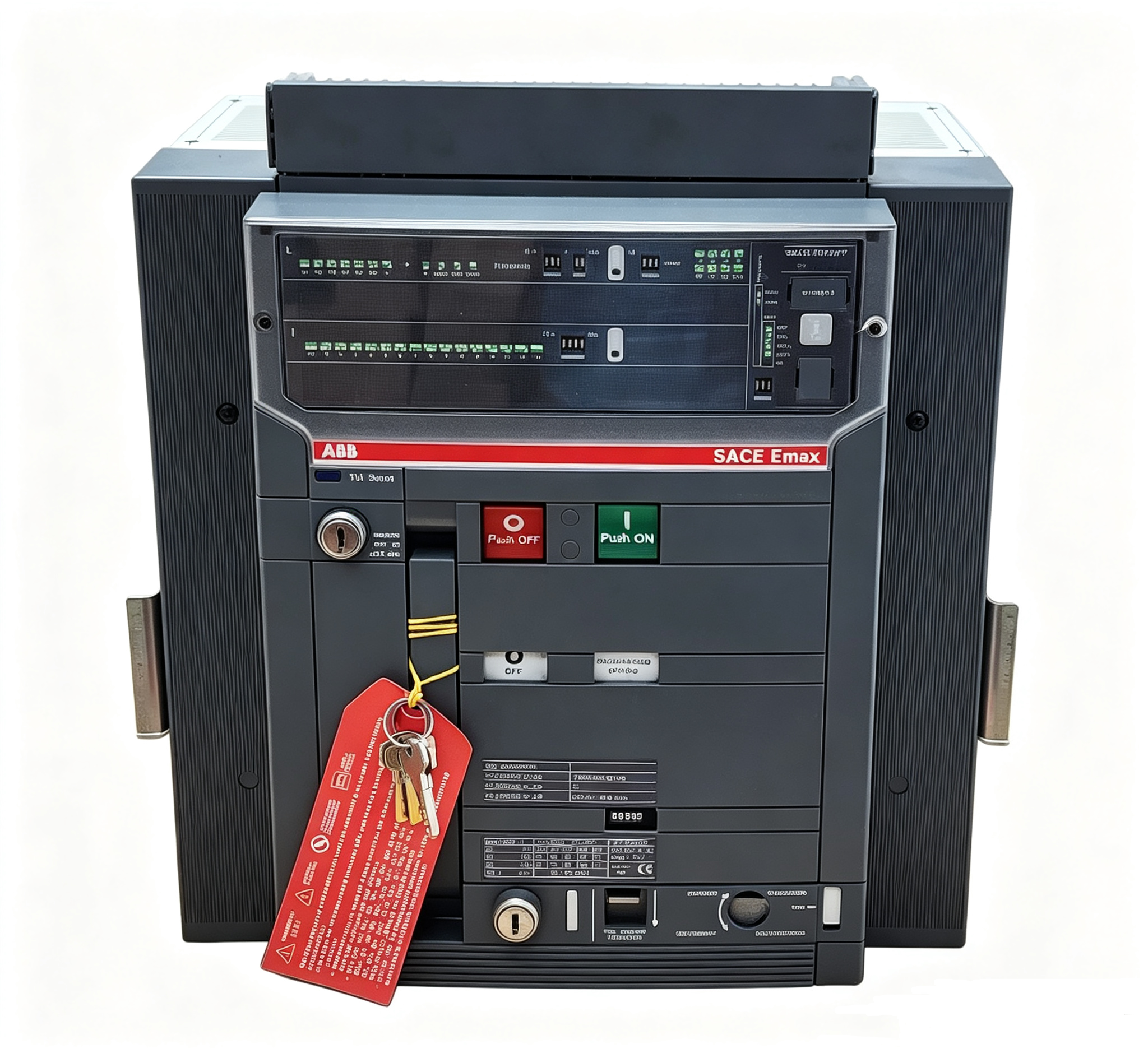

The ABB Emax E3S 1600 PR121/P-LSI is a three-pole air circuit breaker configuration designed for low-voltage electrical distribution and protection applications. The configuration combines the E3S 1600 circuit breaker with a rated current of 1600 A, the PR121/P-LSI electronic trip unit, and a withdrawable moving-part arrangement. ABB documentation identifies the configuration as E3S 1600 PR121/P-LSI In=1600A 3p W MP, with the product ID 1SDA056225R1.

The product designation contains several important engineering identifiers. E3S identifies the breaker type within the Emax family, 1600 indicates the rated current, PR121/P-LSI identifies the electronic overcurrent release, 3p indicates three poles, and W MP identifies the moving part of the withdrawable version. These details should be retained together when documenting the breaker because ABB provides multiple Emax configurations with different current ratings, trip units, pole arrangements, and installation versions.

Product Identification

The complete designation E3S 1600 PR121/P-LSI In=1600A 3p W MP is more informative than a general description such as a 1600 A circuit breaker. Each part of the designation contributes to identifying the particular electrical and mechanical configuration. This is especially important in large switchboards where several Emax circuit breakers can have similar external dimensions while using different protection units or installation arrangements.

For technical documentation, the product ID 1SDA056225R1 provides an additional identification reference. ABB’s product information associates this number with the E3S 1600 PR121/P-LSI 1600 A three-pole withdrawable moving-part configuration. The same designation is also included in ABB technical documentation covering Emax configurations equipped with PR121/P-LSI.

Emax E3S 1600 Circuit Breaker

The E3S 1600 forms the main circuit-breaker platform of this configuration. With a rated current of 1600 A, it is intended for high-current low-voltage distribution applications. Circuit breakers in this class can be incorporated into industrial switchboards, main distribution assemblies, feeder sections, and other electrical installations where substantial current levels require controlled switching and protection.

The 1600 A rating should always be evaluated as part of the complete electrical system. Engineers must consider the system voltage, prospective fault current, conductor capacity, temperature, enclosure conditions, upstream and downstream protection, and the required protection coordination. The breaker designation alone does not replace the complete system calculation required for a particular installation.

PR121/P-LSI Electronic Trip Unit

The PR121/P-LSI electronic trip unit is a key component of the E3S 1600 configuration. The LSI designation refers to long-time, short-time, and instantaneous protection functions. These protection stages allow the circuit breaker to respond to different levels and durations of overcurrent within a low-voltage power distribution system.

Long-time protection is associated with sustained overload conditions. Short-time protection addresses higher overcurrent conditions over a defined short duration, while instantaneous protection is intended for severe current conditions requiring rapid circuit interruption. The combination provides an electronic protection structure that can be coordinated with other protective devices throughout the electrical distribution network.

Protection settings should be established according to the characteristics of the installation. Factors such as transformer capacity, conductor ratings, fault current levels, downstream circuit breakers, selectivity requirements, and system operating conditions can influence the appropriate protection configuration.

Three-Pole Configuration

The 3p designation identifies the breaker as a three-pole configuration. Three-pole circuit breakers are commonly applied to three-phase power distribution systems where the three phase conductors need coordinated switching and overcurrent protection.

A three-pole arrangement provides a single coordinated switching device for the three phases. This makes the configuration suitable for applications such as industrial feeders, main distribution sections, motor-related power circuits, and other three-phase electrical systems. The exact application depends on the overall electrical design and the requirements of the switchgear assembly.

Withdrawable Moving Part

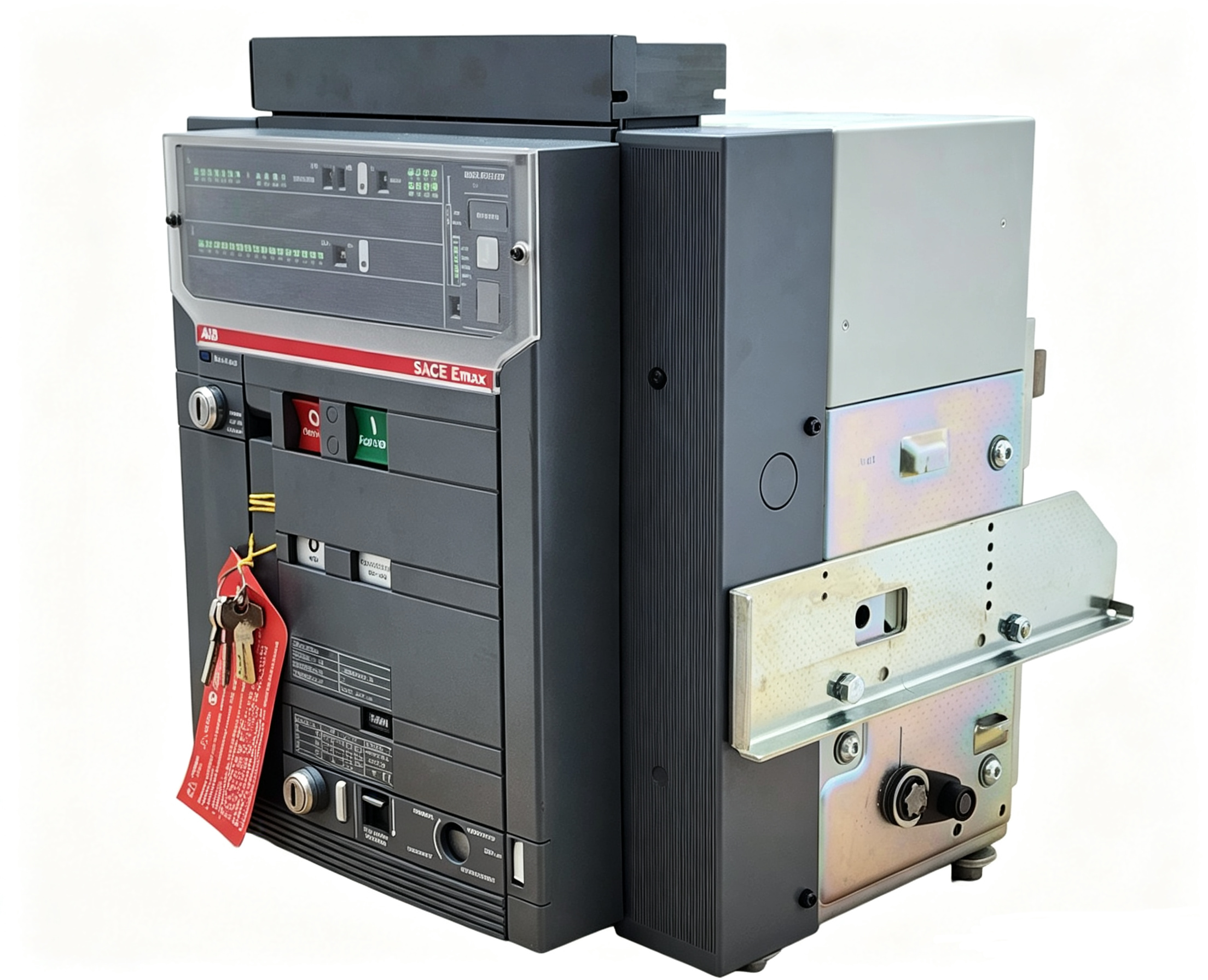

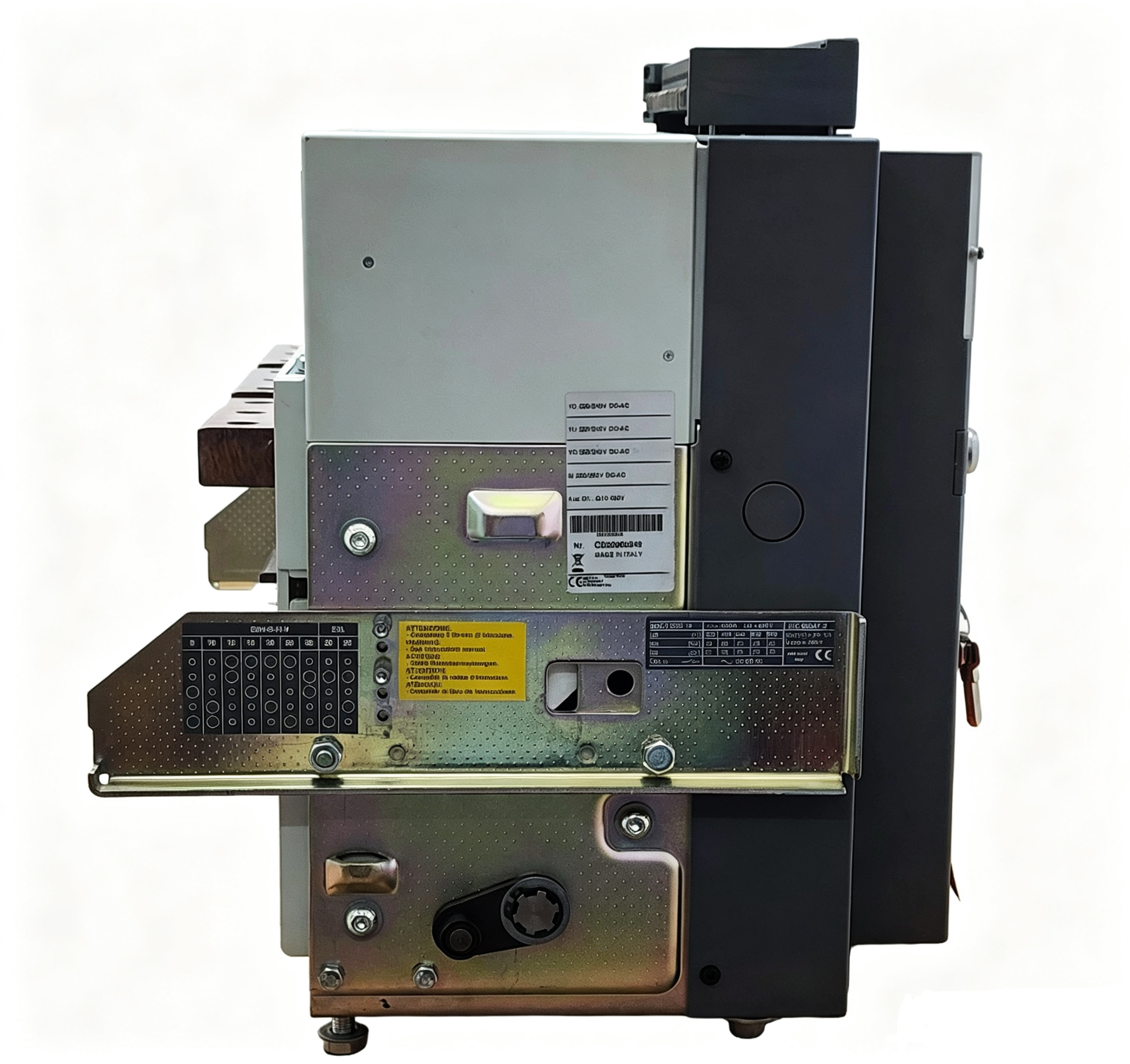

The W MP designation is particularly important for this product. ABB documentation defines W (MP) as the moving part of the withdrawable version. This means the product is associated with a withdrawable Emax circuit-breaker arrangement rather than a fixed installation.

A withdrawable circuit-breaker arrangement allows the moving part to occupy defined positions within its compatible cradle or switchgear structure. This architecture is commonly used in larger electrical distribution assemblies where equipment access, switchboard organization, isolation procedures, and operational flexibility are important considerations.

The compatibility between the moving part and the corresponding cradle is essential. Mechanical interfaces, electrical connections, interlocks, auxiliary circuits, and accessories must correspond to the specific Emax configuration. Therefore, the complete breaker identification should be verified before selecting associated switchgear components.

Electrical Protection Function

The principal purpose of the E3S 1600 PR121/P-LSI configuration is to combine high-current switching with electronic overcurrent protection. During normal operation, the circuit breaker provides a controlled path for the electrical distribution circuit. When an abnormal current condition occurs within the applicable protection range, the PR121/P-LSI trip unit can initiate the corresponding breaker operation.

The LSI protection structure provides multiple response characteristics rather than relying on a single fixed current threshold. This allows the protection system to distinguish between longer-duration overload conditions and higher-current fault conditions. Proper coordination is essential to ensure that the protection system responds appropriately to the electrical characteristics of the installation.

Industrial Applications

ABB Emax E3S 1600 PR121/P-LSI can be integrated into high-capacity low-voltage power distribution systems. Applications may include industrial electrical switchboards, manufacturing facilities, infrastructure power distribution, commercial electrical installations, power feeders, and main distribution sections.

Depending on the switchboard architecture, the breaker can function as an incoming circuit breaker, feeder breaker, bus-section device, or another high-current switching and protection element. Its three-pole configuration and 1600 A rating make it particularly relevant to three-phase distribution systems with substantial electrical loads.

Engineering and Protection Coordination

Correct engineering of a 1600 A circuit breaker requires more than selecting a device according to current rating. The electrical system must be evaluated as a complete protection network. Short-circuit levels, cable characteristics, transformer parameters, downstream protective devices, operating currents, and selectivity requirements all influence the final configuration.

The PR121/P-LSI settings should therefore be selected according to the system protection study and applicable engineering requirements. Incorrect protection settings can affect selectivity and equipment protection. For this reason, configuration and adjustment should be carried out by appropriately qualified personnel using the relevant ABB technical documentation.

Technical Documentation

ABB’s technical catalog identifies the E3S 1600 configuration among Emax circuit breakers equipped with PR121/P-LSI and provides corresponding part-number information for three-pole and four-pole configurations. The catalog specifically lists the E3S 1600 W moving-part configuration in the PR121/P-LSI range.

When creating equipment records, it is useful to retain the complete product designation, product ID, trip-unit type, rated current, number of poles, and withdrawable configuration. This provides a more accurate reference than recording only the general description “1600 A circuit breaker.”

Maintenance Considerations

For maintenance documentation, the identification 1SDA056225R1 can be used together with the E3S 1600 PR121/P-LSI designation. ABB product information associates this product ID with the three-pole withdrawable moving-part configuration and describes the assembly as an Emax moving part equipped with the PR121/P-LSI overcurrent release.

Before any intervention, the applicable electrical safety procedures should be followed. High-current switchgear requires appropriate isolation, verification, and qualified handling. The breaker should also be evaluated together with its cradle, accessories, auxiliary circuits, and associated protection equipment when reviewing the complete installation.

Conclusion

The ABB Emax E3S 1600 PR121/P-LSI is a high-current, three-pole air circuit breaker configuration rated at 1600 A and equipped with the PR121/P-LSI electronic overcurrent release. The configuration uses a withdrawable moving-part arrangement, identified by ABB as W MP. Its product ID is 1SDA056225R1.

Its combination of E3S 1600 breaker technology, 1600 A rated current, three-pole construction, PR121/P-LSI LSI protection functions, and withdrawable architecture makes it a suitable configuration for high-capacity low-voltage power distribution applications. Accurate identification of every part of the designation is important when documenting or engineering an Emax installation.
