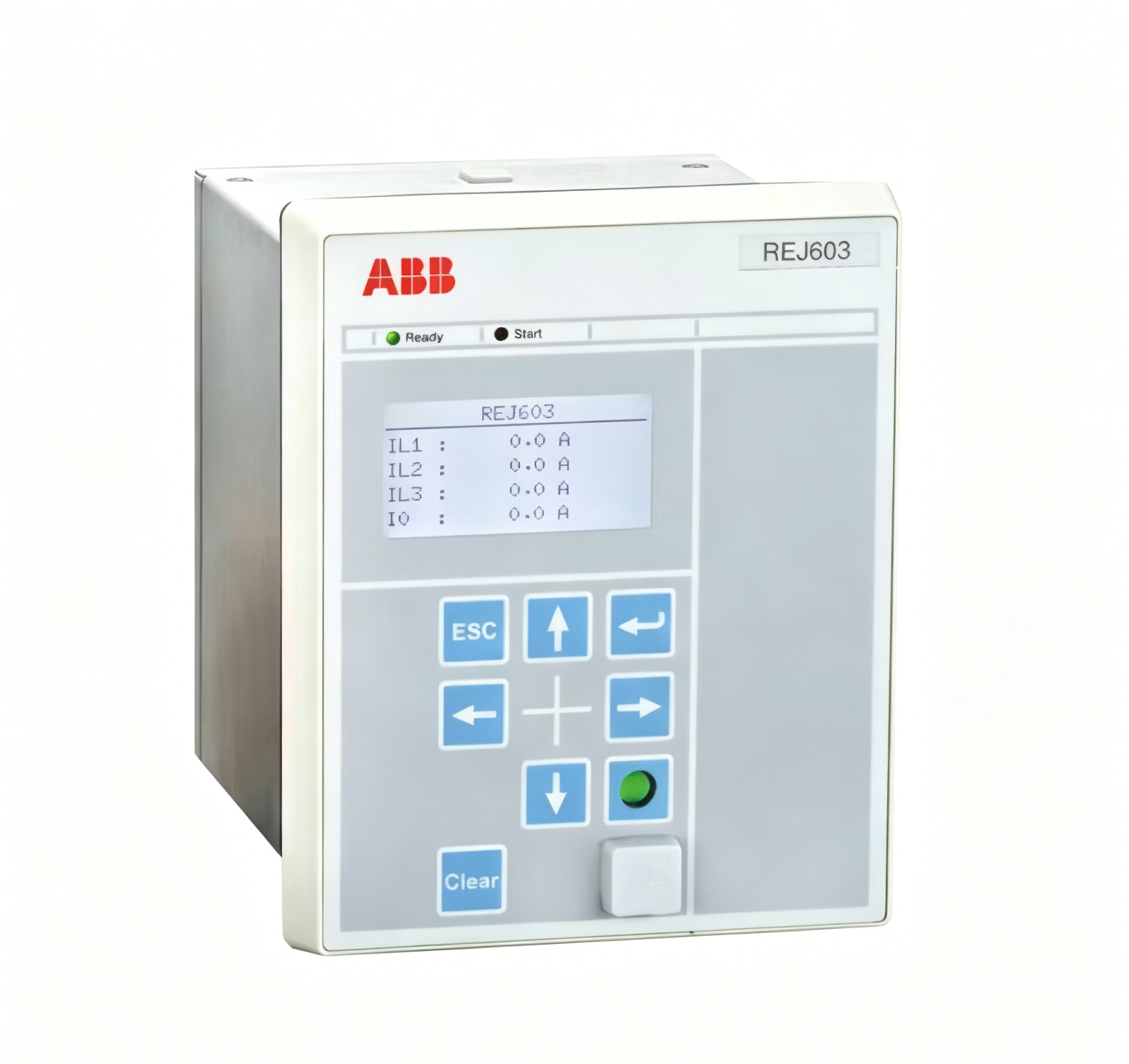

ABB DT 603 / REJ603 Self Powered Feeder Protection Relay Industrial Control Module

The ABB DT 603, commonly referenced in industrial documentation as part of the ABB REJ603 protection relay family, is a self-powered feeder protection device designed for medium voltage distribution networks. It is widely used in industrial and utility power systems where reliable protection against electrical faults is required. The device belongs to ABB’s Relion 605 series, which is designed to provide compact, efficient, and cost-effective protection solutions for secondary distribution systems.

In modern electrical infrastructure, feeder protection relays play a critical role in ensuring system stability and preventing damage caused by electrical faults. These devices continuously monitor current flow in electrical feeders and respond immediately when abnormal conditions such as overcurrent or earth faults are detected. The ABB DT 603 operates without the need for an external auxiliary power supply, as it is powered directly from current transformers (CTs), making it highly suitable for remote installations and unmanned substations.

This self-powered architecture makes the relay particularly valuable in ring main units (RMUs), compact substations, and secondary distribution switchgear systems. Because it does not rely on external power sources, the device maintains operational reliability even in challenging grid conditions where auxiliary power may not be available or stable.

Role in Medium Voltage Protection Systems

Medium voltage electrical networks require robust protection systems to ensure safe and continuous operation. Fault conditions such as short circuits or ground faults can cause severe damage to equipment and disrupt power distribution if not quickly isolated. The ABB DT 603 plays a key role in identifying these faults and initiating protective actions to isolate the affected section of the network.

In feeder-based distribution systems, electrical power is transmitted through multiple branches or feeders. Each feeder must be independently monitored to ensure that faults do not propagate across the entire network. Protection relays like the DT 603 continuously analyze current levels and respond according to predefined protection curves, ensuring selective and coordinated tripping behavior.

The relay is part of ABB’s Relion protection philosophy, which focuses on combining advanced numerical protection functions with ease of installation and configuration. This ensures that system operators can deploy reliable protection solutions without complex setup procedures.

Self-Powered Operation Principle

One of the most important features of the ABB DT 603 is its self-powered operation. Instead of relying on external control power, the relay extracts energy directly from the current transformers connected to the protected circuit. This design ensures that the relay remains operational even when auxiliary power systems fail.

Self-powered relays are particularly useful in remote or unmanned substations where maintenance access is limited. In such environments, reducing dependency on auxiliary power improves system resilience and reduces operational complexity. The energy harvested from CT inputs is sufficient to power measurement, logic processing, and trip signal generation functions.

This design also improves system reliability because fewer external components are required. By minimizing dependency on auxiliary power wiring and backup systems, installation complexity is reduced while maintaining essential protection functionality.

Protection Functions and Operating Behavior

The ABB DT 603 provides essential protection functions required for feeder systems in industrial and utility environments. These include overcurrent protection, earth fault detection, and thermal overload protection. These functions ensure that abnormal electrical conditions are quickly detected and isolated.

Overcurrent protection ensures that excessive current flow caused by short circuits or overload conditions is detected and interrupted. Earth fault protection identifies leakage currents to ground, which may indicate insulation failure or hazardous operating conditions. Thermal protection helps prevent long-term damage caused by sustained overload conditions.

The relay uses time-current characteristics to determine tripping behavior. These characteristics allow coordination with other protection devices in the network, ensuring that only the affected section is isolated while the rest of the system continues operating normally.

The system also includes inrush current detection functionality to prevent unnecessary tripping during transformer energization. This ensures stable operation in systems where transformers or inductive loads are frequently switched.

Industrial Applications

The ABB DT 603 is widely used in industrial and utility applications where medium voltage distribution networks require reliable protection. Typical applications include ring main units, secondary substations, industrial power distribution systems, and rural electrical networks.

In industrial environments, the relay helps protect equipment such as transformers, feeders, and cables from damage caused by electrical faults. In utility networks, it ensures stable distribution of electricity across multiple feeders while maintaining system selectivity and coordination.

The device is particularly useful in unmanned substations where human intervention is limited. Its self-powered nature ensures continuous protection functionality even under unstable grid conditions.

System Integration and Installation Advantages

The ABB DT 603 is designed for integration into modern switchgear and control systems. It can be installed in compact panels and ring main units without requiring complex external wiring for power supply. This simplifies installation and reduces commissioning time.

The relay supports standardized CT inputs, allowing it to be used in a wide range of system configurations. Its compact design ensures compatibility with modern switchgear layouts where space optimization is critical.

In addition, the device includes built-in indicators and test functions that allow maintenance personnel to verify system operation easily. This reduces downtime and improves operational efficiency.

Reliability and Operational Performance

Reliability is a key requirement for any protection relay used in electrical distribution systems. The ABB DT 603 is designed to operate under demanding electrical and environmental conditions. Its architecture ensures stable performance even in fluctuating load conditions and harsh environments.

Because the relay is self-powered, it eliminates potential failure points associated with auxiliary power supplies. This improves overall system robustness and reduces maintenance requirements.

The relay continuously monitors system conditions and responds instantly to fault events. This fast response capability helps minimize damage to equipment and improves system safety.

Conclusion

ABB DT 603 (REJ603) is a self-powered feeder protection relay designed for medium voltage industrial and utility distribution systems. Its ability to operate without external power, combined with reliable protection functions such as overcurrent and earth fault detection, makes it an essential component in modern electrical infrastructure. By providing stable and selective protection, the device contributes to safer and more efficient power distribution systems.
