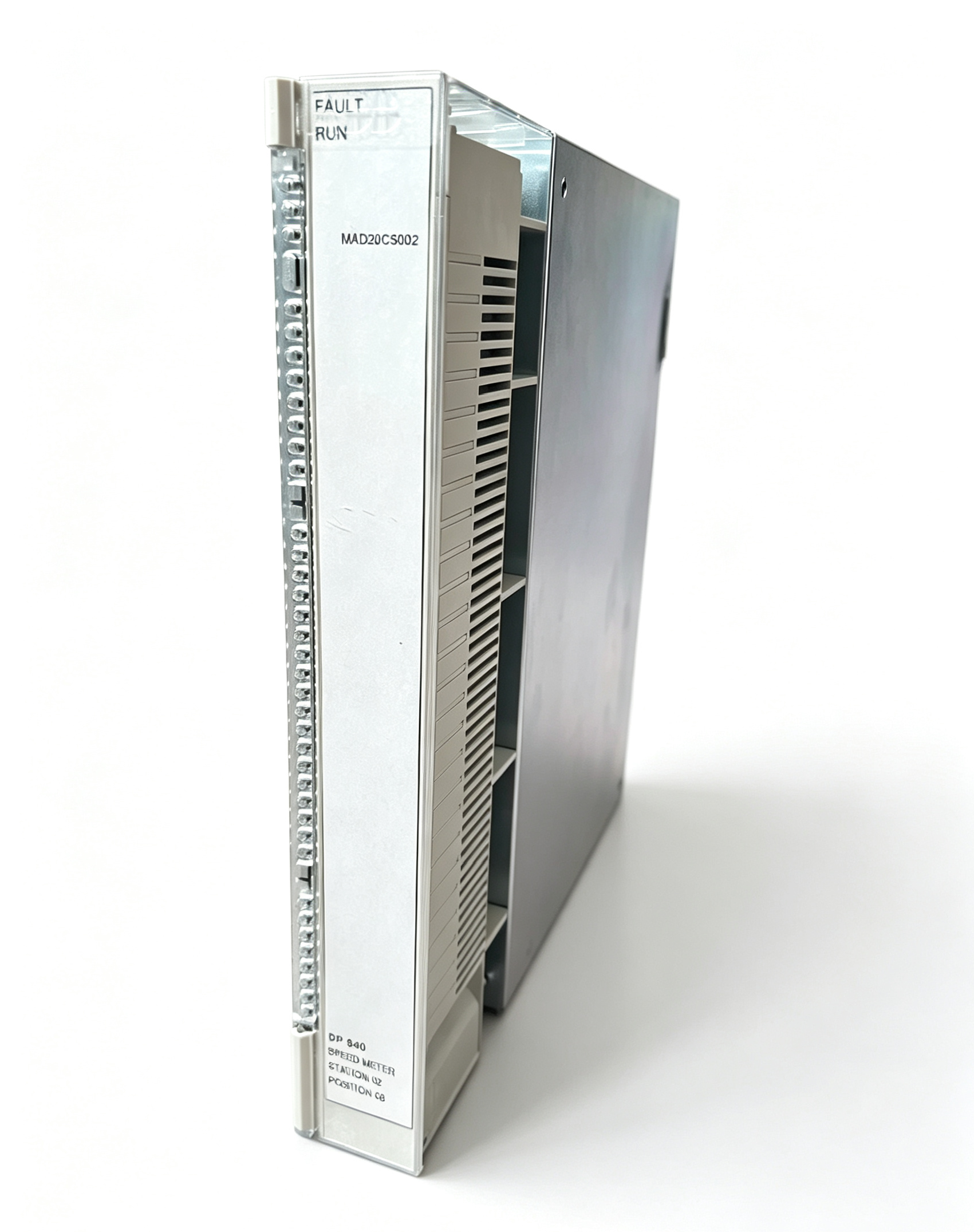

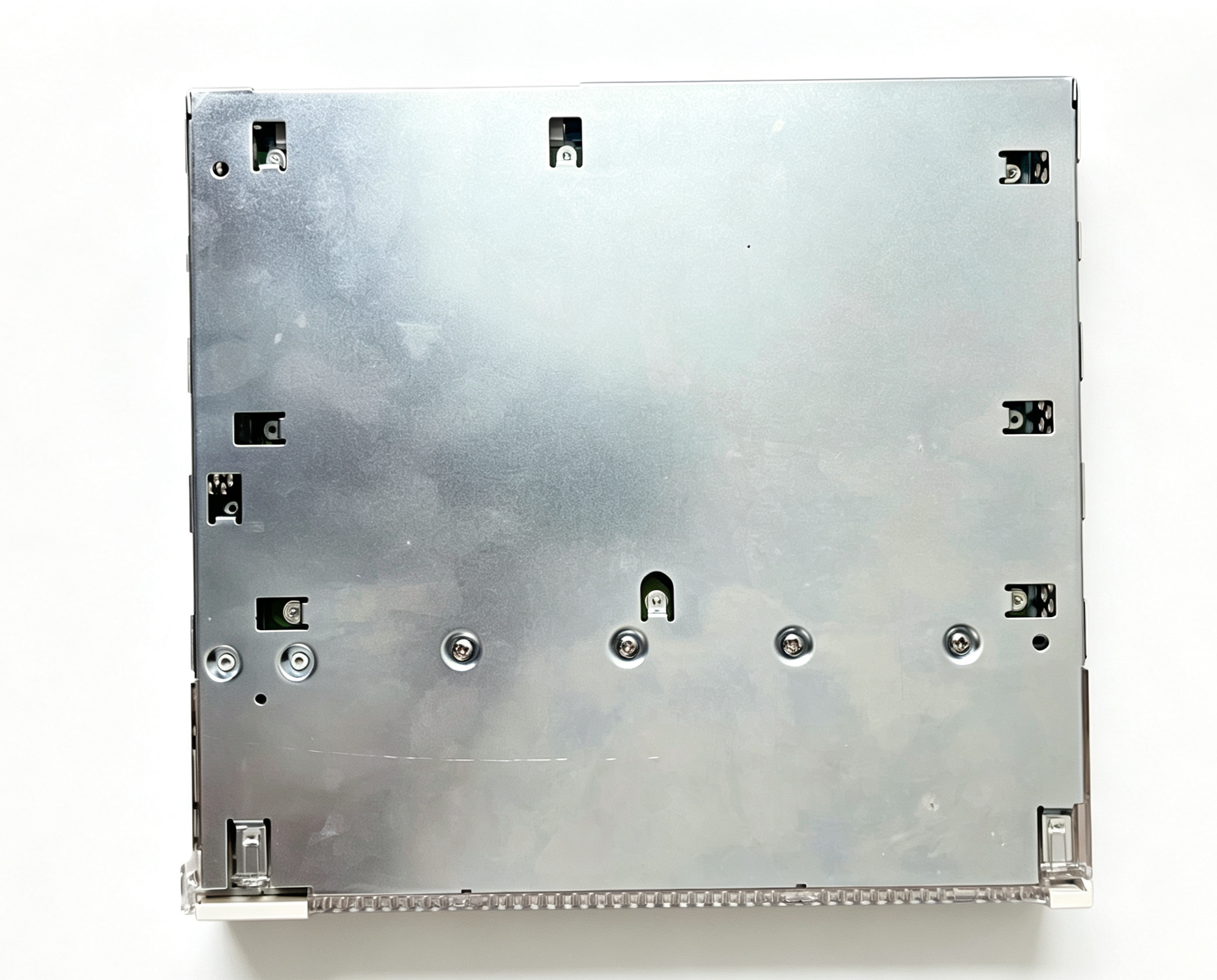

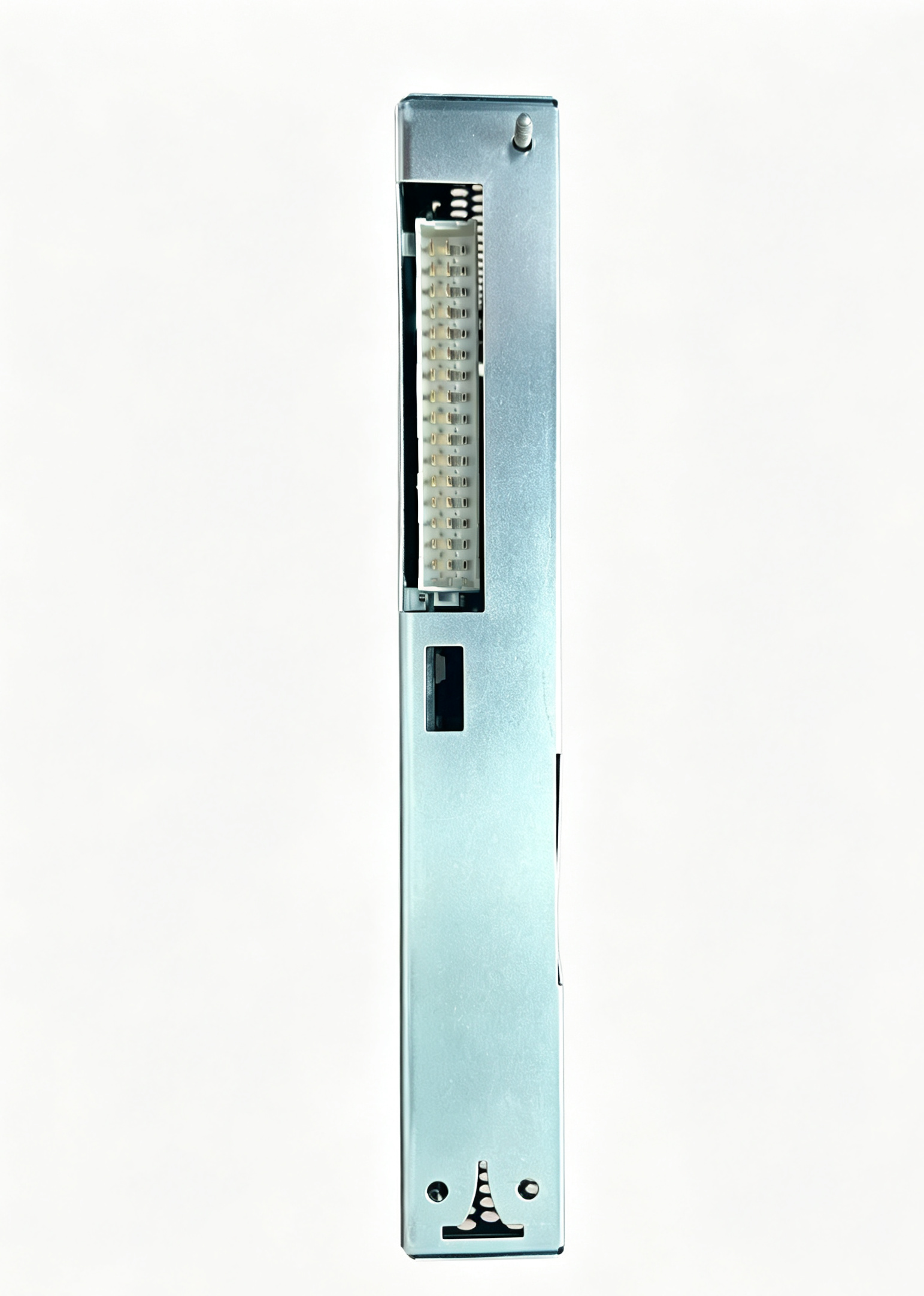

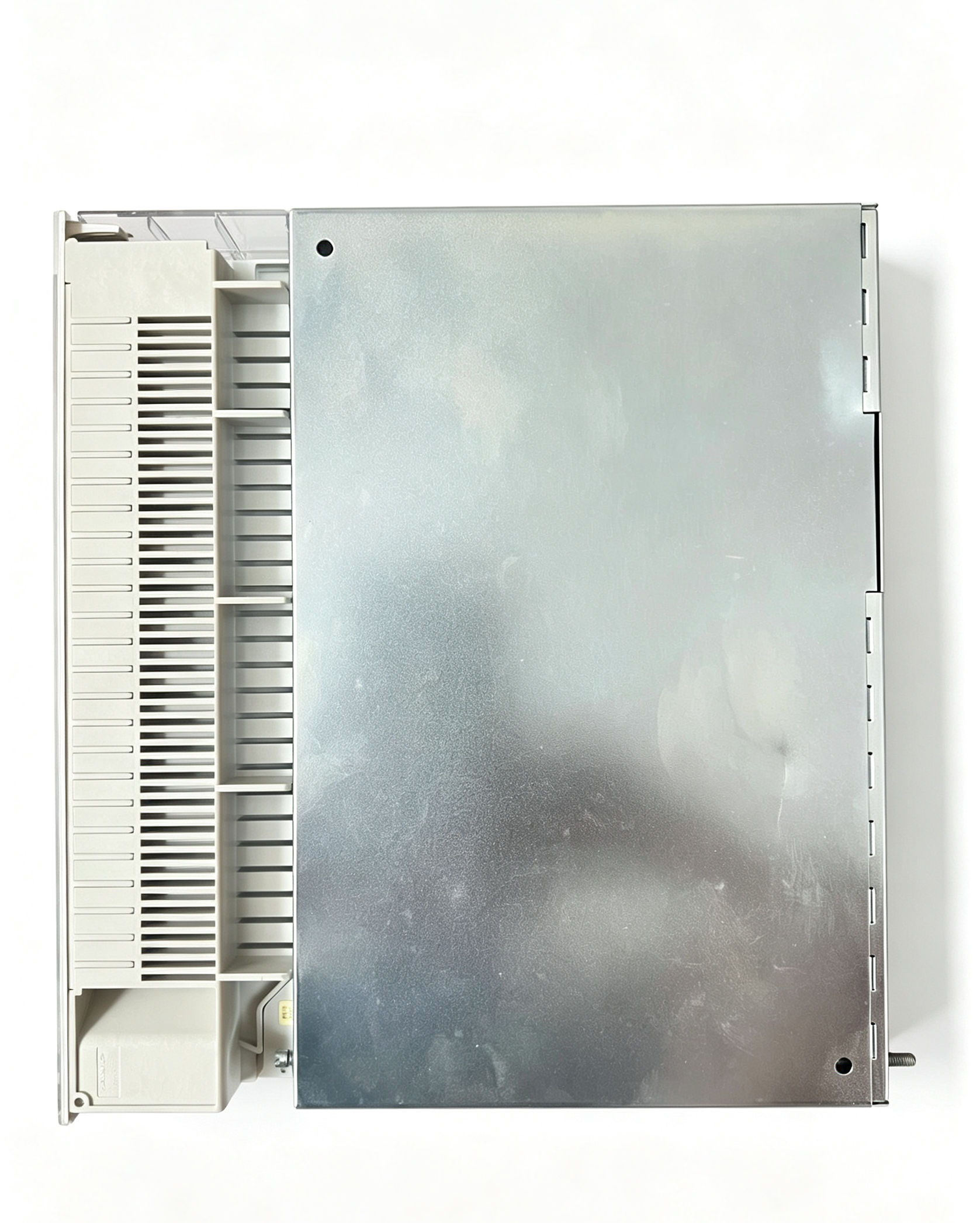

ABB DP640 3BHT300057R0001 Speed Measurement Module

The ABB DP640 3BHT300057R0001 is a speed measurement module designed for industrial automation and process control applications within ABB control architectures. The module is identified by the ABB type designation DP640 and the product number 3BHT300057R0001. An additional identification used for the same product is 3BHT300057R1. Available product documentation identifies the DP640 as a speed measurement module associated with the ABB Advant Controller 110/160 platform and S600 I/O architecture.

The DP640 is designed specifically for applications where rotational speed information needs to be acquired and processed as part of an industrial control system. Its documented functions include two speed meter inputs, a maximum input frequency of 50 kHz, support for 24 V DC or 5 V DC signal levels, direction detection through a second speed input, and overspeed trip logic. The module also provides isolated output functions for transmitting a trip signal to associated control or protection circuits.

Product Identification

The complete product identification is ABB DP640 3BHT300057R0001. The DP640 designation describes the module type, while 3BHT300057R0001 identifies the specific ABB product number. The alternate reference 3BHT300057R1 is also associated with the DP640 speed measurement module. Maintaining these identifiers together is useful for technical documentation, system records, engineering references, and component identification.

Accurate identification is particularly important for industrial automation components because modules belonging to the same control platform can perform substantially different functions. The DP640 should therefore be identified by its complete product number rather than simply being described as a general input module. Its speed measurement functionality distinguishes it from conventional digital input and output modules used within the same automation architecture.

Speed Measurement Function

The principal function of the DP640 is the acquisition of rotational speed information. ABB documentation identifies the product as a Speed Measurement Module, while available technical information describes its inputs as S600 I/O speed meter inputs. The module supports a maximum input frequency of 50 kHz, providing a high-frequency measurement interface for speed-related signals.

Speed measurement is important in many industrial applications because rotational speed can be used as a process variable, control reference, monitoring value, or protection parameter. Depending on the system architecture, speed information can be associated with motors, rotating machinery, turbines, drives, production equipment, or other mechanical systems where rotational behavior needs to be monitored by the control system.

The DP640 is therefore more specialized than a conventional digital input module. Its input circuitry is intended to acquire speed-related signals and provide the associated information to the ABB control architecture in a form suitable for monitoring and control functions.

Two Speed Meter Inputs

The ABB DP640 provides two input channels for speed measurement. The availability of two speed inputs allows the module to support applications requiring more than one speed-related signal or applications where a second input is used for directional information. Available technical information identifies the channel type as DI and lists two input channels for the module.

The two-channel arrangement can be useful when a control system needs to compare or interpret multiple speed signals. It also provides the basis for the direction-detection function described in the product information. The actual wiring and signal configuration should follow the engineering documentation applicable to the installed system.

Input Signal Characteristics

The DP640 speed meter inputs support 24 V DC or 5 V DC signal levels according to the available technical information. This gives the module flexibility for different speed signal sources used in industrial control environments. The maximum input frequency is specified as 50 kHz, which defines an important operating characteristic for speed measurement applications.

When selecting the DP640 for an application, engineers should evaluate the signal source, signal amplitude, frequency range, wiring arrangement, and required measurement behavior. The characteristics of the actual speed sensor or pulse-generating device should be compatible with the specified input requirements of the module.

Signal integrity is also important in high-frequency measurement applications. Installation design should consider appropriate wiring practices, grounding arrangements, electrical noise, and the environment in which the speed signal is generated and transmitted.

Direction Detection

A notable feature of the DP640 is its ability to support direction detection through the second speed meter input. This allows the module to obtain additional information from the relationship between the two speed-related signals. Direction information can be useful in applications where the control system needs to distinguish forward and reverse rotational movement.

Direction detection can be relevant to rotating machinery, motion systems, conveyors, process equipment, and other industrial applications where speed alone does not provide enough information about machine behavior. The implementation depends on the specific sensor arrangement and system configuration, so the applicable engineering documentation should be used when configuring the inputs.

Overspeed Trip Logic

The DP640 also incorporates overspeed trip logic. Overspeed monitoring is an important protection function for rotating equipment because excessive rotational speed can create mechanical and operational risks. By incorporating overspeed-related logic into the speed measurement architecture, the module can participate in a protection strategy based on detected speed conditions.

According to the available product information, the overspeed function provides a trip signal through both a solid-state 24 V DC output and a dry contact rated for 60 V DC. These outputs provide different interface possibilities for connecting the speed-related protection function to associated control or shutdown circuits.

The exact trip threshold and system response should be established according to the equipment requirements and application-specific engineering design. Overspeed protection should be evaluated as part of the complete machinery protection system rather than considered as an independent function.

Opto-Isolated Interfaces

The DP640 incorporates isolation within its speed measurement and output interfaces. Available technical information states that the speed meter inputs and solid-state output are individually opto-isolated. Electrical isolation can help separate signal circuits and reduce the direct propagation of electrical disturbances between different parts of an industrial control installation.

Isolation is particularly valuable in industrial environments where control equipment can be exposed to electrical noise, switching transients, and differences in circuit potential. The use of isolated interfaces supports cleaner integration between speed sensors, control electronics, and external trip circuits.

ABB Advant Controller Integration

The DP640 is associated with the ABB Advant Controller 110/160 family and the S600 I/O architecture. This relationship is important when determining system compatibility because the module is designed to operate within a specific ABB control-system environment rather than functioning as a generic standalone speed meter.

Within an Advant control architecture, the DP640 can provide speed-related information and protection signals as part of the wider automation system. System integration can involve the speed input channels, controller processing, associated I/O equipment, and external protection circuits. The complete configuration should therefore be evaluated using the relevant ABB system documentation.

Industrial Automation Applications

ABB DP640 3BHT300057R0001 can be applied to industrial systems where accurate speed monitoring and overspeed-related functions are required. Potential application areas include rotating machinery, process equipment, motor-driven systems, mechanical production equipment, and other installations where rotational speed is an important operating parameter.

The module’s combination of high-frequency speed inputs, direction detection, overspeed logic, and isolated outputs allows it to support both monitoring and protection-related functions. This combination can be particularly useful where speed information must be incorporated directly into an established ABB control architecture.

Engineering Considerations

When engineering a DP640 installation, the speed sensor characteristics should be evaluated carefully. Input voltage, pulse frequency, signal wiring, direction-detection requirements, and maximum operating speed should all be considered. The 50 kHz maximum input frequency provides an important reference when determining whether a particular speed signal is appropriate for the module.

The overspeed output configuration should also be considered in relation to the external protection circuit. The available solid-state and dry-contact outputs provide different interface methods, but the final circuit must comply with the applicable electrical requirements and the ratings of connected equipment.

Physical and Documentation Information

Available product information lists the DP640 at approximately 252 mm in depth, 273 mm in height, and 40 mm in width. The listed product weight is approximately 1.33 kg. These values can be useful when preparing cabinet documentation or verifying the physical requirements of an existing installation.

Physical dimensions should not be used as the sole basis for compatibility. The product number, module type, host control system, I/O architecture, signal requirements, and system configuration should all be verified before installation or replacement.

Maintenance and System Records

For industrial automation documentation, it is useful to record the DP640 type designation together with both product-number references. The primary identification is 3BHT300057R0001, while 3BHT300057R1 is an associated alternate reference. Recording these identifiers helps distinguish the module from other ABB S600 I/O components.

Maintenance personnel should also document the module’s role, connected speed signals, associated controller, and overspeed protection connections where applicable. Because the DP640 can participate in machinery protection functions, any intervention should take into account the complete control and protection architecture.

Conclusion

The ABB DP640 3BHT300057R0001 is a specialized speed measurement module associated with the ABB Advant Controller 110/160 and S600 I/O architecture. It provides two speed meter inputs, supports input frequencies up to 50 kHz, accepts 24 V DC or 5 V DC speed signals, and supports direction detection through the second speed input.

Its documented overspeed trip logic, isolated solid-state output, dry-contact output, and opto-isolated speed interfaces make the DP640 suitable for industrial applications where rotational speed monitoring and protection are integrated into an ABB control system. The combination of measurement and protection-related functions gives the module a specialized role within process control and machinery monitoring architectures.

For accurate product identification, the complete designation ABB DP640 3BHT300057R0001 should be used, with 3BHT300057R1 retained as an associated alternate reference. When evaluating the module for an existing installation, engineers should verify the host ABB system, S600 I/O architecture, input signal characteristics, speed measurement requirements, direction detection configuration, and overspeed protection design.
