ABB SE41F-T1HER1ASAA21KXA1020020VKMBCG1 FSM4000 Electromagnetic Flowmeter Sensor

Product Overview

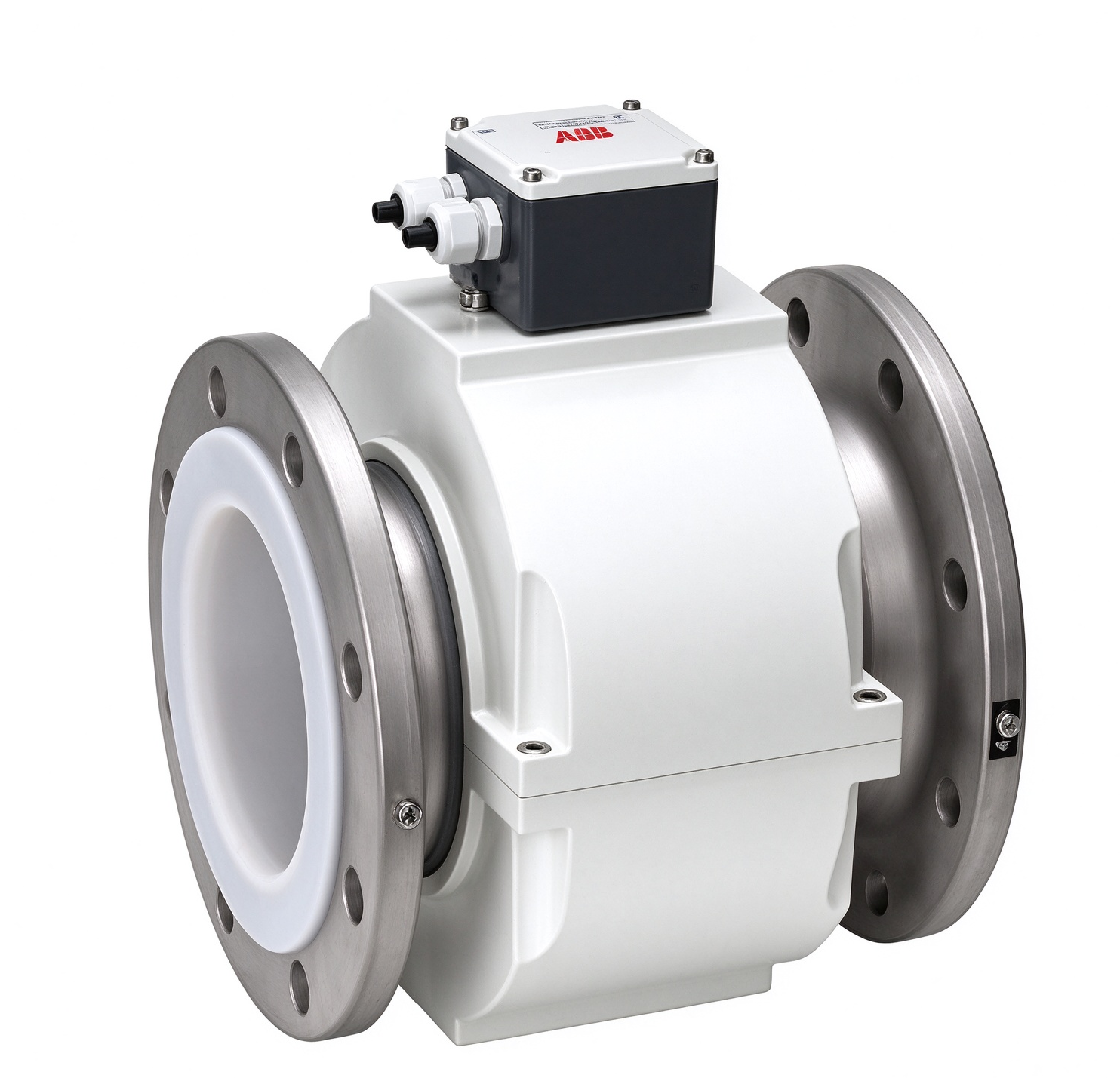

ABB SE41F-T1HER1ASAA21KXA1020020VKMBCG1 is a primary sensor configuration for the ABB FSM4000 electromagnetic flowmeter platform. The sensor is identified as an SE41F model and is configured for a DN 4 nominal measuring size with a stated length of 250 mm. It is designed for industrial process applications where volumetric flow of electrically conductive liquids needs to be measured continuously.

The SE41F belongs to the FSM4000 family of electromagnetic flowmeter sensors. ABB documentation describes the SE41F as a sensor with a fixed or welded flange construction and configurable liner and measuring-tube options. The complete ordering code defines the detailed construction and process configuration of an individual sensor.

When used as part of a complete FSM4000 measurement system, the primary sensor works together with a compatible ABB transmitter. The sensor generates the measurement signal associated with the electromagnetic flow measurement principle, while the transmitter processes the signal and provides the required measurement outputs and communication functions.

FSM4000 Electromagnetic Flow Measurement

The ABB FSM4000 uses the electromagnetic flow measurement principle. When an electrically conductive liquid passes through the magnetic field generated inside the sensor, a voltage is induced in the liquid. Measuring electrodes detect this voltage, and the associated transmitter converts the measured signal into a flow value.

This measurement method does not require mechanical moving components inside the measuring tube. As a result, electromagnetic flow measurement can be applied to many industrial liquid-flow applications where the process medium has suitable electrical conductivity.

The sensor itself is an important part of the complete measurement loop. The selected sensor size, liner, electrodes, process connection and installation arrangement must correspond to the process medium and the requirements of the measurement system.

SE41F Sensor Configuration

The SE41F is one of the sensor configurations available within the FSM4000 product family. ABB’s ordering documentation provides different combinations of liner material and nominal measuring size for the SE41F model. Available configurations cover a wide range of process requirements.

The complete ordering code SE41F-T1HER1ASAA21KXA1020020VKMBCG1 should be retained when identifying this particular sensor. Individual sections of an FSM4000 ordering code describe different technical characteristics of the instrument, and replacing the complete code with only the basic SE41F designation can omit important configuration information.

For equipment identification, the complete nameplate information should therefore be compared with the system documentation. This is especially important when an existing sensor is being replaced or when the sensor must be matched with a particular transmitter.

DN 4 Measuring Size

The specified measuring size for this configuration is DN 4. DN 4 corresponds to a nominal diameter of approximately 5/32 inch. ABB’s FSM4000 documentation lists DN 4 among the small nominal sizes available for the SE41F sensor family.

Small-bore electromagnetic flowmeters are useful in applications where the process pipeline or sampling line has a relatively small internal diameter. The sensor must be selected according to the actual pipe configuration and the expected process flow conditions.

Sensor sizing is important because flow velocity, measurement range and process requirements are related to the internal measuring diameter. The nominal size should therefore be verified against the engineering specification before installation.

Sensor Length: 250 mm

The supplied configuration is specified with a sensor length of 250 mm. The overall face-to-face or construction dimension should be considered when planning installation space and when replacing an existing flowmeter sensor.

For replacement work, the 250 mm dimension should be compared with the existing pipeline arrangement, flange spacing and mechanical installation drawings. A sensor with a different construction length may require changes to the piping arrangement or installation hardware.

The dimensional information should be verified against the actual nameplate and applicable ABB documentation before final mechanical installation. This is particularly important for compact process lines and equipment with limited installation space.

Liner and Electrode Configuration

The wetted construction of an electromagnetic flowmeter is a key factor in application selection. The liner separates the process liquid from the sensor body, while the electrodes detect the electrical signal generated by the moving conductive liquid.

ABB provides several liner and electrode configurations within the FSM4000 family. The selection depends on the properties of the process medium, including conductivity, temperature, pressure and chemical compatibility.

Because the complete ordering code contains configuration information beyond the basic SE41F model, the exact liner and electrode specification should be verified from the instrument documentation or nameplate rather than inferred solely from the model family.

Fixed Flange Construction

The SE41F is documented by ABB as an electromagnetic flowmeter sensor with a fixed or welded flange construction. This arrangement provides a defined mechanical interface between the sensor and the process piping system.

During installation, the flange standard, nominal size, pressure rating, gasket arrangement and bolt configuration must correspond to the process piping. The sensor should be installed without creating mechanical stress that could affect the sensor body or connected pipework.

Correct alignment is also important. The flow direction and sensor orientation should follow the applicable installation instructions. The measuring tube should remain properly filled during normal operation to support stable electromagnetic flow measurement.

Application in Industrial Process Systems

ABB FSM4000 electromagnetic flowmeter sensors are intended for industrial process measurement applications. The technology can be used in applications involving conductive liquids across sectors such as chemical processing, water-related processes, power generation, pulp and paper, metals and mining, and general industrial automation.

The small DN 4 configuration can be appropriate for compact process lines where the required flow measurement is performed through a small-bore pipeline. The actual application suitability depends on the conductivity and characteristics of the measured liquid as well as the pressure, temperature and flow conditions.

For process engineering, the complete sensor specification should be evaluated together with the associated transmitter and installation environment. A correct measurement system consists of compatible sensor, transmitter, wiring and process installation.

Compatibility with FSM4000 Transmitters

The SE41F sensor functions as the primary measuring element of an FSM4000 electromagnetic flowmeter system. The transmitter receives the electrical measurement signal from the sensor and performs the signal processing required to calculate and display flow information.

When replacing a sensor, transmitter compatibility should be verified using the complete technical documentation. Sensor-specific parameters and configuration data may be required for correct measurement operation.

The sensor and transmitter should therefore be treated as parts of a complete measurement system. The nameplate data, ordering code, sensor constants and connection information should be checked before commissioning.

Installation Considerations

Installation location has a direct effect on electromagnetic flow measurement. The sensor should be installed in a section of pipe that provides suitable process conditions and maintains the measuring tube filled during normal operation.

The piping should be properly supported without transferring excessive mechanical load to the sensor. Flange connections should be aligned correctly, and the appropriate sealing arrangement should be used for the process connection.

Electrical grounding and signal wiring should follow the FSM4000 installation instructions. The sensor cable, transmitter connection and grounding arrangement should correspond to the specific sensor and transmitter configuration.

Identification and Replacement

For procurement and maintenance purposes, the complete identifier SE41F-T1HER1ASAA21KXA1020020VKMBCG1 should be used together with the stated DN 4 size and 250 mm length. The complete ordering code is more informative than the basic SE41F model designation because different ordering configurations can have different process and electrical characteristics.

When replacing an existing sensor, compare the complete ordering code, nominal size, sensor length, process connection, liner, electrodes and transmitter compatibility. Mechanical dimensions alone are not sufficient to confirm that two electromagnetic flowmeter sensors have the same configuration.

Technical Summary

ABB SE41F-T1HER1ASAA21KXA1020020VKMBCG1 is an FSM4000 electromagnetic flowmeter primary sensor configured with a DN 4 nominal measuring size and a stated length of 250 mm. The SE41F is part of the ABB FSM4000 sensor family and uses electromagnetic measurement technology for conductive liquid flow applications.

• Manufacturer: ABB
• Flowmeter platform: FSM4000
• Sensor model: SE41F
• Complete configuration: SE41F-T1HER1ASAA21KXA1020020VKMBCG1
• Nominal measuring size: DN 4
• Nominal size equivalent: approximately 5/32 inch
• Specified length: 250 mm
• Measurement technology: Electromagnetic flow measurement
• Application: Conductive liquid flow measurement
• Sensor type: Primary flowmeter sensor

For engineering, replacement and commissioning, the complete ordering code should be checked against the sensor nameplate and ABB FSM4000 documentation. The process connection, liner, electrode configuration, installation dimensions and compatible transmitter should all be verified before integration into the measurement system.
