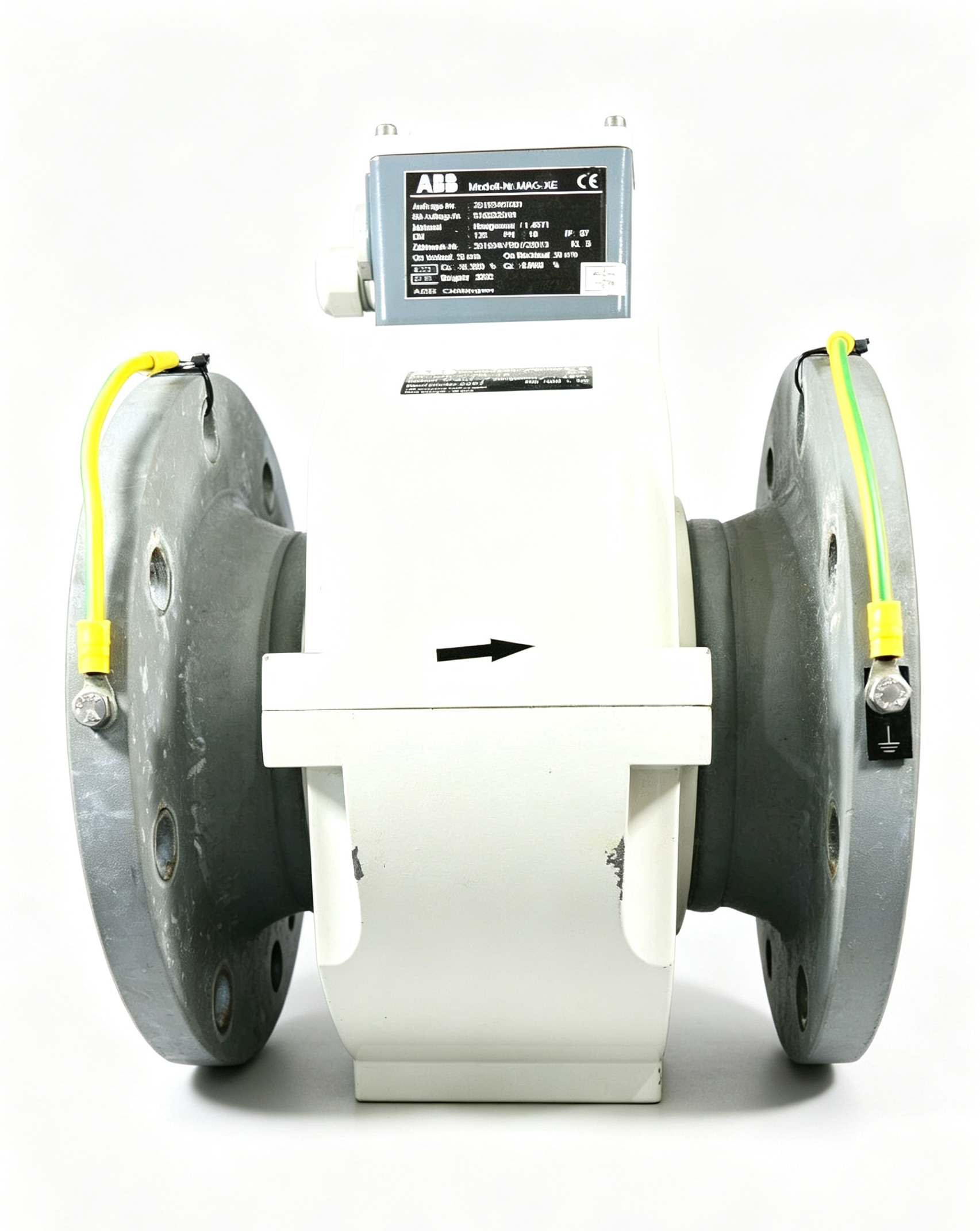

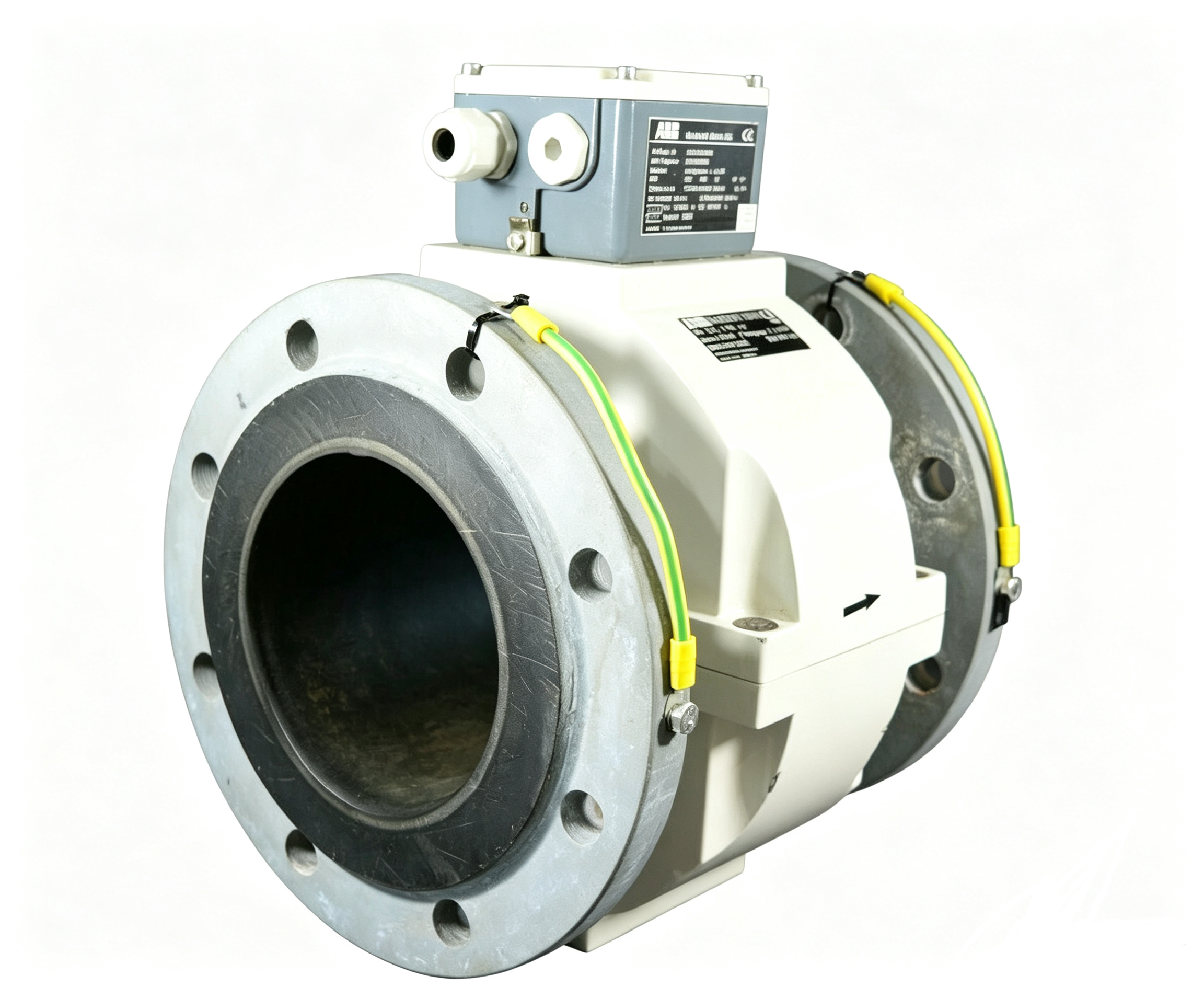

ABB DE43F/031135 DN125 PN16 FXE4000 COPA-XE Electromagnetic Flowmeter

The DE43F is part of the FXE4000 family and is identified by ABB as a flanged flowmeter primary for the compact COPA-XE design. This configuration combines the flowmeter primary and electronic converter into a single mechanical arrangement. The exact performance and permissible operating conditions depend on the complete instrument configuration, including the selected liner, electrode arrangement, flange material and other ordering options.

ABB DE43F/031135 Product Identification

The designation DE43F identifies an ABB FXE4000 electromagnetic flowmeter primary with a flanged construction. ABB documentation distinguishes the DE43F from other FXE4000 configurations such as the DE43W wafer design and the DE41F remote-design flowmeter primary. The DE43F is associated with the compact COPA-XE arrangement in which the microprocessor-based converter and flowmeter primary form one mechanical unit.

The additional identification 031135 DN125 PN16 provides information used to describe the particular instrument configuration. DN125 represents a nominal meter size of 125 millimeters, corresponding to a 5-inch nominal pipe size, while PN16 identifies the nominal pressure class of the connection. When identifying an instrument for a process system, the complete model and ordering information should be considered because additional configuration parameters determine the actual measurement characteristics.

Electromagnetic Flow Measurement Principle

The ABB FXE4000 uses the electromagnetic flow measurement principle. When an electrically conductive liquid moves through the magnetic field generated inside the flowmeter primary, a voltage is induced across electrodes positioned in the measuring tube. The generated signal is related to the velocity of the conductive medium, allowing the electronic system to determine volumetric flow.

Because the electromagnetic measuring principle does not require a rotating impeller, turbine or other mechanical sensing element inside the measuring tube, the flowmeter can be applied to many conductive-liquid measurement tasks. The measuring principle is especially relevant to industrial processes where liquid flow needs to be monitored continuously as part of a larger control or instrumentation system.

DE43F Flanged Construction

The DE43F configuration uses a flanged connection. ABB technical documentation identifies FXE4000-DE43F as a flanged design and provides nominal size and pressure-class information for the applicable flange arrangements. For the specified configuration, DN125 and PN16 define the nominal connection size and pressure class.

Flanged construction provides a conventional connection method for process pipelines and can simplify mechanical integration into systems where matching flanges are already used. During installation, the flange standard, gasket arrangement, bolt configuration and pipe alignment must correspond to the actual instrument specification and the requirements of the process piping system.

DN125 Meter Size

The DN125 designation indicates the nominal size of the flowmeter. ABB documentation lists DN125 as a 125 mm nominal diameter configuration for the DE41F and DE43F flanged flowmeter designs. In commonly used inch-based terminology, DN125 corresponds to a nominal 5-inch pipe size.

Meter size is an important factor in electromagnetic flow measurement because the internal measuring tube diameter influences the relationship between liquid velocity and volumetric flow. Selecting the appropriate meter size requires consideration of the process pipe, expected flow range, operating velocity and the characteristics of the measured medium.

PN16 Pressure Class

PN16 identifies the nominal pressure class associated with the specified flange configuration. ABB documentation provides pressure and temperature information for FXE4000 flanged designs and emphasizes that the allowable process pressure and temperature depend on the liner and flange materials of the individual instrument.

Therefore, PN16 should be treated as part of the connection and pressure classification rather than as a universal maximum operating pressure under every process condition. The actual permissible pressure and temperature must be verified from the complete instrument nameplate and technical documentation, taking the selected liner and flange materials into account.

Conductive Liquid Measurement

Electromagnetic flowmeters are intended for liquids with sufficient electrical conductivity for the measurement principle to operate correctly. The FXE4000 platform is therefore suited to many industrial liquid-flow applications where conductive media need to be measured.

The exact suitability of the instrument depends on the electrical conductivity, temperature, pressure and chemical characteristics of the process medium. Liner and electrode selection are also important because these materials determine the compatibility between the measuring tube and the process fluid. For this reason, the complete ordering configuration should be reviewed when applying a DE43F instrument to a particular process.

Compact COPA-XE Configuration

ABB documentation identifies the DE43F as a flowmeter primary used in the compact FXE4000 COPA-XE configuration. In this arrangement, the microprocessor-based converter and the flowmeter primary constitute a single mechanical unit. This differs from the MAG-XE remote design, where the converter and flowmeter primary are installed separately and connected by a signal cable.

The compact configuration can be useful where the measuring instrument and electronic converter are intended to occupy the same installation location. The final installation arrangement must take into account the environmental conditions, available space, process connection and applicable operating requirements.

Measurement and Process Control

An electromagnetic flowmeter can provide continuous flow information for use in industrial instrumentation and process-control systems. Flow measurement may be used for monitoring, process regulation, material balance, dosing-related operations or other applications where liquid flow is an important process variable.

The ABB FXE4000 platform combines the measurement function with electronic signal processing so that the measured flow can be evaluated and used by the connected instrumentation system. The exact signal configuration and available functions depend on the specific converter and ordering configuration associated with the flowmeter.

Installation Considerations

Correct installation is important for electromagnetic flowmeter performance. The flowmeter should be installed with suitable mechanical alignment and with flange connections that correspond to the specified DN125 PN16 configuration. Pipework should be arranged so that the measuring tube remains filled with the process medium under normal operating conditions.

Grounding and electrical installation are also important aspects of an electromagnetic flowmeter system. The measuring principle relies on the electrical characteristics of the process medium and the signal generated at the measuring electrodes. The applicable ABB installation instructions should therefore be followed for grounding, electrical connections and commissioning.

Temperature and Pressure Conditions

The permissible process temperature and pressure of an FXE4000 flowmeter are not determined solely by the DE43F designation or DN125 PN16 connection. ABB documentation specifies that allowable fluid temperature and pressure depend on the liner and flange materials of the instrument.

ABB documentation identifies maximum process temperatures of up to 90 °C for hard and soft rubber liners and up to 130 °C for PTFE or PFA liners under the applicable configurations. The actual pressure-temperature relationship must be determined from the specific material load curve and instrument identification information.

Model Configuration and Verification

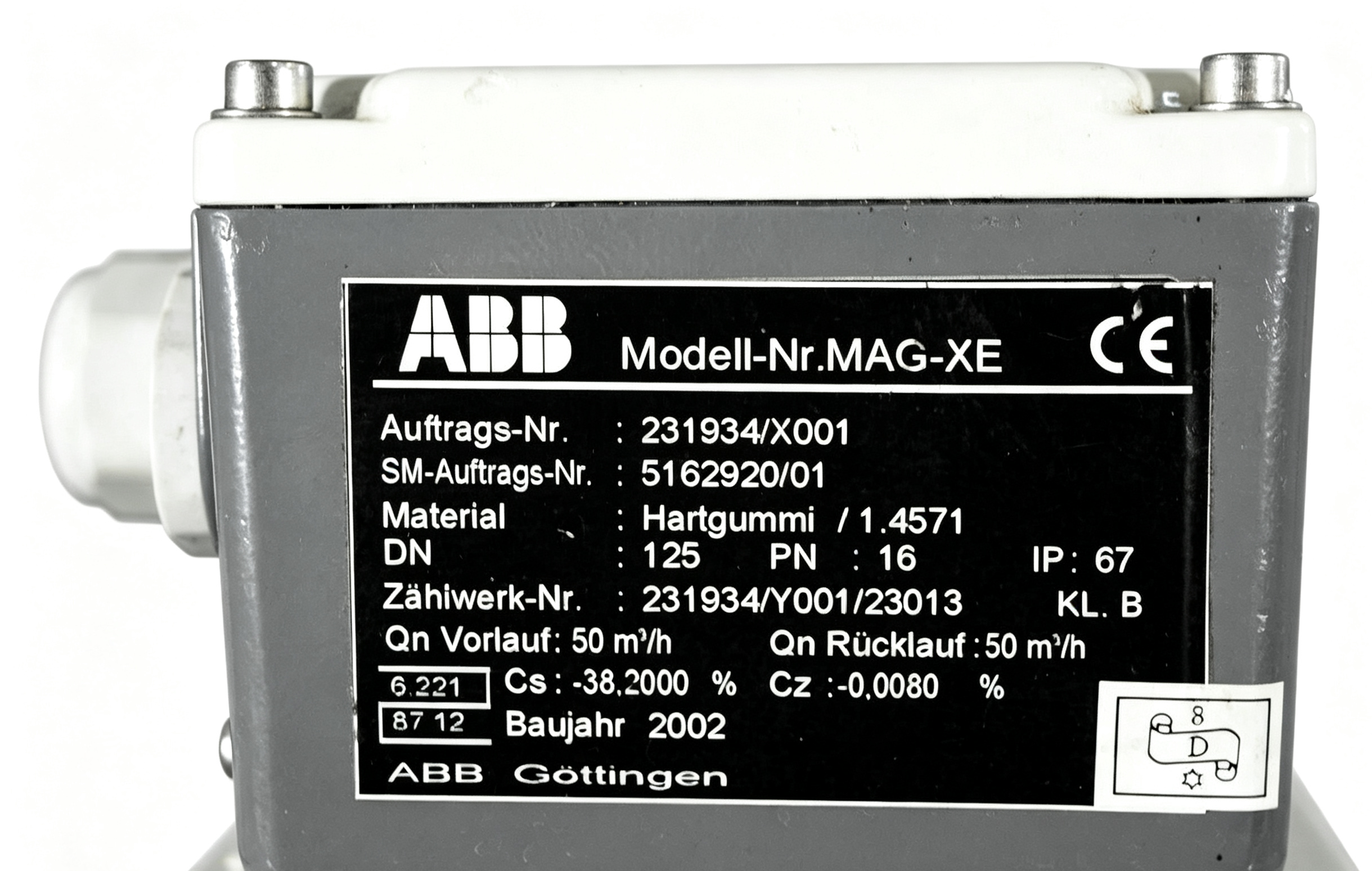

The complete identification of an ABB DE43F flowmeter should be verified from the instrument nameplate and ordering information. The DE43F designation identifies the basic flowmeter primary construction, while the remaining ordering characters can define liner material, nominal diameter, flange configuration, electrode arrangement, converter housing and other options.

This is particularly important when identifying a replacement instrument or integrating an existing flowmeter into a process system. Two DE43F instruments can have different technical characteristics because of differences in liner, electrode and flange configuration. The complete identification should therefore be retained in maintenance records and equipment documentation.

Industrial Applications

The ABB FXE4000-DE43F platform can be applied to industrial processes where conductive liquid flow must be measured. Depending on the selected materials and configuration, electromagnetic flow measurement can be used across different process environments involving water-based fluids, process liquids and other electrically conductive media.

Applications can include water and wastewater systems, chemical processes, utility systems, manufacturing processes and other industrial installations. The suitability of the specific DE43F configuration depends on the properties of the process medium and the mechanical and environmental requirements of the installation.

ABB DE43F/031135 DN125 PN16 Summary

The ABB DE43F/031135 DN125 PN16 is associated with the FXE4000-DE43F COPA-XE electromagnetic flowmeter platform. It uses a flanged construction with a DN125 nominal meter size and PN16 pressure-class connection. The instrument applies electromagnetic flow measurement technology to conductive liquids and forms part of ABB’s FXE4000 family of industrial flow measurement equipment.

The DE43F compact design integrates the flowmeter primary and converter into one mechanical arrangement. Its application requires consideration of process conductivity, meter size, pressure, temperature, liner material, electrode configuration and flange specifications. For accurate identification and system integration, the complete ABB ordering code and instrument nameplate should be checked against the applicable technical documentation.
