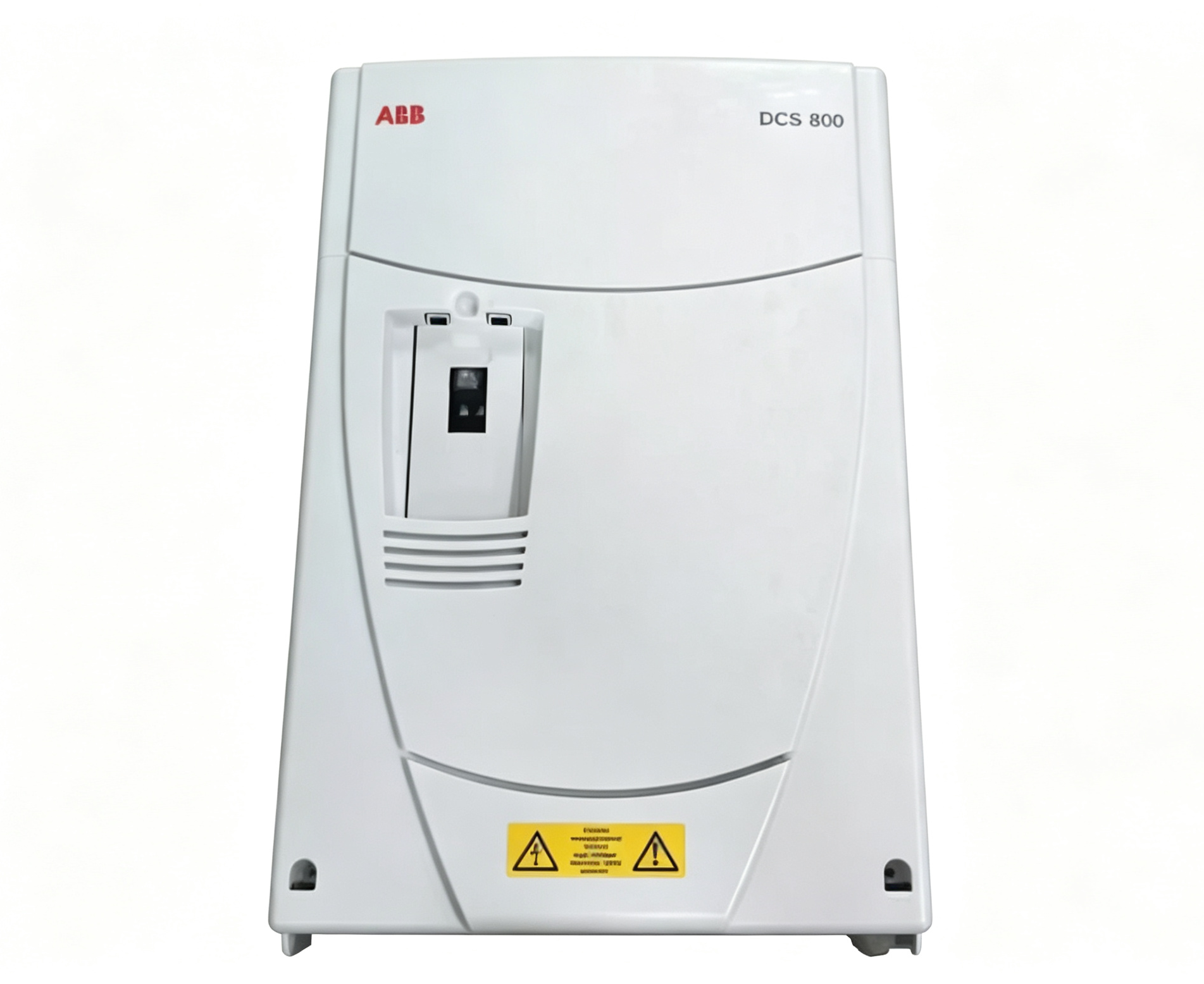

ABB DCS800-S02-01000-05 4Q Module

Product Overview

ABB DCS800-S02-01000-05 is a high-performance four-quadrant DC drive converter module designed for demanding industrial motor control applications. As part of the ABB DCS800 drive family, this converter module provides advanced control capability for DC motors requiring forward operation, reverse operation, regenerative braking, and precise torque management.

The DCS800-S02 series is designed as a regenerative 4-quadrant converter platform. Unlike traditional two-quadrant drives that mainly control motor operation in one direction, four-quadrant drives allow energy to flow between the motor and the electrical supply system. This capability makes ABB DCS800-S02-01000-05 suitable for applications where rapid acceleration, controlled deceleration, reversing operation, and energy recovery are required. :contentReference[oaicite:2]{index=2}

ABB DCS800-S02-01000-05 belongs to the DCS800 standard converter module family. The product designation identifies the converter as a four-quadrant configuration with a rated current class of 1000 A and a voltage class of 05, corresponding to applications within the 230 VAC to 525 VAC supply range. :contentReference[oaicite:3]{index=3}

Technical Characteristics

ABB DCS800-S02-01000-05 uses a dual anti-parallel thyristor bridge structure to achieve four-quadrant operation. This configuration enables controlled power conversion in both motoring and regenerative modes, allowing the drive system to manage energy flow according to operating requirements.

The four-quadrant design is especially valuable in industrial machinery where the motor frequently changes speed, direction, or load conditions. During acceleration, electrical energy is converted into mechanical power. During braking or deceleration, mechanical energy can be returned through the regenerative circuit, improving system efficiency and control performance.

The DCS800 platform is engineered for industrial environments requiring high reliability, accurate current regulation, and flexible communication capability. ABB integrates advanced control technology into the converter architecture to support demanding applications in manufacturing, processing, and heavy industry. :contentReference[oaicite:4]{index=4}

ABB DCS800-S02-01000-05 is designed as an IP00 open type converter module and is intended for installation inside a suitable electrical enclosure. The modular structure allows engineers to integrate the converter into customized control cabinets according to specific industrial requirements. :contentReference[oaicite:5]{index=5}

Functional Description

The primary function of ABB DCS800-S02-01000-05 is to regulate DC motor operation through controlled power conversion. The converter receives electrical power from the AC supply system and provides controlled DC output power to the motor armature circuit.

Through advanced firing control of the thyristor bridge, the module manages motor voltage and current to achieve accurate speed and torque control. This makes it suitable for applications where stable motor performance and dynamic response are essential.

The four-quadrant capability allows the motor to operate in four different modes: forward motoring, forward regeneration, reverse motoring, and reverse regeneration. This functionality provides significant advantages in machinery that requires frequent reversing cycles or controlled braking.

ABB DCS800-S02-01000-05 also supports integration with automation systems through ABB drive control solutions. The converter can operate together with external control interfaces, communication modules, and feedback devices to create complete industrial motion control systems.

Application Areas

ABB DCS800-S02-01000-05 is widely used in industrial applications where precise DC motor control and regenerative operation are required. Typical applications include metal processing equipment, paper manufacturing systems, cranes, hoists, conveyors, winding machines, and industrial production lines.

In metal processing industries, DC motors are commonly used for rolling mills and processing equipment because they provide excellent torque characteristics and speed control. The regenerative capability of the DCS800-S02-01000-05 helps improve operational efficiency during frequent acceleration and braking cycles.

For crane and hoisting applications, four-quadrant control is particularly important because loads often require controlled movement in both directions. Regenerative braking allows the drive system to manage energy effectively while maintaining accurate motion control.

The module is also suitable for industrial machinery requiring rapid response and stable speed regulation. Applications such as winding equipment and material handling systems benefit from the precise control characteristics provided by ABB DC drive technology.

Drive System Integration

ABB DCS800-S02-01000-05 is designed to operate as part of a complete industrial DC drive solution. The converter module can be integrated with control panels, feedback devices, communication interfaces, and external system components to meet different automation requirements.

Proper system configuration is essential for achieving optimal performance. Engineers must consider motor ratings, supply voltage, current requirements, cooling conditions, protection devices, and communication settings during installation and commissioning.

The modular architecture of the DCS800 family allows users to develop flexible drive solutions for different industrial applications. Accessories and optional interfaces can extend system functionality and provide additional monitoring and control capabilities. :contentReference[oaicite:6]{index=6}

Engineering Advantages

ABB has extensive experience in industrial power conversion and motion control technology. The DCS800 series reflects ABB’s engineering focus on reliability, flexibility, and performance for demanding industrial environments.

ABB DCS800-S02-01000-05 provides several engineering advantages, including four-quadrant regenerative operation, high-current capability, precise motor control, flexible system integration, and compatibility with industrial automation architectures.

The regenerative function helps improve energy efficiency by allowing electrical energy generated during braking conditions to be returned to the power system. This feature is particularly valuable in applications with frequent speed changes and heavy dynamic loads.

The robust converter design also supports long-term industrial operation by providing stable electrical performance under demanding working conditions. This makes it a suitable solution for industries requiring continuous production and reliable motor control.

Importance in Industrial Automation

Modern industrial automation systems require motion control equipment that can provide both accuracy and efficiency. DC drive converters remain important in many industries because of their excellent torque characteristics and flexible control performance.

ABB DCS800-S02-01000-05 represents an advanced DC drive solution that combines power conversion technology with intelligent control capability. Its four-quadrant operation enables industrial machines to achieve smoother movement, improved productivity, and better energy management.

For engineers designing high-performance drive systems, selecting a suitable converter module is essential. ABB DCS800-S02-01000-05 provides a reliable platform for applications requiring precise speed control, reversing operation, and regenerative functionality.

Conclusion

ABB DCS800-S02-01000-05 4Q Module is a professional regenerative DC drive converter designed for advanced industrial motor control applications. With four-quadrant operation, high-current capability, and flexible system integration, it provides reliable performance for demanding automation environments.

Through ABB’s industrial drive expertise and proven converter technology, DCS800-S02-01000-05 helps industries achieve accurate motor control, improved energy efficiency, and dependable operation in complex production systems.
