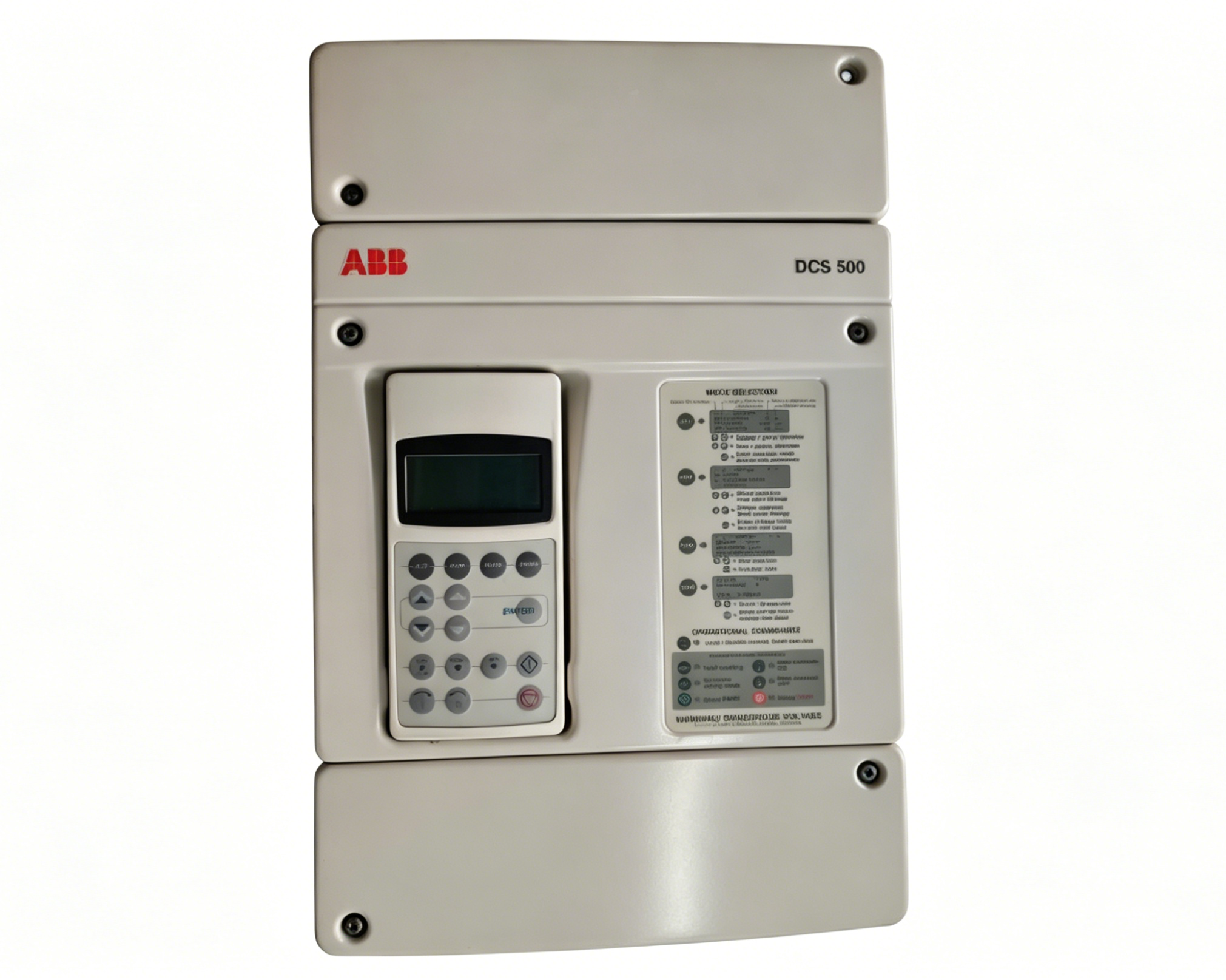

ABB DCS 500 DC Drive System Overview

The ABB DCS 500 is a digital DC drive system designed for precise control of DC motors in industrial automation and process control applications. It belongs to ABB’s DCS (Digital Converter System) family, which is engineered for heavy-duty motor control tasks requiring high torque performance, stable speed regulation, and regenerative energy handling. The system is widely used in industries where DC motors remain essential for high-power and high-precision applications.

According to ABB industrial drive documentation, the DCS 500 series is built around a modular architecture that includes a controlled rectifier stage, DC link management, and field excitation control. This structure allows the system to efficiently convert AC input power into controlled DC output for motor operation. The drive is designed for both motoring and regenerative operation, enabling energy to be fed back into the supply network during braking or deceleration phases. ([library.e.abb.com](https://library.e.abb.com/public/5d1c1f6a1f8d4a6c9c7d7a7b1d8a1d2d/DCS500_User_Guide.pdf))

One of the primary functions of the ABB DCS 500 is DC motor speed control. It regulates motor armature voltage and field current to achieve precise control of rotational speed and torque. This makes it suitable for applications requiring stable high-torque output at low speeds as well as smooth acceleration under varying load conditions.

The system also supports regenerative braking capability. During deceleration or load reduction, the motor acts as a generator and feeds energy back into the power supply through the converter system. This regenerative function improves overall energy efficiency and reduces heat dissipation in braking resistors, making the system more sustainable and cost-efficient in high-duty industrial environments.

In industrial automation applications, the ABB DCS 500 is commonly used in steel mills, paper machines, rolling mills, hoisting systems, extruders, and heavy conveyor systems. These applications require high torque at low speed and precise control under heavy mechanical loads, where DC drives still offer strong performance advantages compared to some AC systems.

The drive includes advanced control algorithms for armature and field regulation. By independently controlling field excitation and armature voltage, the system can optimize motor performance across different operating conditions. This dual-loop control structure enhances stability and improves dynamic response during load changes.

From a system integration perspective, the ABB DCS 500 can be incorporated into industrial control architectures such as PLC-based systems or distributed control systems (DCS). It accepts external control signals for speed reference, torque limitation, start/stop control, and fault handling. This enables seamless coordination with higher-level automation systems.

The system also includes comprehensive protection functions. These typically cover overcurrent protection, overvoltage monitoring, field loss detection, motor overload protection, and converter fault diagnostics. These safety mechanisms ensure reliable operation in demanding industrial environments where equipment protection is critical.

Another important feature of the DCS 500 is its modular design. Power stacks, control units, and communication interfaces are separated into functional modules, allowing flexible configuration and easier maintenance. This modular approach reduces downtime during servicing and simplifies system upgrades.

Communication capability is also an important aspect of the ABB DCS 500 system. It can be integrated with industrial networks for monitoring and control purposes, enabling operators to supervise drive performance, diagnostics, and operational parameters from centralized control rooms.

The system is designed for harsh industrial environments with continuous operation requirements. It is capable of handling high electrical loads, temperature variations, and mechanical stress conditions typical in heavy industrial plants. This durability makes it suitable for long-term operation in mission-critical processes.

Maintenance and diagnostics functions are included to support efficient troubleshooting. Operators can access fault codes and system status information to quickly identify issues such as power stage faults, control unit errors, or motor-related abnormalities. This improves system availability and reduces downtime.

In conclusion, the ABB DCS 500 DC drive system is a powerful and reliable solution for industrial DC motor control. Its controlled rectifier technology, regenerative energy handling, precise speed and torque regulation, modular architecture, and robust protection functions make it suitable for heavy-duty automation and process control applications requiring high performance and long-term operational stability.
