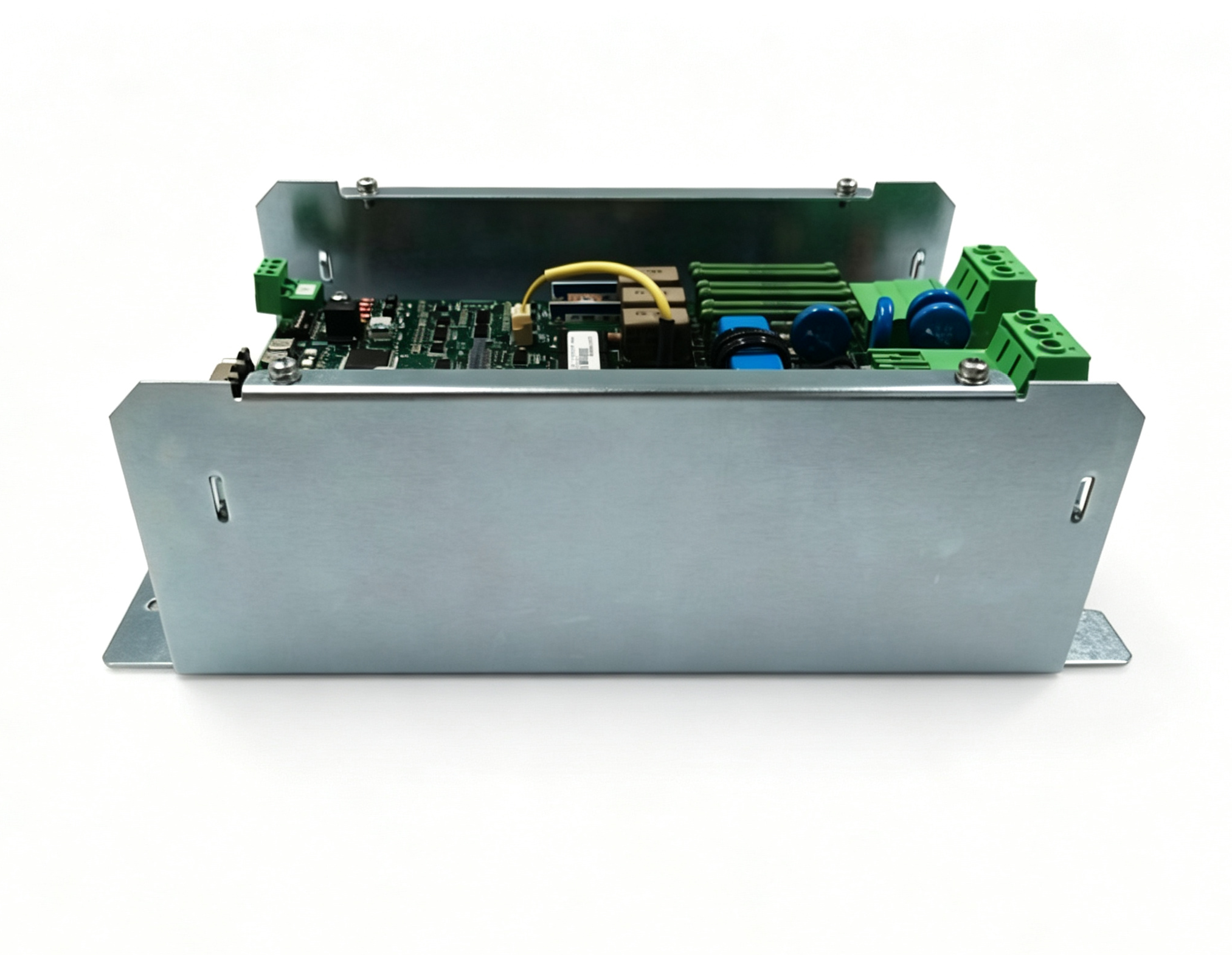

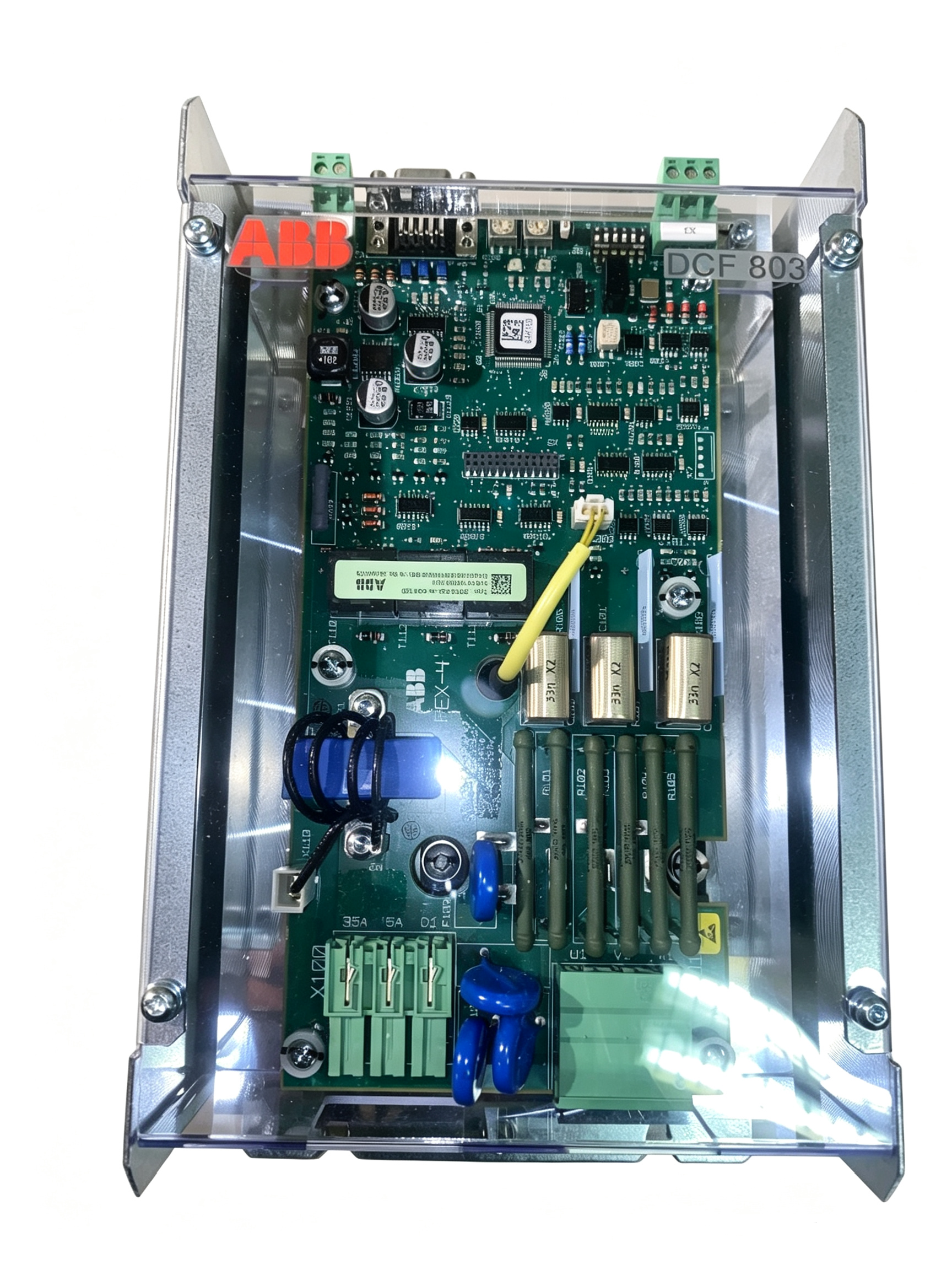

ABB DCF803-0035 3ADT209023R0001 35A Three-Phase Field Exciter

The ABB DCF803-0035 3ADT209023R0001 is an external field exciter designed for ABB DCS800 industrial drive systems. It is a specialized power-electronic unit used for controlled field excitation in drive applications. ABB identifies the product by Product ID 3ADT209023R0001 and ABB Type Designation DCF803-0035. The product description specifies a field exciter with 3×500 V AC input, 35 A field-current capability, and an external three-phase configuration.

The DCF803-0035 is part of the field-excitation equipment used with ABB DCS800 drive technology. ABB documentation lists the unit as a complete DCF803-0035 field exciter with a 35 A rating. Its purpose is different from a general-purpose control module because it is specifically associated with the excitation circuit of an electrical drive system.

Product Identification

The complete identification of this product is ABB DCF803-0035 3ADT209023R0001. The designation DCF803-0035 identifies the field exciter type, while 3ADT209023R0001 is the ABB Product ID. ABB technical documentation also lists this product number alongside the DCF803-0035 type designation and identifies it as a complete unit.

Keeping both identifiers together is important when preparing technical documentation, equipment lists, drive-system records, and maintenance references. The DCS800 product family includes several field-excitation configurations with different current ratings and installation arrangements. Therefore, the complete product number should be used rather than relying only on the DCF803 family designation.

Field Exciter Function

The principal function of the DCF803-0035 is controlled field excitation. In a DC drive system, the field circuit establishes the magnetic field required for motor operation. The field exciter provides controlled electrical power to the field winding, allowing the drive system to regulate field current according to the operating requirements of the motor and application.

Field excitation is an important part of DC motor control because motor operating characteristics are directly related to the magnetic field and armature conditions. The field circuit therefore needs a suitable controlled power source that can operate together with the main drive controller.

The DCF803-0035 is specifically designed for this role. Its function should be considered as part of the complete DCS800 drive architecture rather than as an independent power converter. The field exciter, drive controller, motor field circuit, protection functions, and communication interfaces work together to provide the required operating behavior.

Three-Phase 500 V AC Input

ABB product information identifies the DCF803-0035 with a 3×500 V AC input. This three-phase input configuration allows the field exciter to operate from an appropriate industrial AC supply and convert the incoming electrical power into controlled field-excitation current.

The three-phase architecture is an important characteristic of the unit because it distinguishes the DCF803-0035 from other field exciters with different input arrangements. When incorporating the unit into an existing DCS800 installation, the available supply voltage, phase configuration, protection equipment, and drive-system documentation should all be verified.

The input specification should be treated as a system-design requirement rather than simply a nominal electrical value. Appropriate line protection, cabling, isolation, grounding, and installation procedures must be considered according to the complete electrical installation.

35 A Field Current Capability

The DCF803-0035 is identified as a 35 A field exciter. The 35 A rating is a central characteristic of the product and indicates the maximum field-current capability associated with this particular configuration. ABB’s DCS800 documentation lists the DCF803-0035 alongside other field exciters with different current ratings, including the 16 A DCF803-0016.

The field-current rating must be considered together with the motor field requirements. The appropriate field exciter is selected according to the required field current, motor characteristics, drive configuration, and operating conditions. A higher-current model should not automatically be considered interchangeable with a lower-current model because the complete excitation circuit must be designed for the selected hardware.

Half-Controlled Three-Phase Converter

The DCF803-0035 is described as a half-controlled three-phase field exciter. This converter architecture is associated with controlled rectification for field-current regulation. The power conversion stage allows the excitation circuit to be controlled according to the requirements of the DC drive system.

The half-controlled configuration is an important part of the electrical design because it determines how the incoming AC supply is converted and regulated for the field circuit. Its operation is coordinated with the control electronics and the requirements of the connected motor field.

For engineers working with an existing DCS800 installation, understanding the converter type can be useful when reviewing system schematics, field-circuit wiring, protection arrangements, and drive configuration information.

External Field Exciter Configuration

The DCF803-0035 is an external field exciter. This means that the field excitation function is provided through a separate unit rather than being treated simply as an internal function of the primary drive assembly. External field excitation can be useful when the drive architecture requires a dedicated field supply with its own electrical connections and control functions.

The external arrangement also provides flexibility when designing or maintaining a DCS800 drive system. The field-excitation section can be documented separately from the main drive power section, making it easier to identify the field circuit and its associated components within a larger electrical installation.

DCS800 Drive System Integration

The DCF803-0035 is associated with the ABB DCS800 family of industrial DC drives. Within a DCS800 installation, the field exciter forms part of the overall drive system and works together with the main drive control architecture.

Available technical information describes the DCF803-0035 as supporting drive-to-drive DCSLink communication. This communication capability allows the field-excitation unit to exchange relevant control information with the associated drive system, depending on the specific configuration.

System integration should therefore take into account the communication connection, field-current control requirements, drive configuration, motor characteristics, and associated protection functions. The exact connection arrangement should be verified against the engineering documentation for the particular DCS800 installation.

Control Electronics

The DCF803-0035 uses a dedicated control architecture for field-current regulation. Available technical information identifies the SDCS-FEX-4 control board as part of the DCF803-0035 architecture. The control electronics provide functions associated with synchronization, current control, and monitoring of the field-excitation circuit.

The control system is important because the field exciter is not simply a passive rectifier. The output current must be controlled according to the requirements of the connected DC motor field and the operating condition of the drive system.

For technical maintenance, the relationship between the power stage and control board should be considered when reviewing system documentation. The complete DCF803-0035 identification should be retained when recording the equipment configuration.

DC Drive Applications

ABB DCF803-0035 3ADT209023R0001 is intended for industrial DC drive applications requiring controlled field excitation. Potential applications include industrial machinery, production equipment, process lines, material-handling systems, and other installations using ABB DCS800 drive technology.

Field excitation can be particularly important in applications where motor speed, torque, and operating characteristics depend on controlled field current. The DCF803-0035 provides a dedicated field-excitation solution that can be incorporated into the drive’s overall control architecture.

The suitability of the unit depends on the motor field requirements and the complete DCS800 configuration. Engineers should verify the field voltage, field current, input supply, drive configuration, and protection requirements before determining whether this particular model corresponds to an installation.

Protection and Engineering Considerations

When integrating a DCF803-0035 into a drive system, the field circuit requires appropriate protection and electrical coordination. ABB DCS800 documentation lists semiconductor field fuses associated with field exciters and provides different fuse selections according to field-current requirements. The documented 35 A DCF803-0035 configuration is associated with the corresponding field protection arrangement.

Input line protection is also important. Available technical information indicates that fuses are required and that an input line reactor is required when the supply voltage exceeds 400 VAC. These requirements should be evaluated together with the complete installation design and applicable ABB documentation.

Technical Documentation and Identification

ABB’s DCS800 Service Manual lists 3ADT209023R0001 as the complete-unit code for the DCF803-0035, 1-Q, 35 A field exciter. The same documentation lists other DCF803 field-exciter variants separately, demonstrating why exact product-number identification is important when selecting or documenting drive-system hardware.

The ABB product information identifies the DCF803-0035 with a net height of approximately 105 mm, net length of approximately 320 mm, net width of approximately 173 mm, and net weight of approximately 5 kg. These physical values can assist with cabinet planning and equipment documentation, although mechanical compatibility should always be verified from the applicable installation documentation.

Maintenance and System Records

For maintenance and engineering records, the recommended identification is ABB DCF803-0035, Product ID 3ADT209023R0001. Recording the type designation and product number together helps distinguish the unit from other DCF803 field exciters and related DCS800 components.

Because the DCF803-0035 is part of a drive’s field-excitation circuit, maintenance activities should consider the complete electrical system. Input power, field output, communication connections, protection devices, and motor-field requirements should be reviewed before any intervention. Appropriate electrical isolation and qualified procedures are essential when working with industrial drive equipment.

Conclusion

ABB DCF803-0035 3ADT209023R0001 is an external three-phase field exciter designed for ABB DCS800 industrial DC drive systems. Its documented configuration includes a 3×500 V AC input, 35 A field-current capability, and a half-controlled three-phase converter architecture.

The DCF803-0035 provides a dedicated solution for controlled motor-field excitation and incorporates control functions associated with field-current regulation. Its external architecture and integration with the DCS800 drive system make it an important component in applications where the motor field requires controlled electrical excitation.

For accurate product identification, the complete designation ABB DCF803-0035 3ADT209023R0001 should be retained. When evaluating this product for a DCS800 installation, engineers should consider the AC input configuration, field-current requirement, motor characteristics, field protection, communication architecture, and applicable ABB technical documentation together.
