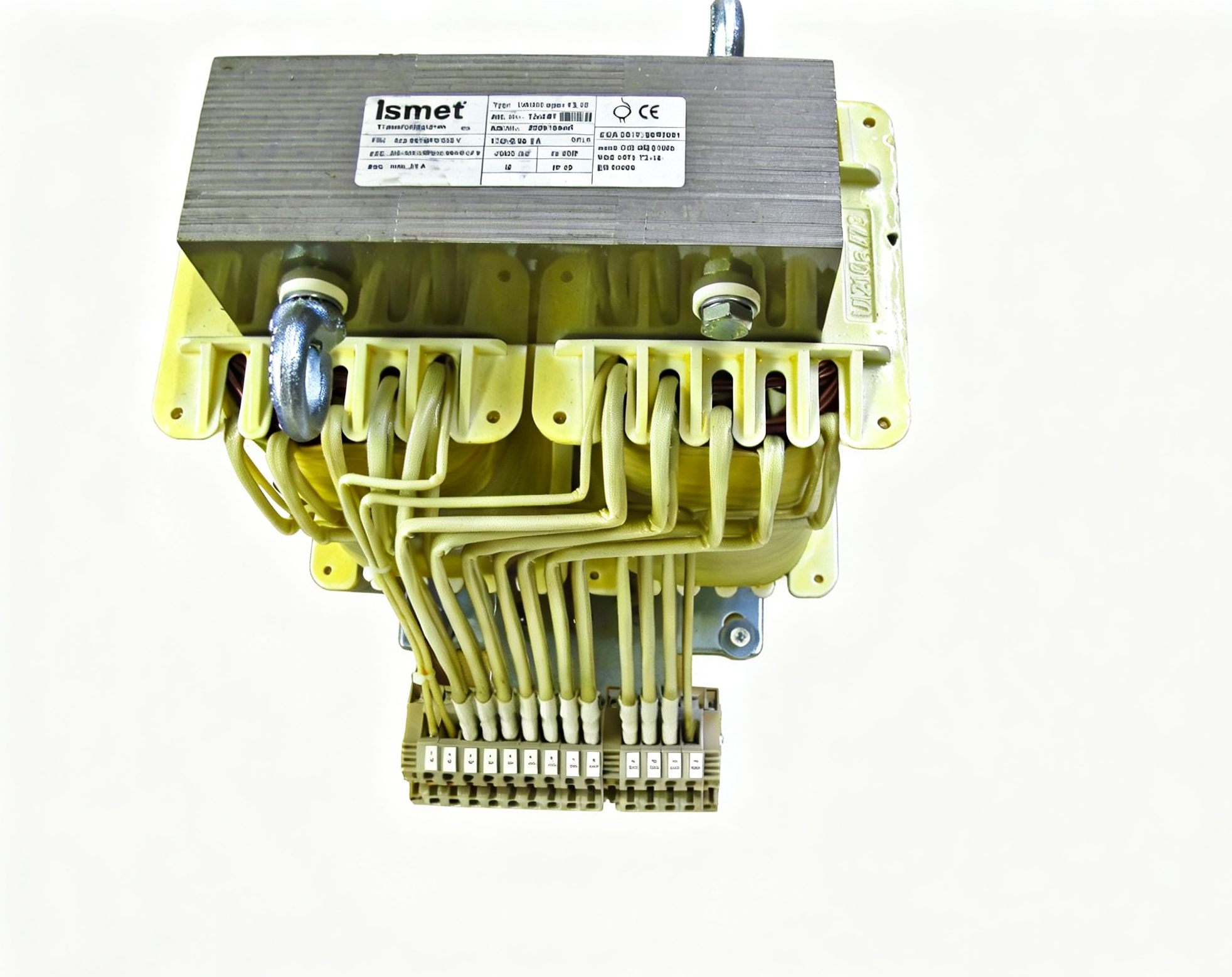

ABB DCA0017190P0001 T3.14 Auto Transformer

ABB DCA0017190P0001 is an ABB T3.14 auto transformer identified in product catalog records for use with 525 V, 575 V, 600 V and 690 V electrical systems. The catalog description associates the component with a rated current of approximately 33 A. The DCA0017190P0001 designation is the specific ABB article number, while T3.14 identifies the transformer type within the associated component series.

An auto transformer is an electrical transformer in which at least part of the winding is common to both the input and output circuits. Compared with a conventional transformer using completely separate primary and secondary windings, this arrangement can provide a compact and electrically efficient method of obtaining the required voltage relationship. In industrial drive equipment, an auto transformer can form part of the input power or voltage-adaptation arrangement surrounding the main power-conversion section.

Product Identification

The complete product reference is ABB DCA0017190P0001. Available catalog records identify this article as T3.14 and specify 525 V, 575 V, 600 V and 690 V voltage applications with a 33 A rating. The same catalog grouping contains other DCA-coded ABB transformers and line reactors, indicating that the DCA designation is used for individual electrical components associated with ABB industrial power equipment. :contentReference[oaicite:1]{index=1}

• Manufacturer: ABB
• Article number: DCA0017190P0001
• Transformer type: T3.14
• Component category: Auto transformer
• Specified voltage applications: 525 V, 575 V, 600 V and 690 V
• Rated current: approximately 33 A
• Primary function: Voltage adaptation within an electrical power system
• Application area: Industrial drive and power conversion equipment

ABB T3.14 Transformer Designation

The T3.14 designation identifies the specific transformer type associated with DCA0017190P0001. Within the same ABB catalog grouping, T3.11, T3.13, T3.14 and T3.15 are listed as different auto transformer types with different current ratings. T3.11 is listed at 7 A, T3.13 at 17 A, T3.14 at 33 A and T3.15 at 57 A for the 525 V, 575 V, 600 V and 690 V voltage group. :contentReference[oaicite:2]{index=2}

This sequence shows why the complete ABB article number is important when identifying the transformer. Although the T3 series designations are similar, the current ratings are different and therefore the components cannot be treated as interchangeable solely because they share the same general transformer family.

Specified Voltage Applications

ABB DCA0017190P0001 is listed for 525 V, 575 V, 600 V and 690 V applications. These voltage values are associated with the T3.14 component in available product catalog records. :contentReference[oaicite:3]{index=3}

The presence of multiple voltage values indicates that the transformer belongs to a configurable electrical system in which different supply voltage arrangements may be accommodated. The actual connection and terminal selection must be determined from the applicable ABB schematic and the transformer nameplate.

Voltage selection should never be based only on the physical appearance of the transformer. The correct terminals and connection arrangement depend on the specific equipment design in which the component is installed.

Rated Current

The T3.14 designation associated with DCA0017190P0001 is specified with a current rating of 33 A. This is an important selection parameter because the transformer must be suitable for the current conditions of the circuit in which it operates. :contentReference[oaicite:4]{index=4}

The current rating should be evaluated together with the applicable voltage, duty cycle, winding arrangement, thermal conditions and electrical protection. A transformer with a similar voltage rating but a different current rating may not provide the required electrical or thermal performance.

For engineering identification, the 33 A value should therefore be retained together with the complete DCA0017190P0001 article number.

Auto Transformer Operating Principle

An auto transformer uses a winding with a common electrical section rather than completely isolated primary and secondary windings. Depending on the connection arrangement, a portion of the winding can serve both input and output circuits.

This arrangement can reduce the amount of copper and magnetic material required for a given voltage transformation compared with a conventional isolated transformer. It can also provide a compact solution where electrical isolation between the two sides is not required by the application.

In industrial drive equipment, this type of transformer can be integrated into the power architecture to provide the voltage relationship required by associated electrical circuits.

Role in Industrial Drive Equipment

DCA0017190P0001 is listed within an ABB component catalog that also includes line reactors, fuses, current transformers, thermal sensors, thyristor modules and other components used in industrial electrical and drive systems. This context indicates that the T3.14 auto transformer is associated with ABB power-conversion equipment rather than being a general-purpose standalone distribution transformer. :contentReference[oaicite:5]{index=5}

Within a drive system, auxiliary transformers and reactors can form important parts of the power interface. Their functions may include voltage adaptation, current control, filtering, power distribution or electrical protection depending on the specific system architecture.

The exact function of T3.14 should therefore be determined from the ABB equipment schematic corresponding to the application in which DCA0017190P0001 is installed.

Electrical Integration

The correct integration of an auto transformer requires attention to the winding connections, input voltage, output voltage, current rating, frequency and insulation requirements. The transformer terminals must be connected according to the specified electrical diagram.

Because an auto transformer does not provide the same galvanic isolation as a transformer with separate primary and secondary windings, its role in the overall electrical architecture must be understood before installation.

The associated drive documentation should be used to determine the exact connection points and electrical function of DCA0017190P0001.

Voltage Compatibility

The 525 V, 575 V, 600 V and 690 V values associated with T3.14 represent an important part of the component identification. These values cover several industrial voltage levels used in high-power electrical and drive applications. :contentReference[oaicite:6]{index=6}

When selecting the transformer for a particular installation, the actual incoming supply and the required downstream voltage must be compared with the transformer’s specified connection arrangement. The nominal voltage alone does not define the complete operating condition.

Frequency and system configuration should also be verified because transformer performance is dependent on the electrical system for which the transformer was designed.

33 A T3.14 Configuration

The 33 A rating distinguishes the T3.14 from other related transformer types in the same ABB catalog group. For example, T3.13 is listed with 17 A and T3.15 with 57 A for the same general voltage group. :contentReference[oaicite:7]{index=7}

This difference is significant when replacing a transformer in an industrial drive. Selecting a component with a different current rating may change the thermal loading and electrical behavior of the circuit.

The complete article number DCA0017190P0001 should therefore be used as the primary identification reference when documenting the component.

Technical Specification Table

The voltage and current information in the table is based on available product catalog records identifying DCA0017190P0001 as T3.14, 525 V / 575 V / 600 V / 690 V and 33 A. Exact winding ratio, terminal arrangement and mechanical dimensions should be verified from the individual transformer documentation. :contentReference[oaicite:8]{index=8}

Relationship with Other DCA Components

The DCA component series includes a broad range of electrical parts used in ABB power equipment. The same catalog section identifies line reactors such as ND05, ND08, ND09, ND10 and ND16, transformers, fuses, current transformers, thyristor modules, thermal sensors and other drive-related components. :contentReference[oaicite:9]{index=9}

This component structure is useful when analyzing ABB drive assemblies because the transformer is only one element of a larger power system. Other components may perform rectification, switching, filtering, current measurement, thermal monitoring or circuit protection.

The T3.14 transformer should therefore be evaluated as part of the complete equipment architecture rather than as an isolated component.

Installation Considerations

Installation of DCA0017190P0001 should follow the electrical and mechanical requirements of the ABB equipment in which it is used. The transformer must be mounted securely and connected to the correct terminals according to the applicable wiring diagram.

Adequate ventilation and clearance should be considered because transformer losses produce heat during operation. The surrounding equipment should not obstruct the cooling path or expose the transformer to conditions outside its specified operating environment.

Cable sizing, terminal tightening, protective devices and grounding arrangements should be selected according to the complete electrical design.

Thermal Considerations

Transformer temperature is influenced by current loading, voltage, frequency, ambient temperature, ventilation and installation conditions. The 33 A rating associated with T3.14 provides an important reference for determining the permissible electrical loading.

Continuous operation near the rated current can produce significant heat, especially where ventilation is restricted. Thermal management is therefore an important part of maintaining stable operation within an industrial drive enclosure.

The transformer should not be operated outside the limits specified for the complete equipment.

Maintenance and Inspection

Maintenance of an ABB T3.14 transformer should include inspection of the mounting arrangement, electrical terminals, wiring, insulation condition and surrounding components. Signs of overheating, discoloration, loose connections, damaged insulation or unusual noise should be investigated.

The electrical connections should be checked against the applicable drive schematic before any maintenance activity. Because an auto transformer can have several electrically connected winding sections, incorrect terminal identification can result in an unsuitable voltage being applied to the connected circuit.

Where abnormal transformer behavior is observed, the associated drive circuit should also be inspected because faults elsewhere in the power system can affect transformer loading.

Application Selection

The selection of DCA0017190P0001 should be based on the exact requirements of the associated ABB drive or power-conversion system. The most important identification parameters include the T3.14 designation, 33 A current rating, applicable voltage group and complete article number.

It is particularly important to distinguish DCA0017190P0001 from related ABB T3 transformer types. T3.13 and T3.15 have different current ratings, even though they belong to the same general voltage group. :contentReference[oaicite:10]{index=10}

For this reason, the full article number should be used in procurement records, technical drawings, maintenance documentation and equipment databases.

Technical Documentation

The available catalog information identifies DCA0017190P0001 as an ABB T3.14 auto transformer with 525 V, 575 V, 600 V and 690 V voltage applications and 33 A current rating. :contentReference[oaicite:11]{index=11}

When additional technical information is required, the most reliable source is the documentation corresponding to the complete ABB drive model and the transformer nameplate. This is particularly important for determining the exact winding ratio, terminal configuration, insulation class, physical dimensions and installation arrangement.

The article number should remain unchanged in technical records because it provides the most precise identification of the component.

Industrial Power Conversion Applications

ABB industrial drive systems contain multiple power components that work together to control electrical energy supplied to motors and other industrial loads. Transformers can provide a defined voltage interface within these systems, while reactors, semiconductor modules, fuses and current transformers perform complementary electrical functions.

DCA0017190P0001 fits into this broader component architecture as the T3.14 auto transformer. Its specified 33 A rating and 525–690 V application group make it relevant to high-voltage industrial drive equipment where an appropriate voltage relationship is required.

The exact function within a particular drive should always be confirmed from the corresponding system schematic.

Product Identification for Replacement

When identifying ABB DCA0017190P0001 for maintenance or replacement purposes, the article number should be checked character by character. The reference includes the DCA prefix, numerical identifier, P0001 suffix and the corresponding T3.14 designation.

The voltage and current information should also be compared with the existing component. A component that appears mechanically similar may have a different electrical rating or winding configuration.

For accurate technical identification, the transformer nameplate, ABB article number, associated drive model and electrical schematic should be considered together.

Conclusion

ABB DCA0017190P0001 is identified as the T3.14 auto transformer. Available ABB component catalog records specify the T3.14 for 525 V, 575 V, 600 V and 690 V applications with a rated current of approximately 33 A. :contentReference[oaicite:12]{index=12}

The component belongs to a group of ABB electrical parts used in industrial drive and power-conversion equipment. Its auto transformer construction provides a voltage-adaptation function through a common winding arrangement, making it distinct from separate-winding isolation transformers.

For engineering applications, the complete DCA0017190P0001 article number should be retained together with the T3.14 designation. The applicable voltage, 33 A current rating, winding ratio, terminal arrangement and installation requirements should be confirmed against the equipment documentation before the component is integrated into an electrical system.
