Product Overview

The ABB CTB810 serves as a communication terminal board in an industrial automation control system. Its designated application is associated with the HPC800 controller architecture, where communication hardware and module mounting components work together to support the required system connections.

In a distributed control system, communication components help establish connections between controllers, communication buses, and other compatible automation equipment. The terminal board provides the specified connection arrangement for HN800 and CW800 communications. Its role is distinct from that of a processor module, which performs control or communication processing functions.

The CTB810 is identified as the left-side communication terminal board. The corresponding CTB811 is the right-side version. These designations are important when planning a system layout, selecting a replacement, or confirming the location of a component in an existing cabinet.

As part of a larger control-system assembly, the CTB810 should be selected according to the intended hardware configuration. The product model, mounting position, and required communication connections should all be checked before installation.

Communication and Connection Functions

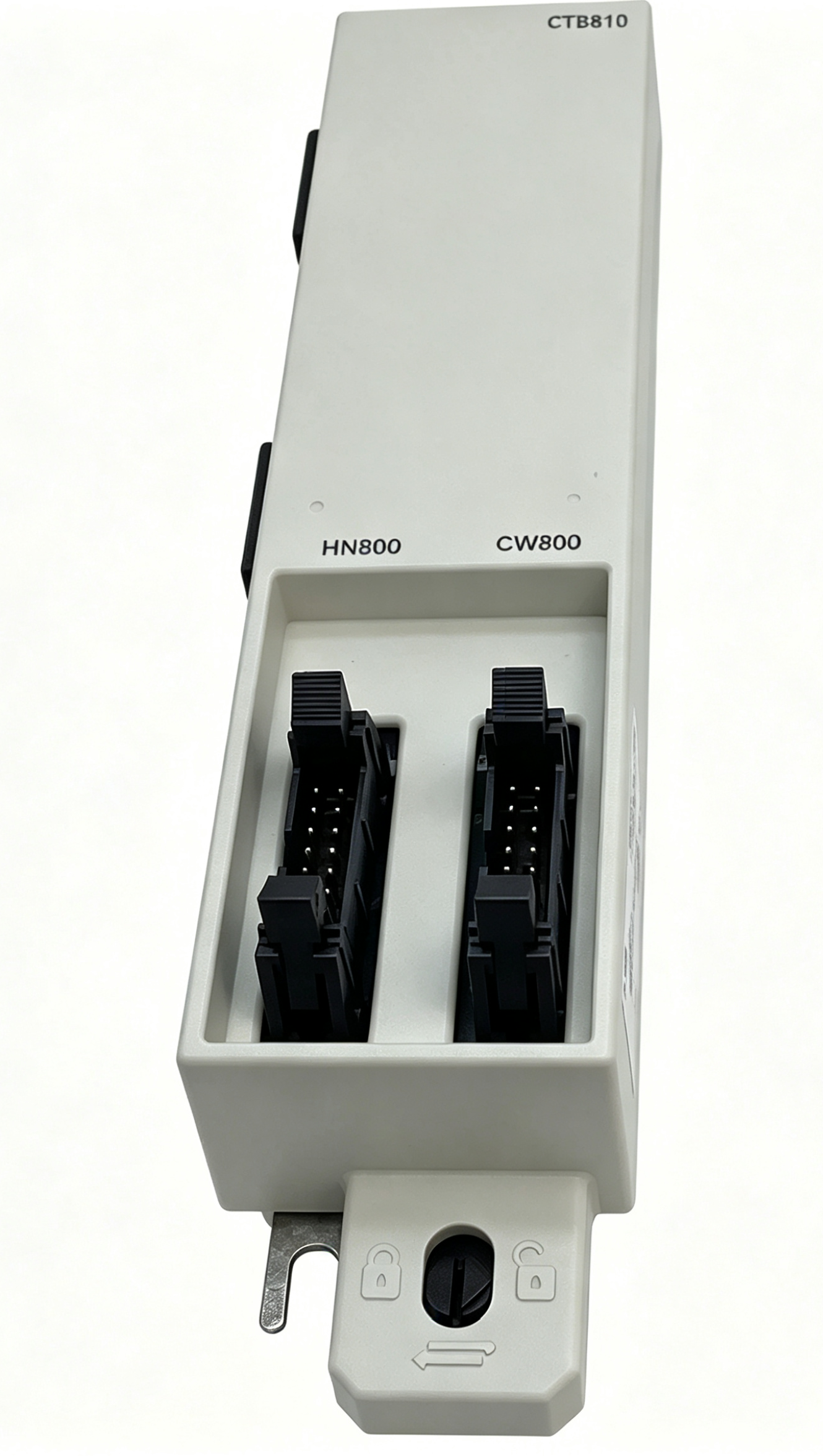

The CTB810 provides connections for HN800 and CW800 communications within the supported HPC800 arrangement. These communication systems serve different purposes within the wider control architecture, so their connections must follow the applicable ABB engineering documentation.

HN800 is associated with communication between the controller platform and supported I/O arrangements. CW800 is used for communication between compatible controllers. The terminal board provides the designated physical connection points for these communication systems; it should not be regarded as an independent controller or a general-purpose network switch.

The actual communication capabilities available in an installation depend on the controller modules, connected devices, system configuration, and applicable hardware and software revisions. Users should consult the documentation for the complete installation when determining supported connections, bus arrangements, and configuration requirements.

When diagnosing communication problems, inspect the complete communication path rather than treating the terminal board as the only possible cause. Connections, compatible modules, bus configuration, and other components can all affect system communication.

Installation Position and System Compatibility

The ABB CTB810 is designed to connect to the left side of the MB810 module base used in the HPC800 controller arrangement. The MB810 provides the mounting base for the relevant controller and communication processor modules. The terminal board therefore needs to be considered as part of the complete mounting and communication assembly.

Before installation, confirm the model identification and verify that the required left-side position is correct for the system layout. Do not substitute the CTB811 solely because it belongs to the same product family; CTB811 is identified as the right-side communication terminal board.

Check the hardware documentation for mounting instructions, mechanical alignment, connection details, and any system-specific restrictions. The board should be installed only in the configuration for which it is specified. A similar appearance or a related product number does not establish interchangeability.

For replacement work, compare the existing component label with the replacement identification. Confirm that the intended connections and mounting position match the original system design. Where the control system has a documented bill of materials or approved hardware configuration, use it as the reference for component selection.

Relationship with HPC800 and Symphony Plus

The HPC800 is part of ABB Symphony Plus automation technology and combines controller and communication hardware to support industrial control applications. Within this architecture, individual modules and accessories have specific responsibilities. The CTB810 provides the left-side communication terminal board function, while other components perform control processing, communication processing, mounting, or bus termination.

For example, the HC800 is the Harmony control processor, and the CP800 is the communication processor associated with communication between HC800 and the PN800 plant network. The MB810 is the module mounting base. The CTB810 and CTB811 provide the left- and right-side communication terminal board arrangements respectively.

Understanding these differences is important during procurement and maintenance. The CTB810 should not be described as a substitute for the HC800 or CP800 because these components perform different functions. Each component must match the intended role within the control-system architecture.

When assessing an older installation, verify the complete set of hardware components and their relationships using the applicable ABB documentation. This helps prevent the selection of a component that fits physically but does not provide the required system connections.

Installation and Handling Considerations

Installation and maintenance should be performed by personnel familiar with the control platform and the site’s electrical safety procedures. Before handling the terminal board, identify the correct isolation procedure and follow the manufacturer’s requirements for accessing the equipment.

• Confirm the product: Check that the component is identified as ABB CTB810.
• Verify mounting position: Confirm that the required location is the left side of the MB810 module base.
• Check system configuration: Ensure that the intended HPC800 arrangement supports the board and its connections.
• Inspect connections: Examine the relevant connectors and adjacent components for visible damage or contamination.
• Follow handling procedures: Apply appropriate electrostatic-discharge precautions when required by the hardware documentation.
• Verify the completed installation: Follow the approved system procedure to confirm that the associated communication arrangement operates as intended.

Do not assume that the board can be inserted or removed while the system is energized. Any live replacement procedure must be explicitly permitted by the manufacturer’s documentation for the specific hardware configuration.

Inspection and Troubleshooting

If communication problems occur after installation or maintenance, begin by checking the hardware configuration and the affected communication path. Confirm that the CTB810 is installed in the correct position and that the connected components correspond to the approved system design.

Inspect accessible connectors and wiring according to the applicable maintenance procedure. Look for loose connections, visible physical damage, or signs of contamination. Avoid applying unapproved cleaning agents or making modifications to the board.

If a communication issue remains, review system diagnostics and the relevant controller documentation. Check the associated communication modules, bus arrangement, and configuration settings. Troubleshooting should follow a documented sequence so that changes can be traced and the original configuration can be restored when necessary.

A terminal board fault should not be assumed solely because a connected device is unavailable. The cause may be elsewhere in the communication path, including a connected module, cabling, configuration, or another system component. Confirm the fault using the procedures and diagnostic information available for the installed platform.

Replacement and Procurement Guidance

When sourcing an ABB CTB810, verify the product identification and its intended application in the HPC800 control platform. The most important checks include the left-side mounting designation, compatibility with the MB810 module base, and the required HN800 and CW800 communication connections.

If replacing an installed unit, record any additional identification information available on the label and compare it with the existing hardware documentation. Confirm whether the system requires any particular commissioning checks after the component is replaced.

Do not select a substitute based only on the product family or external appearance. CTB810 and CTB811 have different designated mounting positions, while processor modules and terminal boards have different functions. Compatibility should be established through the applicable documentation rather than assumed.

Technical Information

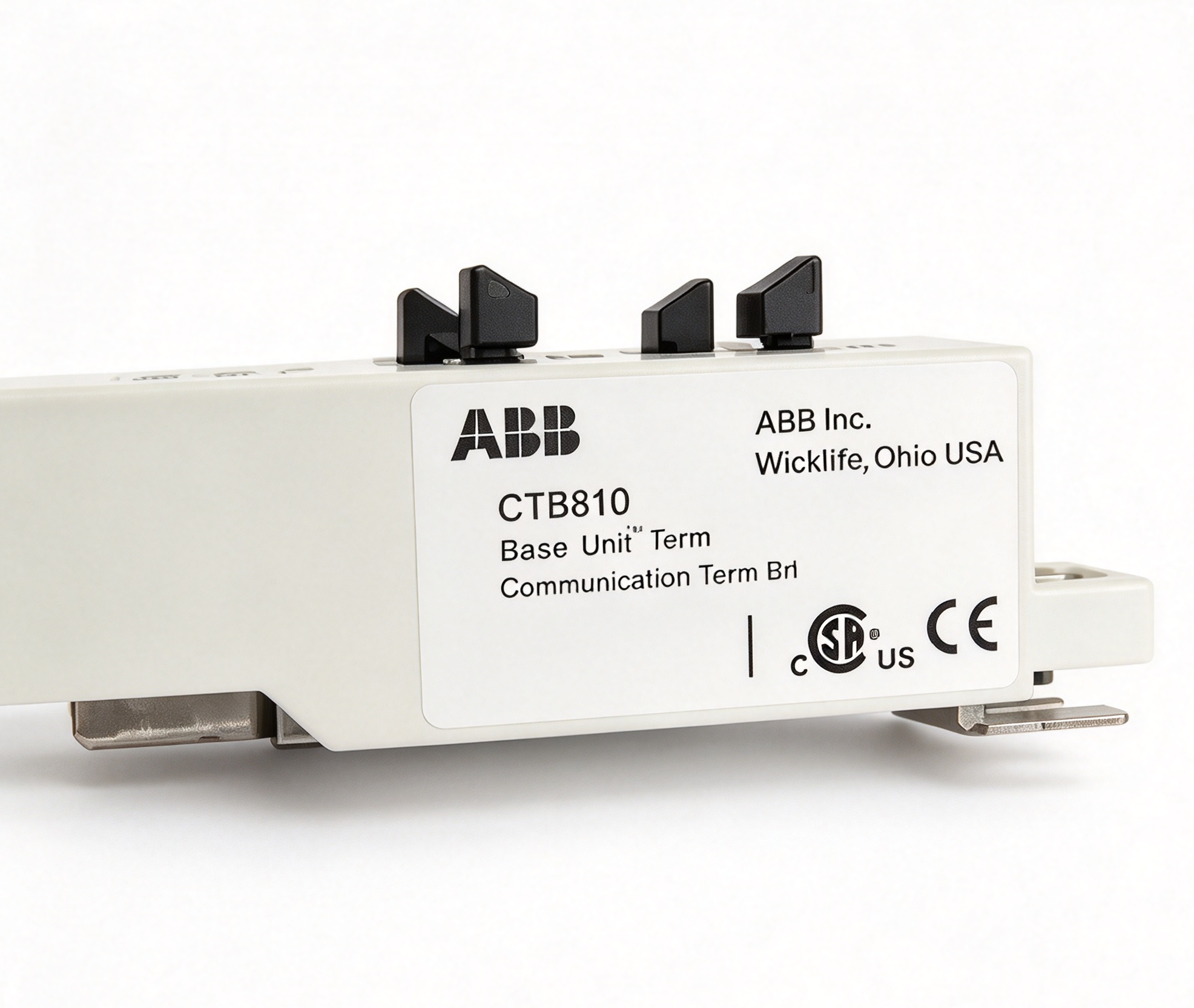

The documented product designation is ABB CTB810, with the catalog description HPC800 Communication Terminal Board, Left Side. The board connects to the left side of the MB810 module base and provides connections for HN800 and CW800 communications.

Detailed electrical characteristics, connector assignments, dimensions, environmental limits, and installation procedures should be obtained from the applicable ABB product documentation. These parameters should not be inferred from the model designation or from specifications for related components.

Conclusion

The ABB CTB810 Communication Terminal Board is a dedicated accessory for the HPC800 automation control platform. Its principal documented role is to provide the left-side terminal board arrangement for HN800 and CW800 communications when installed with the MB810 module base.

Correct application depends on selecting the appropriate board, confirming the mounting position, and following the system’s hardware documentation. Verifying these details helps support accurate maintenance, replacement planning, and integration within an ABB Symphony Plus control system.
