ABB CM15 ControlMaster 1/8 DIN Universal Process Indicator with TFT Color Display and Flexible Process Monitoring

The CM15 can be configured through its front-panel menus and configuration software. Depending on the selected hardware and configuration, the instrument can support process indication, totalization, level calculations, mathematics, logic, counting and alarm functions. ABB also provides Modbus and Ethernet communication options for integration with supervisory and control systems. :contentReference[oaicite:1]{index=1}

Product Identification

• Manufacturer: ABB
• Product: ControlMaster CM15
• Product Type: Universal Process Indicator
• Mounting Format: 1/8 DIN
• Display Type: Full-Color TFT
• Installation Type: Panel Mount
• Application: Industrial Process Measurement and Monitoring
• Process Functions: Indication, Totalization, Level, Mathematics, Logic, Counter and Alarms
• Communication Options: Modbus and Ethernet
• Configuration: Front-Panel Menus and ConfigPilot Software

ABB ControlMaster CM15 Overview

ABB CM15 belongs to the ControlMaster family of process indicators and controllers. Within this product family, the CM15 is specifically designed as a compact universal process indicator in a 1/8 DIN panel-mount format.

Its primary purpose is to provide operators with a clear representation of process information while also offering calculation, alarm and process-management functions that extend beyond basic numerical indication.

ABB describes the CM15 as a feature-rich 1/8 DIN universal process indicator with a clear full-color TFT display. :contentReference[oaicite:2]{index=2}

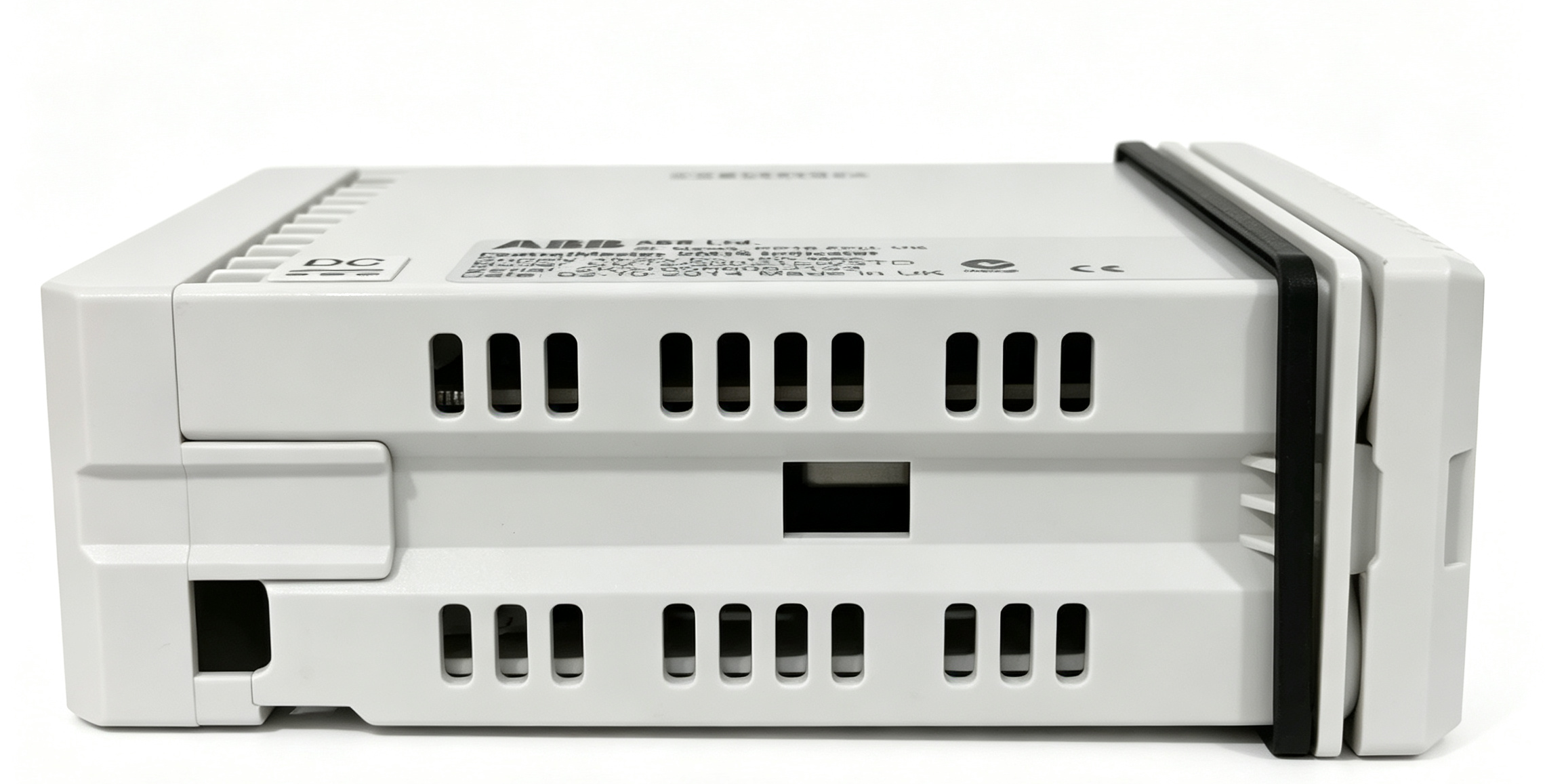

1/8 DIN Panel-Mount Format

The 1/8 DIN format makes the ABB CM15 suitable for compact control panels and instrumentation cabinets where available panel space is limited.

The panel-mount design allows the indicator to be installed directly into an appropriately prepared instrument panel. This makes it suitable for applications where operators need local access to process measurements and operating information.

The compact format is particularly useful when several process indicators, controllers or other instrumentation devices need to be arranged within the same control panel.

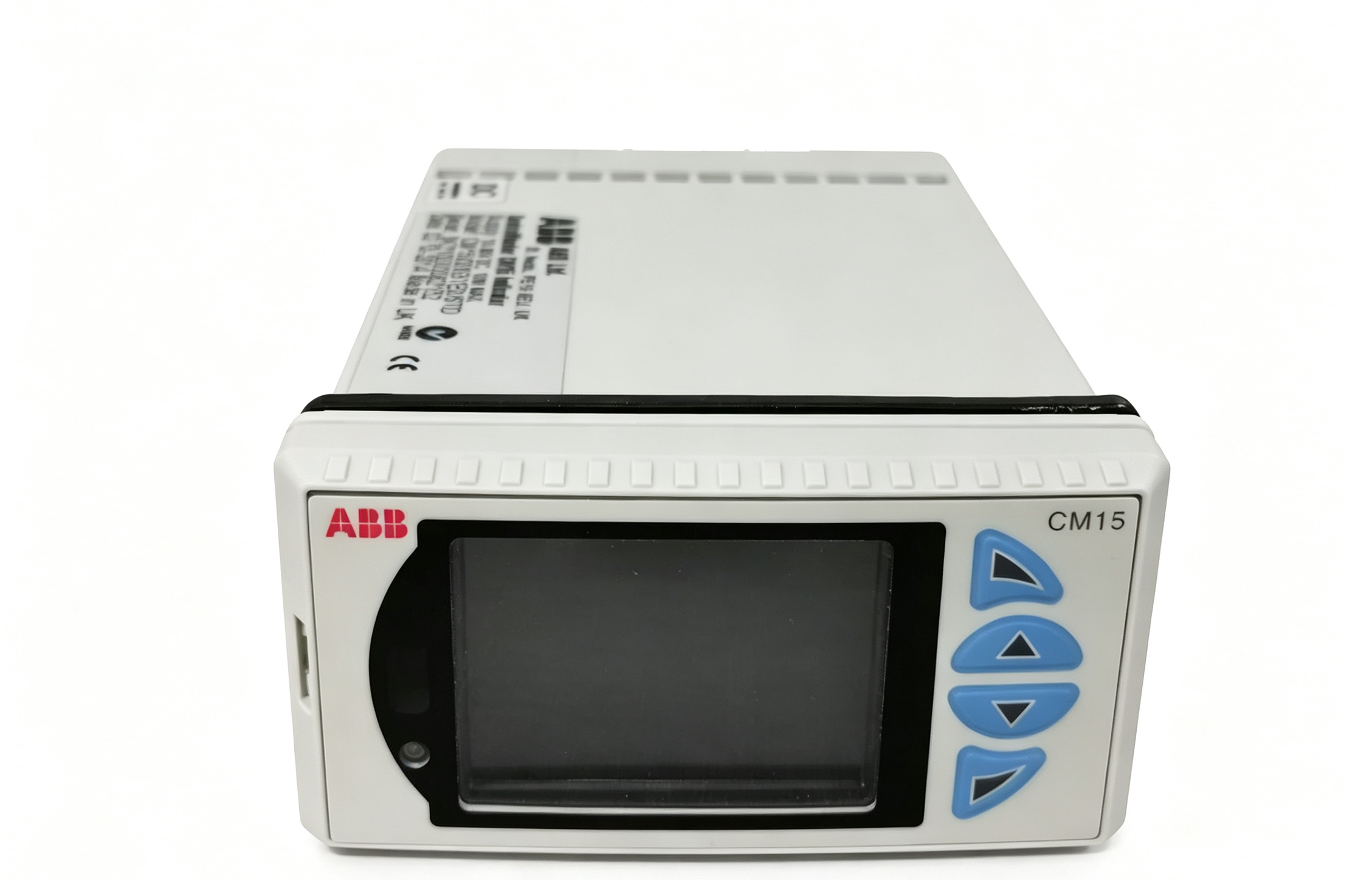

Full-Color TFT Display

One of the most visible characteristics of the ABB CM15 is its full-color TFT display. The display is designed to provide operators with clear process information and intuitive navigation through the instrument menus.

The color interface can present process values, status information, alarms and other configured operating information in an organized format.

ABB documentation describes the CM15 display as a crystal-clear, full-color TFT display and emphasizes the use of clear text prompts for installation, commissioning and operation. :contentReference[oaicite:3]{index=3}

Dual Process Value Display

The CM15 supports display configurations that allow two process values to be shown simultaneously. This feature can be useful when operators need to compare related measurements without changing between separate display pages.

For example, an application can be configured to display two related process variables or a process value together with another calculated or monitored parameter.

The exact information shown depends on the selected configuration and installed hardware.

Universal Process Measurement

The ABB CM15 is designed as a universal process indicator rather than a device limited to one specific type of measurement.

Its configurable architecture allows the instrument to be adapted to different process-monitoring requirements. ABB identifies the CM15 as a universal process indicator and provides configurable input and output functionality for different industrial applications. :contentReference[oaicite:4]{index=4}

This flexibility allows the same basic instrument platform to be used in different process environments while adapting the configuration to the actual measurement requirements.

Input and Output Capability

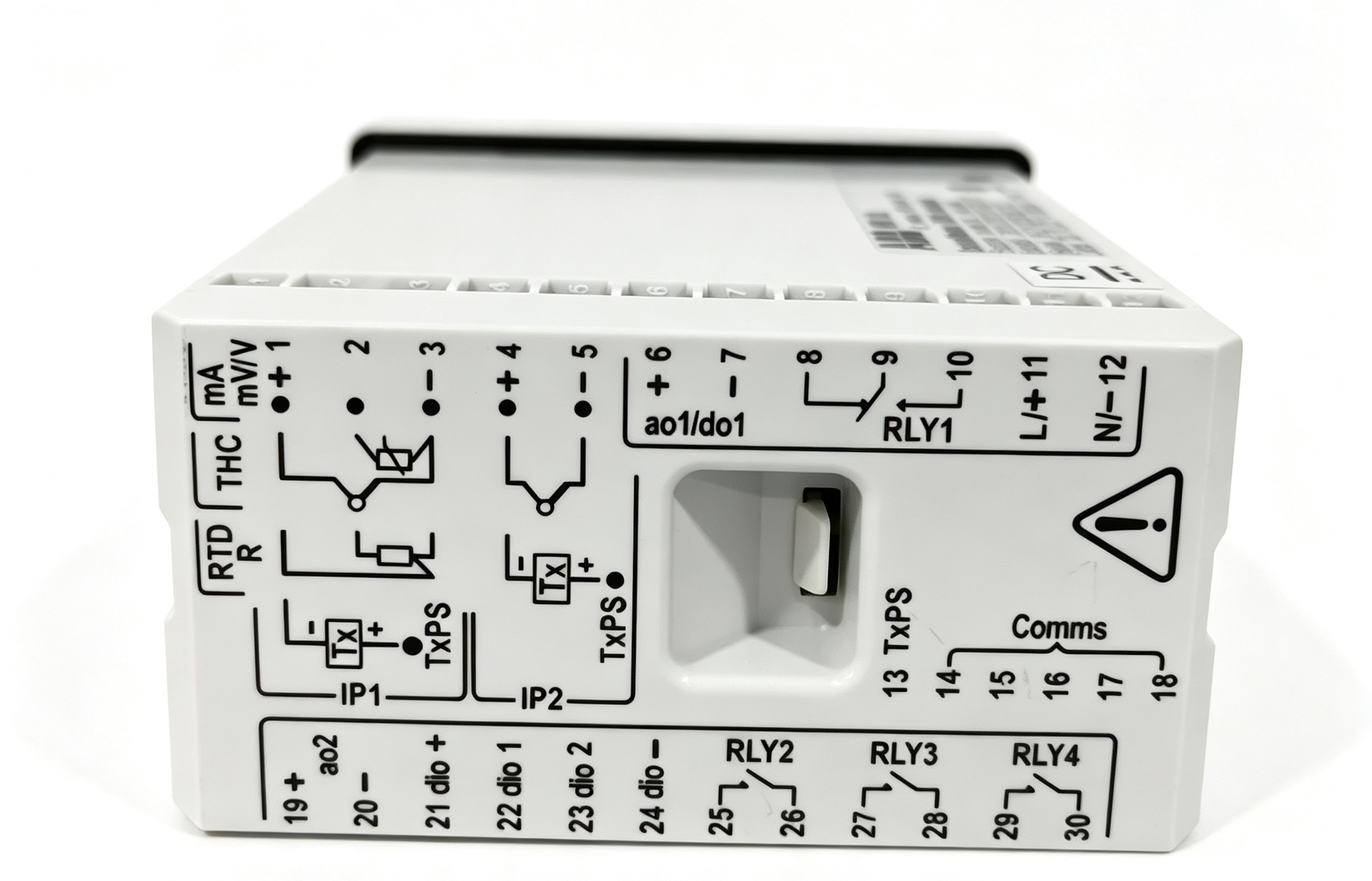

ABB information identifies the CM15 with standard input and output capability that includes two universal inputs, one analog output and one relay. Additional I/O functionality can be provided through the scalable hardware architecture and available modules. :contentReference[oaicite:5]{index=5}

The combination of universal inputs and configurable outputs allows the CM15 to perform more than simple display functions. It can participate in process monitoring and alarm-related tasks where the installed configuration supports the required functions.

Totalization Function

The ABB CM15 includes totalization functionality for applications where accumulated process quantities need to be calculated and displayed.

Totalization is particularly relevant to flow-monitoring applications. A process flow signal can be accumulated over time to provide a total quantity rather than only displaying the instantaneous flow value.

ABB specifically lists totalization as one of the CM15’s available functions. :contentReference[oaicite:6]{index=6}

Level Measurement Functions

The CM15 also provides level-related functions. This allows the instrument to be incorporated into suitable applications where level information needs to be calculated, displayed or monitored.

Level functionality can be combined with alarms, mathematical calculations and other process parameters depending on the configuration.

Mathematics and Logic Functions

The ABB CM15 provides mathematical and logic functions that allow process information to be manipulated within the instrument.

Mathematical functions can be used for calculations involving measured process variables, while logic functions can support application-specific decision-making and signal processing.

These capabilities make the CM15 more flexible than a basic numerical process display.

Counter Function

The CM15 includes counter functionality for applications requiring event or pulse counting.

Counter functions can be useful in applications involving production events, process cycles, pulse signals or accumulated quantities.

The exact counter behavior depends on the configured inputs and application template.

Alarm Functions

Alarm functionality is an important part of the ABB CM15 architecture. The instrument can monitor process conditions and provide configured alarm indications when specified conditions are reached.

ABB documentation identifies multiple process alarm functions within the CM15 configuration menus. The commissioning documentation includes configurable alarm parameters such as alarm trips and alarm-related settings. :contentReference[oaicite:7]{index=7}

Alarm functionality allows the instrument to serve not only as a local display but also as an active process-monitoring component.

Configurable Operator Interface

The CM15 uses a menu-driven operator interface designed to simplify configuration and daily operation.

The instrument provides configurable display pages, titles, parameters and operator functions. ABB commissioning documentation identifies configurable items including page templates, title-bar tags, parameters, icons and display settings. :contentReference[oaicite:8]{index=8}

This allows the operator interface to be adapted to the information that is most important for a particular process.

ConfigPilot Configuration Software

ABB provides ConfigPilot configuration software for ControlMaster products including the CM15. The software can be used to create, modify, back up and transfer instrument configurations.

ABB documentation describes ConfigPilot as a PC-based utility for configuring ControlMaster indicators and controllers. Configuration transfer can be performed using the appropriate communication interface and compatible IrDA hardware. :contentReference[oaicite:9]{index=9}

This provides an alternative to configuring every parameter manually from the instrument’s front panel.

Modbus Communication

The ABB CM15 can be equipped with a Modbus communication option. This allows process information and selected instrument data to be exchanged with compatible supervisory or control systems.

Modbus communication can be useful when the CM15 is integrated into a larger automation architecture in which process measurements need to be accessed by another control or monitoring device.

ABB identifies Modbus as one of the available communication options for the CM15. :contentReference[oaicite:10]{index=10}

Ethernet Connectivity

Depending on the selected configuration, the CM15 can also support Ethernet communication.

Ethernet connectivity provides a convenient way to integrate the indicator into modern plant networks and supervisory systems.

The availability of communication functions depends on the specific hardware and configuration of the instrument.

Local Process Monitoring

The ABB CM15 is well suited to applications where process information must be visible directly at the equipment or control panel.

The full-color display provides a local operator interface, while the configurable functions allow the instrument to display process variables, accumulated quantities, alarms and calculated values.

This makes the CM15 suitable for process stations where operators need both measurement visibility and basic process-information management.

Flow Measurement Applications

Flow measurement is one of the important application areas for the CM15.

ABB identifies direct connection to electromagnetic flowmeters as one of the possible application capabilities, allowing a frequency signal to be totalized and displayed. :contentReference[oaicite:11]{index=11}

This makes the CM15 suitable for applications where instantaneous flow and accumulated flow information need to be presented to operators.

Process Monitoring Applications

The ABB CM15 can be incorporated into a wide range of process monitoring applications involving measurement, calculation and alarm management.

Potential applications include flow monitoring, level indication, production monitoring, utility measurement and other industrial process applications where a compact universal indicator is required.

The actual application suitability depends on the selected input, output and communication configuration.

Industrial Control Panel Integration

The 1/8 DIN panel format allows ABB CM15 to be integrated into industrial control panels alongside PLCs, process controllers, signal conditioners, measurement equipment and other instrumentation.

The instrument can provide a dedicated local display for process information while communication options can connect the indicator with higher-level monitoring systems.

This combination of local visualization and communication capability makes the CM15 useful in distributed instrumentation architectures.

Environmental Protection

ABB product information identifies the CM15 with IP66 and NEMA 4X protection for suitable measurement and local display applications. :contentReference[oaicite:12]{index=12}

The enclosure protection characteristics are relevant when the instrument is installed in environments where protection against dust and water exposure is required.

The complete installation should still be designed according to the environmental conditions of the application.

Scalable Hardware and Software

A significant characteristic of the ABB CM15 is its scalable hardware and software architecture.

The basic indicator can be configured for straightforward process display applications, while additional functionality can be selected when more advanced process monitoring is required.

ABB describes the CM15 as having scalable hardware and software designed to meet requirements ranging from straightforward process indication to more complex applications. :contentReference[oaicite:13]{index=13}

Application Templates

The CM15 uses application templates to simplify configuration for different process requirements.

The instrument configuration menus include application-template selection, instrument tags, mains frequency settings, configuration actions and custom configuration options. :contentReference[oaicite:14]{index=14}

Application templates can help reduce configuration time by providing a structured starting point for the required process-monitoring setup.

Display Customization

The CM15 provides customizable operator pages. Parameters such as page number, template type, title-bar tag and displayed parameters can be configured.

This allows the displayed information to be arranged according to the requirements of the process operator rather than relying on a fixed display format.

ABB documentation specifically identifies display customization options within the CM15 configuration menus. :contentReference[oaicite:15]{index=15}

Process Alarm Monitoring

The alarm functions of ABB CM15 allow process conditions to be monitored against configured alarm thresholds.

The instrument configuration includes multiple alarm-trip parameters. This architecture supports applications where several process conditions must be monitored simultaneously.

Alarm acknowledgement and operator alarm functions are also available within the configuration structure. :contentReference[oaicite:16]{index=16}

Data and Process Information

The CM15 can combine measured process values with calculated information such as totals, levels, counters and mathematical results.

This provides operators with a broader picture of the process without necessarily requiring a separate calculation device for every individual value.

The exact available functions depend on the configured application and installed hardware.

Technical Specification Summary

Product Identification and Inventory

For inventory management and technical cataloguing, the recommended product description is:

ABB CM15 ControlMaster 1/8 DIN Universal Process Indicator

Additional searchable descriptions can include ABB ControlMaster CM15, ABB CM15 Process Indicator, ABB 1/8 DIN Universal Process Indicator, ABB CM15 TFT Indicator, ABB CM15 Modbus Indicator and ABB CM15 Ethernet Process Indicator.

CM15 Configuration and Maintenance

The CM15 can be configured from its front-panel interface or through ABB’s ConfigPilot configuration software. This provides flexibility when commissioning the instrument or maintaining an existing installation.

Configuration backup and transfer functions are particularly useful when an instrument needs to be replaced or when the same configuration must be applied across multiple compatible ControlMaster devices. ABB documentation provides procedures for creating, uploading, downloading and backing up ControlMaster configurations. :contentReference[oaicite:17]{index=17}

Application in Industrial Automation

Although the CM15 is primarily a process indicator, its combination of process inputs, outputs, calculations, alarms and communication options allows it to participate in broader industrial automation systems.

It can provide operators with local process information while transferring selected data to supervisory systems through supported communication interfaces.

This makes the ABB CM15 a practical instrumentation component for systems that require both local indication and integration with plant-level monitoring.

Technical Application Summary

The ABB CM15 is a 1/8 DIN ControlMaster universal process indicator intended for industrial measurement and process monitoring. Its full-color TFT display provides a clear operator interface, while its configurable architecture supports process values, totalization, level functions, mathematics, logic, counters and alarms.

The standard configuration includes two universal inputs, one analog output and one relay, while the scalable platform allows additional functionality depending on the selected configuration. Modbus and Ethernet communication options can also be used for integration with supervisory and control systems. :contentReference[oaicite:18]{index=18}

The CM15 can therefore be used as a local process display, a calculation and totalization instrument, an alarm-monitoring device or as part of a larger industrial measurement and automation system.

Conclusion

The ABB CM15 ControlMaster is a compact and flexible 1/8 DIN universal process indicator designed for industrial process measurement and monitoring. Its full-color TFT display, configurable operator interface and broad process-function capabilities allow it to handle a wide variety of instrumentation requirements.

With functions including totalization, level processing, mathematics, logic, counting and alarms, together with optional Modbus and Ethernet connectivity, the CM15 can be integrated into both standalone instrumentation panels and larger industrial automation systems. ABB identifies IP66 and NEMA 4X protection for appropriate measurement and local-display applications. :contentReference[oaicite:19]{index=19}

The recommended technical product name is ABB CM15 ControlMaster 1/8 DIN Universal Process Indicator. For product identification, inventory management and technical documentation, the model designation CM15 should be retained together with the ControlMaster product family name.
