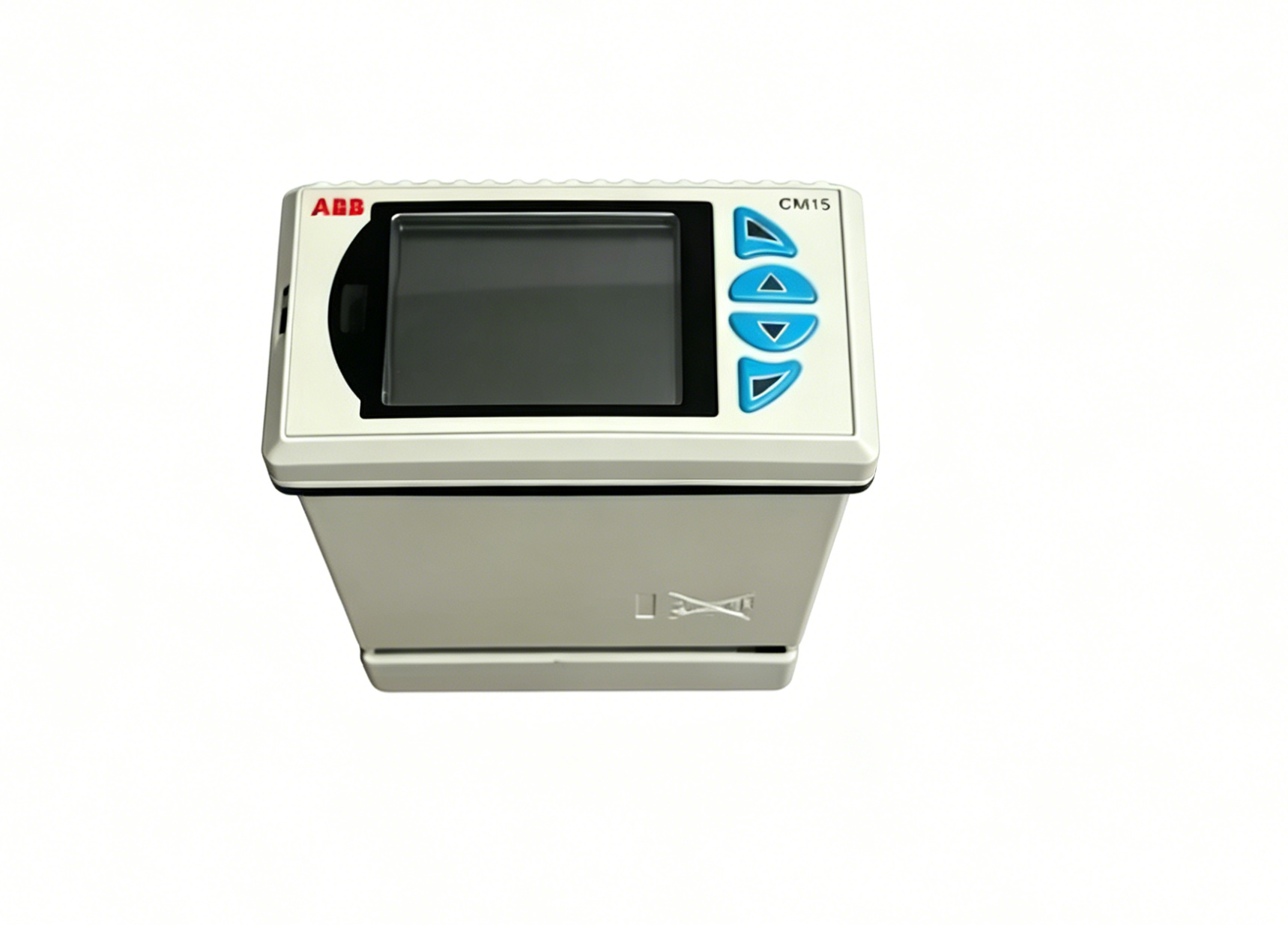

ABB CM15/.0.S.E.S.0.E.0./STD ControlMaster CM15 Universal Process Indicator

The ABB CM15/.0.S.E.S.0.E.0./STD, part of the ControlMaster CM15 series, is an advanced universal process indicator designed for industrial automation and process control applications. It is engineered to monitor, display, and regulate industrial process variables such as temperature, pressure, flow, and level, making it a key component in modern control systems.

In industrial environments, accurate process monitoring and control are essential for maintaining system stability, optimizing production efficiency, and ensuring operational safety. The ABB CM15 provides a flexible platform that integrates measurement, control, and communication functions into a single compact device, reducing system complexity while improving performance.

System Overview

The ABB ControlMaster CM15 operates as a universal process indicator capable of handling multiple input types including analog voltage, current signals, and temperature sensors such as thermocouples and RTDs. It features a modular architecture that allows configuration based on application requirements.

Depending on configuration, the CM15 can include up to two analog inputs, one analog output, and two relay outputs. This flexibility allows it to be used both as a monitoring device and a control instrument in industrial systems.

The device is equipped with a high-resolution TFT display that provides real-time process visualization, enabling operators to easily monitor system performance and make adjustments when necessary.

Key Functional Features

• Universal process indicator with multi-signal input support.
• Supports analog voltage and current measurement signals.
• Compatible with thermocouples and RTD temperature sensors.
• Integrated PID control functionality for process regulation.
• Relay and analog output configuration options.
• High-resolution TFT display for process visualization.
• Alarm management and event monitoring system.
• Data logging and totalization functions.
• Modbus and Ethernet communication options (depending on configuration).
• Modular I/O architecture for flexible system design.

Process Control Functionality

The ABB CM15 is designed to perform advanced process control functions beyond simple signal monitoring. Its built-in PID control algorithm enables automatic regulation of industrial processes by continuously adjusting output signals based on real-time input measurements.

This allows the device to maintain stable process conditions such as temperature, pressure, and flow rate without manual intervention. The control system reduces fluctuations and improves overall system efficiency.

In addition to PID control, the CM15 supports mathematical and logic functions, allowing engineers to implement customized control strategies within the device itself.

Input and Output Capabilities

The CM15 supports multiple input types including analog voltage (mV to 10V), current signals (0–20 mA or 4–20 mA), and temperature inputs from thermocouples and RTDs. This makes it suitable for a wide range of industrial measurement applications.

Output options include analog outputs for control signals and relay outputs for switching external devices such as alarms, pumps, heaters, or valves. This dual functionality allows CM15 to act as both a controller and an indicator.

Industrial Applications

The ABB CM15 process indicator is widely used in industrial automation systems including:

• Manufacturing process monitoring and control systems.
• Chemical and petrochemical processing plants.
• Power generation and energy distribution systems.
• Water and wastewater treatment facilities.
• HVAC system monitoring and regulation.
• Food and beverage production processes.
• Pharmaceutical manufacturing environments.
• General industrial automation and control panels.

In these environments, accurate measurement and control of process variables are critical for maintaining product quality, reducing energy consumption, and ensuring safe operation.

Communication and Integration

The ABB CM15 supports industrial communication protocols such as Modbus and Ethernet depending on configuration. These communication options enable integration with PLC, SCADA, and distributed control systems (DCS).

Through network integration, process data can be monitored remotely, enabling centralized control and data analysis across entire industrial plants.

Display and User Interface

The device features a high-resolution TFT display that presents process data in a clear and intuitive format. Operators can view real-time measurements, alarms, and system status directly from the front panel.

The user interface is designed for simplicity and ease of operation, allowing quick configuration and parameter adjustments without requiring advanced programming knowledge.

Performance and Reliability

The ABB CM15 is built for industrial-grade reliability, with robust construction suitable for continuous operation in demanding environments. It is designed to operate under temperature variations, electrical noise, and mechanical vibration commonly found in industrial installations.

Its modular design allows easy maintenance and replacement of components, reducing downtime and improving system availability.

Operational Advantages

The CM15 improves industrial process efficiency by integrating monitoring, control, and communication functions into a single device. This reduces the need for multiple separate instruments, simplifying system architecture.

Its advanced control algorithms enhance process stability, reduce manual intervention, and improve overall operational efficiency.

Conclusion

The ABB CM15/.0.S.E.S.0.E.0./STD ControlMaster universal process indicator is a versatile and powerful solution for industrial automation and process control applications. With support for multiple input types, PID control, relay outputs, and communication capabilities, it provides comprehensive process monitoring and control functionality.

It is widely used in manufacturing, energy, chemical processing, and infrastructure systems where precise measurement and reliable control are essential for efficient operation. The ABB CM15 represents a flexible and intelligent approach to modern industrial process automation.
