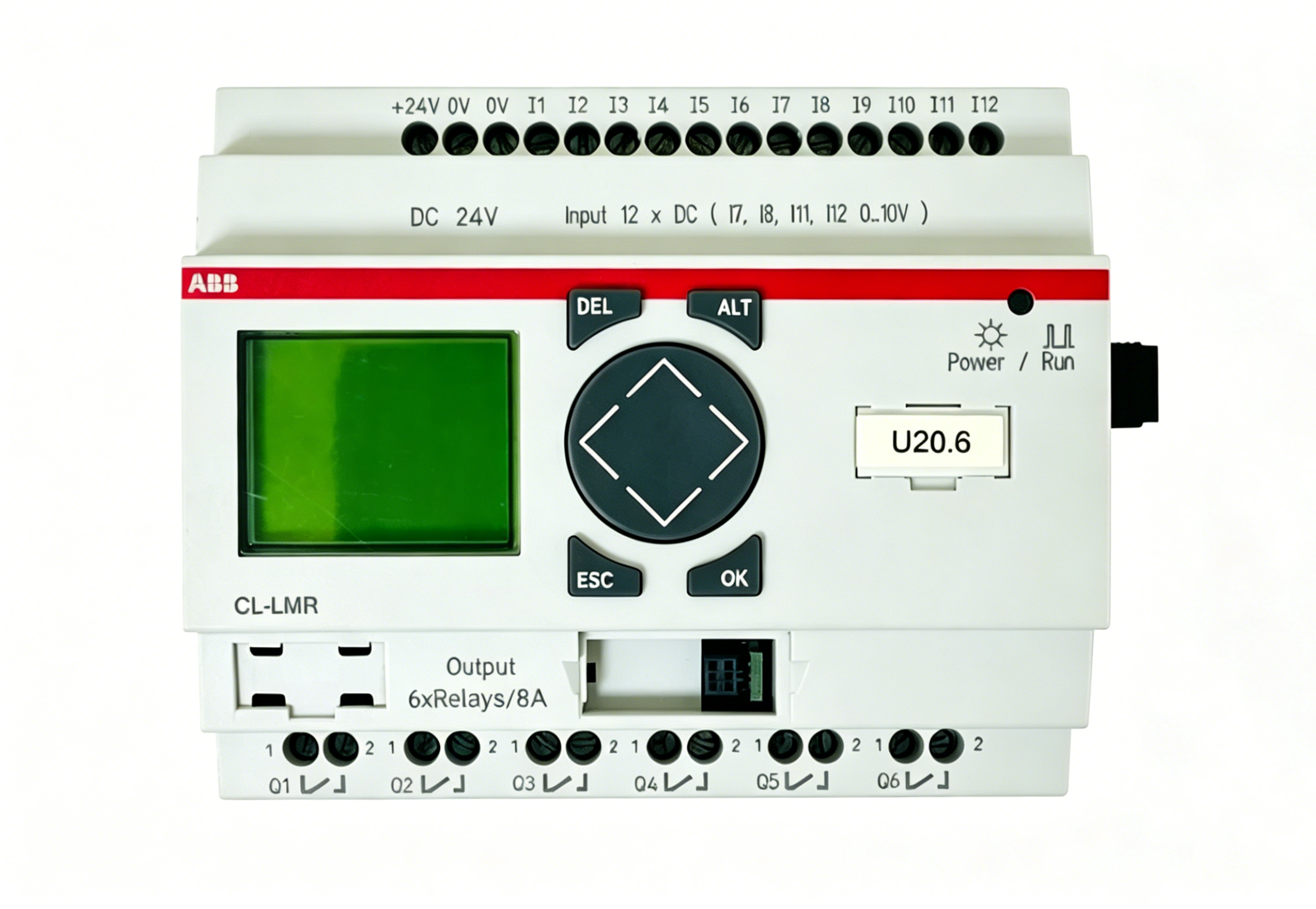

ABB CL-LMR.C18AC2 Programmable Logic Relay

The ABB CL-LMR.C18AC2 is a programmable logic relay designed for industrial automation and control applications where flexible logic functions, compact design, and reliable operation are required. As part of the ABB CL series, this device integrates multiple input and output channels into a single module, enabling efficient control logic execution without the need for a full-scale PLC system. It is commonly used in industrial control panels, machine automation systems, and small-to-medium automation projects that require programmable logic functionality in a compact form factor.

Industrial automation systems rely on intelligent control devices to manage signals, execute logic sequences, and coordinate machine operations. The ABB CL-LMR.C18AC2 provides a practical solution for these requirements by offering 12 digital inputs and 6 relay outputs. These I/O capabilities allow the device to monitor multiple field signals and control external actuators, relays, motors, and indicator devices within automation environments.

Flexible Programmable Logic Control

One of the key advantages of the ABB CL-LMR.C18AC2 is its programmable logic capability. Unlike traditional hardwired relay systems, this device allows users to configure logic functions through built-in programming tools. This flexibility enables the creation of customized control sequences, timing functions, interlocks, and automation routines without changing physical wiring.

The programmable structure makes it suitable for a wide range of applications where control logic may need to be modified during system operation. Engineers can implement switching conditions, timing delays, and conditional operations to match specific process requirements. This adaptability significantly reduces design complexity and improves system efficiency in industrial environments.

Input and Output Configuration

The ABB CL-LMR.C18AC2 is equipped with 12 digital inputs and 6 relay outputs, providing a balanced configuration for small automation systems. The inputs are used to receive signals from sensors, switches, push buttons, and monitoring devices, while the relay outputs are used to control external loads such as contactors, alarms, and actuators.

This combination allows the module to function as a compact automation controller capable of handling multiple control tasks simultaneously. The relay outputs provide electrically isolated switching, ensuring safe operation when controlling external industrial devices.

Industrial Automation Applications

The ABB CL-LMR.C18AC2 is widely used in industrial automation applications where compact control solutions are required. Typical use cases include conveyor systems, packaging machines, HVAC control systems, lighting automation, pump control, and simple production line automation.

In manufacturing environments, the device can be used to manage machine sequences, safety interlocks, and operational logic. In building automation systems, it can control lighting schedules, ventilation systems, and energy management functions. Its versatility makes it suitable for both industrial and commercial automation applications.

Logic Programming Capabilities

The logic relay supports advanced programming functions that allow users to implement customized control strategies. These include timers, counters, logic gates, comparison functions, and conditional control operations. Such features enable the device to perform tasks that would normally require a dedicated PLC system.

Programming can be performed using built-in interface tools, allowing configuration directly on the device. This simplifies commissioning and reduces setup time in automation projects. The ability to store and execute multiple logic sequences enhances operational flexibility in dynamic industrial environments.

System Integration and Installation

The ABB CL-LMR.C18AC2 is designed for DIN rail mounting, making it suitable for installation in standard industrial control panels. Its compact size allows it to be integrated into space-limited enclosures while maintaining full functionality.

The device can be easily integrated into existing automation systems and can work alongside other control components such as contactors, sensors, timers, and PLC modules. This compatibility allows it to function either as a standalone controller or as part of a larger automation system.

Operational Reliability and Performance

Industrial control systems require stable and reliable operation to ensure continuous production and system safety. The ABB CL-LMR.C18AC2 is designed to provide consistent performance under standard industrial conditions. Its electronic architecture supports stable signal processing and reliable output switching for extended operational cycles.

The device ensures accurate execution of programmed logic sequences, reducing the risk of control errors and improving overall system efficiency. This reliability is essential in automation environments where consistent operation is required for production stability.

Key Features of ABB CL-LMR.C18AC2

• Programmable logic relay from ABB CL series
• 12 digital inputs for signal monitoring
• 6 relay outputs for external device control
• Supports flexible logic programming functions
• Suitable for compact automation systems
• DIN rail mounting design for easy installation
• Used in industrial and building automation applications
• Supports timing, counters, and logic control functions

Conclusion

The ABB CL-LMR.C18AC2 programmable logic relay is a compact and flexible automation solution designed for industrial control applications. With its combination of multiple inputs and outputs, programmable logic capabilities, and reliable operation, it provides an efficient alternative to traditional relay systems and small PLC configurations. Its adaptability and integration capabilities make it suitable for a wide range of automation and control tasks in modern industrial environments.
