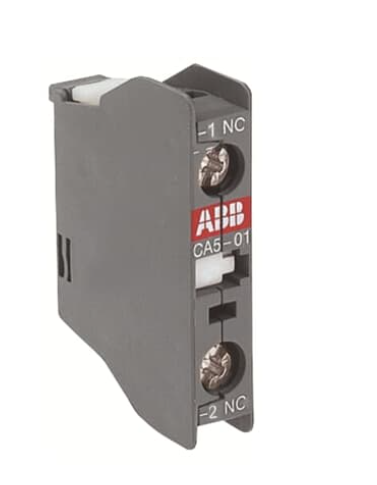

ABB CA5-01 Auxiliary Contact Block
The ABB CA5-01 is a 1-pole auxiliary contact block designed for ABB A-Line contactors. It is used in industrial motor control and automation systems to provide additional switching capability for control circuits and signal feedback functions.
Auxiliary contact blocks play an important role in industrial control systems by extending the functionality of contactors. They allow operators and control systems to monitor the ON/OFF status of main power contacts and integrate interlocking or signaling functions within automation circuits.
The CA5-01 configuration includes a 1NC (normally closed) contact arrangement, which is commonly used in safety interlocks, control feedback loops, and status indication circuits.
Industrial Motor Control Applications
ABB CA5-01 is widely used in industrial environments where motor control and automation systems require reliable auxiliary signaling. It is typically mounted directly onto compatible ABB A-Line contactors, enabling seamless integration into control systems.
It is commonly applied in machinery control, production lines, pumping systems, HVAC systems, and industrial power distribution panels.
- Industrial motor starter systems
- Automation control panels
- Pumping and water treatment systems
- HVAC control systems
- Manufacturing production equipment
- Power distribution control circuits
Function and Operating Principle
The CA5-01 auxiliary contact operates mechanically in synchronization with the main contactor. When the contactor is energized or de-energized, the auxiliary contact changes state accordingly, providing real-time status feedback to the control system.
The 1NC configuration ensures that the circuit is closed in the default state and opens when the contactor is activated, which is commonly used in safety and interlock circuits.
This mechanism allows control systems to monitor equipment status and implement logical control sequences in automation environments.
System Integration and Benefits
ABB CA5-01 enhances system reliability by enabling accurate signal feedback from power switching devices. This improves control accuracy and supports safer operation of industrial systems.
- Reliable auxiliary signal switching
- Improved system monitoring capability
- Enhanced safety interlocking functions
- Simple integration with ABB contactors
- Stable performance in industrial environments
These advantages make it a key accessory in modern industrial automation systems.
Design and Industrial Reliability
The CA5-01 is designed for durability and stable operation under continuous industrial usage. It is built to withstand electrical switching cycles and mechanical wear over long-term operation.
Its compact design allows easy front mounting on compatible ABB contactors, reducing installation time and improving system modularity.
The robust construction ensures reliable performance in industrial environments with vibration, temperature variation, and electrical load fluctuations.
Technical Information
| Feature | Description |
|---|---|
| Product Model | ABB CA5-01 |
| Product Type | Auxiliary Contact Block |
| Contact Configuration | 1NC (Normally Closed) |
| Application | Motor Control and Industrial Automation |
| Compatibility | ABB A-Line Contactors |
| Industry Use | Power, Manufacturing, Water Treatment, HVAC |
Conclusion
The ABB CA5-01 auxiliary contact block is an essential component in industrial motor control systems. It provides reliable 1NC signal feedback for contactor status monitoring and control circuit integration.
With its compact design, stable mechanical operation, and compatibility with ABB A-Line contactors, it is suitable for long-term use in industrial automation and control applications.
