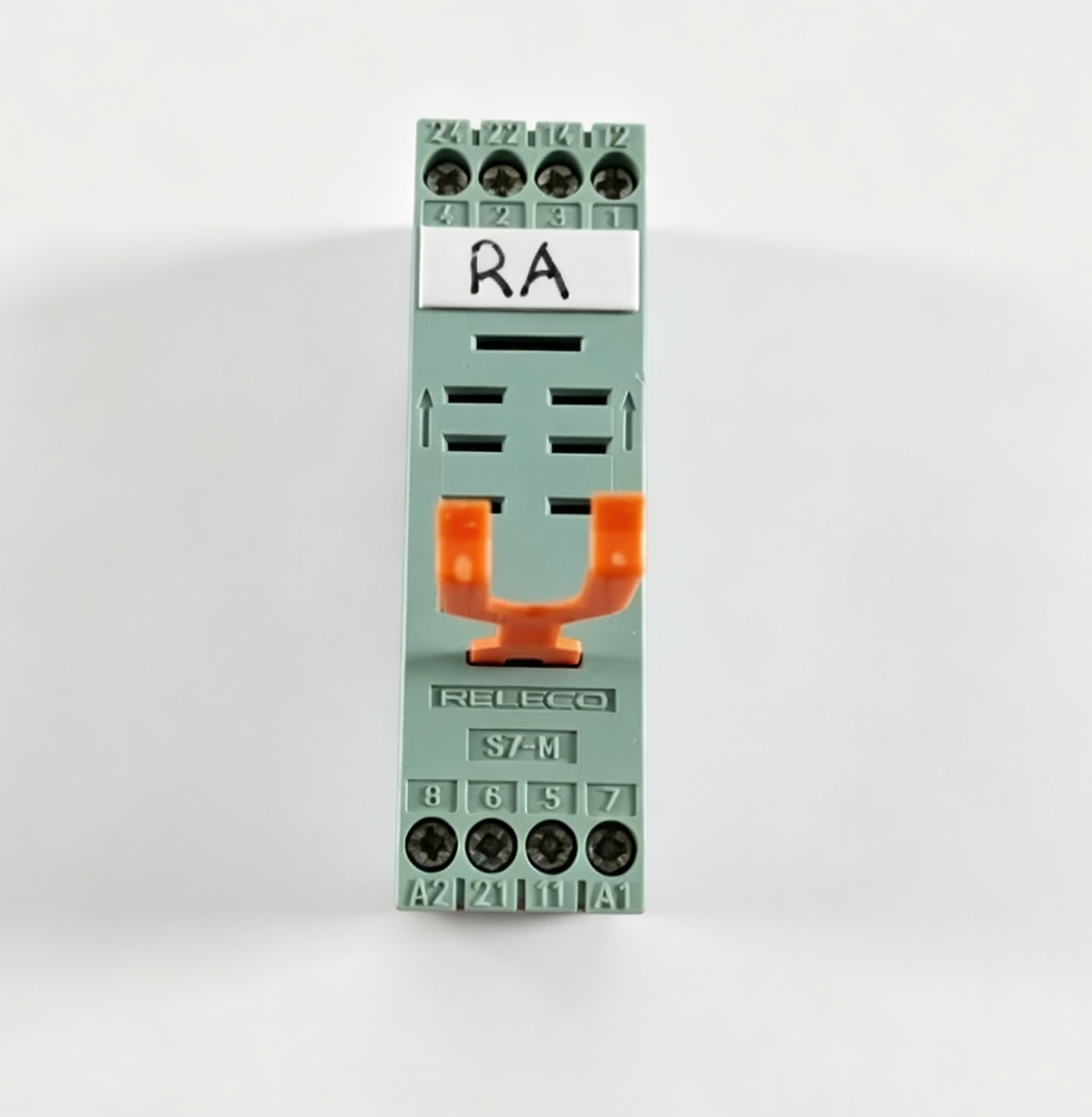

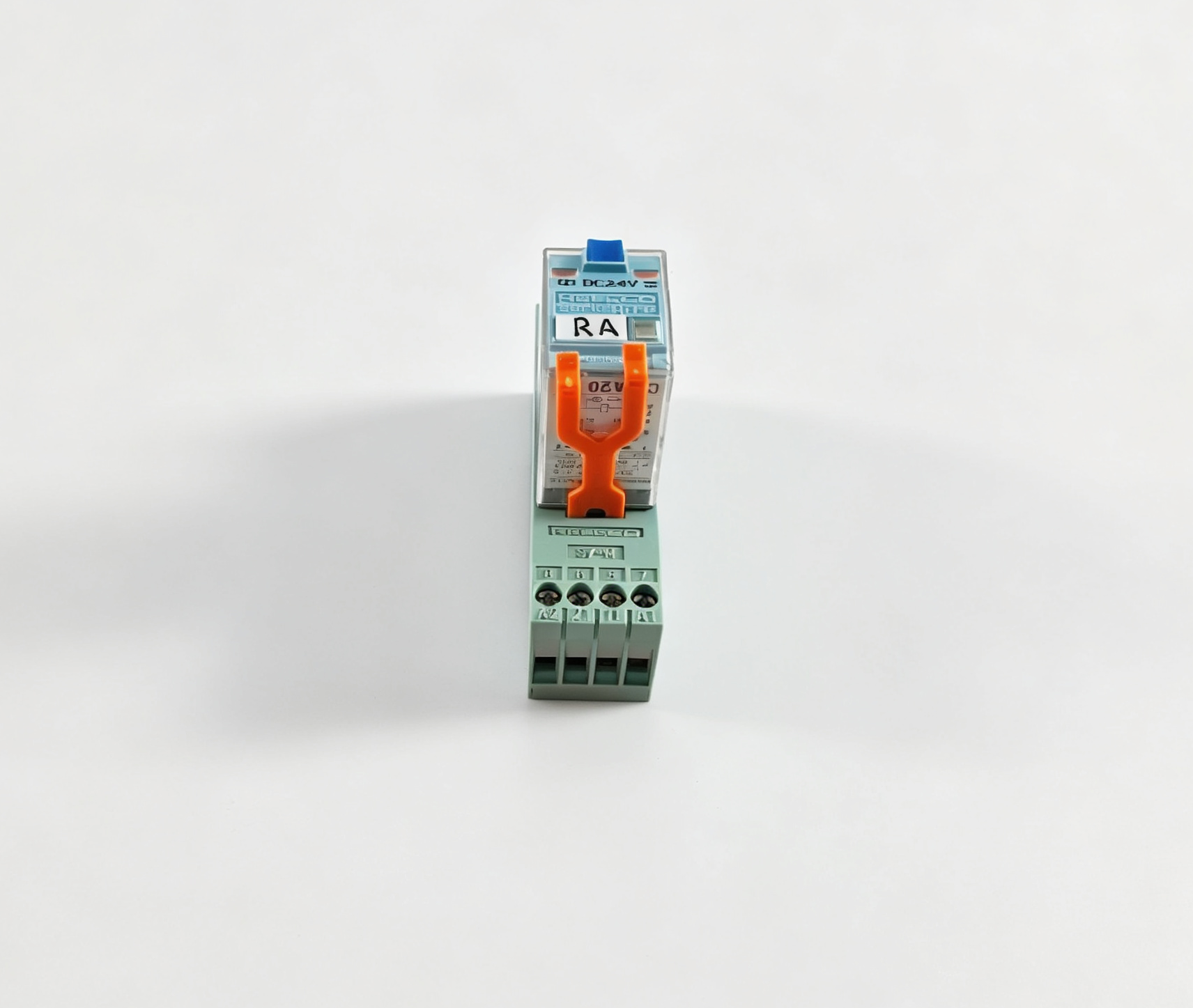

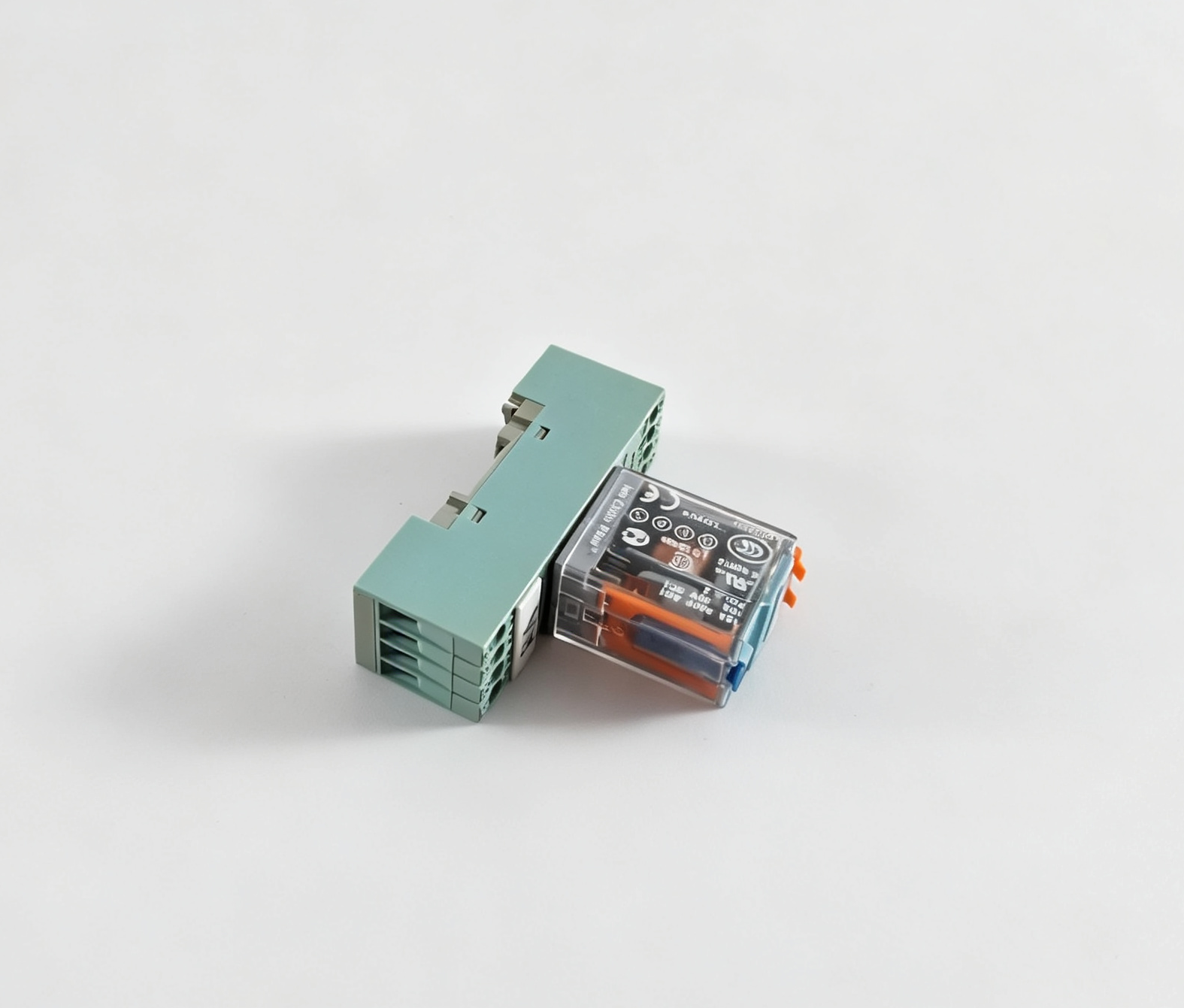

ABB C7-A20 Industrial Relay

The ABB C7-A20 is a pluggable industrial relay designed for electrical control systems, automation equipment and industrial switching applications. As part of ABB’s industrial relay product range, this device provides dependable switching performance, compact installation capability and reliable electrical isolation between control circuits and connected loads.

Industrial automation systems require accurate and stable signal control to coordinate different electrical devices. Relays play an important role by allowing low-power control signals to operate higher-power circuits safely and efficiently. The ABB C7-A20 provides a practical solution for applications requiring multiple switching contacts, reliable operation and long mechanical lifetime.

The ABB C7-A20 features a 2-pole changeover contact configuration, allowing flexible circuit control in various automation and electrical applications. Its design supports switching operations in control panels, machine systems, process equipment and industrial electrical installations where dependable relay performance is required. :contentReference[oaicite:2]{index=2}

With ABB’s experience in industrial automation and electrical components, the C7-A20 relay is engineered to provide consistent switching characteristics and compatibility with professional control systems.

Product Overview

ABB C7-A20 belongs to ABB’s plug-in industrial relay series. It is designed as a 2-pole relay with changeover contacts, providing two independent switching channels that can be used for controlling different electrical circuits or creating additional interface functions.

The relay uses AgNi contact material, which provides good electrical conductivity and stable switching performance for general industrial applications. The contact design allows the relay to handle electrical loads while maintaining reliable operation over long service periods. :contentReference[oaicite:3]{index=3}

The plug-in structure of the ABB C7-A20 simplifies installation and maintenance. By using a socket-based mounting method, technicians can quickly replace or inspect the relay without complicated wiring operations.

Industrial control cabinets often contain many interface components, including PLC modules, sensors, contactors and signal devices. The ABB C7-A20 helps connect and control these devices by providing reliable electrical switching functions.

Main Functions and Features

The primary function of the ABB C7-A20 is electrical signal switching. When the relay coil receives a control signal, the internal contacts change position and control the connected electrical circuit.

The relay provides two changeover contacts, which means each contact group includes normally open and normally closed switching positions. This configuration allows engineers to design flexible control circuits according to system requirements.

The ABB C7-A20 supports a rated current of 10A and can handle switching applications up to 250V AC depending on the load category. This makes it suitable for many industrial control and automation applications. :contentReference[oaicite:4]{index=4}

Another important feature is its high mechanical endurance. The relay is designed for frequent switching operations, making it suitable for industrial environments where reliability and operational stability are important. The documented mechanical endurance reaches up to 10 million switching cycles under specified conditions. :contentReference[oaicite:5]{index=5}

Technical Characteristics

The main technical characteristics of ABB C7-A20 include:

• Product type: Pluggable industrial relay
• Model: C7-A20
• Contact configuration: 2 pole changeover contacts
• Contact material: AgNi
• Rated current: 10A
• Maximum switching voltage: 250V AC
• DC switching capability: 10A / 24V DC
• Recommended minimum contact load: 10mA / 10V
• Mounting method: Plug-in socket installation

The ABB C7-A20 is designed for professional electrical applications where stable switching performance and reliable contact operation are required. Its electrical characteristics allow integration into various industrial control circuits.

Industrial Application Areas

ABB C7-A20 is widely used in industrial automation systems, electrical control cabinets and machine control applications. It provides an interface between control signals and electrical loads, helping automation systems operate efficiently.

In manufacturing equipment, relays are commonly used to control motors, valves, indicators, alarms and auxiliary circuits. The ABB C7-A20 provides reliable switching capability for these control functions.

In process automation systems, signal relays are used for equipment monitoring and control. The relay can transfer signals between different parts of the automation system while maintaining electrical separation.

The ABB C7-A20 is also suitable for electrical distribution panels, building automation systems and industrial equipment requiring compact switching components.

Advantages of ABB C7-A20

One major advantage of the ABB C7-A20 is its flexible contact arrangement. The 2-pole changeover design allows multiple control configurations and provides greater application flexibility compared with simple switching relays.

Another advantage is reliable electrical performance. The AgNi contact material provides stable conductivity and supports consistent switching operation in industrial environments.

The plug-in design improves maintenance efficiency. When replacement is required, the relay can be exchanged quickly, reducing system downtime and simplifying service procedures.

The compact structure of the ABB C7-A20 allows efficient installation in electrical cabinets where available space is limited. This makes it suitable for modern automation systems with high component density.

Role in Automation Control Systems

Relays are fundamental components in industrial automation because they provide signal conversion, electrical isolation and load switching functions. They allow control systems such as PLCs and controllers to interact with external devices safely.

The ABB C7-A20 contributes to automation reliability by providing stable switching performance between control circuits and electrical loads. Its reliable operation helps maintain accurate machine sequences and process control.

In complex industrial systems, individual components must work together seamlessly. Reliable relay performance improves overall system stability and reduces the risk of control failures.

Design Reliability

ABB develops industrial components with a focus on safety, reliability and long-term performance. The C7-A20 relay reflects ABB’s approach to providing dependable solutions for professional electrical applications.

The combination of robust contact technology, flexible switching capability and plug-in installation makes the ABB C7-A20 suitable for demanding industrial environments.

By integrating reliable relay technology into automation systems, engineers can create efficient and maintainable electrical control solutions.

Conclusion

The ABB C7-A20 Industrial Relay is a reliable 2-pole changeover relay designed for industrial automation, electrical control and switching applications. With AgNi contacts, 10A switching capability, compact plug-in construction and high mechanical endurance, it provides stable performance for professional control systems.
