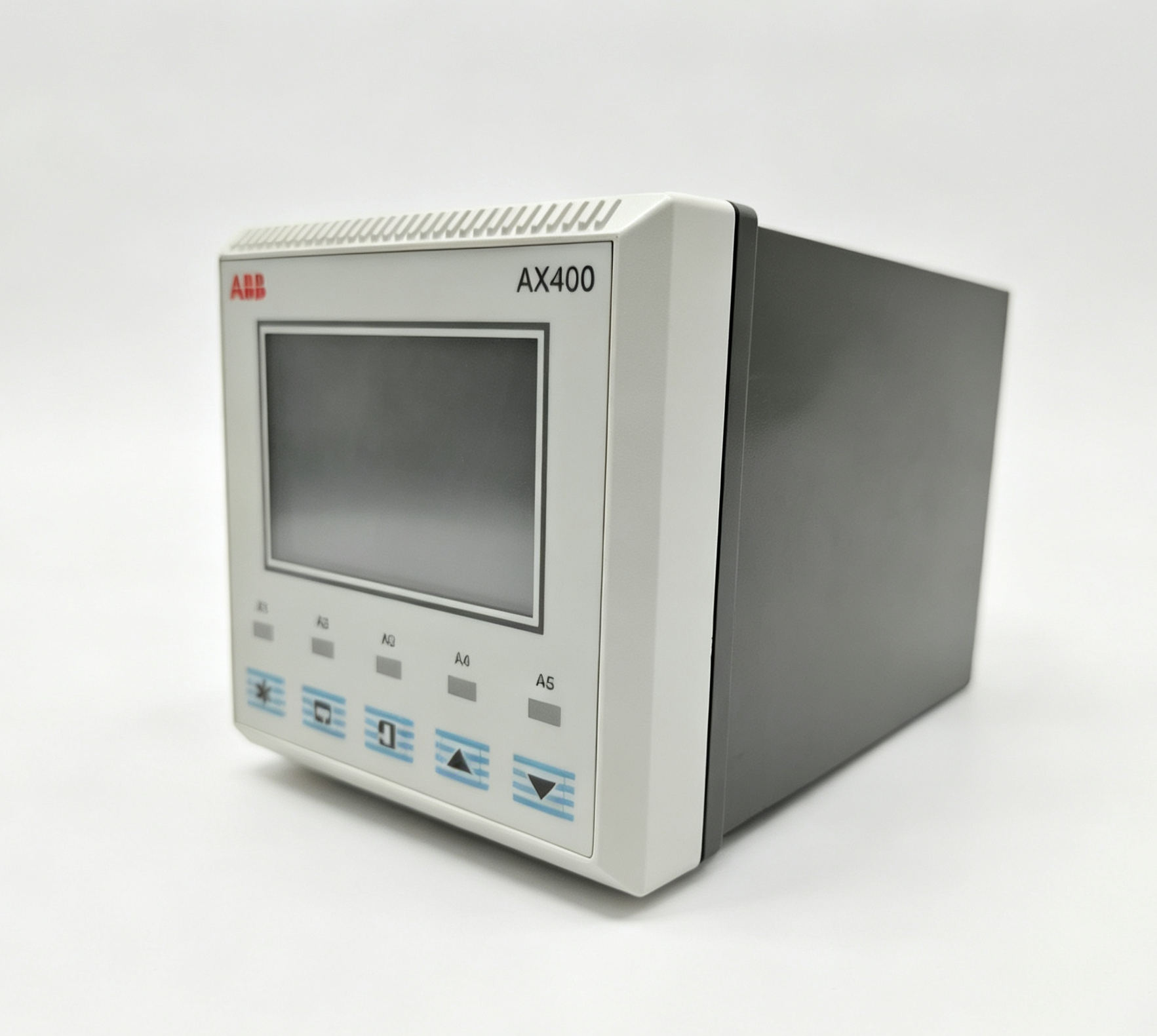

ABB AX410/5000C AX410 Single Channel Conductivity Analyzer for 2-Electrode Cells

ABB AX410/5000C is a configuration of the ABB AX410 conductivity analyzer within the AX400 series of process analytical instruments. The AX410 is designed for single-channel measurement using ABB two-electrode conductivity cells and is intended for continuous monitoring of conductivity or resistivity in industrial process applications. It combines measurement electronics, temperature compensation, local indication, analog signal outputs, relay functions, and configurable control features in a single process analyzer.

The AX400 family covers several types of analytical measurement, including conductivity, pH/Redox, and dissolved oxygen. Within this family, the AX410 is specifically associated with low-level conductivity measurement using two-electrode conductivity cells. This makes it suitable for applications where continuous monitoring of water quality is required and where the measured conductivity value is used as an important process variable.

Product Identification

The product designation is ABB AX410/5000C. The main instrument family is AX410, while the complete ordering designation identifies a particular configuration of the analyzer. AX410 belongs to the AX400 series and is classified as a single-channel conductivity analyzer. ABB documentation identifies the AX410 as a transmitter designed for two-electrode conductivity cells and provides installation, measurement, output, and power-supply information for the series.

Conductivity Measurement

The AX410 measures the electrical conductivity of a liquid through a compatible two-electrode conductivity cell. Conductivity provides an indication of the ionic content of the measured solution and is widely used for monitoring treated water, process water, and other industrial water streams. Depending on the selected measurement configuration, the analyzer can also present the corresponding resistivity value.

For low-conductivity applications, the quality of the measurement depends on the conductivity cell, cell constant, temperature, wiring, and analyzer configuration. The AX410 provides the electronic measurement and signal-processing functions required to interpret the conductivity-cell signal and present the result locally or through its configured outputs.

Temperature Compensation

Temperature has a significant effect on the conductivity of water and other conductive solutions. For this reason, temperature compensation is an important part of conductivity measurement. The AX410 supports temperature measurement and compensation so that conductivity readings can be evaluated according to the selected process requirements.

The analyzer can use temperature information as part of the measurement and can also assign temperature-related information to available outputs where the selected configuration supports it. This is useful in water-treatment applications because a change in measured conductivity may result from either a change in solution composition or a change in temperature.

Outputs and Process Control

ABB AX410 analyzers provide signal interfaces for integration with process control systems. The standard AX400 configuration includes two fully isolated current outputs. These outputs can be assigned to the measured process variable, sample temperature, or an applicable calculated variable according to the analyzer configuration.

Three programmable relay set points are also available in the standard arrangement. Relay functions can be assigned according to the requirements of the process, allowing the analyzer to participate in alarm or control functions. An optional advanced function card can provide additional current outputs and alarm relays, expanding the number of process signals available from the instrument.

The AX400 platform also supports proportional and integral control functions in applicable configurations. Control functions can be implemented through pulse-frequency, pulse-length, or analog control methods. This allows the analyzer to be integrated into process control applications where conductivity is not only monitored but also used as a control variable.

Power Supply

ABB documentation specifies 85 to 265 V AC as the standard power-supply range for the AX400 analyzer family. Depending on the selected configuration, versions can also be supplied for 24 V AC or 12 to 30 V DC operation. The power supply arrangement is designed to accommodate different industrial installation requirements.

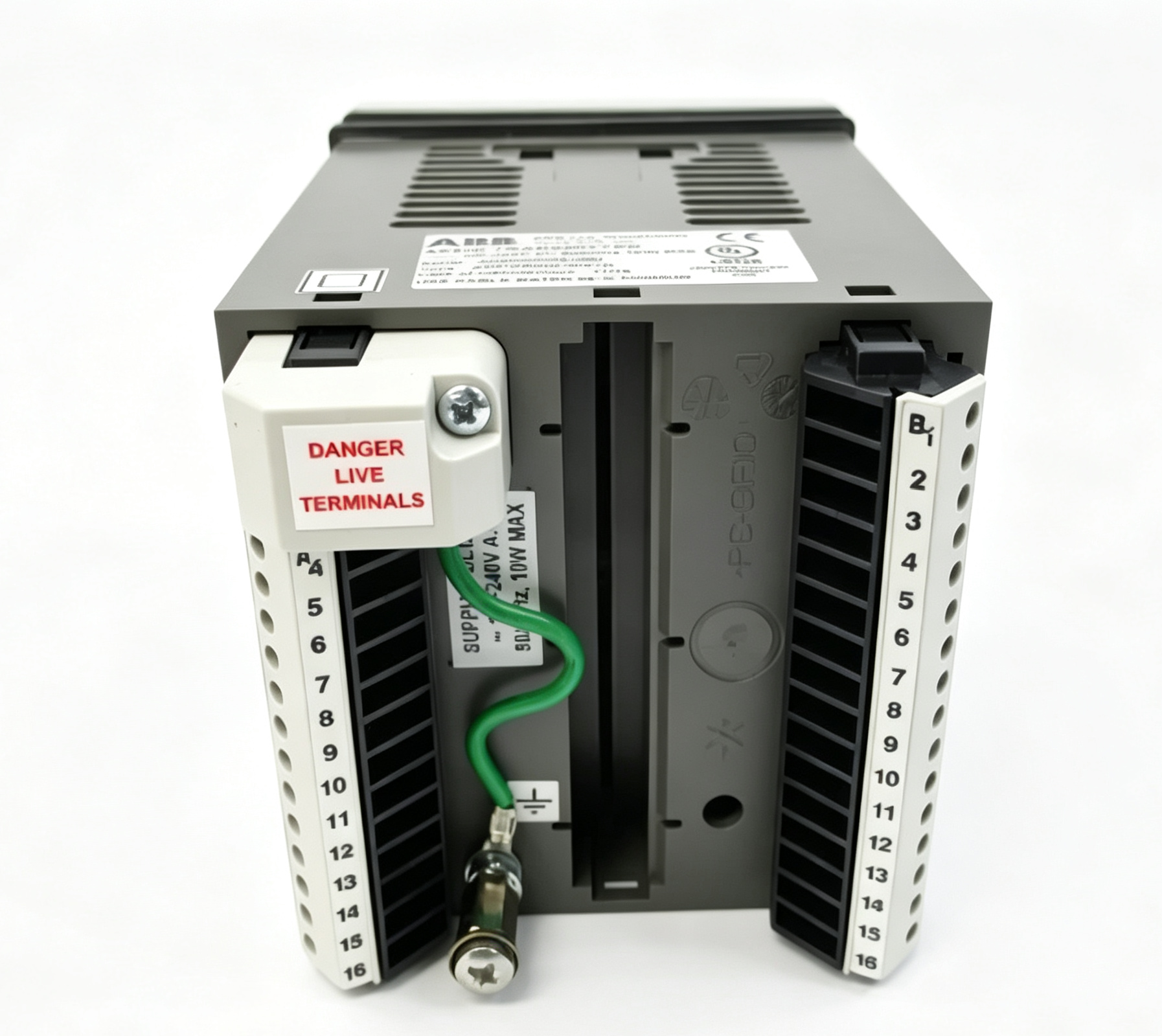

When installing an AX410, the actual power-supply configuration should be checked against the complete instrument identification and the applicable installation documentation. The power terminals, protective earth connection, sensor connections, relay terminals, and analog output terminals are located within the analyzer’s terminal arrangement and should be connected according to the relevant wiring diagram.

Installation and Mounting

The AX400 series supports several physical installation arrangements, including wall mounting, pipe mounting, and panel mounting. This flexibility allows the AX410 to be integrated into different process measurement locations. The panel-mounted version can be installed directly into an instrument panel, while wall- and pipe-mounted arrangements are suitable for field installation near the measurement point.

During installation, the analyzer should be positioned so that the display remains accessible and the terminal compartment can be reached for wiring and maintenance. The conductivity cell should be installed according to its own application requirements, with appropriate consideration of flow conditions, sensor placement, cable routing, and temperature measurement.

Typical Applications

AX410 conductivity analyzers are used in a variety of water and process monitoring applications. Typical applications include demineralization systems, reverse osmosis installations, power-generation water systems, semiconductor manufacturing, biomedical and pharmaceutical processes, boiler-water monitoring, and industrial water treatment.

In demineralized-water systems, conductivity is often monitored to identify changes in water quality. In reverse-osmosis systems, conductivity measurements can be used to evaluate permeate quality and process performance. In power plants and steam-generation systems, conductivity monitoring is an important analytical parameter for water and steam-cycle management.

The AX410 can also be applied in chemical, pulp and paper, steel, food and beverage, and general industrial process environments where continuous conductivity measurement is required.

Display and Operator Interface

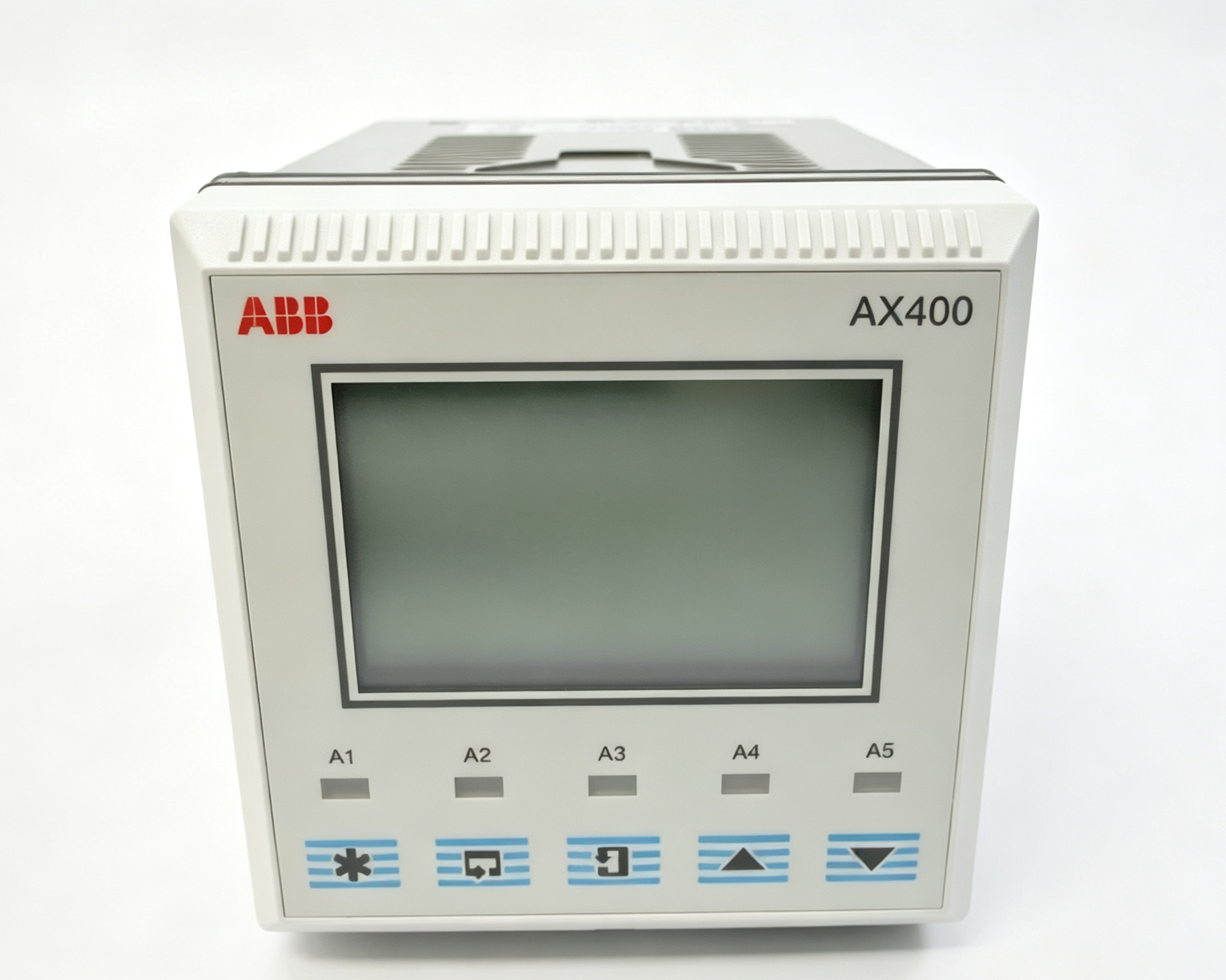

The AX400 analyzer incorporates a backlit local display designed to provide clear visibility of the measured parameter and additional diagnostic or calculated information. The display can present measurement information together with status information, allowing operators to review the process value directly at the instrument.

The display arrangement is particularly useful for field-mounted installations where the analyzer is positioned close to the conductivity cell or sampling system. Depending on the instrument configuration, multiple languages and configurable display information are available to support different operating requirements.

Selection and Configuration

When selecting ABB AX410/5000C, the complete analyzer configuration should be considered together with the conductivity cell. The sensor type, conductivity range, installation method, power supply, output configuration, communication requirements, and control functions all affect the appropriate analyzer configuration.

It is also important to distinguish the AX410 from other AX400 models. AX410 is intended for conductivity measurement, while other members of the AX400 family are configured for pH/Redox or dissolved oxygen measurement, or for multiple process variables. The AX410 therefore provides a dedicated solution for applications based on a single conductivity measurement point.

Technical Integration

The AX410 can provide analog and relay signals to a larger process control system. The isolated current outputs can be connected to control-system input channels, while programmable relays can be assigned to alarm or process functions. Where a communication option is fitted, the analyzer can also exchange process information with a supervisory system through the applicable communication interface.

For system integration, the conductivity measurement range and scaling should be matched with the receiving control-system channel. Cable routing should also be considered carefully because conductivity signals can be affected by installation conditions. Following the ABB wiring and installation instructions helps maintain the intended measurement performance.

Conclusion

ABB AX410/5000C is an AX410 single-channel conductivity analyzer designed for use with ABB two-electrode conductivity cells. It measures conductivity or resistivity and provides the functions required for continuous process monitoring, including temperature compensation, local display, isolated current outputs, programmable relay functions, and flexible power-supply options.

As part of the AX400 analytical instrument family, the AX410 is suitable for applications ranging from treated-water and demineralization systems to reverse osmosis, power generation, semiconductor processing, pharmaceutical production, and industrial water treatment. Its combination of measurement, display, signal transmission, and process-control functions makes AX410/5000C a practical component for continuous conductivity monitoring in industrial analytical systems.
