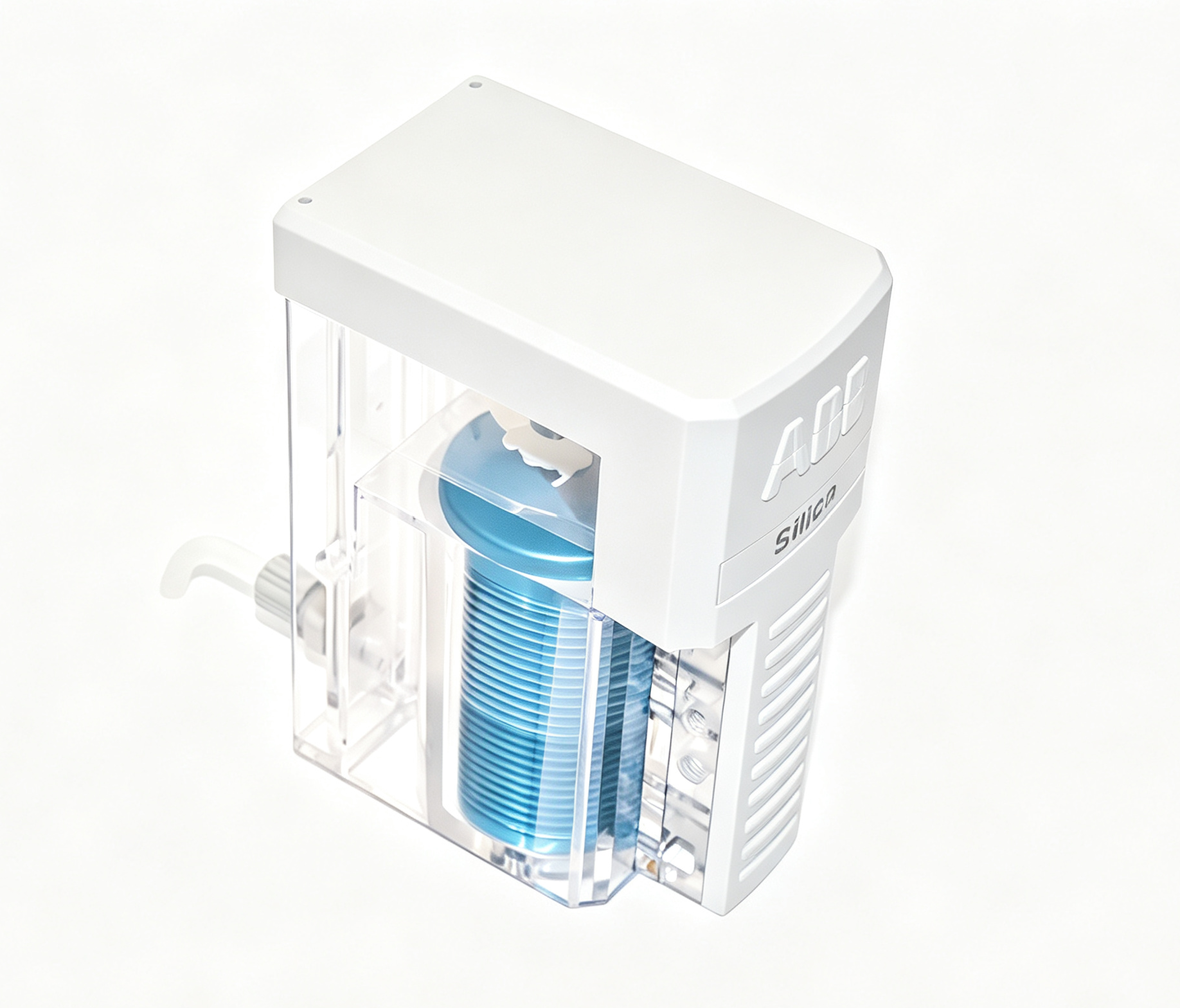

ABB AW601181 Reaction Coil, Manifold & Cover for Navigator 600 Silica Analyzer

The assembly belongs to the analyzer’s wet section and is associated with the sample reaction and liquid-handling process. It combines a reaction coil, manifold and cover into one identified spare-part assembly.

Product Identification

• Manufacturer: ABB
• Part Number: AW601181
• Product Type: Reaction Coil, Manifold & Cover
• Associated Analyzer: Navigator 600 Silica
• Application: Silica Measurement
• System Section: Wet Section
• Function: Sample Reaction and Liquid Handling
• Product Category: Analyzer Spare Part

ABB AW601181 Overview

ABB identifies AW601181 as a Reaction Coil, Manifold & Cover in the Navigator 600 Silica spare-parts documentation. The part is listed together with other wet-section components such as reaction block components, pumps, tubing, debubblers and optical assemblies. :contentReference[oaicite:2]{index=2}

The reaction coil, manifold and cover work together as part of the analyzer’s fluid and reaction path. The assembly is therefore different from individual tubing kits, pump tubes or optical measurement components.

Navigator 600 Silica Application

The ABB Navigator 600 Silica is a continuous liquid analyzer used for silica measurement. The analyzer performs controlled sample and reagent handling before the optical measurement stage.

AW601181 is positioned within this process as a reaction-path assembly. The reaction coil provides the required flow path for the reaction process, while the manifold provides the associated fluid connections and the cover forms part of the assembly structure.

The complete assembly should be identified by its ABB part number when preparing maintenance or inventory records.

Reaction Coil Function

The reaction coil provides a controlled fluid path through which the sample and reagents can progress during the analyzer’s chemical measurement sequence.

The reaction stage is important because silica measurement relies on chemical reactions between the sample and the relevant reagents before the resulting measurement is evaluated.

AW601181 provides the reaction-coil portion of this fluid path together with its associated manifold and cover.

Manifold Function

The manifold provides connections between the relevant liquid paths within the reaction assembly. It forms part of the wet-section fluid architecture and allows the reaction coil to be integrated with the analyzer’s sample and reagent circuits.

Because the manifold is part of the AW601181 assembly, its connections and orientation should correspond to the specific Navigator 600 Silica configuration.

The manifold should not be treated as an interchangeable generic fitting because the analyzer uses a defined internal fluid arrangement.

Cover Function

The cover is included in the AW601181 assembly description. It forms part of the physical assembly surrounding the reaction coil and manifold.

The cover also provides physical protection for the associated reaction-path components within the analyzer’s wet section.

When identifying this spare part, the complete description should therefore be retained as Reaction Coil, Manifold & Cover.

Single-Stream Configuration

ABB’s Navigator 600 Silica single-stream documentation lists AW601181 as Reaction coil, manifold & cover in Appendix H, Spare Parts. :contentReference[oaicite:3]{index=3}

The single-stream analyzer uses a dedicated sample path, and AW601181 forms part of the documented wet-section spare-parts structure.

The installed analyzer configuration should be checked before selecting or replacing the assembly.

Multi-Stream Configuration

ABB’s Navigator 600 Silica multi-stream documentation also lists AW601181 as Reaction coil, manifold & cover. :contentReference[oaicite:4]{index=4}

In a multi-stream system, sample selection and fluid routing involve additional components compared with a single-stream arrangement. AW601181 remains a defined reaction-path assembly within the documented spare-parts structure.

The complete multi-stream configuration should be considered when checking installation and compatibility.

Wet Section Application

The wet section contains the components responsible for sample preparation, reagent handling, chemical reaction and associated liquid flow.

ABB lists AW601181 together with components such as the reaction block temperature sensor, reaction block heater, pump motor and coupling, primary debubbler, tubing kit and optical unit. :contentReference[oaicite:5]{index=5}

AW601181 has a specific role within this system as the reaction coil, manifold and cover assembly.

Technical Specification Summary

Reaction Process

The Navigator 600 Silica analyzer uses a controlled chemical reaction sequence to prepare the sample for measurement. The reaction coil is part of the fluid path through which the sample and reagents move during this process.

Maintaining the intended flow path is important for consistent reaction conditions. The reaction coil and associated manifold therefore form an important part of the analyzer’s wet-section architecture.

The exact reaction sequence and operating parameters depend on the Navigator 600 Silica configuration and applicable technical documentation.

Relationship to Reaction Block

AW601181 should not be confused with the separate reaction block components. ABB identifies the reaction block temperature sensor as AW600046 and the reaction block heater as AW600045. :contentReference[oaicite:6]{index=6}

The reaction coil, manifold and cover assembly performs a different function from the temperature-control components.

This distinction is important when identifying the correct spare part for a service requirement.

Relationship to Tubing Kit

ABB identifies AW601176 separately as a tubing kit excluding pump tubes, while AW601181 is the reaction coil, manifold and cover assembly. :contentReference[oaicite:7]{index=7}

Although both parts belong to the wet section, they are different assemblies with different functions and part numbers.

The AW601176 tubing kit should therefore not be considered a replacement for AW601181.

Relationship to Optical Unit

The optical measurement unit is a separate component in the Navigator 600 Silica system. ABB documentation identifies AW600091 as the optical unit including the secondary debubbler in the single-stream configuration, while AW601110 is identified as the optical unit excluding the secondary debubbler in applicable multi-stream documentation. :contentReference[oaicite:8]{index=8}

AW601181 is located earlier in the overall wet-section process and should be identified separately from the optical measurement assembly.

Fluid Path Considerations

The reaction coil and manifold form part of a defined internal fluid path. Correct tube routing and connection are important when servicing the assembly.

Any replacement should preserve the intended connection arrangement and avoid unnecessary changes to the sample or reagent path.

After maintenance, the relevant fluid connections should be checked for leakage and correct flow before normal analyzer operation.

Maintenance Considerations

Inspection of AW601181 can be appropriate when problems are associated with the reaction-path section of the Navigator 600 Silica analyzer.

Maintenance checks may include examination of the reaction coil, manifold connections, cover, associated tubing and nearby fluid-handling components.

The applicable ABB service documentation should be followed for isolation, disassembly, cleaning and replacement procedures.

Compatibility Verification

Before selecting ABB AW601181, the following information should be verified:

• ABB part number AW601181
• Navigator 600 Silica analyzer model
• Single-stream or multi-stream configuration
• Reaction coil arrangement
• Manifold configuration
• Associated tubing connections
• Wet-section layout
• Applicable ABB service documentation

The complete assembly should be matched against the installed analyzer rather than selecting a component based only on a general description such as reaction coil or manifold.

Inventory Identification

For industrial inventory records, the recommended product description is ABB AW601181 Reaction Coil, Manifold & Cover.

Additional searchable descriptions can include ABB AW601181 Reaction Coil Assembly, ABB AW601181 Manifold and Cover and ABB AW601181 Navigator 600 Silica Reaction Assembly.

The complete AW601181 part number should remain the primary inventory identifier.

Application in Silica Analysis

Silica analysis requires controlled sample and reagent handling before the optical measurement stage. The reaction coil provides part of the controlled fluid path required for this process.

The manifold integrates the reaction path with the surrounding wet-section connections, while the cover forms part of the physical assembly.

Together, these components make AW601181 a dedicated reaction-path assembly for the Navigator 600 Silica analyzer.

Service Replacement

When AW601181 requires replacement, the existing reaction coil and manifold arrangement should be documented before removal so that the replacement assembly can be installed using the correct connection orientation.

Associated tubing should be checked during service because tubing condition and connection integrity can affect the performance of the reaction path.

After installation, the analyzer should be returned to operation according to the applicable maintenance procedure and the relevant fluid path should be checked.

Technical Documentation

ABB’s official Navigator 600 Silica documentation directly lists AW601181 – Reaction coil, manifold & cover in the spare-parts appendix for the single-stream analyzer. :contentReference[oaicite:9]{index=9}

The official multi-stream documentation likewise identifies AW601181 as the reaction coil, manifold and cover assembly. :contentReference[oaicite:10]{index=10}

This confirms the association of AW601181 with the Navigator 600 Silica analyzer family and its wet-section reaction system.

Product Application Summary

ABB AW601181 is a dedicated Reaction Coil, Manifold & Cover assembly for Navigator 600 Silica analyzers. ABB lists the part in both single-stream and multi-stream spare-parts documentation. :contentReference[oaicite:11]{index=11}

The assembly forms part of the sample and reagent reaction path and is separate from the analyzer’s pump tubes, tubing kits, heating components and optical measurement assemblies.

Conclusion

ABB AW601181 is a Reaction Coil, Manifold & Cover assembly used in ABB Navigator 600 Silica analyzers. It belongs to the wet section and supports the controlled sample and reagent reaction path within the silica measurement process. :contentReference[oaicite:12]{index=12}

The recommended technical product name is ABB AW601181 Reaction Coil, Manifold & Cover for Navigator 600 Silica Analyzer. When identifying this component for maintenance or inventory purposes, the ABB part number and the specific Navigator 600 Silica configuration should be verified.
