ABB AW600056 DC Power Supply for Navigator 600 Silica Analyzer Systems

The ABB AW600056 is a DC Power Supply component used in the ABB Navigator 600 Silica analyzer platform. ABB’s spare-parts documentation identifies AW600056 specifically as the DC power supply and lists it within the electrical assemblies of both single-stream and multi-stream Navigator 600 Silica systems.

A dedicated power supply is an essential part of an online analytical instrument because the analyzer depends on stable electrical power for its electronic, measurement, control and liquid-handling functions. The AW600056 belongs to the analyzer’s internal electrical architecture and is associated with the DC-powered version of the Navigator 600 Silica platform.

Product Identification

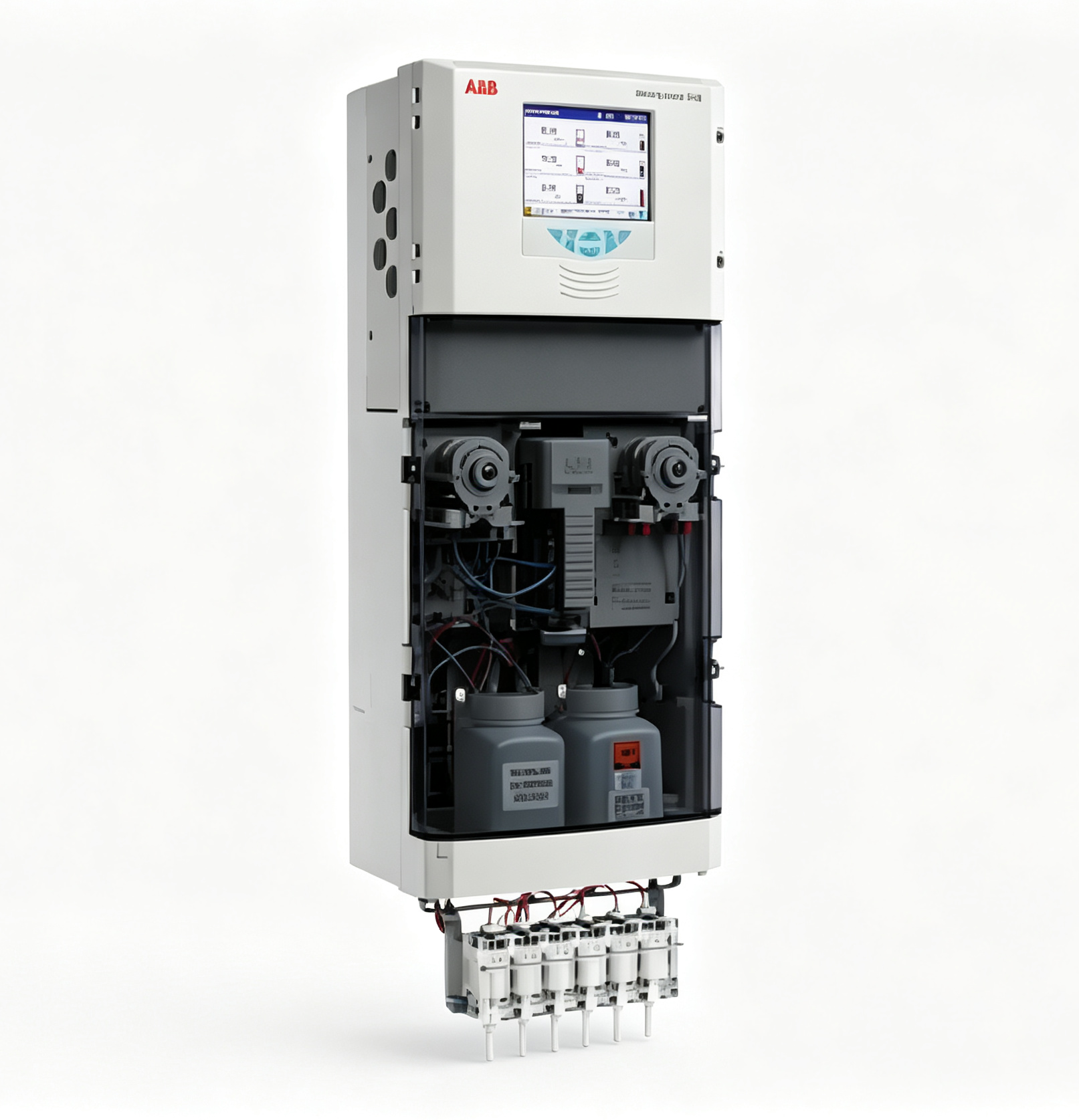

Navigator 600 Silica Analyzer

The ABB Navigator 600 Silica is an online colorimetric analyzer designed for monitoring silica concentration in industrial process water systems. ABB documentation describes the analyzer as an instrument for measuring silica in the steam-water cycle of power plants.

The analyzer combines several functional sections to perform automated measurement. Depending on the system configuration, these sections can include the transmitter, application electronics, liquid-handling components, optical measurement equipment, reagent assemblies and power-supply modules.

The AW600056 is part of this electrical infrastructure. It does not directly perform the chemical measurement. Instead, it belongs to the power system that enables the electronic and analytical assemblies to operate within the intended Navigator 600 architecture.

Function of the AW600056 DC Power Supply

The primary function of AW600056 is to provide the DC power supply required by the applicable Navigator 600 Silica configuration. The DC power arrangement allows the analyzer to operate from an external direct-current source rather than relying on the AC supply arrangement used by the corresponding AC-powered configuration.

ABB’s Navigator 600 Silica documentation specifies an 18–36 V DC supply range for the DC version of the analyzer. The documentation also identifies the DC supply as a separate electrical configuration from the AC supply system.

This distinction is important when identifying a replacement component. AW600056 is specifically listed as the DC power supply, while AW600051 is separately identified as the AC power supply. The two part numbers should therefore not be considered interchangeable simply because they belong to the same Navigator 600 spare-parts family.

DC-Powered Navigator 600 Configuration

The DC version of the Navigator 600 Silica is intended for installations where an appropriate direct-current power source is available. The documented supply range is 18 to 36 V DC, with the analyzer documentation specifying the electrical requirements for the complete instrument.

A DC-powered analytical instrument can be advantageous in control environments where DC power is already distributed through the plant instrumentation system. The analyzer can then be incorporated into an existing electrical architecture without requiring the same AC supply arrangement as an AC-powered installation.

The exact electrical installation must nevertheless be checked against the analyzer documentation and the actual system configuration. The external power source, protection, wiring and grounding arrangement should all be suitable for the installed equipment.

Relationship with the Analyzer Electrical System

The AW600056 is one component within a larger electrical architecture. The Navigator 600 Silica also includes electronic assemblies such as the transmitter application board and optional communication hardware. The power supply provides the electrical foundation on which these assemblies depend.

ABB spare-parts documentation identifies AW600065 as the transmitter application board and AW600067 as the PROFIBUS board. These components perform different functions from AW600056. The power supply should therefore be regarded as a power-management component rather than an application or communications board.

Understanding the relationship between these parts can make troubleshooting more systematic. A failure of the power supply can create symptoms across multiple electronic assemblies, while a failure of a single application board may affect only specific analyzer functions.

Single-Stream and Multi-Stream Systems

ABB documentation lists AW600056 in the spare-parts sections associated with Navigator 600 Silica single-stream and multi-stream systems. This indicates that the DC power supply is relevant to both configurations of the platform.

A single-stream system is designed around one sample stream, while a multi-stream configuration can handle multiple sample inputs within the analyzer architecture. The sample-handling arrangement changes with the system configuration, but the electrical power system remains a fundamental part of the analyzer.

When replacing the power-supply component, technicians should still confirm the complete analyzer model and electrical configuration. The fact that a part number appears in multiple system documentation sets does not eliminate the need to verify the actual installed equipment.

Electrical Integration and Installation

Proper electrical integration is essential when working with AW600056. The external DC source should correspond to the required supply range, and the wiring should be installed according to the applicable electrical and analyzer documentation.

The Navigator 600 documentation provides dedicated connection information for the DC supply. The supply path includes appropriate protection and connection points within the analyzer. During service work, the power should be isolated before accessing internal electrical components.

Correct polarity is also an important consideration for DC-powered equipment. The positive, negative and earth connections should be verified against the applicable connection diagram before energizing the analyzer.

Cable routing and terminal connections should be inspected during maintenance. A loose terminal, damaged conductor or incorrect connection can cause unstable operation and may create symptoms that resemble an internal power-supply fault.

Maintenance and Troubleshooting

When a Navigator 600 Silica analyzer does not start or exhibits a loss of electrical functions, troubleshooting should begin with the external DC supply. The available input voltage should be checked against the required operating range before assuming that AW600056 itself has failed.

Protective devices, wiring and terminal connections should also be inspected. If the external supply is correct but the analyzer does not receive the expected internal power, the DC power-supply assembly can then be investigated according to the applicable service procedure.

A power-supply problem can produce multiple secondary symptoms. For example, loss of power can affect the transmitter, communications, measurement electronics and other system functions simultaneously. It is therefore important to establish whether several apparent faults have a common electrical cause.

After a power-supply replacement, the analyzer should be checked systematically. The transmitter, measurement functions, communications and other dependent assemblies should be verified after the DC power system has been restored.

AW600056 and AW600051 Comparison

This distinction is especially useful when managing spare parts for Navigator 600 equipment. Although AW600051 and AW600056 appear together in the same ABB spare-parts lists, their descriptions clearly identify different power-supply functions.

The complete analyzer configuration should always be checked before selecting either component. A DC-powered analyzer should not be fitted with an AC power-supply assembly simply because the part belongs to the same product family.

Spare Part Identification

The ABB part number AW600056 should be used as the primary identification reference when documenting or sourcing this component. The description “DC Power Supply” should be retained with the part number because it distinguishes the component from other electrical assemblies within the Navigator 600 platform.

For maintenance records, a useful identification entry is ABB AW600056 – DC Power Supply – Navigator 600 Silica. This format connects the manufacturer, exact part number, component function and associated analyzer platform in one reference.

Industrial Application

Navigator 600 Silica analyzers are used for continuous monitoring of silica in industrial water systems, including applications associated with the steam-water cycle of power plants. Reliable electrical power is essential for continuous analytical operation.

The AW600056 supports these applications as part of the analyzer’s DC power architecture. Although the component does not directly measure silica concentration, its operation is closely related to the availability of the complete analytical system.

In a plant instrumentation environment, the DC-powered Navigator 600 can be integrated into a control system where suitable DC power distribution is already available. This makes accurate identification of the analyzer’s power configuration important during maintenance planning and spare-parts management.

Technical Summary

The ABB AW600056 is a DC Power Supply used in ABB Navigator 600 Silica analyzer systems. ABB’s official documentation identifies AW600056 specifically as the DC power supply and lists it in the spare-parts documentation for Navigator 600 Silica single-stream and multi-stream configurations.

The Navigator 600 Silica documentation specifies an 18–36 V DC supply arrangement for the DC-powered version. AW600056 should therefore be distinguished from AW600051, which is identified separately as the AC power supply.

Correct part-number identification is important when maintaining the analyzer because the power supply supports multiple electronic and analytical functions. Before replacement, the analyzer model, power configuration, external supply, wiring and connection requirements should be verified against the applicable ABB documentation.
