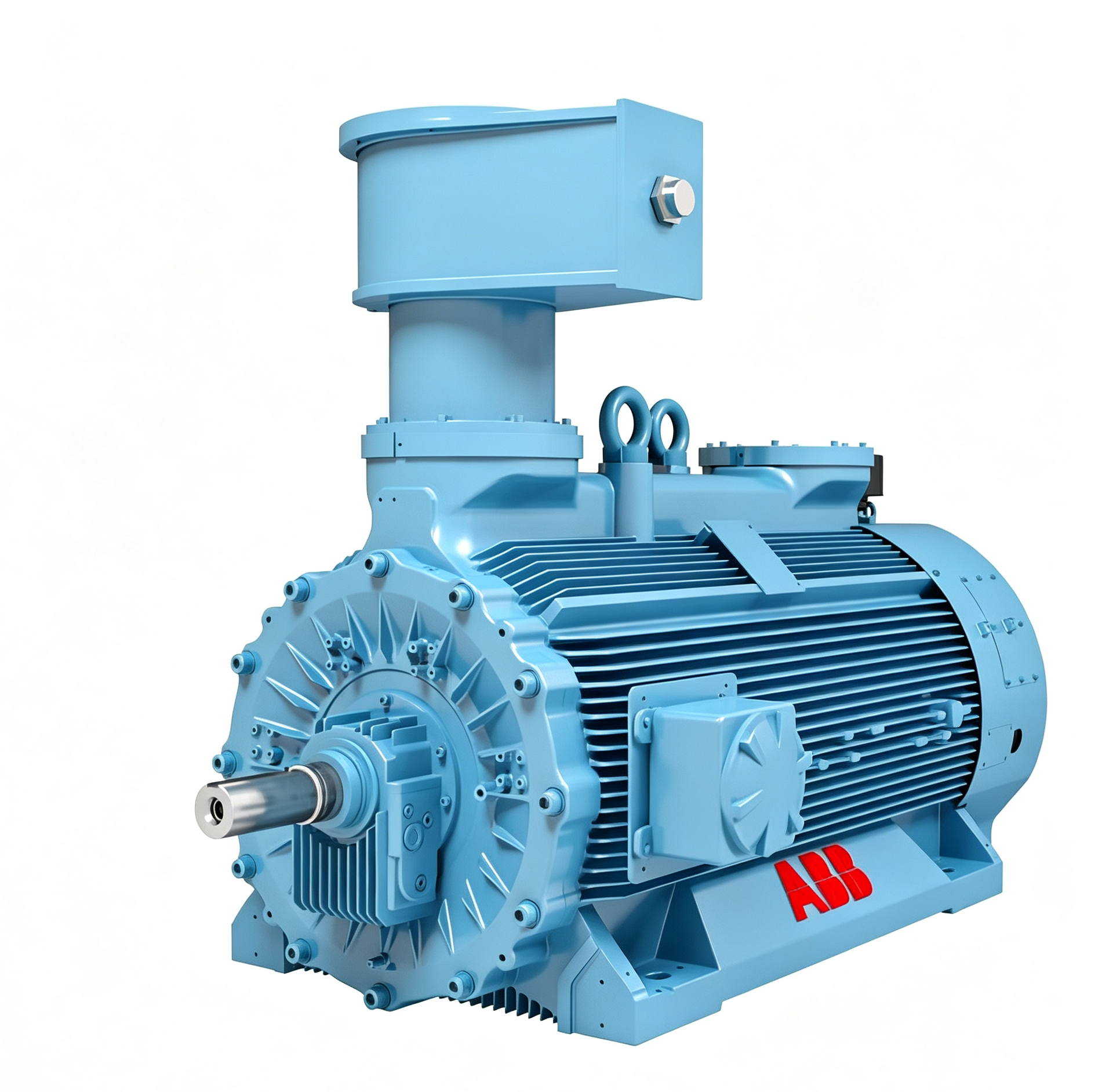

ABB AMD 400 L2R BABgM High Voltage Flameproof Three-Phase Induction Motor for Industrial Applications

The AMD 400L2R designation identifies a specific motor frame and mechanical configuration within the AMD high-voltage motor family. Published ABB motor data shows that AMD 400L2R B motors are available in several power ratings and voltage configurations, including high-voltage 50 Hz versions. :contentReference[oaicite:1]{index=1}

Product Identification

• Manufacturer: ABB
• Motor Series: AMD
• Motor Type: AMD 400 L2R
• Configuration: BABgM
• Motor Type: High-Voltage Three-Phase Induction Motor
• Rotor Type: Squirrel Cage
• Motor Design: Flameproof
• Frame Size: 400
• Rotor Configuration: Two-Pole
• Cooling Method: IC411 in published AMD 400L2R B data
• Protection Rating: IP55 in published high-voltage configurations
• Insulation Class: F in published high-voltage configurations
• Application: Industrial and Hazardous-Area Drive Systems

ABB AMD 400L2R Motor Overview

The ABB AMD 400L2R belongs to ABB’s range of high-voltage flameproof motors. These motors use a totally enclosed squirrel-cage induction motor construction and are intended for applications where reliable mechanical drive performance and hazardous-area protection are important.

The AMD 400L2R is a two-pole motor frame. In published technical data for the 10 kV, 50 Hz version, the AMD 400L2R B is listed at approximately 2,977 to 2,988 r/min depending on the selected power configuration. :contentReference[oaicite:2]{index=2}

High-Voltage Motor Design

High-voltage motors are used in industrial systems where the electrical power requirement is significantly greater than that of conventional low-voltage motor installations.

The ABB AMD 400L2R platform is designed around high-voltage three-phase electrical operation. Published technical data includes 10 kV and 11 kV, 50 Hz configurations for the AMD 400L2R B motor family. :contentReference[oaicite:3]{index=3}

The exact voltage and electrical rating of an individual motor should always be identified from the motor nameplate and complete motor documentation.

Flameproof Motor Construction

The AMD series includes flameproof motors intended for applications where the motor must be suitable for hazardous areas.

Flameproof construction is designed around an enclosure capable of containing an internal ignition event and preventing the transmission of flames through specified joints to the surrounding atmosphere.

Published listings for the AMD 400L2R family identify hazardous-area protection associated with Ex d and gas-group applications. Specific certification, temperature class and equipment protection level depend on the exact motor configuration and certification documentation. :contentReference[oaicite:4]{index=4}

Three-Phase Squirrel-Cage Induction Motor

The ABB AMD 400L2R is based on a three-phase squirrel-cage induction motor design.

Squirrel-cage induction motors are widely used in industrial applications because their rotor construction provides a mechanically robust arrangement with no brushes or slip rings required for conventional squirrel-cage operation.

This construction makes the motor suitable for continuous industrial drive systems involving pumps, compressors, fans, blowers and other rotating machinery.

Two-Pole Motor Configuration

The L2R designation is associated with a two-pole configuration within the AMD motor family.

At a supply frequency of 50 Hz, a two-pole induction motor has a synchronous speed of 3,000 r/min. Actual motor speed is lower because of induction-motor slip. Published AMD 400L2R data shows operating speeds close to 3,000 r/min, with specific values depending on motor output and electrical configuration. :contentReference[oaicite:5]{index=5}

Power Range

The AMD 400L2R frame is available in multiple power configurations.

For example, published technical data for 10 kV, 50 Hz AMD 400L2R B motors lists power ratings including 250 kW, 280 kW, 315 kW, 375 kW and higher configurations. The 11 kV, 50 Hz data similarly lists several power levels up to 400 kW for the AMD 400L2R B frame. :contentReference[oaicite:6]{index=6}

This means that the motor frame designation alone does not uniquely determine the rated power. The exact electrical specification must be verified from the individual motor nameplate.

Electrical Configuration

The ABB AMD 400L2R family is designed for high-voltage three-phase operation.

Published technical tables provide electrical characteristics such as rated current, efficiency, power factor, starting current, starting torque and maximum torque for individual motor configurations. These values vary according to rated voltage and output power. :contentReference[oaicite:7]{index=7}

For this reason, electrical parameters should not be assigned solely from the generic AMD 400L2R designation.

10 kV, 50 Hz Configuration

ABB technical data for the AMD 400L2R B family includes a 10,000 V, 50 Hz configuration.

The published data specifies IP55 protection, IC411 cooling, insulation class F and temperature-rise class B for this motor family. Depending on rated output, the listed operating speed is approximately 2,977 to 2,988 r/min. :contentReference[oaicite:8]{index=8}

11 kV, 50 Hz Configuration

The AMD 400L2R B family is also represented in published 11,000 V, 50 Hz technical data.

The table includes multiple output configurations from approximately 250 kW through 400 kW for the AMD 400L2R B frame. The corresponding motor speeds remain close to 3,000 r/min because the motors use a two-pole configuration. :contentReference[oaicite:9]{index=9}

IP55 Protection

Published AMD 400L2R B technical data specifies IP55 enclosure protection for the high-voltage flameproof motor configurations. :contentReference[oaicite:10]{index=10}

The first IP5X characteristic indicates protection against the ingress of dust to a level that does not interfere with satisfactory operation, while the second IPX5 characteristic relates to protection against water jets.

The actual protection rating of a specific motor should be confirmed from its nameplate and certification documents.

IC411 Cooling System

The AMD 400L2R B technical data identifies IC411 as the cooling arrangement for the published high-voltage configurations. :contentReference[oaicite:11]{index=11}

IC411 is a standard designation for a totally enclosed motor with an external fan providing cooling over the motor enclosure.

This arrangement allows the motor to dissipate heat while maintaining a closed motor construction suitable for demanding industrial environments.

Insulation Class F

Published technical data for the AMD 400L2R B identifies insulation class F with temperature-rise class B. :contentReference[oaicite:12]{index=12}

The insulation system is an important part of a high-voltage motor because the windings must withstand the electrical stresses associated with the motor’s rated voltage and operating conditions.

Efficiency

The AMD 400L2R motor family provides high efficiency across its available operating configurations.

For example, published 10 kV, 50 Hz data shows efficiency values increasing from approximately 94% for the lower power configurations to approximately 95.7% for higher AMD 400L2R B configurations. :contentReference[oaicite:13]{index=13}

The actual efficiency of the individual motor depends on its rated output, voltage and operating point.

Power Factor

Power factor is another important characteristic of the AMD 400L2R motor.

Published technical data lists power-factor values for individual output configurations, with full-load power factor generally around the 0.90 range in the listed high-voltage configurations. :contentReference[oaicite:14]{index=14}

The exact power factor should be obtained from the motor nameplate or the corresponding technical data sheet for the specific motor.

Motor Speed

The AMD 400L2R is a high-speed two-pole motor configuration.

At 50 Hz, the theoretical synchronous speed for a two-pole motor is 3,000 r/min. Published AMD 400L2R B data lists actual speeds around 2,977 to 2,988 r/min depending on output configuration. :contentReference[oaicite:15]{index=15}

This speed characteristic makes the motor suitable for applications requiring direct high-speed mechanical drive or connection to appropriately designed transmission systems.

Torque Characteristics

The AMD 400L2R technical tables provide starting torque, maximum torque and rated torque information for the different motor configurations.

For example, published 10 kV data shows rated torque values increasing with motor output, while maximum torque can be several times the rated torque depending on the configuration. :contentReference[oaicite:16]{index=16}

Torque requirements should be evaluated against the driven machine and the specific motor rating before installation.

Hazardous-Area Applications

The flameproof construction of the AMD family makes it relevant to industrial areas where combustible gases or vapors may be present.

Typical industries can include oil and gas, petrochemical processing, chemical production, refining, gas processing and other facilities with classified hazardous areas.

The exact hazardous-area classification must match the motor certification and the requirements of the installation.

Industrial Applications

The ABB AMD 400L2R can be used for a variety of industrial rotating-machine applications, depending on the motor’s specific power, voltage, speed and mechanical configuration.

• Industrial pumps
• Process pumps
• Compressors
• Large fans
• Blowers
• Industrial ventilation systems
• Process equipment
• Petrochemical machinery
• Oil and gas equipment
• Refinery drive systems

Pump Applications

High-voltage motors such as the AMD 400L2R can be used to drive large industrial pumps where the required mechanical power exceeds the practical range of many low-voltage motors.

The two-pole configuration can be appropriate for applications where a relatively high rotational speed is required.

Compressor Applications

Compressors are another important application for high-voltage industrial motors.

The AMD 400L2R’s high-voltage electrical design and robust squirrel-cage construction can be incorporated into compressor drive systems when the motor’s mechanical and electrical specifications match the driven equipment.

Fan and Blower Applications

Large industrial fans and blowers often require substantial continuous motor power.

The AMD 400L2R two-pole configuration can provide a suitable high-speed drive solution for appropriately engineered fan and blower systems.

Motor Frame and Mechanical Design

The 400 designation identifies the motor frame size within the AMD family.

The mechanical dimensions, shaft arrangement, mounting configuration, bearing arrangement and terminal-box design must be verified from the individual motor documentation.

This is particularly important when replacing an existing high-voltage motor because mechanical interchangeability cannot be determined from the motor type designation alone.

Motor Installation

Installation of a high-voltage flameproof motor requires careful consideration of electrical, mechanical and hazardous-area requirements.

The motor must be installed according to its nameplate data, certified installation conditions and applicable electrical standards.

Cable entry systems, grounding, terminal connections, shaft coupling, alignment, ventilation and protective devices should all be selected according to the specific motor configuration.

Electrical Protection

High-voltage motors require appropriate electrical protection against operating conditions such as overload, short circuit, phase imbalance and abnormal temperature.

The protection system should be coordinated with the motor’s rated current, starting characteristics, thermal limits and the requirements of the driven machine.

Hazardous-Area Protection

When used in a hazardous area, the motor’s flameproof certification is an essential part of the installation.

The certification marking should be checked against the hazardous-area classification, gas group, temperature class and other installation requirements.

The specific certification associated with the exact ABB AMD 400 L2R BABgM unit should be confirmed from the motor nameplate and certification documentation rather than assumed from the general AMD series designation.

Maintenance Considerations

Maintenance of a high-voltage motor includes inspection of electrical connections, bearings, cooling components, enclosure condition, grounding arrangements and other mechanical components.

For flameproof motors, special attention must be paid to certified flameproof joints and enclosure surfaces. These components should be maintained according to the applicable ABB maintenance documentation and hazardous-area requirements.

Bearing and Mechanical Inspection

Bearings are critical components in a high-speed industrial motor.

Bearing condition can affect vibration, temperature, shaft alignment and overall motor operating performance. Inspection intervals should be established according to the motor manufacturer’s documentation and actual operating conditions.

Cooling System Maintenance

For an IC411 motor, the external cooling arrangement is important for maintaining appropriate operating temperature.

The cooling fan, fan cover and surrounding airflow path should remain free from conditions that could significantly restrict cooling performance.

Motor temperature should be monitored according to the applicable operating and maintenance requirements.

Technical Specification Summary

Configuration Identification

The complete designation ABB AMD 400 L2R BABgM should be retained when identifying this motor.

The AMD 400L2R family covers multiple electrical configurations, meaning that the motor frame designation does not by itself provide the exact rated output, current or voltage.

Published ABB-related listings show AMD 400L2R motors with different power and voltage combinations, including 315 kW and 300 kW configurations at 10 kV, as well as other AMD 400L2R configurations. :contentReference[oaicite:17]{index=17}

Nameplate Verification

For an individual ABB AMD 400 L2R BABgM motor, the motor nameplate should be used to verify the final technical parameters.

Important nameplate information includes rated power, voltage, frequency, current, speed, power factor, efficiency, protection rating, hazardous-area certification, mounting arrangement and serial information.

This approach is particularly important for high-voltage motors because the same frame designation can be supplied in multiple electrical configurations.

Industrial Automation and Process Systems

Although the AMD 400L2R is a motor rather than a controller, it can form an important part of larger industrial automation and process systems.

A motor of this type can provide the mechanical power required by pumps, compressors, fans and other rotating equipment controlled by plant automation systems.

The motor may therefore operate together with motor protection equipment, high-voltage switchgear, starters, monitoring systems and process-control equipment.

Product Identification for Inventory

For industrial inventory and product cataloguing, the recommended product description is:

ABB AMD 400 L2R BABgM High Voltage Flameproof Three-Phase Squirrel-Cage Induction Motor

Additional searchable descriptions include ABB AMD 400L2R, ABB AMD 400 L2R Motor, ABB High Voltage Flameproof Motor, ABB Hazardous Area Motor, ABB Two-Pole High Voltage Motor and ABB AMD 400L2R BABgM.

Important Technical Note

The designation ABB AMD 400 L2R BABgM identifies the motor family and configuration, but it does not provide enough information to establish every electrical parameter of a specific unit.

Published AMD 400L2R B data demonstrates that multiple rated powers and high-voltage configurations are available. Therefore, the exact voltage, power, current, speed, efficiency, hazardous-area marking and other characteristics should be confirmed against the individual motor nameplate and applicable ABB technical documentation. :contentReference[oaicite:18]{index=18}

Conclusion

The ABB AMD 400 L2R BABgM is a high-voltage flameproof three-phase squirrel-cage induction motor belonging to the ABB AMD motor family. Its 400 frame and two-pole configuration make it suitable for high-speed industrial drive applications requiring substantial mechanical power.

Published technical information for the AMD 400L2R B family includes 50 Hz high-voltage configurations, IP55 enclosure protection, IC411 cooling and insulation class F. The family is available in multiple electrical ratings, so the exact specifications of an individual motor must be verified from its nameplate. :contentReference[oaicite:19]{index=19}

The motor is particularly relevant to industrial installations such as pumps, compressors, fans, blowers and other rotating machinery where high-voltage operation and hazardous-area motor protection are required.

For product cataloguing and technical identification, the complete designation ABB AMD 400 L2R BABgM should be used.
