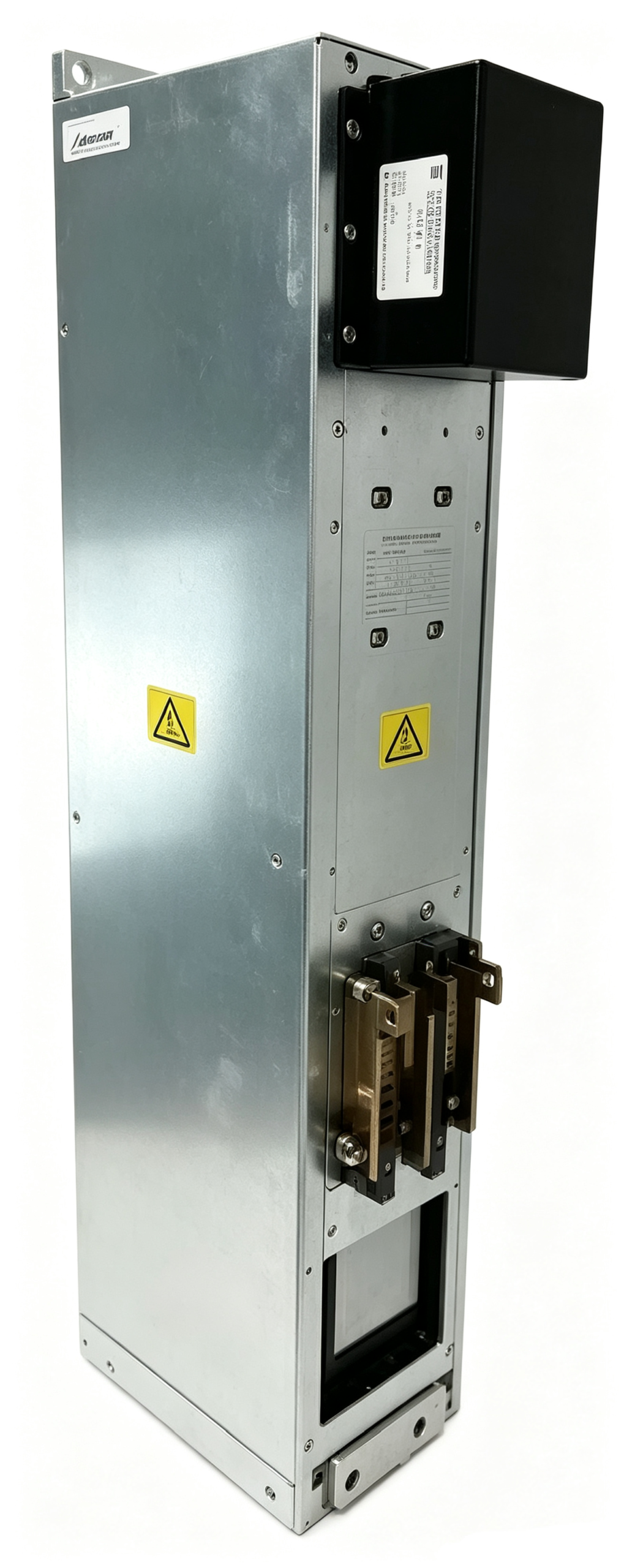

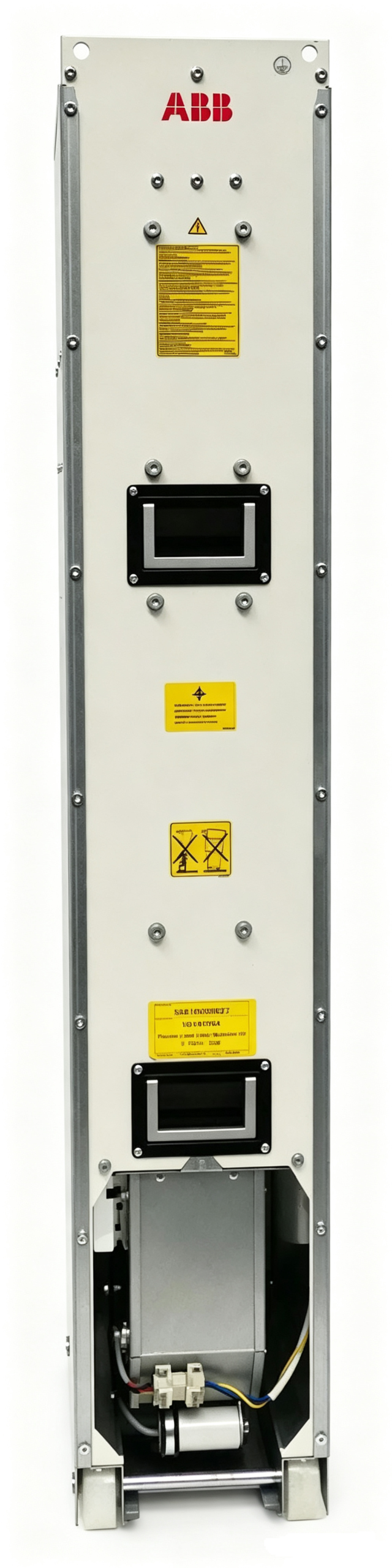

ABB ALCL-14-5+P903 68564115 Line Filter for ACS800 Industrial Drive Systems

The complete designation combines the ALCL-14-5 filter type with the +P903 option. This complete reference is important for technical identification because ABB offers several ALCL filter sizes and option combinations for different ACS800 configurations.

Product Identification

• Manufacturer: ABB
• Product ID: 68564115
• Type Designation: ALCL-14-5+P903
• Base Filter Type: ALCL-14-5
• Product Category: Line Filter
• Application: Industrial Drive Systems
• Associated Drive Family: ABB ACS800
• Associated Drive Module: R8i
• Voltage Class: 500 V Class
• Option: P903
• Approximate Product Weight: 180 kg
• Approximate Dimensions: 1397 × 499 × 240 mm

ABB ALCL-14-5+P903 Overview

The ABB ALCL-14-5+P903 is a line filter designed for integration into compatible industrial drive systems. ABB documentation lists ALCL-14-5 among the line filter configurations used with ACS800 drive modules. In particular, the ALCL-14-5 configuration appears with R8i-based drive combinations in the 500 V class. :contentReference[oaicite:1]{index=1}

The filter is therefore part of the complete drive power architecture rather than an independent motor controller. Its function is related to the electrical interface between the drive system and the incoming power network.

Product Number 68564115

ABB ALCL-14-5+P903 is associated with product ID 68564115. The product identification is useful when distinguishing this filter from other ALCL products such as ALCL-13-5+P903, ALCL-15-5+P903 and versions incorporating additional options.

The complete reference should be recorded as ALCL-14-5+P903 together with ABB product ID 68564115 when maintaining inventory or technical equipment records.

ALCL Series Line Filters

The ALCL family contains several filter configurations intended for different ABB industrial drive power ratings. The filter designation changes according to the electrical and mechanical requirements of the associated drive system.

ABB technical documentation shows ALCL-12-5, ALCL-13-5, ALCL-14-5 and ALCL-15-5 used with progressively different R8i-based ACS800 drive configurations. :contentReference[oaicite:2]{index=2}

This means that the ALCL number should not be treated as a generic filter family name. The exact suffix and filter rating are important when selecting a compatible component.

Application with ABB ACS800 Drives

ABB ACS800 industrial drives use power modules and associated filtering equipment to provide controlled motor operation. The ALCL filter can form part of the input-side power arrangement for compatible ACS800 configurations.

ABB documentation lists ALCL-14-5 in combination with R8i modules in several ACS800 drive configurations. For example, the technical catalogue associates ALCL-14-5 with ACS800-204-0390-5 and with an R8i + ALCL-14-5 combination. :contentReference[oaicite:3]{index=3}

Other ABB documentation lists ALCL-14-5 in the configuration of ACS800-14-0400-5, again showing the relationship between this filter family and R8i-based drive systems. :contentReference[oaicite:4]{index=4}

Electrical Filtering Function

A line filter is installed within the power interface of an industrial drive system to manage unwanted electrical components associated with power conversion. The filter works together with the drive’s rectifier, inverter and other power-system components.

The filtering arrangement can contribute to the electromagnetic compatibility and electrical performance of the overall installation. Its characteristics are determined by the complete drive configuration and the associated power network.

The ALCL-14-5+P903 should therefore be evaluated as part of the complete ABB drive architecture rather than as an isolated generic filter.

R8i Drive Module Relationship

ABB technical catalogues associate ALCL-14-5 with R8i drive modules. One documented configuration combines an R8i module with ALCL-14-5 in an ACS800-204 drive system. :contentReference[oaicite:5]{index=5}

R8i modules are high-power drive components used in modular ACS800 systems. The associated line filter must be matched to the applicable drive configuration, current range and voltage class.

When replacing an ALCL filter, the R8i module type and complete ACS800 system designation should therefore be checked.

500 V Voltage Class

The ALCL-14-5 designation belongs to the 5-series voltage class used in ABB ACS800 drive configurations. ABB documentation shows ALCL-14-5 in 500 V class configurations such as ACS800-204-0390-5 and ACS800-14-0400-5. :contentReference[oaicite:6]{index=6}

The actual incoming voltage and drive configuration must remain within the limits specified for the complete system. The filter should not be selected solely from its physical dimensions.

+P903 Configuration

The +P903 portion of the designation identifies an additional configuration option associated with the ALCL filter. ABB-related product listings distinguish ALCL-14-5+P903 from ALCL-14-5+G304+P903 and other ALCL-14 configurations. :contentReference[oaicite:7]{index=7}

Because these options can correspond to different system configurations, the complete type designation should be retained when identifying the component.

Physical Dimensions

Available product information for ABB ALCL-14-5+P903 identifies approximate dimensions of 1397 mm in height, 499 mm in width and 240 mm in depth. The listed product weight is approximately 180 kg. :contentReference[oaicite:8]{index=8}

These dimensions indicate that the component is intended for large industrial drive installations rather than compact standalone drives.

Cabinet space, mounting arrangement, cable routing and ventilation requirements should be considered when installing the filter.

Technical Specification Summary

ACS800-204 Applications

ABB technical documentation associates ALCL-14-5 with ACS800-204 modular drive configurations. One documented 500 V configuration uses an R8i module together with ALCL-14-5. :contentReference[oaicite:9]{index=9}

The ACS800-204 architecture uses modular power components to create high-power industrial drive systems. The line filter is selected according to the corresponding power module and electrical configuration.

This makes the ALCL-14-5+P903 particularly relevant to high-power ACS800 installations using the applicable R8i architecture.

ACS800-14 Applications

ABB’s technical catalogue also shows ALCL-14-5 in the configuration of ACS800-14-0400-5, with the drive arrangement described as R8i + R8i + ALCL-14-5. :contentReference[oaicite:10]{index=10}

This demonstrates that the ALCL-14-5 filter can appear in different ACS800 system architectures depending on the complete drive rating and configuration.

Therefore, identifying the host ACS800 drive model is recommended before using ALCL-14-5+P903 as a replacement.

Power System Integration

The line filter forms part of the electrical path between the incoming power supply and the drive power electronics. It operates together with switching equipment, rectifier components, DC-link components and the inverter module.

The filter’s electrical characteristics should be compatible with the associated drive and power network. Incorrect filter selection can result in an unsuitable electrical configuration even when the physical dimensions appear similar.

For this reason, the ABB product ID and complete type designation are useful when documenting the installation.

Installation Considerations

Installation of a large ALCL filter requires suitable mechanical support and sufficient cabinet space. The approximately 180 kg mass of the ALCL-14-5+P903 makes appropriate handling and mounting arrangements important. :contentReference[oaicite:11]{index=11}

Electrical connections should follow the applicable ABB installation documentation. Cable sizing, protective equipment, grounding and isolation requirements should be considered as part of the complete drive installation.

Adequate ventilation and clearance should also be maintained around the filter and associated power components.

Maintenance Considerations

Maintenance of a line filter can include inspection of electrical terminals, cable connections, mechanical mounting points and surrounding ventilation areas.

The filter should be examined for signs of overheating, abnormal electrical conditions or mechanical deterioration. Maintenance intervals should be determined according to the complete drive system and operating environment.

Before servicing the filter, the complete drive system must be isolated according to the applicable electrical safety procedure.

Compatibility with Other ALCL Filters

ABB provides several ALCL filter configurations with different numerical designations and options. Examples include ALCL-13-5+P903, ALCL-14-5+P903, ALCL-15-5+P903 and ALCL-24-5+P903. :contentReference[oaicite:12]{index=12}

Although these components belong to the same ALCL family, their electrical ratings and mechanical characteristics are not necessarily identical.

The ALCL-14-5+P903 should therefore not be substituted with another ALCL model without checking the corresponding ACS800 drive documentation.

Product Identification for Inventory

For inventory and technical records, the recommended identification is ABB ALCL-14-5+P903 with ABB product ID 68564115.

The description “ABB ACS800 ALCL-14-5+P903 Line Filter” clearly identifies the component type and its associated drive family.

The +P903 suffix should be preserved because ABB lists other ALCL-14-5 configurations with different options, including versions with +G304+P903. :contentReference[oaicite:13]{index=13}

Technical Documentation

ABB technical catalogues show ALCL-14-5 as part of several R8i-based ACS800 drive configurations. In the 500 V class, the catalogue associates ALCL-14-5 with ACS800-204 and ACS800-14 configurations. :contentReference[oaicite:14]{index=14}

Available ABB product information identifies the specific ALCL-14-5+P903 configuration with product ID 68564115. :contentReference[oaicite:15]{index=15}

This combination of type designation and product ID provides a useful basis for equipment identification and compatibility checking.

Product Identification Summary

ABB ALCL-14-5+P903 is an ALCL series line filter associated with ABB ACS800 industrial drive systems. The specific product is identified by ABB product ID 68564115.

The ALCL-14-5 configuration is documented with R8i-based ACS800 systems in the 500 V class, including ACS800-204 and ACS800-14 configurations. :contentReference[oaicite:16]{index=16}

Available product information lists an approximate weight of 180 kg and dimensions of 1397 × 499 × 240 mm. :contentReference[oaicite:17]{index=17}

Conclusion

ABB ALCL-14-5+P903 is a large industrial line filter designed for use within compatible ABB ACS800 drive systems. Its base configuration, ALCL-14-5, is documented in R8i-based ACS800 drive arrangements in the 500 V class.

The complete designation ALCL-14-5+P903 and ABB product ID 68564115 should be retained for accurate technical identification. The filter is associated with high-power modular drive systems and has an approximate physical size of 1397 × 499 × 240 mm with a listed weight of approximately 180 kg. :contentReference[oaicite:18]{index=18}

When evaluating this component for a specific installation, the host ACS800 model, R8i power-module configuration, voltage class and option code should all be checked to establish compatibility.
