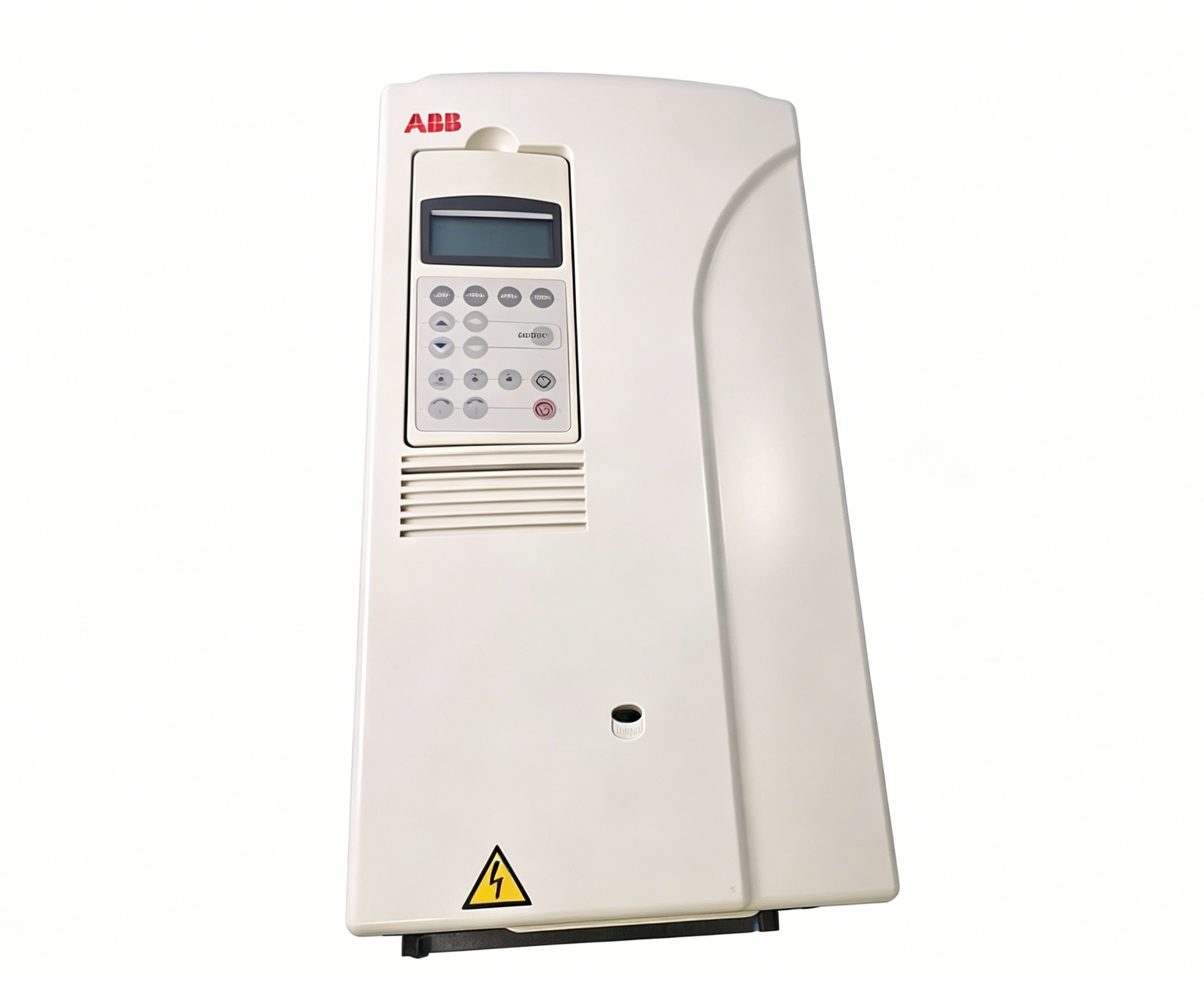

ABB ACS800-U1-0030-5+D150+P901 Industrial AC Drive Overview

The ABB ACS800-U1-0030-5+D150+P901 is a high-performance industrial AC drive designed for advanced motor speed control and energy-efficient operation in demanding automation environments. It belongs to ABB’s ACS800 series, which is widely recognized for its robust design, high reliability, and advanced motor control capabilities. This drive is commonly used in industrial systems that require precise torque control and stable variable frequency operation, especially in continuous-duty applications.

According to technical documentation and industrial specifications, the ACS800-U1-0030-5+D150+P901 is designed for three-phase 380–500V power systems and provides a rated power capacity of approximately 30HP (around 22 kW). It is typically installed in wall-mounted or cabinet-based configurations with an IP21 (NEMA 1) enclosure, making it suitable for indoor industrial environments such as electrical rooms and automation control panels. :contentReference[oaicite:0]{index=0}

One of the key technologies used in the ABB ACS800 series is Direct Torque Control (DTC). This advanced control method allows the drive to directly regulate motor torque and speed without the need for complex modulation stages. As a result, the ACS800-U1-0030-5+D150+P901 delivers fast dynamic response, high torque accuracy, and excellent performance even under sudden load changes.

The drive is widely used in industrial applications such as water pumping systems, ventilation fans, conveyor belts, compressors, mixers, and general manufacturing equipment. These applications require stable motor speed regulation to ensure process consistency and energy optimization. The ACS800 series is particularly well-suited for systems where load conditions vary frequently during operation.

Energy efficiency is one of the major advantages of this drive. By adjusting motor speed according to actual process demand, the ABB ACS800-U1-0030-5+D150+P901 reduces unnecessary energy consumption during partial-load operation. This makes it highly suitable for HVAC systems, pumping stations, and industrial processes where motors do not always operate at full load.

Another important feature of the ACS800 series is its built-in protection functions. The drive includes protection against overcurrent, overvoltage, undervoltage, short circuit conditions, and thermal overload. These safety mechanisms help protect both the drive and the connected motor, reducing the risk of equipment failure and unplanned downtime in industrial environments.

From a mechanical and electrical design perspective, the ABB ACS800-U1-0030-5+D150+P901 is built for durability and stable long-term operation. The IP21 enclosure provides basic protection against solid objects and vertical dripping water, while also allowing sufficient airflow for cooling. This balance between protection and ventilation ensures reliable operation inside controlled industrial cabinets.

The drive also supports smooth acceleration and deceleration control, which reduces mechanical stress on connected equipment such as pumps, shafts, belts, and gear systems. This helps extend the service life of mechanical components and reduces maintenance costs in long-term industrial operation.

System integration is another key advantage of the ACS800 platform. The drive can be integrated into PLC-based automation systems and industrial control networks, allowing centralized monitoring and coordinated operation across multiple motor-driven processes. This makes it suitable for complex automation environments in manufacturing plants and process industries.

Although the ACS800 series is considered an older generation ABB drive platform, it remains widely used in industrial environments due to its proven reliability, strong performance, and long service life. Many facilities continue to operate these drives because they provide stable performance and are well supported in legacy automation systems.

Maintenance and diagnostics are also supported through built-in monitoring functions. These features help operators detect abnormal operating conditions early, improving maintenance efficiency and reducing unexpected downtime. In industrial applications where continuous operation is required, this contributes significantly to overall system reliability.

In conclusion, the ABB ACS800-U1-0030-5+D150+P901 is a reliable and high-performance industrial AC drive designed for precise motor control and energy-efficient operation. Its 30HP capacity, 380–500V input range, IP21 enclosure, and advanced DTC technology make it suitable for a wide range of industrial automation applications including pumps, fans, conveyors, and general process control systems.
