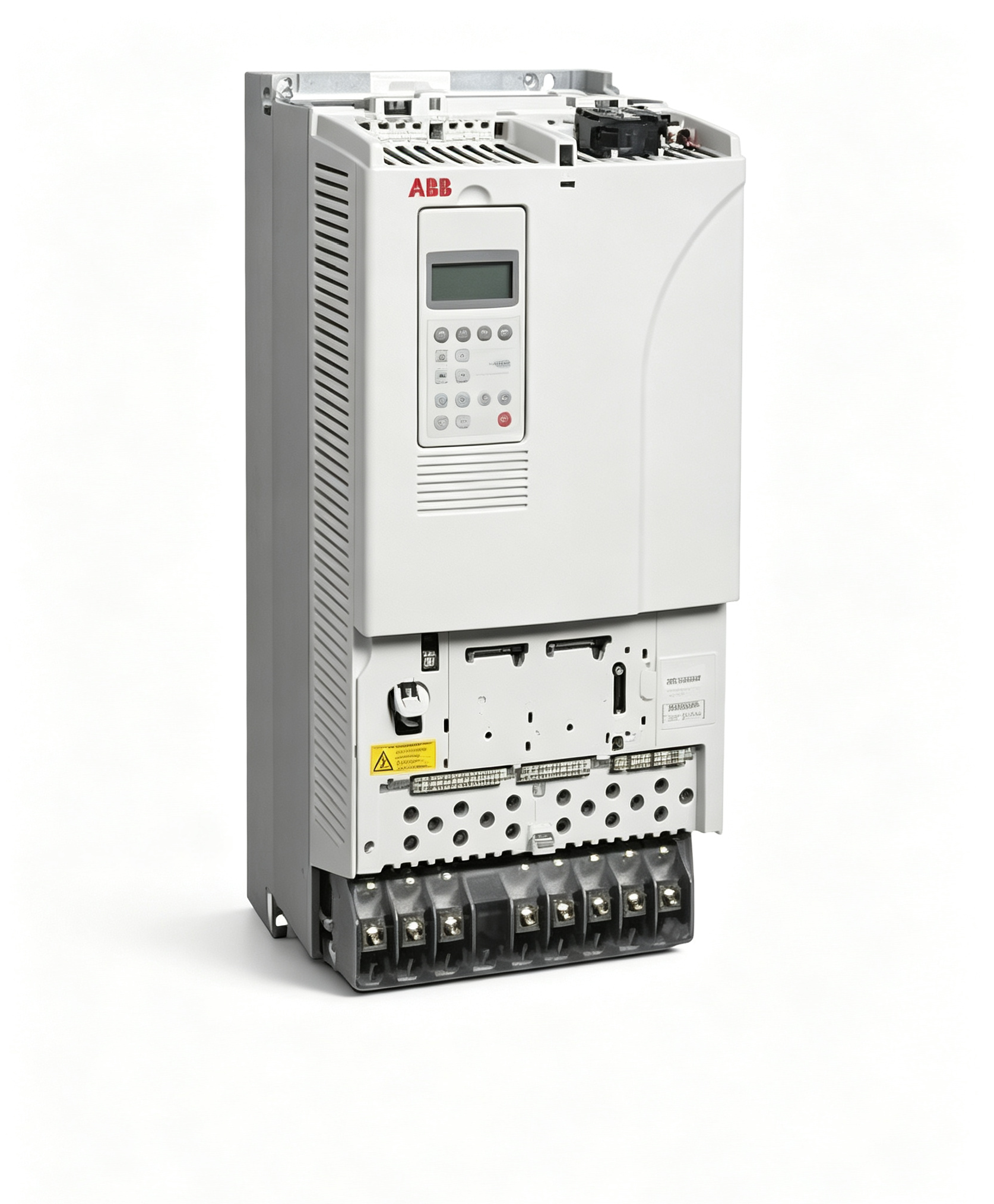

ABB ACS800-04-2010-3 E208 E210 Industrial Drive Module

ABB ACS800-04-2010-3 E208 E210 is a high-power industrial drive module from the ABB ACS800 series. The unit belongs to the ACS800-04 family of drive modules and combines ABB motor control technology with configured filtering options for industrial electrical systems. The complete designation identifies the basic drive configuration together with the E208 common mode filter and E210 EMC/RFI filter selections.

The ACS800-04 is designed for applications where accurate motor speed and torque control are required. ABB documentation describes the ACS800-04 as a drive module with a six-pulse diode input bridge, drive control unit and Standard Control Program in its basic configuration. The product family uses ABB Direct Torque Control technology, providing a control architecture intended for demanding industrial motor-drive applications. :contentReference[oaicite:1]{index=1}

Product Configuration

The designation ABB ACS800-04-2010-3 contains several important pieces of technical information. ACS800 identifies the drive family, while 04 identifies the drive module construction. The 2010 designation identifies the particular size and rating within the product family, and the final 3 indicates the 380/400/415 volt class supply range used by this configuration.

The additional E208 and E210 designations identify filtering options. ABB documentation lists E210 as an EMC/RFI filter for second-environment TN and IT systems, while E208 is identified as a common mode filter. These options are significant when integrating the drive into an industrial electrical installation where conducted electromagnetic emissions and common mode effects need to be considered. :contentReference[oaicite:2]{index=2}

Technical Characteristics

• Manufacturer: ABB
• Product family: ACS800
• Drive type: ACS800-04 drive module
• Complete designation: ACS800-04-2010-3 E208 E210
• Voltage code: 3
• Voltage range: 380/400/415 VAC class
• Input bridge: Six-pulse diode input bridge
• Control technology: Direct Torque Control
• Control platform: ABB drive control unit
• Control program: Standard Control Program in the basic configuration
• E208: Common mode filter
• E210: EMC/RFI filter for second environment TN/IT systems
• Application: Industrial motor control
• Construction: Drive module

ABB states that the type code contains information about the specifications and configuration of the drive. The basic configuration is followed by optional selections identified with plus codes. For the ACS800-04, ABB lists E210 as an EMC/RFI filter for second-environment TN/IT systems and E208 as a common mode filter. :contentReference[oaicite:3]{index=3}

ACS800-04 Drive Module Architecture

The ACS800-04 is a modular industrial drive concept intended for integration into larger electrical control systems. Unlike a complete cabinet-mounted drive, the drive module is designed to become part of an engineered installation that includes incoming power connections, motor connections, control interfaces, protective equipment and appropriate enclosure arrangements.

The basic ACS800-04 configuration includes a six-pulse diode input bridge. The input section converts the incoming alternating current supply into the direct current intermediate circuit required by the inverter section. The inverter then generates a controlled output for the connected motor.

The drive control unit coordinates the power electronics and control functions. Depending on the selected application and installed options, the drive can exchange control and status information with external automation equipment through its available input, output and communication interfaces.

Direct Torque Control

A key characteristic of the ACS800 family is ABB Direct Torque Control technology. The control principle is designed to control motor torque and flux directly rather than relying solely on conventional frequency and voltage control methods.

For industrial applications, accurate torque control can be important when motor loads change rapidly or when the process requires controlled acceleration, deceleration and speed regulation. Direct Torque Control can therefore be used in applications where dynamic motor behavior is an important part of the drive requirement.

The actual performance of an installed drive depends on the motor characteristics, parameter settings, application program, mechanical load and complete control system. The drive should therefore be configured according to the motor and process requirements.

E208 Common Mode Filter

The E208 option is identified by ABB as a common mode filter. Common mode filtering addresses high-frequency electrical components that can appear between the motor circuit and ground or other common reference paths.

Common mode effects can be relevant in variable-speed drive installations because the high-frequency switching of the inverter generates voltage transitions that can produce common mode currents. The E208 filter forms part of the drive configuration intended to address these effects.

The presence of E208 in the complete type designation means that the drive was configured with the common mode filtering option. This is an important identification detail when matching the drive configuration with the original electrical design or replacing a corresponding ACS800-04 module.

E210 EMC/RFI Filter

The E210 option provides EMC/RFI filtering. ABB identifies E210 as an EMC/RFI filter for second-environment TN and IT systems. This filtering option is intended to address electromagnetic compatibility requirements associated with the drive installation. :contentReference[oaicite:4]{index=4}

Variable-speed drives contain high-speed switching power electronics, which can generate conducted and radiated electromagnetic disturbances. Appropriate filtering helps manage these emissions and supports the electromagnetic compatibility of the overall installation.

The E210 designation should therefore be considered part of the electrical configuration rather than a generic accessory. The correct filtering arrangement depends on the network type, installation environment and applicable electromagnetic compatibility requirements.

Motor Control Applications

ABB ACS800-04 drive modules are intended for industrial motor control applications where variable-speed operation and controlled torque are required. The drive can form part of machinery and process systems involving pumps, fans, conveyors, compressors, mixers and other rotating equipment, depending on the selected power rating and application configuration.

The ACS800 architecture can support both speed-oriented and torque-oriented applications. Its control functions can be coordinated with external automation equipment, allowing the drive to receive commands and reference values while providing operating information back to the control system.

The precise application should be determined from the motor rating, load characteristics, required speed range, acceleration profile and environmental conditions.

Power Conversion Process

The ACS800-04 converts incoming three-phase alternating current into a controlled motor output through its power conversion stages. The input bridge supplies the intermediate direct current circuit, while the inverter section generates the variable-frequency and variable-voltage output required by the motor.

The control system continuously manages the inverter switching according to the selected control mode and motor parameters. This allows the drive to regulate motor operation according to external references and internal protection limits.

For high-power industrial equipment, correct sizing of the drive and motor is essential. The application must consider continuous load current, overload requirements, ambient temperature, switching frequency, motor cable arrangement and installation conditions.

Industrial System Integration

The ACS800-04-2010-3 E208 E210 can be incorporated into an industrial automation system as the motor control element between the electrical supply and the driven machine. The drive control system can interface with external control equipment through the available input, output and communication arrangements.

Typical system architecture can include a programmable logic controller or process controller, motor protection equipment, circuit protection, control signals, motor cabling and the ACS800 drive module. The drive then provides the controlled electrical output required by the motor.

The exact control interface depends on the installed control board, optional modules and application configuration. ABB documentation should be used to confirm terminal functions and communication interfaces for the specific hardware configuration.

Electrical Compatibility

The final digit 3 in the designation identifies the 380/400/415 VAC voltage range associated with the ACS800-04 type code. ABB’s hardware documentation lists voltage range 3 as 380/400/415 VAC. :contentReference[oaicite:5]{index=5}

This voltage designation is important when selecting a drive for an industrial power system. The incoming supply characteristics must correspond to the drive’s specified voltage range, while the motor voltage and current must correspond to the selected output rating and application.

The E208 and E210 options must also be considered because filtering requirements can influence the installation arrangement, grounding approach and electromagnetic compatibility design.

Control and Monitoring

The ACS800 drive architecture provides control and monitoring functions for the connected motor. Operating values, reference signals, status information and fault conditions can be processed by the drive control system.

This information can be used by operators and automation controllers to monitor motor operation and respond to abnormal conditions. The exact available signals depend on the Standard Control Program, installed options and configured parameters.

Drive parameters should be established according to the motor nameplate data, mechanical load and process requirements. Incorrect parameterization can affect motor behavior, protection functions and system performance.

Installation Considerations

Because the ACS800-04 is a drive module, installation requires attention to the complete electrical and mechanical system. Power connections, motor connections, control wiring, grounding, cooling and enclosure construction must be designed according to the applicable ABB installation documentation.

The filtering configuration also needs to be considered during installation. The E208 common mode filter and E210 EMC/RFI filter are part of the specified drive configuration and should be incorporated into the system design.

Adequate ventilation and thermal management are especially important for high-power drive modules. The enclosure and cooling arrangement should be selected according to the drive rating and installation environment.

Product Identification

The complete product reference ABB ACS800-04-2010-3 E208 E210 should be retained when documenting the drive. The base type and option codes together provide useful information about the electrical configuration and filtering arrangement.

ABB explains that ACS800 type codes are constructed from the basic product configuration followed by optional selections. The E208 and E210 codes therefore provide meaningful information about the installed filtering configuration rather than representing arbitrary accessory references. :contentReference[oaicite:6]{index=6}

When replacing or integrating the drive, the full type designation should be compared with the existing system documentation. Hardware configuration, control interfaces, input voltage, motor rating and installed options should all be verified before engineering or installation work.

Typical Applications

ABB ACS800-04 drive modules can be used in industrial systems requiring controlled motor operation, including:

• Industrial pumps
• Process fans
• Conveyor systems
• Compressors
• Material handling equipment
• Industrial production machinery
• Process equipment
• High-power rotating machinery
• Industrial ventilation systems
• Variable-speed motor applications

The appropriate application depends on the drive rating, motor characteristics and process requirements. The ACS800-04-2010-3 E208 E210 should be evaluated as a complete configured drive module rather than solely by the ACS800-04 family name.

Conclusion

ABB ACS800-04-2010-3 E208 E210 is an ACS800-04 industrial drive module configured for the 380/400/415 VAC voltage class and equipped with E208 common mode filtering and E210 EMC/RFI filtering. The ACS800-04 platform uses ABB Direct Torque Control technology and a modular power-conversion architecture intended for demanding industrial motor control applications.

The E208 option identifies the common mode filter, while E210 identifies EMC/RFI filtering for second-environment TN and IT systems. These options are significant when integrating the drive into an industrial electrical installation because they form part of the drive’s electromagnetic compatibility and motor-circuit configuration. :contentReference[oaicite:7]{index=7}

For engineering identification, ABB ACS800-04-2010-3 E208 E210 should always be referenced by its complete type designation. The supply voltage, drive rating, filtering options, control configuration and installation requirements should be checked together to ensure that the drive corresponds to the intended motor-control system.
