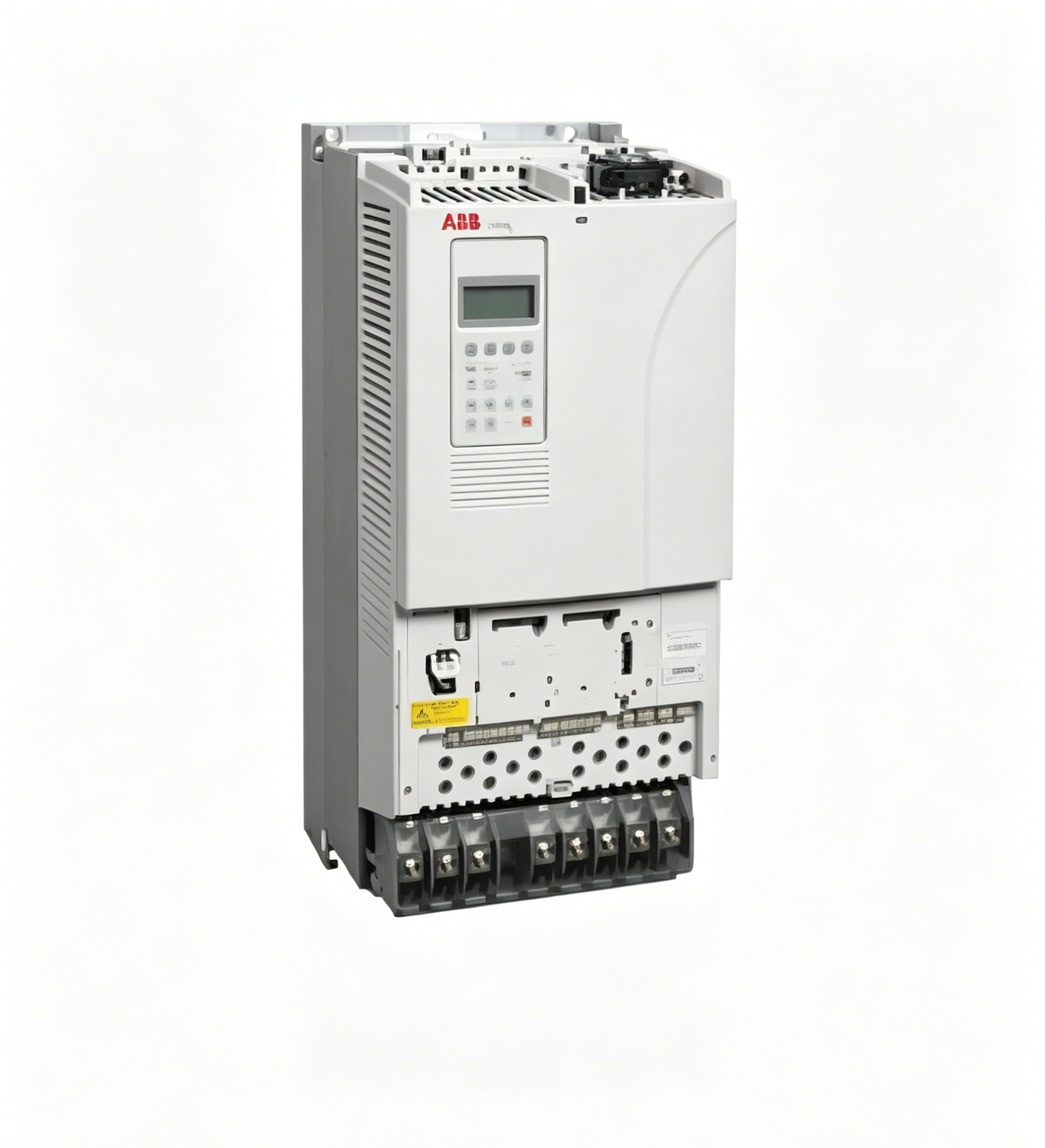

ABB ACS800-04-0260-5 Industrial AC Drive

The ABB ACS800-04-0260-5 is a high-performance industrial AC drive developed for demanding motor control and process automation applications. As a member of the renowned ACS800 drive family, this model combines advanced control technology, operational reliability, and energy-efficient performance to support a wide range of industrial processes. Designed for cabinet installation, the drive is widely used in manufacturing facilities, power generation plants, water treatment systems, mining operations, material handling equipment, and process industries where accurate motor control is essential.

Industrial operations require drive systems capable of maintaining stable performance under varying load conditions while ensuring efficiency and productivity. The ABB ACS800-04-0260-5 addresses these requirements through sophisticated motor control capabilities and ABB’s proven Direct Torque Control (DTC) technology. This advanced control method enables rapid torque response, precise speed regulation, and excellent process performance without requiring additional feedback devices in many applications.

ABB ACS800-04-0260-5 Overview

The ACS800 series has long been recognized as one of ABB’s flagship industrial drive platforms. The ABB ACS800-04-0260-5 is designed for three-phase power systems operating between 380 V and 500 V. The drive provides a normal-duty output current of 289 A and a rated output power of 200 kW, making it suitable for medium- and high-power industrial applications. The unit is constructed for cabinet assembly and is engineered to meet the performance requirements of continuous industrial operation.

By combining robust hardware with intelligent control algorithms, the drive helps operators achieve improved process stability, reduced energy consumption, and enhanced equipment protection.

Key Features

• High-performance industrial AC drive platform
• 380–500 V three-phase input voltage range
• 289 A normal-duty output current
• 200 kW rated output power
• Advanced Direct Torque Control technology
• Rapid dynamic motor response
• Precise speed and torque regulation
• Cabinet-mounted industrial design
• Integrated motor protection functions
• Suitable for demanding process applications
• Energy-efficient operation
• Reliable performance in continuous-duty environments

Direct Torque Control Technology

A defining feature of the ACS800 product family is ABB’s Direct Torque Control technology. Unlike conventional drive control methods that rely heavily on pulse width modulation calculations, DTC directly controls motor torque and flux. This approach enables exceptionally fast response times and highly accurate motor performance.

The ABB ACS800-04-0260-5 uses this technology to maintain stable operation during sudden load changes, acceleration cycles, and varying process demands. The result is improved production consistency and greater control over critical industrial processes.

For applications requiring precise speed regulation and dynamic performance, DTC technology offers significant advantages in efficiency and operational accuracy.

Industrial Applications

The ABB ACS800-04-0260-5 is suitable for a broad range of industrial applications where reliable motor control is essential. Its power capacity and control capabilities allow it to support numerous types of machinery and process equipment.

• Industrial pump systems
• Ventilation and fan installations
• Conveyor systems
• Compressors
• Material handling equipment
• Mining machinery
• Water and wastewater treatment facilities
• Chemical processing plants
• Oil and gas operations
• Pulp and paper production
• Power generation facilities
• General manufacturing systems

These applications benefit from accurate motor control, reduced mechanical stress, and enhanced operational efficiency.

Energy Efficiency Advantages

Energy consumption remains a major concern for industrial facilities. Variable frequency drive technology enables operators to optimize motor performance according to actual process requirements rather than operating continuously at fixed speed.

The ABB ACS800-04-0260-5 adjusts motor speed and torque in real time, helping reduce unnecessary energy consumption. In applications such as pumps and fans, variable speed control can significantly improve overall system efficiency while lowering operating costs.

These energy-saving capabilities contribute to improved sustainability performance and support long-term cost reduction initiatives across industrial operations.

Reliability in Demanding Environments

Industrial equipment is frequently exposed to harsh operating conditions, including continuous operation, electrical disturbances, fluctuating loads, and demanding environmental factors. The ABB ACS800-04-0260-5 is engineered to provide dependable performance under these conditions.

The drive incorporates advanced protective functions designed to safeguard both the drive and connected motor systems. These features help minimize unexpected downtime, reduce maintenance requirements, and improve equipment availability.

Long-term reliability is a critical factor in industrial drive selection, and the ACS800 platform has established a strong reputation for dependable operation in demanding industries worldwide.

System Integration Capabilities

Modern industrial facilities increasingly depend on integrated automation architectures that connect drives, controllers, sensors, and supervisory systems. The ABB ACS800-04-0260-5 is designed to function within these complex environments while supporting communication and process coordination requirements.

Its compatibility with industrial automation systems allows engineers to incorporate the drive into new installations, modernization projects, and process optimization initiatives. This flexibility makes the drive suitable for both standalone motor control and fully integrated automation solutions.

Maintenance and Lifecycle Support

Industrial operators seek drive solutions that provide long-term value and support ongoing maintenance strategies. The ABB ACS800-04-0260-5 contributes to lifecycle management objectives by offering proven technology and established field performance.

The drive supports maintenance planning through reliable operation and robust design. Its role within industrial automation infrastructure helps organizations maintain productivity while minimizing the impact of unexpected equipment failures.

Conclusion

The ABB ACS800-04-0260-5 Industrial AC Drive is a powerful and reliable motor control solution designed for demanding industrial environments. Featuring 380–500 V operation, 289 A output current, 200 kW power capacity, and ABB Direct Torque Control technology, it delivers exceptional performance across a wide range of automation and process control applications.

With its combination of precise motor regulation, energy efficiency, operational reliability, and integration flexibility, the ABB ACS800-04-0260-5 remains a trusted choice for organizations seeking advanced industrial drive technology and long-term process optimization.
