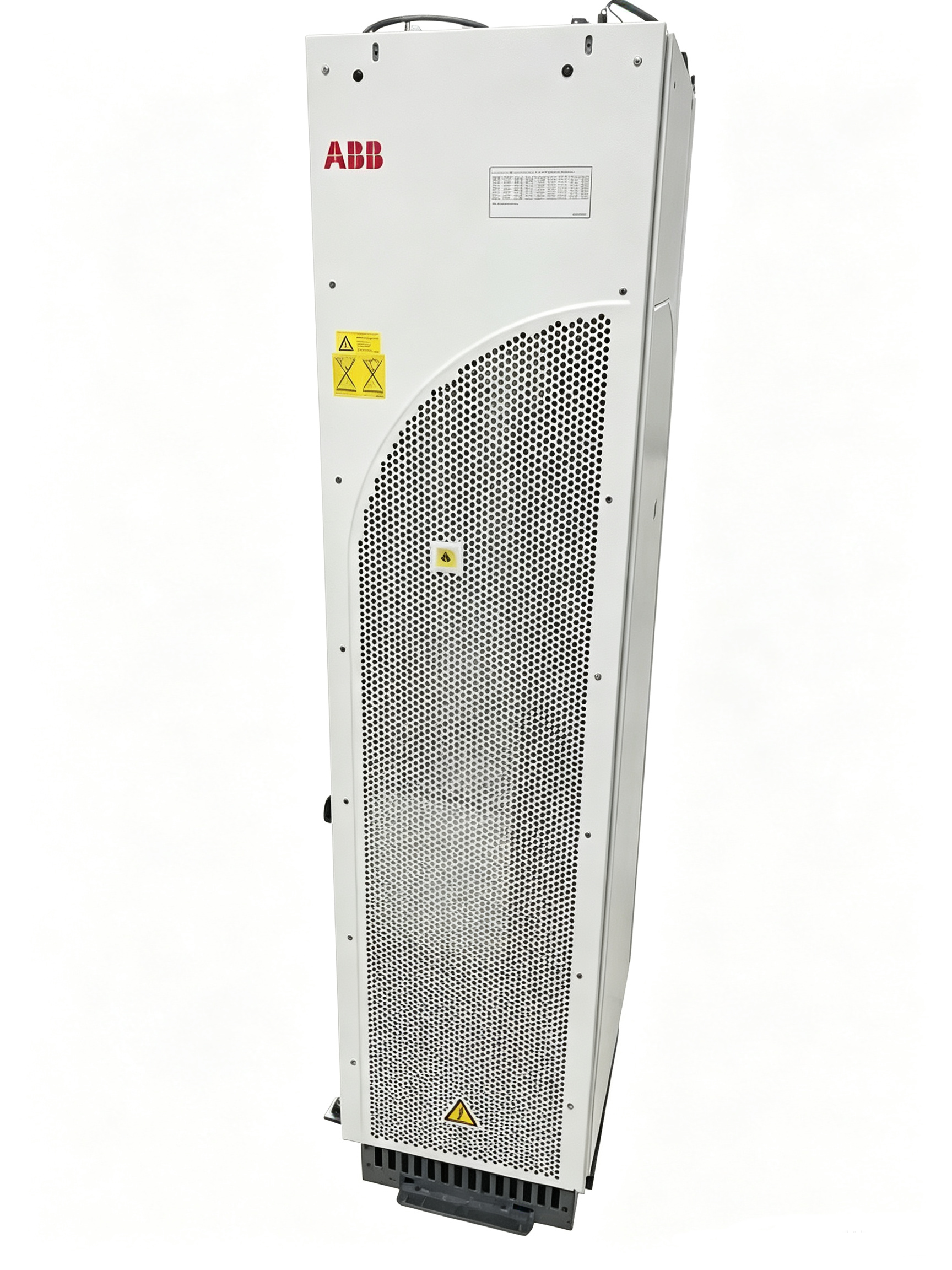

ABB ACS800-04-0260-3 P901 D150 N651 90kW Drive Module with Coated Boards, Braking Chopper and Master/Follower Control

ABB ACS800-04-0260-3 Product Overview

The ACS800-04 is a drive module platform intended for integration into industrial
electrical systems. Unlike a complete cabinet-mounted drive, a drive module is
designed to become part of a larger installation in which the system designer
provides the appropriate enclosure, input equipment, control interfaces, motor
connections, cooling arrangements and protection components.

The ACS800-04-0260-3 provides variable-speed control for three-phase AC motors.
Variable-speed drive technology allows motor speed and torque to be controlled
according to process requirements rather than operating the motor continuously at
a fixed frequency. This can improve process control and provide a practical method
of matching motor operation to changing load conditions.

The complete type designation is important because ACS800-04 modules are available
in different current, voltage and frame-size configurations. The suffix -0260-3
identifies a particular combination within the ACS800-04 range, while the additional
option codes describe functions incorporated into the specified configuration.

ACS800-04-0260-3 Electrical Rating

ABB technical documentation lists the ACS800-04-0260-3 for three-phase supply
voltages of 380 V, 400 V, 415 V, 440 V, 460 V, 480 V or 500 V. The module has a
maximum continuous current rating of 445 A and a maximum current rating of 588 A.
These values describe the electrical capability of the drive module and should be
considered together with the selected application duty.

Under the no-overload and light-overload categories, the documented continuous power
value for the -0260-3 configuration is 200 kW. Under heavy-duty conditions, the
corresponding motor power value is 160 kW, with a heavy-duty current rating of
340 A. These distinctions are important because variable-speed drives can have
different usable power ratings depending on the required overload capability.

For this reason, the statement “90 kW” should be interpreted as an application or
motor reference rather than the maximum rated power of the ACS800-04-0260-3 itself.
When selecting a drive for a 90 kW motor, motor rated current, overload requirements,
operating conditions, acceleration characteristics and process duty should all be
evaluated.

P901 Coated Circuit Boards

The P901 option identifies coated circuit boards within the ACS800 ordering
configuration. Conformal coating provides an additional protective layer over
electronic circuit-board surfaces and is used where environmental conditions can
make protection of electronic assemblies particularly important.

Industrial drive equipment can operate in environments where humidity, dust,
condensation or other contaminants may affect electronic hardware. The coated-board
configuration is intended to improve the environmental robustness of the electronic
assemblies within the drive.

The P901 option is therefore not a separate control function but an equipment
construction characteristic associated with the electronic boards. When documenting
the complete drive configuration, P901 should be retained as part of the product
identification because it distinguishes this configuration from an equivalent
ACS800-04 module without the same board-coating option.

D150 Braking Chopper

The D150 option identifies a braking chopper for the ACS800 drive configuration.
A braking chopper is used to control the DC-link energy generated when a motor
decelerates or when the driven load causes regenerative energy to flow back into
the drive.

During deceleration, the motor can operate temporarily as a generator. The resulting
electrical energy increases the DC-link voltage. When braking control is required,
the braking chopper provides a controlled path for this energy to be transferred
to an external braking resistor, allowing the drive to manage the DC-link voltage
during appropriate braking conditions.

The D150 option is particularly relevant to applications involving frequent
acceleration and deceleration, high-inertia loads, rapid stopping requirements,
lifting equipment, conveyors, material-handling machinery and other processes where
regenerative energy must be controlled.

N651 Master/Follower Control

The N651 option identifies the Master/Follower control program within the ACS800
configuration. This function is intended for applications in which multiple drives
need to coordinate their operation. One drive can operate as the master while one
or more follower drives respond according to the control architecture.

Master/Follower control can be useful in systems where two or more motors need to
operate together while maintaining a defined relationship between speed, torque,
or other control variables. Examples can include mechanically coupled machinery,
synchronized conveyors, multi-motor processes and applications where load sharing
is required.

ABB documentation identifies the N651 Master/Follower program as including optical
fiber connections and requiring DDCS communication. This means the option should be
considered together with the applicable communication hardware and system architecture
rather than as an isolated software feature.

Technical Specifications

R8 Frame Configuration

The ACS800-04-0260-3 uses the R8 frame size. Frame size is an important engineering
identifier within the ACS800 platform because it determines the physical construction,
cooling arrangement, power section architecture, installation requirements and
associated component configuration.

ABB technical information lists an approximate air flow requirement of 1220 m3/h
and heat dissipation of approximately 6600 W for the -0260-3 configuration. These
characteristics are relevant when designing the enclosure and cooling arrangement
for the drive module.

Adequate ventilation and thermal management are essential for a high-power drive.
The final installation should provide suitable airflow and environmental conditions
in accordance with the ACS800-04 installation requirements.

Industrial Applications

The ABB ACS800-04-0260-3 can be integrated into industrial drive systems where
variable-speed control and substantial motor power are required. The combination
of the D150 braking chopper and N651 Master/Follower control expands the range of
applications that can be addressed by the configured drive.

Potential applications include conveyors, cranes, hoists, fans, pumps, compressors,
material-handling equipment, process machinery and multi-motor systems. The actual
application depends on the required speed range, torque characteristics, braking
requirements, motor current, process control strategy and system architecture.

For a system involving a motor around 90 kW, the ACS800-04-0260-3 provides considerable
current and power capacity above the nominal motor rating. Such sizing may be relevant
when the application has particular overload, braking, environmental or future
expansion requirements. The drive should nevertheless be selected according to the
motor nameplate current and the required ABB application duty.

System Integration and Control

Integration of the ACS800-04-0260-3 requires consideration of the incoming three-phase
supply, DC-link and motor connections, control interfaces, cooling system, protective
devices and the selected option functions. The P901, D150 and N651 options each affect
a different part of the overall drive architecture.

P901 relates to the environmental construction of the electronic boards, D150 provides
braking-chopper functionality, and N651 defines the Master/Follower application program.
Together, these options describe a specialized configuration rather than simply a
standard ACS800-04 drive module.

When N651 is used, the associated DDCS communication and optical-fiber requirements
should be included in the system design. ABB documentation specifically notes the
relationship between the Master/Follower program and DDCS communication.

Product Identification

The complete designation ABB ACS800-04-0260-3 P901 D150 N651 should be retained when
recording this configuration. The basic model identifies the drive module, while the
option codes describe important construction and control functions.

P901 identifies coated boards, D150 identifies the braking chopper, and N651 identifies
the Master/Follower control program. These options can materially affect the technical
configuration of the drive and should therefore not be omitted from engineering records.

The reference “90 kW” may be useful when describing the associated application, but it
should not replace the ABB drive rating. The ACS800-04-0260-3 itself is documented with
a 200 kW continuous power rating under the applicable no-overload/light-overload
categories and 160 kW for heavy-duty operation.

Conclusion

ABB ACS800-04-0260-3 P901 D150 N651 is an R8-frame ACS800-04 drive module for
three-phase 380–500 V industrial applications. ABB specifies a maximum continuous
current of 445 A and a continuous power capability of 200 kW for the -0260-3
configuration, with a heavy-duty motor power rating of 160 kW.

The P901 option provides coated circuit boards, the D150 option adds a braking
chopper, and the N651 option provides Master/Follower control functionality.
The combination is particularly relevant to industrial systems requiring coordinated
motor operation, controlled regenerative braking, and additional protection of
electronic assemblies against demanding environmental conditions.

Although the supplied application reference is 90 kW, the drive’s documented rating
is considerably higher. For engineering selection, the motor’s rated current,
operating voltage, overload profile, braking requirements, control architecture and
environmental conditions should all be considered together. The complete
ACS800-04-0260-3 P901 D150 N651 designation provides the most accurate reference for
this specific ABB drive configuration.
