Product Overview

Variable frequency drives regulate the electrical power supplied to an AC motor to control its operating speed and torque. By adjusting the output frequency and managing the motor voltage according to the control strategy, a drive can support different operating conditions without relying exclusively on mechanical speed adjustment. This capability is useful in industrial processes where motor speed must respond to changing production requirements.

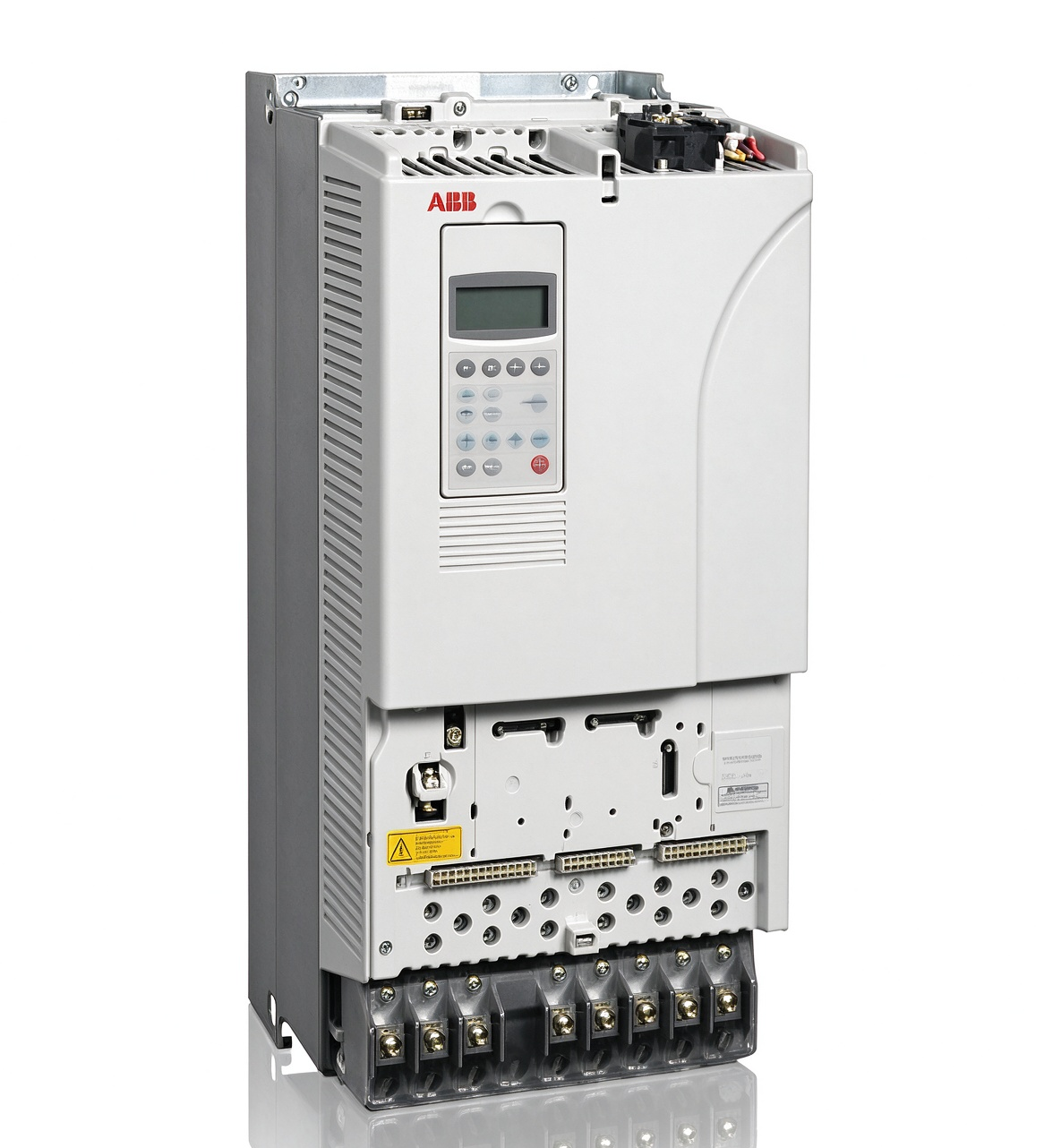

The ACS800-04 is a drive module intended for integration into an appropriate electrical installation or cabinet arrangement. Its application requires consideration of the incoming supply, motor ratings, installation environment, cooling arrangements, protective devices, and control interfaces. The complete model designation should be retained when checking the technical specification because option codes can distinguish configurations that are not necessarily interchangeable.

The stated configuration includes E200, J400, N697, L502, P901, and P904. ABB documentation identifies several of these codes with specific drive options, including an EMC/RFI filter configuration, a control panel, an encoder interface, coated circuit boards, and an extended warranty option. The meaning and availability of each code should be confirmed against the ordering information applicable to this exact unit.

Variable Frequency Control Principles

An AC motor’s operating speed is related to the frequency of the electrical supply and the motor’s pole configuration. A variable frequency drive changes the output frequency to adjust motor speed according to the required process conditions. In an induction motor application, actual shaft speed also depends on slip and the mechanical load.

The drive’s control system manages switching devices within the power conversion stage to produce a controlled output for the connected motor. Depending on the selected control method, the drive can regulate operating frequency and voltage and use available feedback to improve control performance. Correct motor data and appropriate control parameters are important for achieving the intended behavior.

Drive sizing must account for more than the motor’s nominal power. Rated current, supply characteristics, starting requirements, load variation, acceleration, deceleration, and the expected duty cycle all influence selection. The exact electrical ratings of the ACS800-04-0023-3 should be verified using the unit’s nameplate and the corresponding ABB technical data rather than inferred from the model number alone.

Configuration and Option Identification

The complete product reference ACS800-04-0023-3 E200 J400 N697 L502 P901 P904 provides a record of the specified drive configuration. ABB uses option codes to distinguish additional features and selected hardware from the basic drive module. When reviewing a unit, technicians should compare its nameplate, installed accessories, and ordering documents to establish which features are present.

The E200 code identifies an EMC/RFI filter option for a specified second-environment, grounded TN supply arrangement under the applicable ACS800 documentation. Filter selection must be compatible with the supply grounding system and the installation’s electromagnetic compatibility requirements. A filter code should not be treated as evidence that the drive is suitable for every supply arrangement.

The J400 option identifies a CDP 312R control panel assembled on the drive module. The panel provides an operator interface for monitoring and managing supported drive functions. Available operations depend on the installed control program, parameter settings, and system configuration.

The L502 option identifies an RTAC-01 pulse encoder interface module in the ACS800 option documentation. Encoder feedback can provide information about motor rotation for compatible control arrangements. The encoder type, electrical interface, wiring, and parameter settings must be suitable for the connected equipment.

P901 identifies coated circuit boards, while P904 identifies an extended warranty option in the referenced documentation. These codes describe configuration or commercial details rather than additional motor-control functions. The N697 code should be checked against the ordering documentation for the exact drive because its specific meaning has not been independently confirmed here.

Encoder Feedback and Motor Control

Encoder feedback can be used in drive applications that require information about shaft position, rotation, or speed. A compatible encoder generates signals that are interpreted by an appropriate interface module and drive control system. When configured correctly, feedback can help the control system respond to changes in motor operation and support applications with more demanding speed or motion requirements.

The L502 option is associated with the RTAC-01 pulse encoder interface. Its presence does not, by itself, establish that a particular encoder is installed or that the drive is configured for closed-loop control. The complete feedback arrangement must be checked, including encoder supply requirements, signal type, cable connections, shielding, and relevant drive parameters.

Incorrect feedback wiring or an incompatible encoder may result in faults, unstable operation, or inaccurate speed information. Commissioning personnel should verify the signal interface and perform the prescribed checks before allowing the motor to operate under normal process load. Any required control adjustments should follow the applicable ABB firmware and hardware documentation.

Industrial Applications

Industrial variable frequency drives are used in applications where motor speed must be adjusted to match process requirements. Depending on its verified ratings and control configuration, an ACS800 drive may be applied to compatible pumps, fans, conveyors, compressors, and other motor-driven machinery.

In pumping systems, speed control can help match the motor-driven pump to changing flow requirements. Fan applications may use adjustable speed to regulate airflow, while conveyors may require controlled acceleration and deceleration to support material movement. Each application presents different demands on motor current, torque, operating speed, and the mechanical transmission.

Where encoder feedback is required, the motor, encoder, interface module, and control program must be configured as a compatible system. The selected drive must also be suitable for the mechanical load and the expected operating cycle. Application suitability cannot be established from the model designation alone.

The actual application should therefore be evaluated using the motor nameplate, drive ratings, system design, and applicable installation instructions. Particular attention should be given to load characteristics, environmental conditions, cable routing, and the requirements of the controlled equipment.

Electrical Installation and Environmental Requirements

Before installing the ACS800-04-0023-3, qualified personnel should verify the incoming supply voltage, phase configuration, frequency, protective devices, and grounding arrangement. The drive output must be connected to a compatible motor, and the installation must follow the specified electrical and mechanical requirements.

Appropriate short-circuit protection, grounding, cable sizing, and isolation arrangements should be provided according to the drive documentation and applicable electrical standards. Power and control cables should be routed as specified to reduce interference and maintain reliable signal transmission. Encoder wiring, in particular, should follow the requirements of the interface and feedback device.

The drive’s cooling requirements must also be considered. Airflow paths should remain clear, and the installation should provide the specified ambient conditions and service clearances. Excessive dust, heat, moisture, or other environmental factors may affect operating reliability if they exceed the unit’s permitted limits.

Although P901 identifies coated circuit boards, this option should not be interpreted as unrestricted protection against water, corrosive chemicals, or all harsh environments. The permitted environmental conditions must be verified using the relevant technical documentation.

Commissioning and Parameter Configuration

Commissioning begins with verifying the drive identification, motor data, control connections, and installed options. The motor nameplate values should be entered into the drive according to the applicable control program instructions. Other parameters depend on the selected control method, application requirements, feedback arrangement, and system-level interlocks.

Where an encoder is used, the feedback signals and interface settings should be checked before the system is operated under normal load. The control panel can assist qualified personnel with supported monitoring, parameter access, and fault review. The available functions depend on the installed configuration and firmware.

Initial operation should follow the manufacturer’s recommended sequence and the site’s commissioning procedures. Abnormal vibration, unexpected motor behavior, excessive current, or drive fault indications should be investigated before normal operation continues. Parameter values from another drive should not be copied without confirming that the motor and application are equivalent.

Maintenance and Troubleshooting

Routine maintenance should follow the applicable ABB instructions and reflect the operating environment and duty cycle. Inspection activities may include reviewing fault history, checking cooling airflow, examining electrical connections, and looking for signs of overheating or contamination. Any work inside the drive must be performed by qualified personnel after the equipment has been isolated and the specified discharge time has elapsed.

If the drive reports a fault, troubleshooting should begin with the displayed fault information and the relevant technical documentation. Potential areas for investigation include supply conditions, motor wiring, cooling, control signals, encoder feedback, and parameter settings. A fault should not be attributed to one component without appropriate checks.

Maintenance records should include the full drive designation, relevant parameter changes, fault history, inspection findings, and any replaced components. These records help maintain configuration consistency and support future troubleshooting.

Replacement Selection and Conclusion

When selecting a replacement for the ABB ACS800-04-0023-3 E200 J400 N697 L502 P901 P904, verify the complete model and every applicable option against the installed drive and its documentation. Particular attention should be given to electrical ratings, control panel configuration, encoder interface requirements, EMC filter compatibility, and the meaning of the N697 option code.

The ABB ACS800-04 provides adjustable-speed motor control for compatible industrial applications. Its configured features must be considered as part of the complete drive system, including the motor, feedback devices, electrical supply, cooling arrangement, and external control equipment. Verifying the model designation and technical requirements before installation or replacement helps support a suitable configuration and reliable integration into industrial automation equipment.
