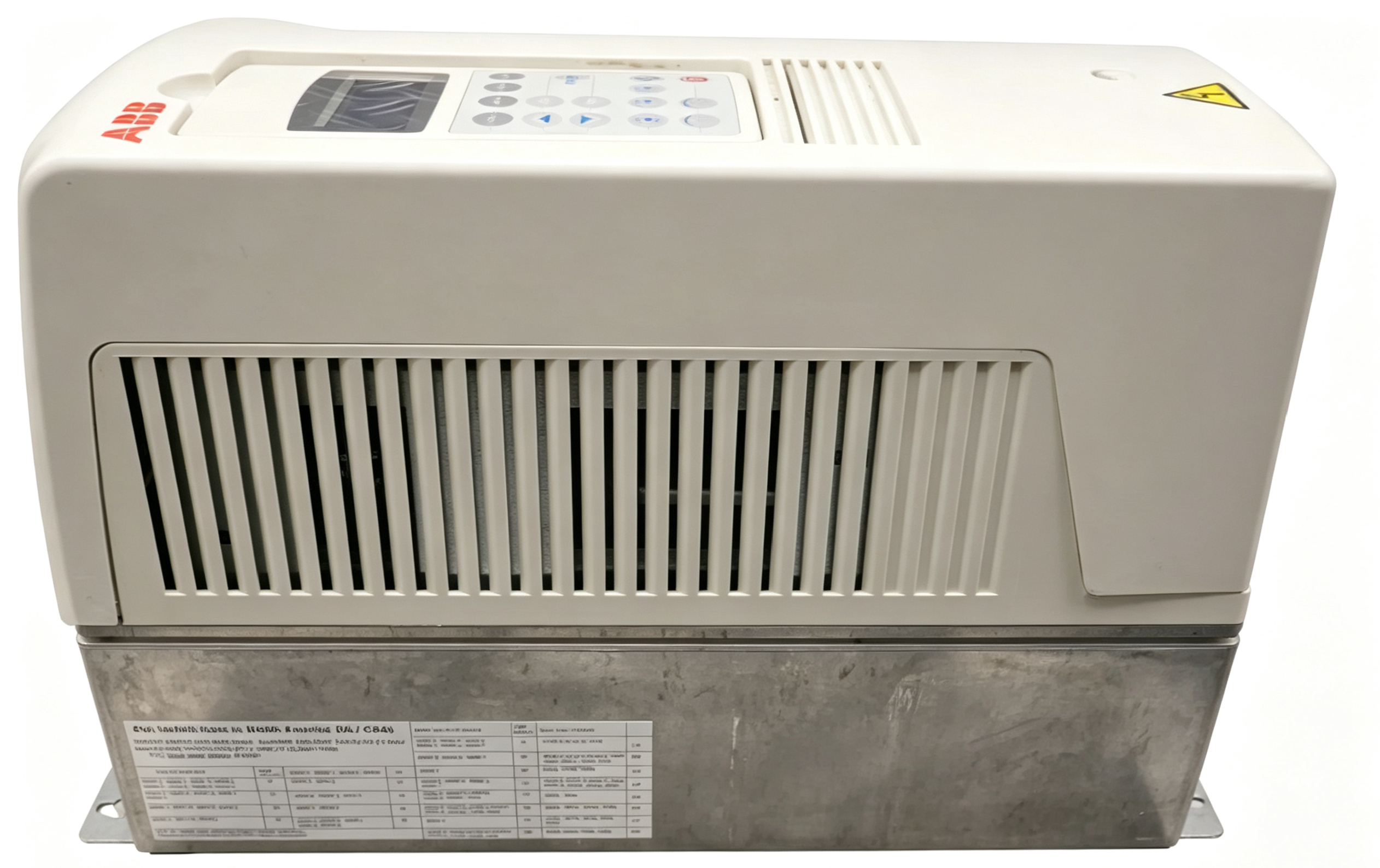

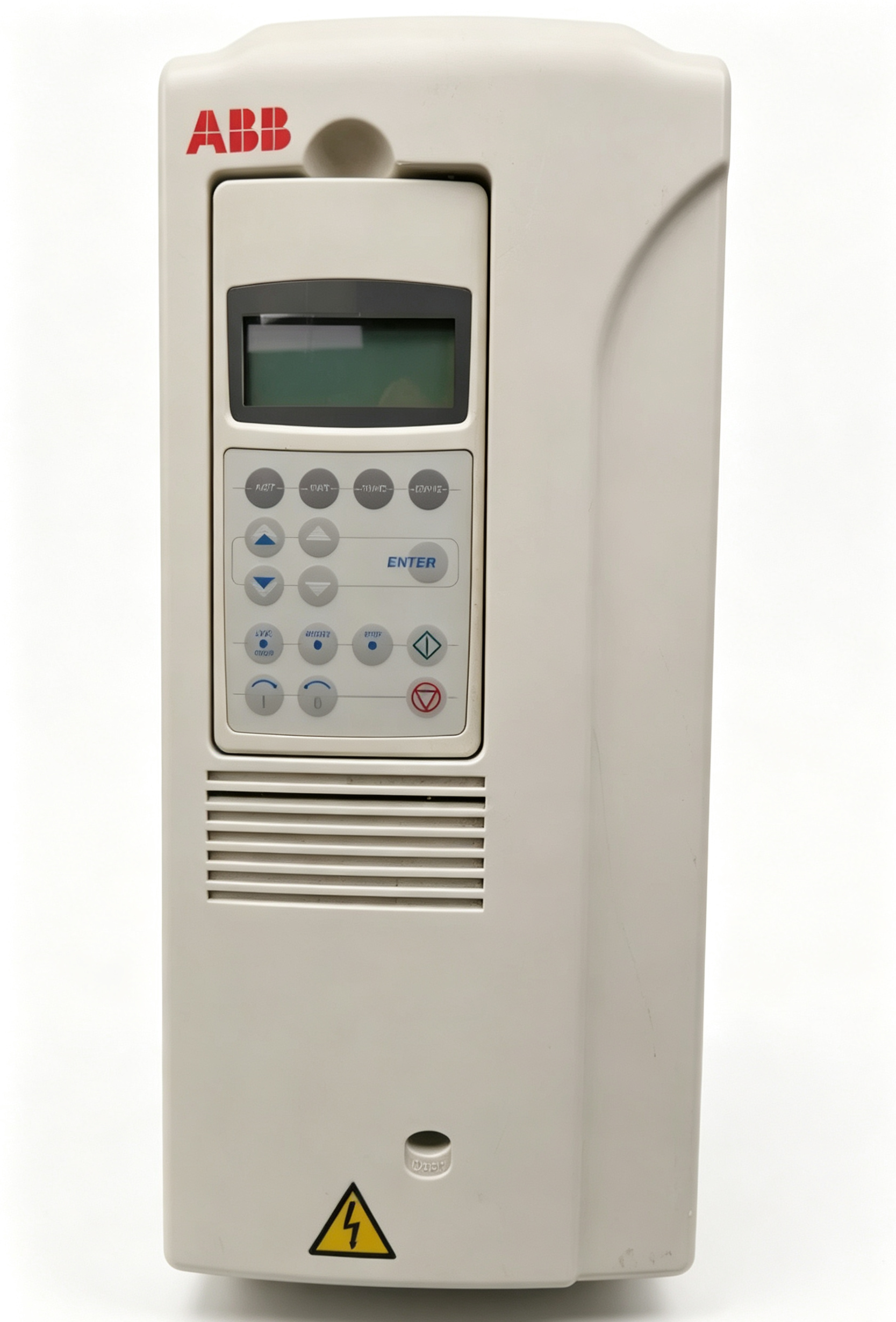

ABB ACS800-01-016-5 D150 Industrial AC Drive 11 kW Variable Speed Motor Control
ABB ACS800-01-016-5 D150 Overview
The ABB ACS800-01-016-5 D150 is an industrial AC drive associated with the ABB ACS800-01 single-drive family. The standard ABB product designation corresponding to this configuration is ACS800-01-0016-5. The drive is designed for variable-speed control of three-phase AC motors and can be integrated into industrial automation, process control and machine applications where controlled motor speed and torque are required.
ABB identifies the ACS800-01-0016-5 with a maximum continuous power rating of 11 kW and a continuous output current of 19 A. The drive belongs to the -5 voltage class of the ACS800-01 series, which covers three-phase supply voltages within the 380 V to 500 V range. The D150 designation supplied with the unit can be retained as part of the complete equipment identification when documenting a particular drive configuration.
The ACS800-01 architecture combines power conversion and motor-control functions in a dedicated single-drive unit. This allows the drive to receive an AC supply and generate controlled electrical output for the connected motor. The actual operating configuration depends on the motor data, load characteristics, control method and parameters selected for the application.
ACS800-01 Single Drive Platform
The ACS800-01 is part of ABB’s ACS800 family of industrial variable-speed drives. It was developed for applications in which an individual AC motor requires controlled operation. The drive provides the power electronics and control functions needed to regulate motor speed and torque according to a defined reference.
The single-drive architecture is suitable for a wide range of industrial machinery. Depending on the application, the motor can operate at different speeds rather than remaining at a fixed frequency. This makes the drive suitable for processes where production speed, flow, pressure, material movement or mechanical operating conditions need to be adjusted.
The ACS800-01 platform also provides configurable parameters and interface functions that allow the drive to be incorporated into larger automation systems. External controllers can provide references and commands while receiving status information from the drive. The exact communication arrangement depends on the installed hardware and selected configuration.
ABB Direct Torque Control Technology
Direct Torque Control, commonly known as DTC, is one of the main control technologies used throughout the ABB ACS800 family. DTC is designed to control the motor’s torque and magnetic flux directly, allowing the drive to respond to changes in motor operating conditions without relying only on a conventional frequency-to-voltage relationship.
The control system continuously evaluates motor operating conditions and controls the inverter according to the required torque and flux values. This approach can provide controlled acceleration, deceleration and torque response across different operating conditions.
Proper motor identification is important for DTC operation. Motor nameplate information, including rated voltage, current, frequency, speed and power, should be entered according to the connected motor. Additional parameters can then be configured according to the mechanical characteristics and process requirements of the application.
Power and Current Ratings
The ABB ACS800-01-0016-5 is specified with a maximum continuous power rating of 11 kW and a continuous output current rating of 19 A. These are the principal continuous ratings associated with the model and should be distinguished from other current values that may apply to short-term or application-specific operating conditions.
ABB documentation also provides maximum output current and application-specific utilization ratings for ACS800-01 drives. The appropriate rating depends on whether the motor operates under normal load, overload conditions or a demanding duty cycle. Consequently, drive selection should be based on the complete motor load profile rather than simply matching the nominal motor power.
Applications involving frequent acceleration, high starting torque, rapid speed changes or cyclic loading can place different demands on the drive compared with applications having relatively constant mechanical loading. The relevant ABB rating tables should therefore be consulted when determining the suitable operating range.
Three-Phase Supply and Voltage Class
The ACS800-01-0016-5 belongs to the -5 voltage class. ABB hardware documentation identifies the -5 series for three-phase supply voltages including 380 V, 400 V, 415 V, 440 V, 460 V, 480 V and 500 V configurations.
The applicable supply voltage must be verified against the drive identification and installation documentation. The motor voltage and connection arrangement must also correspond to the requirements of the connected motor. Incorrect voltage or connection configuration can affect drive operation and motor performance.
ABB documentation lists an input current of approximately 17 A for the ACS800-01-0016-5 under the referenced conditions. The same hardware documentation specifies a 20 A fuse recommendation for the corresponding configuration. Protective-device selection should always be checked against the current installation requirements and the applicable ABB hardware documentation.
Motor Control Applications
The ABB ACS800-01-016-5 D150 can be used in industrial applications that require adjustable AC motor speed and controlled torque. Applications associated with the broader ACS800 platform include pumps, fans, conveyors, compressors, material-handling equipment and various process machines.
In pump and fan applications, variable-speed operation can allow the motor to respond to changing process requirements. Conveyor systems can use a controlled speed reference to coordinate material movement, while process machinery can use motor speed and torque control to maintain a defined operating condition.
The actual suitability of the drive depends on the motor rating, mechanical load, acceleration requirements, operating cycle and environmental conditions. The ACS800-01-0016-5 should therefore be evaluated according to the complete application rather than by power rating alone.
Control System Integration
The ACS800-01 platform can operate as part of an industrial automation system. Control commands, speed references and operating information can be exchanged with external automation equipment through the available drive interfaces and optional communication modules.
A programmable logic controller, distributed control system or other supervisory controller can coordinate the drive with other process equipment. Depending on the configuration, the automation system can control motor starting and stopping, speed reference, direction and other operating functions while receiving drive status and fault information.
When integrating an existing ACS800-01-016-5 D150 into a control system, the installed option modules and parameter settings should be identified first. Two drives with the same basic model designation can have different installed options or application-specific parameter configurations.
Parameter Configuration
Parameters define how the ACS800 drive controls the connected motor and responds to external commands. Motor identification data forms an important part of the configuration because the drive uses these values for its motor-control calculations.
Other parameters can define acceleration and deceleration times, minimum and maximum speed, torque limits, reference sources, control commands and fault responses. Communication parameters can also determine how the drive exchanges information with an external automation system.
Parameter configuration should be based on the actual motor and machine. Using parameters from another motor or application without verification can produce unsuitable operating behavior. For system maintenance, recording the parameter configuration can also help document the relationship between the drive and the controlled equipment.
Installation and Cooling
Correct installation is important for the electrical and thermal performance of the ACS800-01 drive. The drive requires suitable ventilation and sufficient installation clearance to dissipate heat generated by its power electronics.
The installation environment should be considered together with the drive’s cooling arrangement. Ambient temperature, enclosure construction, airflow and surrounding equipment can influence thermal conditions. The applicable ACS800 hardware manual provides the installation requirements and dimensions for the corresponding frame configuration.
Electrical installation also requires attention to grounding, cable routing, motor cable connections and electromagnetic compatibility. Power and control wiring should be arranged according to the applicable ABB installation instructions so that interference and unwanted electrical coupling are minimized.
Maintenance and Technical Identification

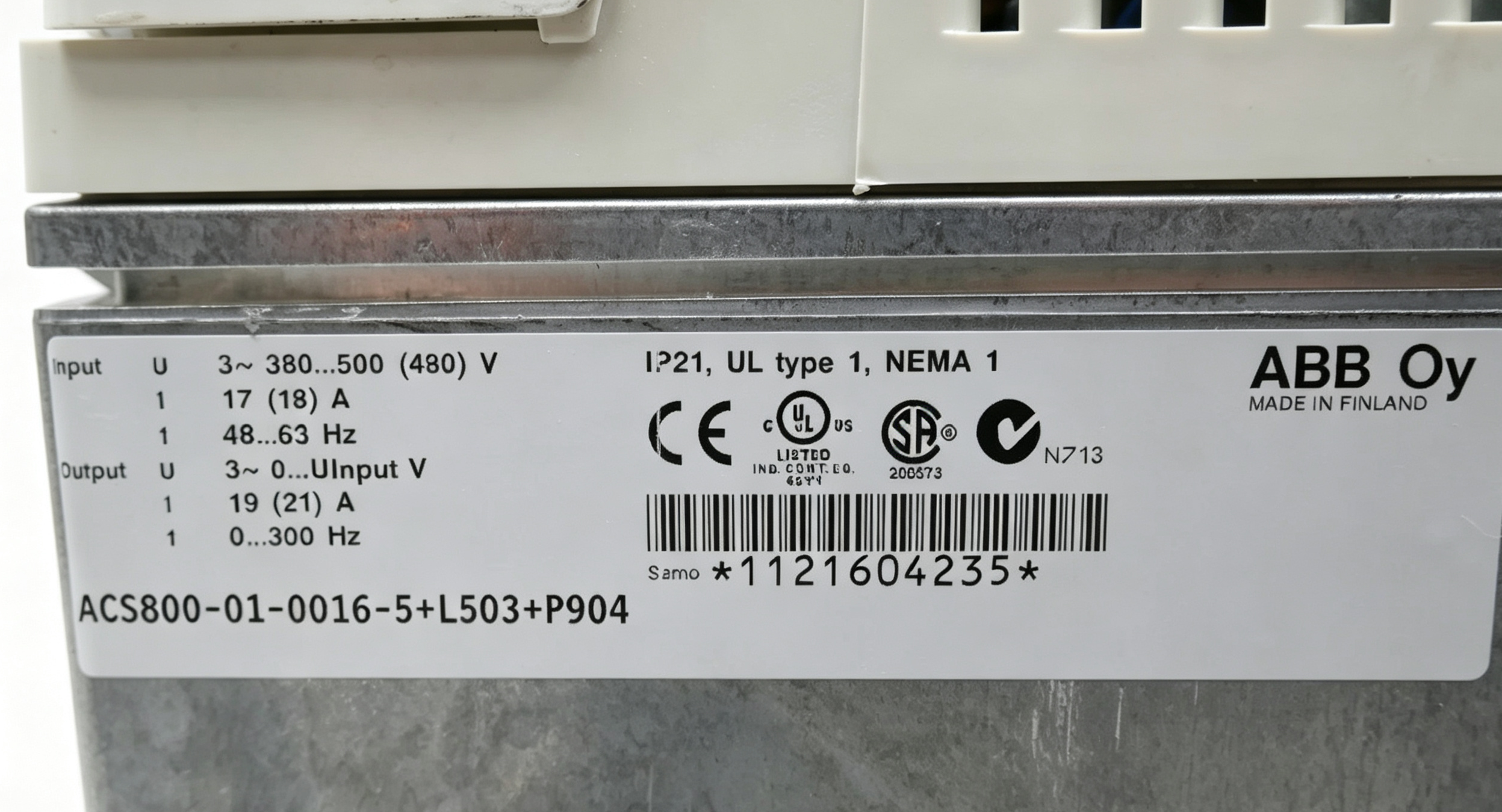

For maintenance and engineering purposes, the complete drive designation should be recorded as accurately as possible. For this unit, the identification supplied is ABB ACS800-01-016-5 D150, while ABB’s standard product designation is ACS800-01-0016-5. Recording both forms can be useful when matching the physical unit with technical documentation.
Additional information such as the serial number, installed option modules, control panel configuration and parameter settings can provide a more complete technical record. These details are particularly useful when the drive is integrated into an existing industrial control system.
Maintenance activities should follow the applicable ACS800 documentation and take into account the operating environment. Cooling components, electrical connections and other drive components may require inspection according to the installation conditions and operating duty.
ABB ACS800-01-016-5 D150 Summary
The ABB ACS800-01-016-5 D150 is an industrial variable-speed AC drive associated with the ABB ACS800-01-0016-5 configuration. ABB specifies the standard -0016-5 model with 11 kW maximum continuous power and 19 A continuous output current. The drive belongs to the -5 voltage class and is designed for three-phase AC motor control.
With ABB Direct Torque Control technology, the ACS800-01 platform provides configurable control of motor speed and torque for industrial machinery and process equipment. The drive can also be integrated into automation systems through its available control and communication interfaces.
For engineering, maintenance and system integration, the ABB ACS800-01-016-5 D150 should be identified together with its standard ABB type designation, motor information, supply voltage, installed options and parameter configuration. These details provide a reliable technical basis for determining the appropriate operating and installation requirements for the individual drive.
