ABB ACS800-01-0070-5 Industrial AC Drive 55 kW 400 V Class Motor Control

ABB ACS800-01-0070-5 Overview

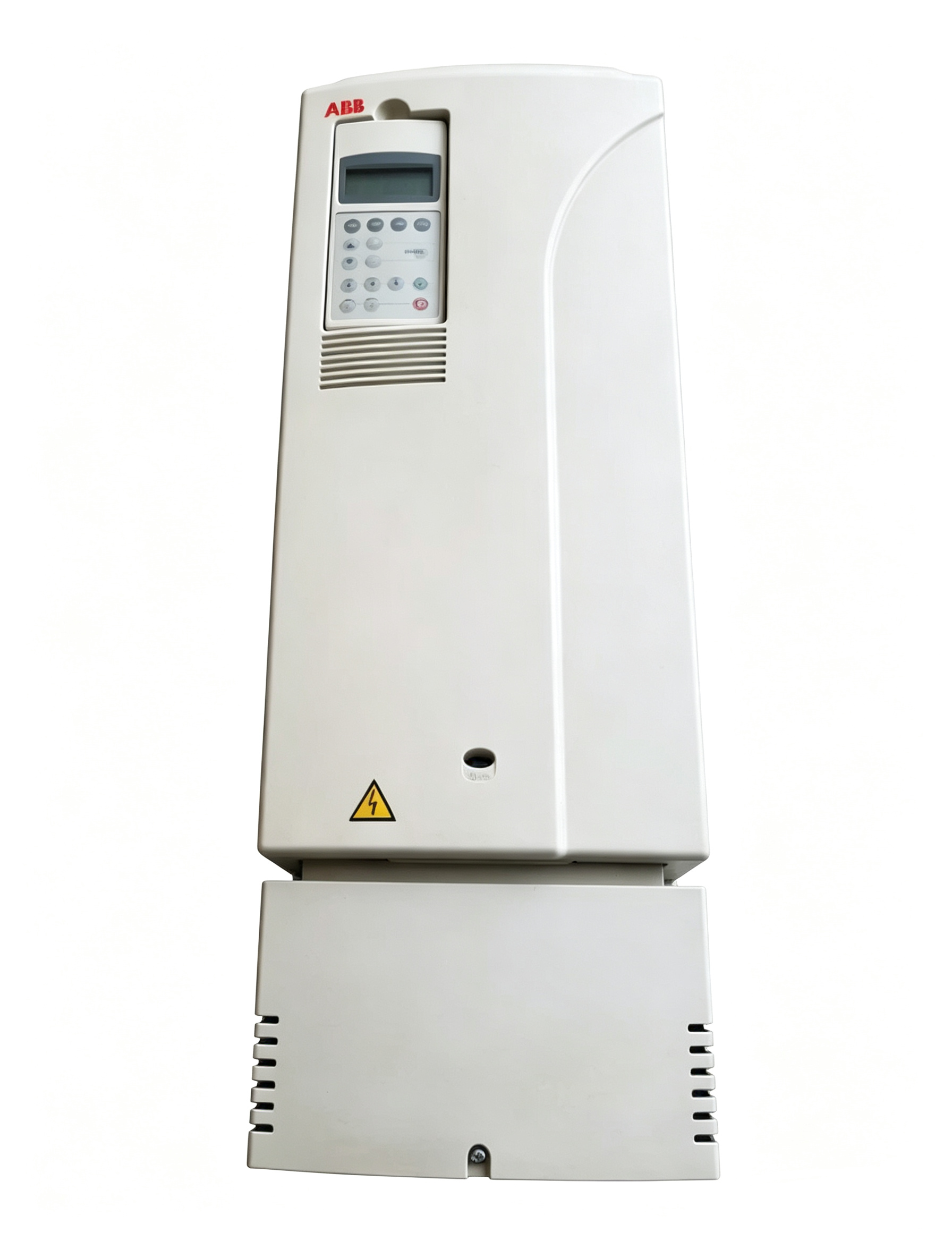

The ABB ACS800-01-0070-5 is an industrial AC drive from the ABB ACS800 family of variable-speed drives. It is designed to control the speed and torque of three-phase AC motors in industrial automation and process applications. The ACS800-01 product family combines motor-control electronics, power conversion functions and drive-specific features within a wall-mounted drive architecture, providing a compact solution for applications that require adjustable motor speed and controlled torque.

According to ABB product information, the ACS800-01-0070-5 has a maximum continuous power rating of 55 kW and a maximum continuous current rating of 96 A. The corresponding -0070-5 hardware configuration is identified as frame size R5 in the ACS800-01 hardware documentation. These characteristics make the model suitable for medium-power industrial motor applications where controlled acceleration, deceleration, speed regulation and torque management are required.

The final application of the drive depends on the motor rating, supply voltage, load profile, environmental conditions and selected control configuration. For engineering purposes, the complete drive identification and motor data should be considered together rather than selecting a drive solely according to nominal motor power.

ACS800-01 Drive Architecture

The ACS800-01 is part of ABB’s ACS800 single-drive platform. The series was developed for industrial motor-control applications where a dedicated variable-frequency drive is used to control an individual motor. The drive converts the incoming three-phase AC supply into controlled electrical power for the motor, allowing the motor operating point to be adjusted according to the requirements of the process.

ABB describes the ACS800-01 as a wall-mounted single drive with a power range extending from small industrial motors to higher-power applications. The platform incorporates important drive functions within the drive enclosure, reducing the need for separate external components for functions supported by the selected configuration.

The ACS800-01 architecture can be used in applications requiring speed control, torque control and coordinated motor operation. Its configurable control features allow the drive to be integrated into different industrial control strategies, while optional interface and communication functions can extend the drive’s connection to automation systems.

ABB Direct Torque Control

Direct Torque Control, commonly referred to as DTC, is a central technology of the ABB ACS800 platform. Instead of relying only on conventional frequency and voltage control, DTC directly controls important motor variables to achieve accurate torque and speed response. This control principle is particularly useful in industrial applications where dynamic motor behavior is important.

With DTC, the drive continuously evaluates motor operating conditions and adjusts the inverter switching behavior according to the required motor torque and speed. This allows the ACS800 platform to provide controlled motor acceleration, deceleration and torque response across a broad range of industrial operating conditions.

The practical performance of the drive depends on correct motor identification, parameter configuration and application settings. Motor nameplate information and the required operating characteristics should therefore be entered according to the actual motor and application rather than using generic values.

Power and Current Characteristics

The ABB ACS800-01-0070-5 has an ABB-listed maximum continuous power rating of 55 kW and maximum continuous current rating of 96 A. In the ACS800-01 hardware manual, the -0070-5 configuration is also listed with different current and power values for specific utilization categories. The documentation identifies 96 A and 75 kW for normal use and 77 A and 60 kW for heavy-duty use.

These ratings demonstrate why the intended load profile is important when selecting an ACS800 drive. A motor operating with frequent acceleration, high starting torque or demanding cyclic loads can require different drive sizing from a motor operating with a relatively stable load. The appropriate rating should always be selected according to the actual application and the applicable ABB rating definitions.

The -5 designation identifies the voltage class within the ACS800 model structure. ABB documentation for the ACS800-01 -5 series covers three-phase supply voltages in the 380 V to 500 V range. The actual installation voltage must remain within the limits specified for the particular drive configuration.

Frame Size R5

The ACS800-01-0070-5 is identified with frame size R5 in ABB’s hardware documentation. Frame size is an important part of the physical and thermal design of the drive because it determines enclosure dimensions, cooling requirements, installation arrangement and certain service considerations.

For the -0070-5 configuration, ABB documentation lists an airflow requirement of approximately 147 cubic feet per minute and heat dissipation of approximately 4910 BTU per hour under the referenced rating conditions. These values are relevant when designing the installation environment and ensuring that the drive has adequate cooling.

Adequate ventilation is particularly important for industrial variable-speed drives because power semiconductors and other electrical components generate heat during operation. The installation should therefore provide sufficient clearance and airflow according to the applicable ACS800 hardware manual.

Motor Control Applications

The ACS800-01-0070-5 can be used in industrial systems where variable-speed control of AC motors is required. Typical application categories for the ACS800 platform include pumps, fans, conveyors, compressors, material-handling equipment and various process machinery. The exact suitability depends on the motor characteristics and process load.

Variable-speed control can allow the motor operating point to be adjusted to the process requirement. Instead of operating continuously at a fixed speed, the drive can regulate motor speed according to a reference signal or control strategy. This approach is useful in processes where production rate, flow, pressure, tension or mechanical speed must be controlled.

The ACS800 platform also supports application-specific software and interface options. Depending on the configuration, the drive can communicate with external automation equipment and receive control references from a supervisory or process-control system.

Electrical Protection and Installation

Correct protection and installation are essential for an ACS800 drive. ABB’s hardware manual provides recommended fuse information for the ACS800-01 -5 series. For the -0070-5 configuration, the documented standard gG fuse recommendation is 125 A, with a rated voltage of 500 V and the specified ABB Control fuse type OFAF00H125 in the referenced installation table.

The selection of protective devices should follow the applicable ABB documentation and the electrical characteristics of the installation. The drive should also be connected according to the specified supply, motor and control-circuit arrangements. Incorrect protection or wiring can affect both drive operation and equipment safety.

Grounding, cable routing and electromagnetic compatibility should also be considered during installation. Motor cables, control cables and communication cables should be installed according to the applicable ABB installation requirements so that electrical interference and unwanted coupling are minimized.

Control Interfaces and Integration

The ACS800-01 platform provides interfaces for connecting the drive to external control equipment. Depending on the configuration and installed options, the drive can exchange control commands, references, status information and other operating data with an automation system.

This communication capability allows the ACS800-01-0070-5 to operate as part of a larger industrial control architecture. A programmable controller, distributed control system or other supervisory device can coordinate the drive with sensors, valves, other motors and process equipment.

When integrating the drive into an existing system, the installed option modules and parameter configuration should be identified. The same basic drive model can be used with different control arrangements, so the complete hardware configuration should be checked before defining the communication and control strategy.

Parameter Configuration

Drive parameters determine how the ACS800-01-0070-5 responds to control commands and how it interacts with the connected motor. Parameters can define motor data, acceleration and deceleration behavior, speed limits, torque limits, control references, fault responses and communication settings.

Correct motor parameter information is especially important for DTC operation. The drive uses motor-related data as part of its control calculations, so the motor nameplate information and configuration procedure should be followed carefully. Application-specific parameters can then be adjusted according to the mechanical and process requirements.

Maintenance and Technical Identification

When maintaining an ACS800-01-0070-5, the complete type designation should be recorded together with the drive serial information and installed options. This information helps distinguish the -0070-5 configuration from other ACS800-01 models with similar physical characteristics.

ABB maintenance documentation covers preventive maintenance for ACS800 single drives and provides information relevant to the inspection of drive components. Cooling performance, electrical connections, fans and other drive components can be important considerations during maintenance depending on the installation environment and operating conditions.

For replacement or system engineering, the drive type, frame size, supply voltage, motor rating, installed option modules and software or parameter configuration should be reviewed together. This provides a more accurate basis for determining compatibility within an existing automation system.

ABB ACS800-01-0070-5 Summary

The ABB ACS800-01-0070-5 is an industrial AC drive in the ACS800-01 single-drive family. ABB identifies the model with a maximum continuous power rating of 55 kW and a maximum continuous current rating of 96 A. The corresponding hardware configuration uses R5 frame size and belongs to the 380 V to 500 V class of ACS800-01 drives.

The drive combines variable-speed motor control with ABB Direct Torque Control technology and can be integrated into industrial automation systems through its available control and communication interfaces. Its application can include a wide range of industrial machinery where controlled motor speed and torque are required.

For engineering, maintenance and system integration, the ABB ACS800-01-0070-5 should be identified by its complete type designation and evaluated together with the motor, supply network, load profile, installed options and parameter configuration. The applicable ABB hardware and firmware documentation should be used to verify detailed electrical, mechanical and configuration requirements for the individual installation.
