ABB ACS800-01-0060-5 Industrial Drive 45kW 500VAC Variable Frequency Drive for High Performance Motor Control Applications

The ABB ACS800-01-0060-5 is a high-performance industrial drive designed for advanced AC motor control applications. As part of the ABB ACS800 industrial drive family, this frequency converter provides accurate speed control, torque regulation, and efficient energy management for demanding industrial processes. The unit is designed for three-phase power systems and delivers 45kW output power with a rated output current of 79A under normal duty operation. :contentReference[oaicite:2]{index=2}

Modern industrial automation systems require reliable motor control solutions to improve production efficiency, reduce energy consumption, and maintain stable machine operation. Variable frequency drives play an essential role by controlling motor speed and torque according to process requirements. The ABB ACS800-01-0060-5 provides advanced drive technology for applications where precise control and dependable operation are required.

ABB developed the ACS800 series as a platform for industrial applications requiring high performance, flexibility, and reliable motor management. The ACS800-01 series uses Direct Torque Control technology, allowing accurate motor torque and speed control without requiring traditional feedback devices in many applications. This technology helps improve dynamic performance and operational efficiency in industrial environments. :contentReference[oaicite:3]{index=3}

ABB ACS800-01-0060-5 Product Overview

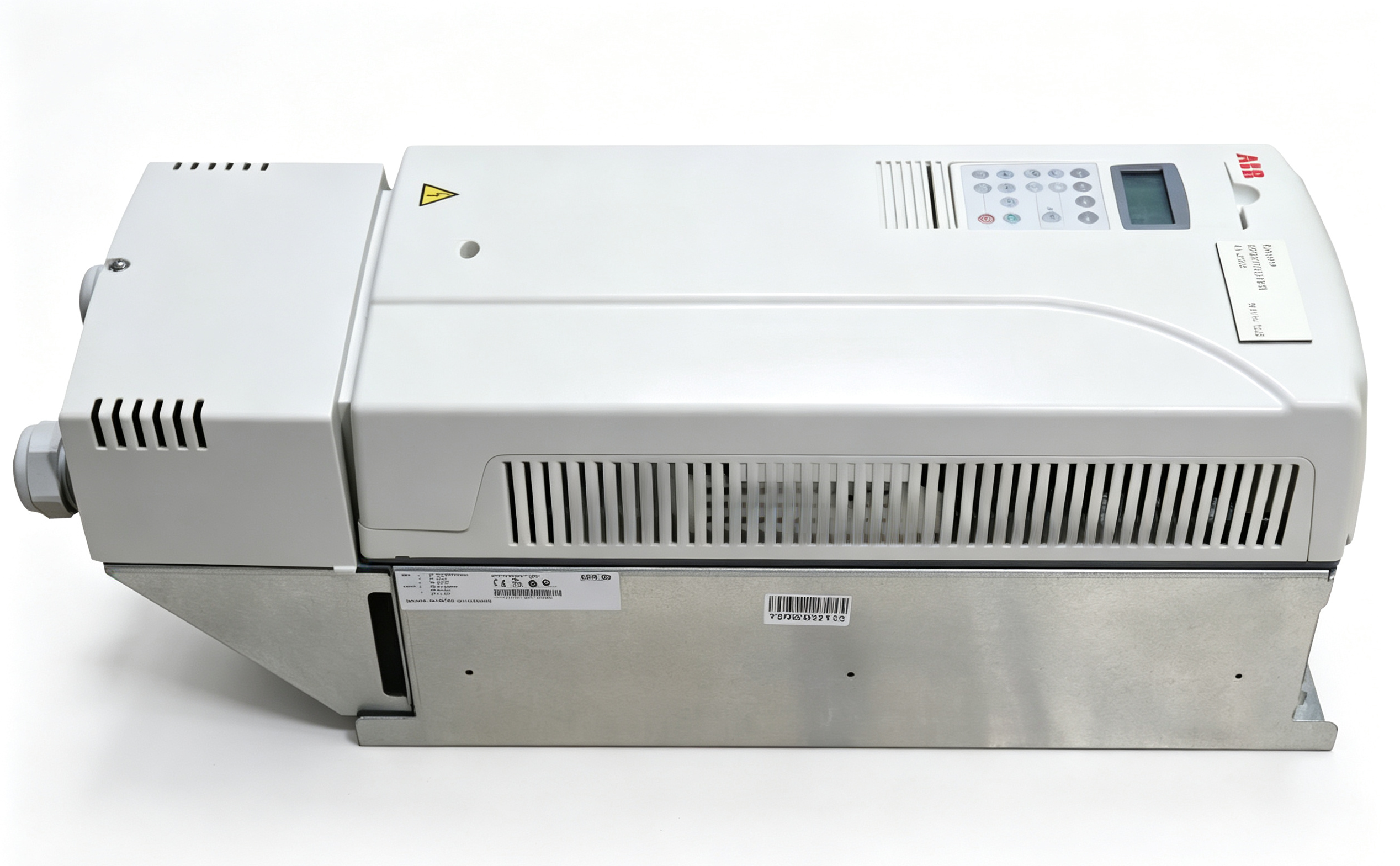

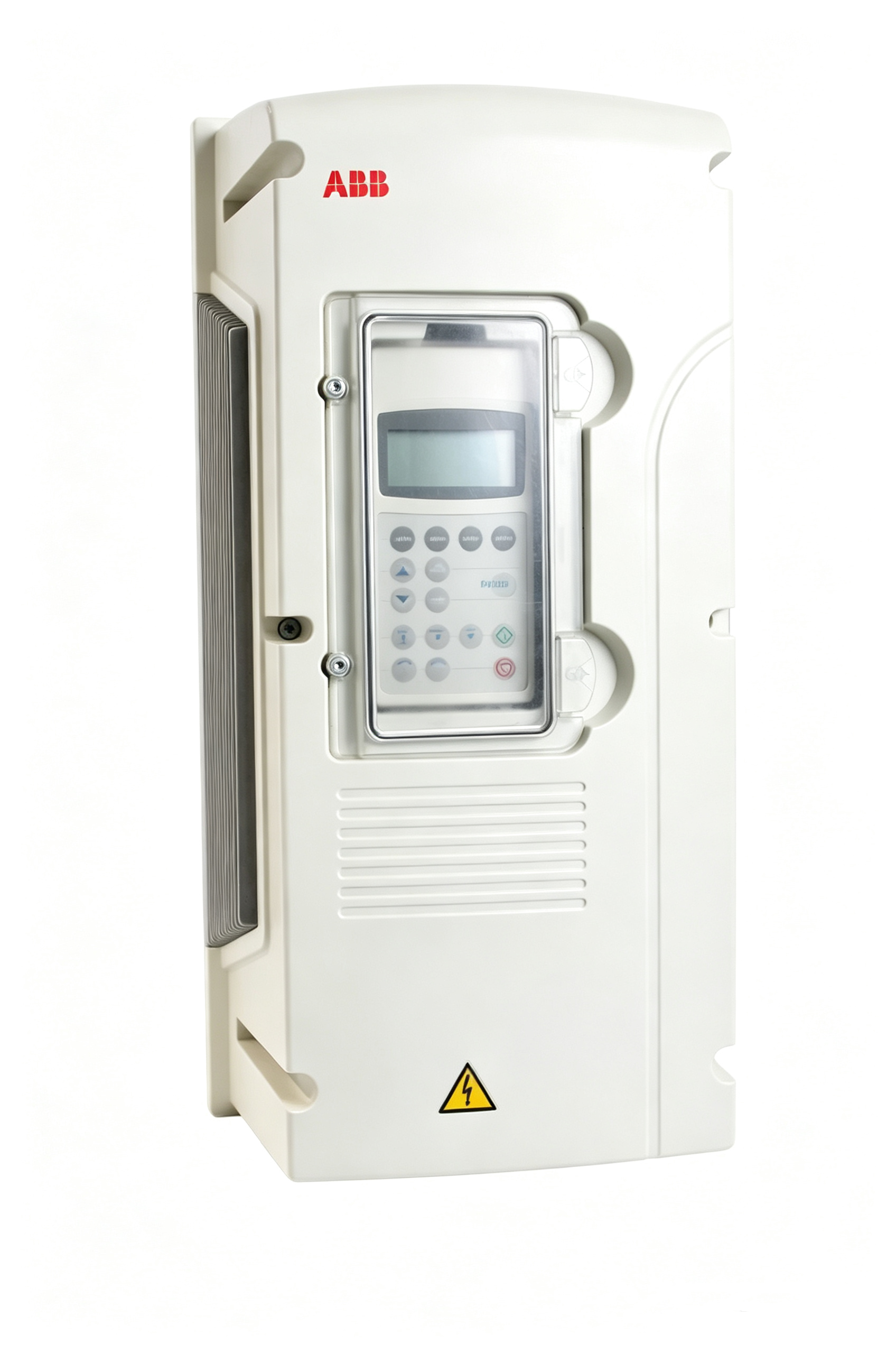

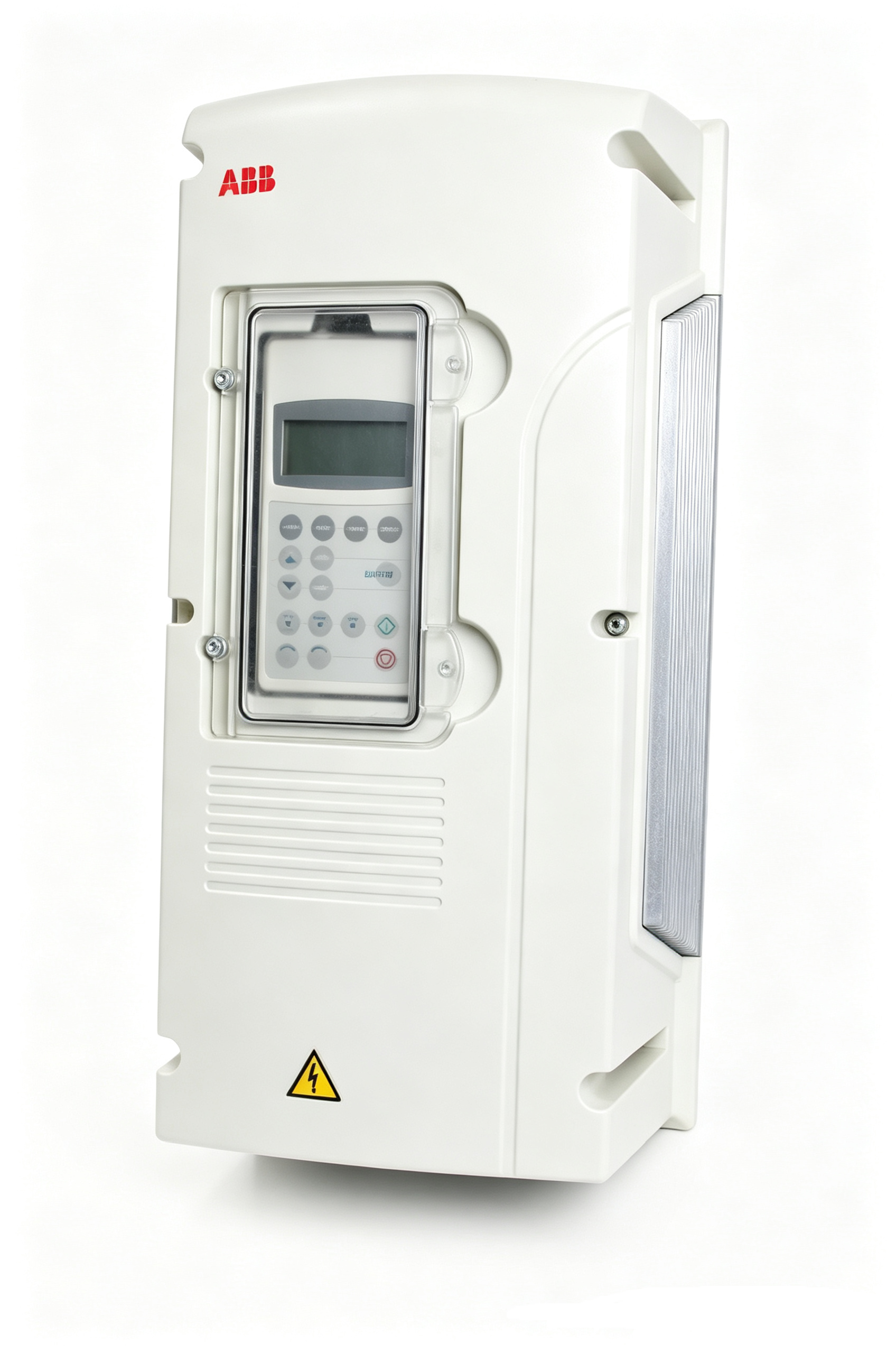

The ABB ACS800-01-0060-5 is a wall-mounted industrial drive designed for controlling three-phase AC motors. It belongs to the ACS800-01 product family and is commonly applied in industrial machinery, process equipment, and automation systems requiring variable speed motor operation.

The drive converts incoming AC electrical power into controlled variable-frequency output power supplied to the motor. By adjusting frequency and voltage, the drive can regulate motor speed, acceleration, deceleration, and torque according to the requirements of the application.

The ACS800-01-0060-5 supports industrial motor control requirements where stable performance, accurate process control, and energy optimization are important. Its design allows integration into various automation architectures used in manufacturing plants, process industries, and heavy machinery applications.

Technical Characteristics of ABB ACS800-01-0060-5

The ABB ACS800-01-0060-5 includes technical features designed for professional industrial drive applications. Main product information includes:

• Manufacturer: ABB
• Model: ACS800-01-0060-5
• Product family: ACS800 Industrial Drives
• Drive type: Wall-mounted variable frequency drive
• Power supply: Three-phase 380-500VAC
• Output power: 45kW (normal duty)
• Rated output current: 79A
• Light overload current: 75A
• Heavy duty current: 60A
• Frame size: R5
• Protection class: IP21

The ACS800-01-0060-5 is designed to support different load conditions. According to ABB technical documentation, the drive provides different power ratings depending on duty classification, including normal duty, light overload, and heavy duty operation. :contentReference[oaicite:4]{index=4}

This flexibility allows engineers to select suitable operating modes according to machine requirements. Applications with changing loads, high starting torque requirements, or continuous operation can benefit from the drive’s advanced control capabilities.

Working Principle of ABB ACS800 Industrial Drive

The ABB ACS800-01-0060-5 operates by controlling the electrical supply delivered to an AC motor. The drive first converts incoming AC power into DC power through its rectifier section. The DC link then provides stable energy storage before the inverter stage converts the power back into variable-frequency AC output.

By adjusting the output frequency and voltage, the drive controls motor rotation speed and torque. This allows machines to operate according to production requirements rather than running continuously at maximum speed.

ABB’s Direct Torque Control technology enables fast response to changes in motor load and operating conditions. This improves machine performance in applications requiring accurate torque control and smooth operation.

The result is improved process control, reduced mechanical stress, and increased efficiency of industrial motor systems.

Industrial Applications

The ABB ACS800-01-0060-5 is suitable for a wide range of industrial applications where reliable motor control is required.

• Industrial production machinery
• Pumps and fan systems
• Conveyor systems
• Material handling equipment
• Paper and pulp machinery
• Mining and processing equipment
• Marine and heavy industrial applications

In manufacturing environments, variable frequency drives allow machines to adjust operating speed according to production requirements. This improves productivity while reducing unnecessary energy consumption.

For pump and fan applications, controlling motor speed can significantly improve system efficiency because energy consumption decreases when operating speed is reduced.

Heavy industrial equipment benefits from precise torque control because machines often experience changing mechanical loads during operation.

Advantages of ABB ACS800-01-0060-5

One of the main advantages of the ABB ACS800-01-0060-5 is its advanced motor control performance. The drive provides accurate speed and torque regulation, making it suitable for demanding industrial processes.

Another advantage is ABB’s Direct Torque Control technology. This control method provides fast response and accurate motor management, helping maintain stable operation even when load conditions change.

The drive also supports improved energy efficiency. By controlling motor speed according to actual process requirements, industrial systems can reduce unnecessary power consumption.

The ACS800 series is designed for long-term industrial operation, providing reliable performance in automation environments where equipment availability is critical.

Integration with Industrial Automation Systems

The ABB ACS800-01-0060-5 can be integrated into industrial automation systems through various control and communication solutions. It can operate as part of a larger control architecture involving PLC systems, process controllers, and supervisory monitoring platforms.

The drive receives control commands from automation systems and provides feedback information related to motor operation. This allows centralized monitoring and adjustment of industrial processes.

Proper configuration of parameters such as motor data, acceleration time, speed limits, and protection settings is important for achieving optimal performance.

The flexible design of the ACS800 series allows engineers to adapt the drive according to different industrial requirements.

Maintenance and Reliability Considerations

Variable frequency drives are important components in industrial automation systems, and regular maintenance helps ensure reliable operation. Inspection of cooling systems, electrical connections, and operating parameters can help maintain performance.

The ACS800-01-0060-5 uses forced air cooling and industrial-grade components designed for continuous operation. Maintaining proper ventilation and environmental conditions helps improve service life.

Monitoring drive alarms, operating temperature, and system performance allows maintenance personnel to identify potential issues before they affect production.

Role in Modern Industrial Automation

Industrial automation continues moving toward intelligent and energy-efficient production systems. Motor control technology is a key element because motors consume a significant portion of industrial electrical energy.

The ABB ACS800-01-0060-5 provides the control capability required for modern industrial motor applications. By combining accurate control, energy efficiency, and reliable operation, it supports improved automation performance.

As industries continue adopting advanced automation technologies, reliable variable frequency drives remain essential components for efficient production systems.

Conclusion

The ABB ACS800-01-0060-5 is a high-performance industrial variable frequency drive designed for 45kW motor control applications. With 79A rated output current, three-phase 380-500VAC operation, and advanced ABB motor control technology, it provides reliable speed and torque management for industrial automation systems. :contentReference[oaicite:5]{index=5}

Through ABB’s proven drive technology and flexible industrial design, the ACS800-01-0060-5 helps improve machine performance, optimize energy usage, and maintain stable operation in demanding industrial environments.
