ABB ACS800-01-0025-5 Industrial AC Drive 18.5 kW R3 Frame Variable Speed Motor Control
ABB ACS800-01-0025-5 Overview

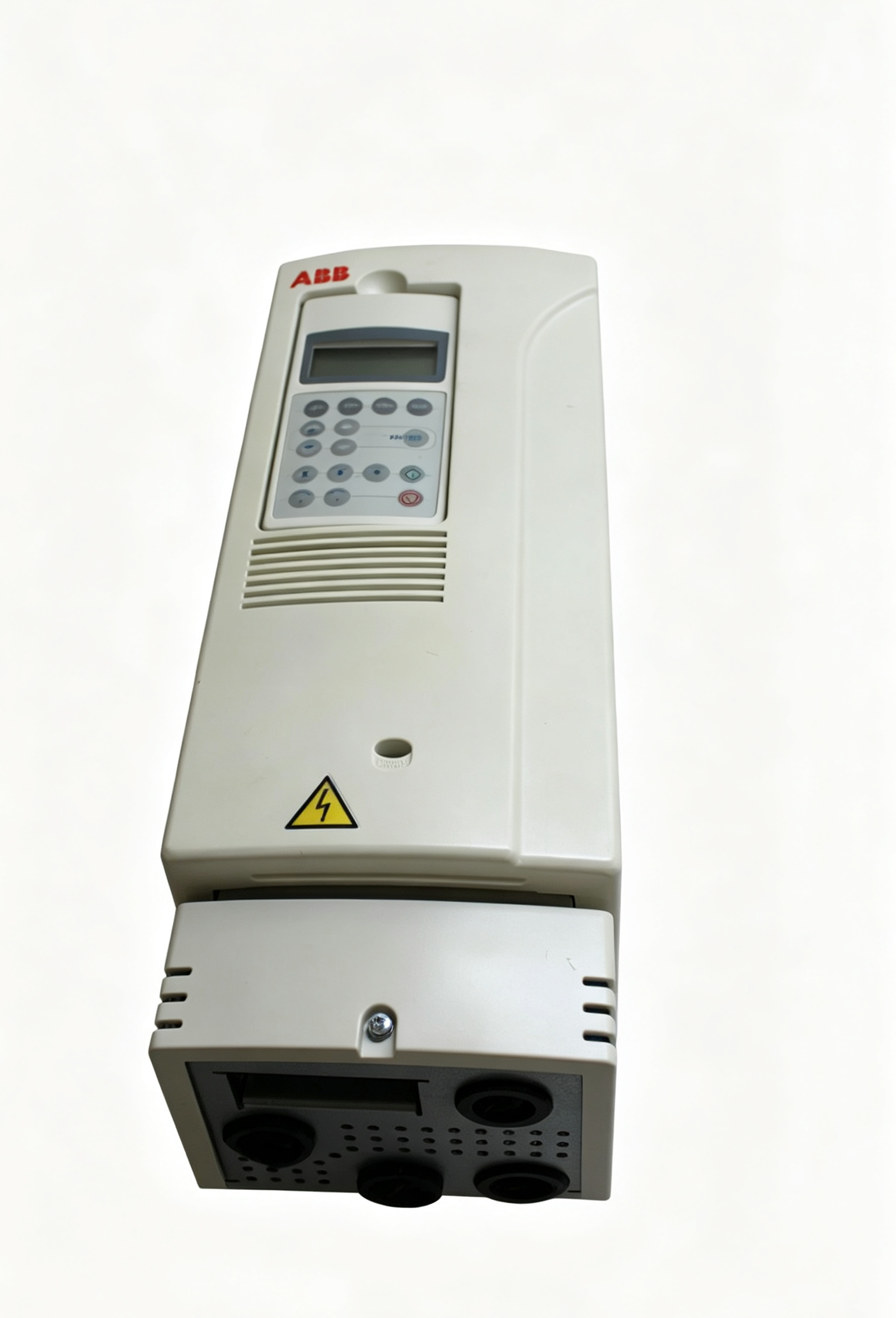

The ABB ACS800-01-0025-5 is an industrial AC drive belonging to the ABB ACS800-01 single-drive family. It is designed for variable-speed control of three-phase AC motors in industrial automation, process control and machine applications. The drive combines power conversion, motor control and configurable drive functions in a wall-mounted architecture, allowing an AC motor to operate according to the speed, torque and process requirements established by the control system.
ABB identifies the ACS800-01-0025-5 with a maximum continuous current rating of 34 A and a maximum continuous power rating of 18.5 kW. The corresponding ACS800-01 rating table identifies the unit as an R3 frame drive. The model belongs to the -5 voltage class, covering the three-phase supply range specified for the ACS800-01 series.
The actual application of the drive depends on the motor, load profile, supply voltage and selected operating mode. When engineering an installation, the complete drive type designation should therefore be considered together with the motor nameplate data and the process load rather than selecting the drive only from a nominal motor power value.
ACS800-01 Single Drive Architecture
The ACS800-01 is part of ABB’s ACS800 family of industrial single drives. This product architecture is intended for applications where an individual motor requires controlled speed and torque. The drive receives electrical power from the AC supply and produces controlled output power for the connected motor.
The ACS800-01 platform provides a structured solution for applications ranging from relatively simple variable-speed machinery to more demanding industrial processes. Drive parameters can be configured according to the connected motor and the required control strategy, while available interfaces and optional modules can provide connections to external automation systems.
The -0025-5 configuration occupies the R3 frame size within the ACS800-01 family. Frame size affects the physical dimensions, cooling arrangement and installation requirements of the drive. Correct identification of the frame size is therefore useful when planning cabinet space, ventilation and replacement work.
ABB Direct Torque Control Technology
Direct Torque Control, commonly abbreviated as DTC, is a major feature of the ABB ACS800 drive platform. DTC controls motor torque and magnetic flux directly, allowing the drive to respond dynamically to changes in the motor operating condition.
The control principle is designed to provide accurate motor operation over a broad range of speed and load conditions. Instead of treating motor speed as a simple relationship between frequency and voltage, the drive evaluates motor behavior and adjusts inverter operation to achieve the required torque and flux conditions.
Correct motor identification and parameter configuration are important for the control system. Motor nameplate information should be entered according to the actual connected motor, and additional application parameters should be configured according to the mechanical system and required operating characteristics.
Power and Current Ratings
The ABB product information lists the ACS800-01-0025-5 with a maximum continuous current of 34 A and a maximum continuous power of 18.5 kW. These values describe the continuous rating specified for the drive and should be distinguished from the higher or lower values associated with particular utilization categories.
ABB’s ACS800-01 rating table also identifies an Imax value of 46 A for the -0025-5 configuration. Under the documented application ratings, the drive is listed at 31 kW for light-overload operation and 23 kW for heavy-duty operation, with corresponding current values of 31 A and 23 A. These ratings demonstrate why the intended load characteristics must be considered when selecting an industrial drive.
A motor operating with frequent acceleration, high torque demand or cyclic loading can require a different rating approach from a motor operating with a comparatively stable load. The appropriate selection should therefore be based on the applicable ABB rating definitions and the actual process duty.
R3 Frame and Cooling

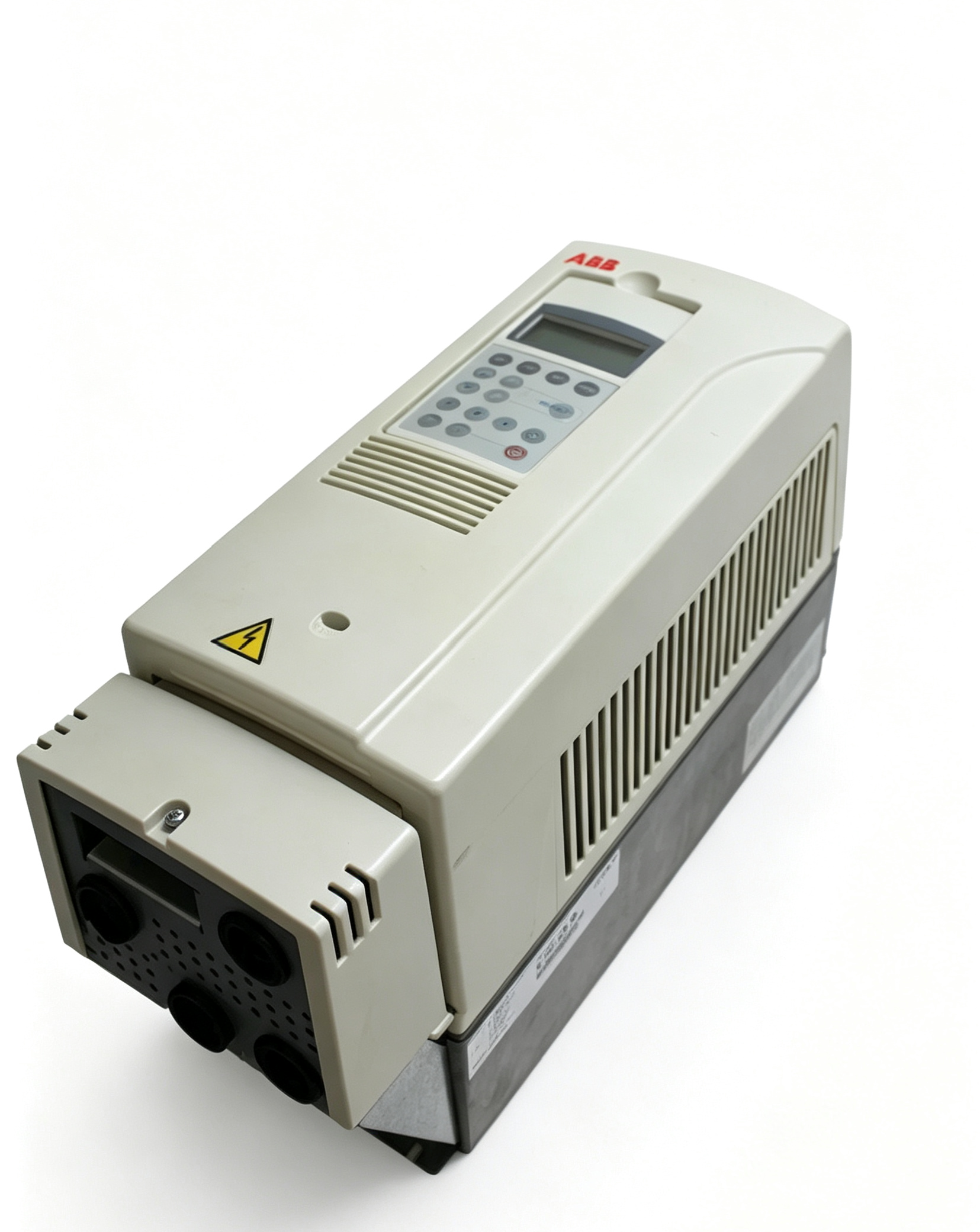

The ACS800-01-0025-5 uses the R3 frame size. The frame designation provides information about the mechanical and thermal construction of the drive and is useful when planning installation space and cooling arrangements.
ABB’s ACS800-01 product documentation lists approximately 69 m³/h of cooling airflow and approximately 530 W of heat dissipation for the -0025-5 configuration under the referenced rating conditions. These values are relevant to enclosure and installation design because the heat produced by the drive must be transferred away from the equipment.
Adequate ventilation is important for maintaining suitable operating conditions for power electronics. The installation should provide the clearances and airflow specified in the applicable ACS800 hardware documentation. Environmental temperature, enclosure construction and surrounding equipment should also be considered when designing the installation.
Three-Phase Supply and Motor Connection
The ACS800-01-0025-5 belongs to the -5 voltage class of the ACS800-01 series. ABB documentation specifies three-phase supply voltage options within the 380 V to 500 V range for this class, with the applicable drive ratings based on the specified supply conditions.
The drive converts the incoming AC supply into a controlled output for the connected motor. Correct supply voltage, motor voltage and current information are essential when configuring the drive. The motor connection should follow the requirements of the motor manufacturer and the applicable ACS800 installation instructions.
Protective devices, cable dimensions, grounding and electromagnetic compatibility should also be considered during installation. These elements are part of the complete electrical design and should not be determined from the drive model number alone.
Industrial Motor Control Applications
The ABB ACS800-01-0025-5 can be applied to industrial machinery that requires controlled AC motor speed and torque. Applications for the broader ACS800 platform include pumps, fans, conveyors, compressors, material-handling equipment and process machinery.
Variable-speed operation allows motor speed to be adjusted according to process requirements. For example, a pump can be operated at a controlled speed corresponding to a required process flow, while a conveyor can use a defined speed reference to coordinate material movement with other machinery.
The suitability of the ACS800-01-0025-5 for a particular application depends on the motor rating, mechanical load, acceleration requirements, operating cycle and environmental conditions. The drive rating should always be evaluated against the complete application rather than against motor nameplate power alone.
Control and Automation Integration
The ACS800-01 platform can operate as part of a larger industrial automation system. Depending on the selected configuration, the drive can exchange control references, status information and other operating data with external control equipment.
Integration with a programmable controller, distributed control system or other supervisory device allows the drive to participate in coordinated process control. Speed references, start and stop commands, operating status and fault information can be incorporated into the overall automation strategy according to the selected interface and parameter configuration.
When working with an existing ACS800 installation, the installed option modules and parameter settings should be documented before modifying the control architecture. Different installations can use different interface arrangements even when the basic drive model remains the same.
Parameter Configuration
Parameter configuration determines how the ACS800-01-0025-5 interacts with the motor and the external control system. Parameters can define motor identification data, speed limits, acceleration and deceleration times, torque limits, control references and fault-handling behavior.
Motor data is particularly important when using DTC because the drive uses motor-related information as part of its control calculations. Incorrect motor parameters can affect the expected operating behavior, so the configuration should be based on the actual motor nameplate and applicable commissioning instructions.
Application parameters can then be adjusted according to the mechanical characteristics of the connected equipment. A conveyor, pump, fan or other machine may require different acceleration, speed and torque settings even when the same drive model is used.
Protection and Installation Considerations
Electrical protection is an important part of an ACS800 installation. ABB’s hardware documentation lists fuse recommendations for the ACS800-01 -5 series. For the -0025-5 configuration, the referenced table specifies a 40 A fuse with a 500 V rating and identifies an ABB Control OFAF000H40 fuse type.
The protective-device selection should be verified against the current hardware manual and the actual installation conditions. Cable size, short-circuit conditions, grounding and upstream protection are part of the overall electrical design and must be coordinated with the drive.
Proper cable routing can also contribute to reliable operation. Motor and control cables should be installed according to the applicable EMC and installation requirements, particularly in systems containing sensitive measurement, communication or control equipment.
Maintenance and Identification

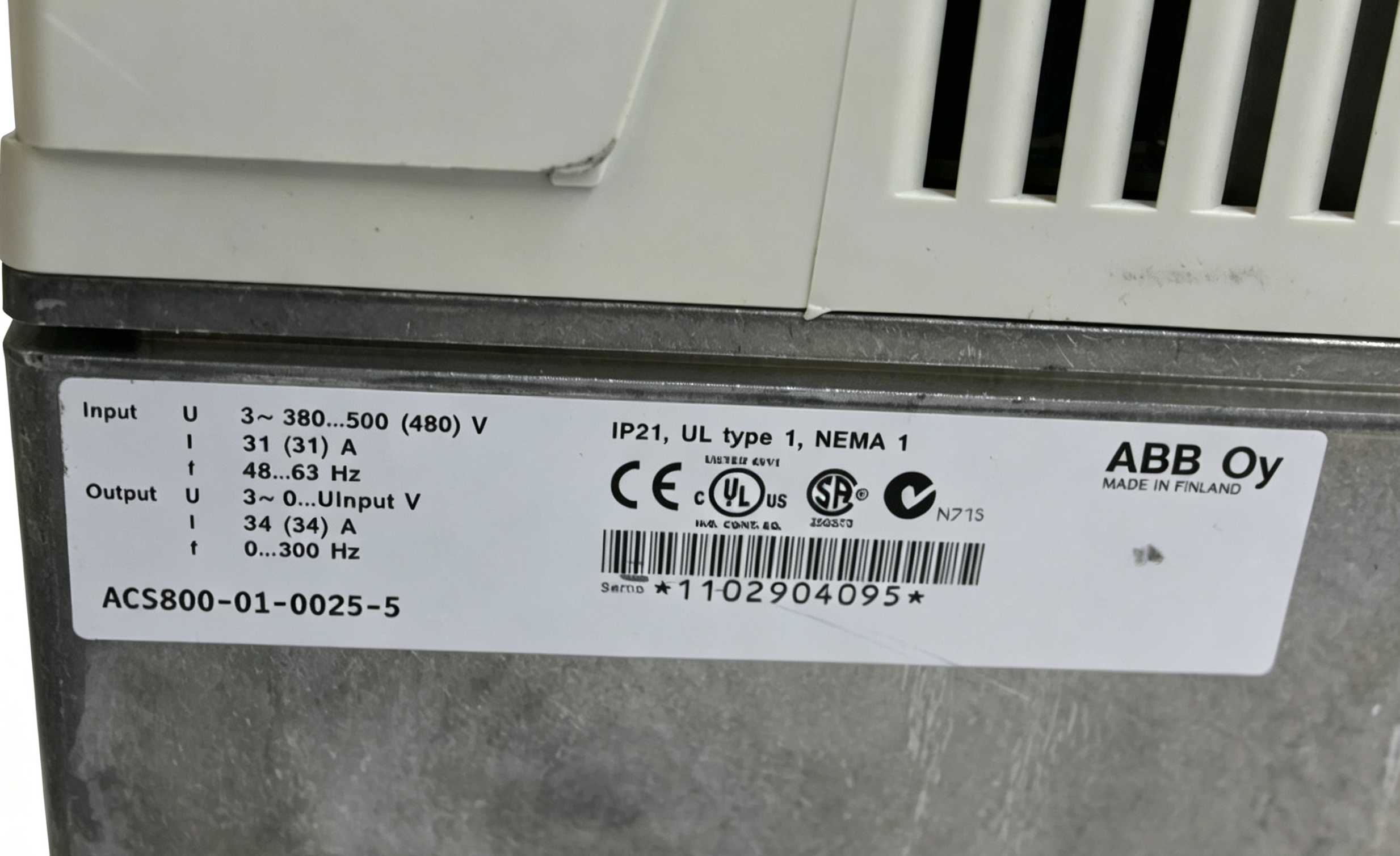

For maintenance and engineering purposes, the complete ACS800-01-0025-5 type designation should be recorded together with the serial number and installed option information. This helps distinguish the unit from other ACS800 models with similar physical construction.
Cooling components, electrical connections, fans and other drive-related components can require inspection according to operating conditions and the applicable ABB maintenance instructions. The installation environment can influence maintenance requirements because temperature, dust and enclosure conditions affect the thermal behavior of power electronics.
When an ACS800-01-0025-5 is being integrated into an existing automation system, the drive parameters and installed interface modules should also be documented. This information provides a clearer technical record and helps establish the relationship between the drive, motor and control system.
ABB ACS800-01-0025-5 Summary
The ABB ACS800-01-0025-5 is an industrial AC drive designed for variable-speed control of three-phase AC motors. ABB specifies a maximum continuous current of 34 A and a maximum continuous power of 18.5 kW for the model. The drive uses the R3 frame size and belongs to the -5 voltage class of the ACS800-01 series.
The drive incorporates ABB Direct Torque Control technology and provides a configurable platform for industrial motor control. Its applications can include pumps, fans, conveyors, compressors and other process or machine systems where controlled speed and torque are required.
For system engineering, maintenance and equipment identification, the ACS800-01-0025-5 should be evaluated together with the motor characteristics, supply conditions, load profile, frame size, installed options and parameter configuration. ABB hardware documentation remains the appropriate reference for detailed electrical installation, protection, cooling and commissioning requirements.
